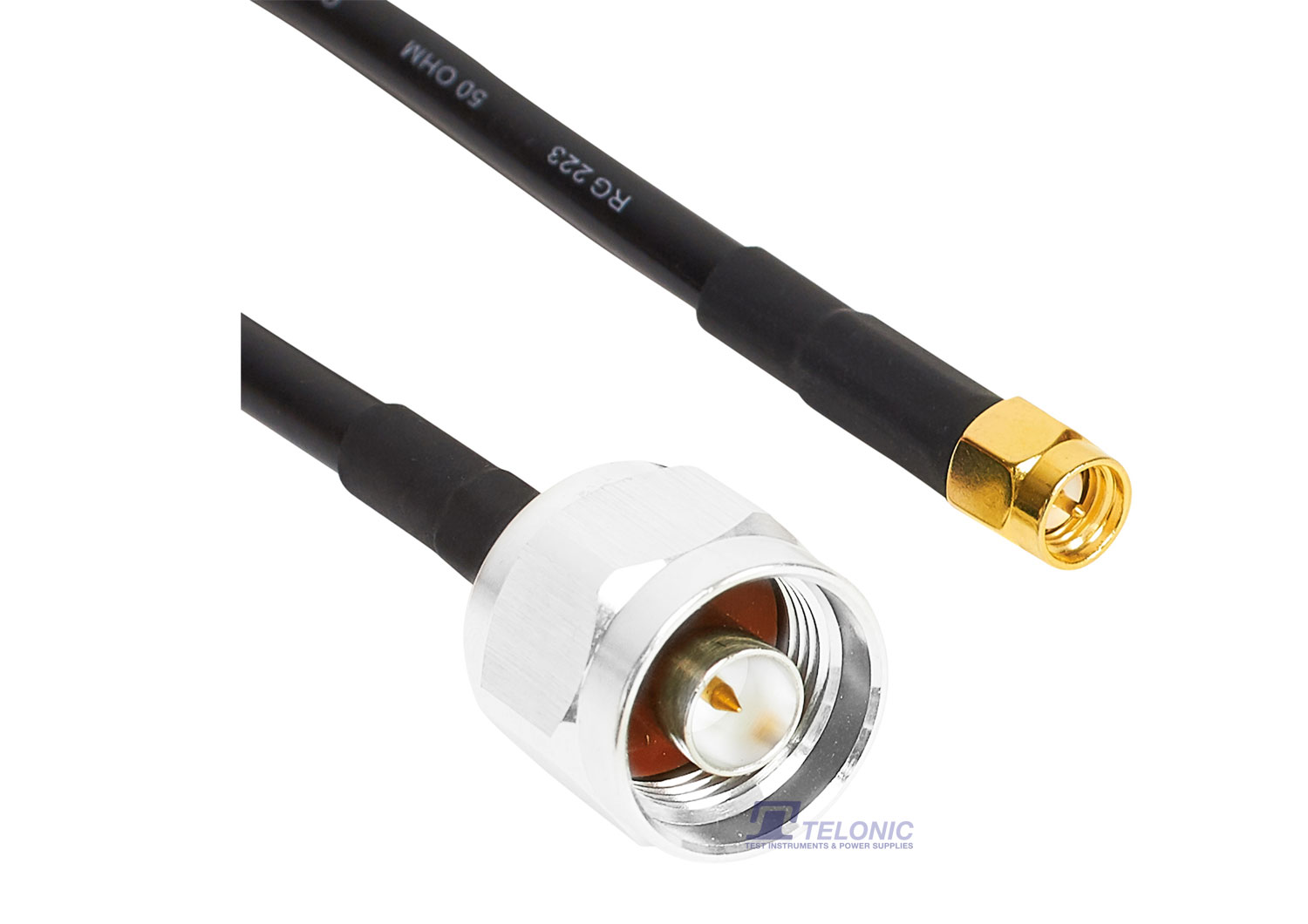

TEKBOX NM-SMAM/75/RG223 50Ω RF Cable

TEKBOX NM-SMAM/75/RG223 50Ω RF Cable

£14.00 (£16.8 inc VAT)

4 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: NM-SMAM-75-RG223 Categories: , , , , , Brand:

Description


Tekbox NM-SMAM/75/RG223 Cable

TEKBOX NM-SMAM/75/RG223 50Ω RF Cable

Insertion Loss

Attenuation
10MHz / 0.06dB
100MHz / 0.13dB
500MHz / 0.3dB
1GHz / 0.45dB
2GHz / 0.58dB
3GHz / 0.84dB
6GHz / 1.29dB



Parameters RG 58/U RG 142 RG 213/U RG 223/U RG 316/U RM 141
centre conductor Ø 0.9 mm 0.94 ± 0.02 mm 2.26 ± 0.09 mm 0.9 ± 0.01 mm 0.51 ± 0.03 mm 0.93 ± 0.02 mm
centre cond. material tinned copper silver-plated copper plain copper silver-plated copper silver-plated copper silver-plated copper
dielectric Ø 2.95 ± 0.1 mm 3 ± 0.05 mm 7.25 ± 0.18 mm 2.95 ± 0.1 mm 1.52 ± 0.05 mm 2.95 ± 0.05 mm
dielectric material low-density PTFE low-density PTFE low-density PTFE low-density PTFE PTFE PTFE
braid Ø Ø 3.13×112 Ø 4.15 mm, double Ø 0.18×192 Ø 4.2 mm, double 1.95 ± 0.08 mm 3.68 ± 0.1 mm
braid material tinned copper silver-plated copper plain copper tinned copper silver-plated copper silver-plated copper
sheath Ø 5 ± 0.1 mm 4.95 ± 0.15 mm 10.3 ± 0.18 mm 5.4 ± 0.1 mm 2.9 ± 0.1 mm 4.1 ± 0.1 mm
sheath material PVC FEP PVC PVC FEP FEP
min. bending radius single: 25 mm
repeated: 50 mm		 single: 30 mm
repeated: 50 mm		 single: 50 mm
repeated: 100 mm		 single: 26 mm
repeated: 53 mm		 single: 15 mm
repeated: 30 mm		 single: 12.7 mm
repeated: 40 mm
impedance 50 ± 2 Ω 50 ± 2 Ω 50 ± 2 Ω 50 ± 2 Ω 50 ± 2 Ω 50 ± 2 Ω
capacitance 100 pF / m 96 pF / m 100 pF / m 100 pF / m 96 pF / m 95 pF / m
inductance 0.2µH / m 0.22µH / m 0.25µH / m 0.2µH / m 0.27µH / m 0.27µH / m
velocity ratio 66 % 70 % 66 % 66 % 70 % 70 %
insulation resistance 5 GΩ km 35 GΩ km 10 GΩ km 5 GΩ km 1 GΩ km 1 GΩ km
center cond. res. 38 Ω / km 34 Ω / km 6 Ω / km 29 Ω / km 266 Ω / km 266 Ω / km
braid resistance 14 Ω / km 7.3 Ω / km 4.4 Ω / km 11 Ω / km 18 Ω / km 18 Ω / km
dielectric strength 4 kV 5 kV 5.5 kV 5 kV 1 kV 2 kV
shielding effectiveness typ. -56 dB / m typ. -80 dB / m < -57 dB / m < -83 dB / m < -52 dB / m < -100 dB / m
frequency range DC – 5.8 GHz DC – 6 GHz DC – 3 GHz DC – 6 GHz DC – 6 GHz DC – 18 GHz
temperature range -30°C ~ +70°C -55°C ~ +165°C -40°C ~ +85°C -30°C ~ +80°C -55°C ~ +165°C -55°C ~ +200°C
max. power @100MHz 230 W 1250 W 1316 W 280 W 395 W –
max. power @400MHz 110 W 650 W 658 W 121 W 209 W 950 W
max. power @ 1 GHz 65 W 380 W 416 W 80 W 135 W 620 W
max. power @ 3 GHz – 230 W – 46 W 78 W 360 W
max. power @ 6 GHz – 150 W – 32 W 11 W 220 W
max. power @ 12 GHz – – – – – 150 W
max. power @ 18 GHz – – – – – 120 W
attenuation @100MHz 0.16 dB/m 0.15 dB/m 0.06 dB/m 0.17 dB/m 0.26 dB/m 0.11 dB/m
attenuation @400MHz 0.32 dB/m 0.3 dB/m 0.13 dB/m 0.33 dB/m 0.53 dB/m 0.23 dB/m
attenuation @ 1 GHz 0.57 dB/m 0.49 dB/m 0.23 dB/m 0.53 dB/m 0.89 dB/m 0.38 dB/m
attenuation @ 3 GHz 1.15 dB/m 0.9 dB/m 0.49 dB/m 0.98 dB/m 1.63 dB/m 1.08 dB/m
attenuation @ 6 GHz 1.69 dB/m 1.37 dB/m – 1.49 dB/m 2.34 dB/m 1.08 dB/m
attenuation @ 12 GHz – – – – – 1.66 dB/m
attenuation @ 18 GHz – – – – – 2.16 dB/m
Connectors Length Cable Conn. material Part #
N-Male to N-Male 30 cm RM141 stainless steel NM-NM/30/RM141
N-Male to N-Male 35 cm RG 223/U copper-tin-zinc plated brass NM-NM/35/RG223
N-Male to N-Male 50 cm RM141 stainless steel NM-NM/50/RM141
N-Male to N-Male 75 cm RG 58/U copper-tin-zinc plated brass NM-NM/75/RG58
N-Male to N-Male 75 cm RG 223/U copper-tin-zinc plated brass NM-NM/75/RG223
N-Male to N-Male 75 cm RG 142 armoured stainless steel NM-NM/75/RG142/Test
N-Male to N-Male 1 m RM141 stainless steel NM-NM/100/RM141
N-Male to N-Male 1.25 m RG 223/U copper-tin-zinc plated brass NM-NM/125/RG223
N-Male to N-Male 3.12 m RG 213/U copper-tin-zinc plated brass NM-NM/312/RG213
N-Male to N-Male 3 m RG 142 copper-tin-zinc plated brass NM-NM/300/RG142
N-Male to N-Male 5 m RG 223/U copper-tin-zinc plated brass NM-NM/500/RG223
N-Male to N-Male 5 m RG 213/U copper-tin-zinc plated brass NM-NM/500/RG213
N-Male to N-Male 10 m RG 142 copper-tin-zinc plated brass NM-NM/1000/RG142
N-Male to SMA-Male 30 cm RM141 stainless steel NM-SMA/30/RM141
N-Male to SMA-Male 35 cm RG 223/U N: copper-tin-zinc plated brass; SMA: gold plated brass NM-SMA/35/RG223
N-Male to SMA-Male 50 cm RM141 stainless steel NM-SMA/50/RM141
N-Male to SMA-Female 50 cm RM141 N: stainless steel; SMA: gold-plated brass NM-SMAF/50/RM141
N-Male to SMA-Female 75 cm RG 58/U N: copper-tin-zinc plated brass; SMA: gold plated brass NM-SMAF/75/RG58
N-Male to SMA-Male 50 cm RG 223/U N: copper-tin-zinc plated brass; SMA: gold plated brass NM-SMA/50/RG223
N-Male to SMA-Male 75 cm RG 142 armoured stainless steel NM-SMA/75/RG142/Test
N-Male to SMA-Male 1 m RM141 stainless steel NM-SMA/100/RM141
N-Male to SMA-Female 1 m RM141 stainless steel NM-SMAF/100/RM141
N-Male to SMA-Male 1.25 m RG 223/U copper-tin-zinc plated brass NM-SMA/125/RG223
N-Male to BNC-Male 35 cm RG 223/U copper-tin-zinc plated brass NM-BNCM/35/RG223
N-Male to BNC-Male 75 cm RG 58/U copper-tin-zinc plated brass NM-BNCM/75/RG58
N-Male to BNC-Male 1.25 m RG 223/U copper-tin-zinc plated brass NM-BNCM/125/RG223
BNC-Male to BNC-Male 1.25 m RG 223/U copper-tin-zinc plated brass BNCM-BNCM/125/RG223
BNC-Male to BNC-Male 1.5 m RG 6, 75 Ohm copper-tin-zinc plated brass BNCM-BNCM/150/RG6/75Ω
BNC-Male to BNC-Male 3 m RG 6, 75 Ohm copper-tin-zinc plated brass BNCM-BNCM/300/RG6/75Ω
BNC-Male to BNC-Male 5 m RG 223/U copper-tin-zinc plated brass BNCM-BNCM/500/RG223
BNC-Male to SMA-Male 25 cm RG 316/U BNC: copper-tin-zinc plated brass; SMA: gold plated brass BNCM-SMA/25/RG316
BNC-Male to SMA-Male 35 cm RG 223/U copper-tin-zinc plated brass BNCM-SMA/35/RG223
BNC-Male to SMA-Male 10 m RG 142 copper-tin-zinc plated brass BNCM-SMA/1000/RG142
SMA-Male to SMA-Male 30 cm RM141 stainless steel SMAM-SMAM/30/RM141
SMA-Male to SMA-Male 35 cm RG 223/U RM141 SMAM-SMAM/35/RG223
SMA-Male to SMA-Male 50 cm RM141 stainless steel SMAM-SMAM/50/RM141
SMA-Male to SMA-Female 50 cm RM141 stainless steel; SMA: gold-plated brass SMAM-SMAF/50/RM141
SMA-Male to SMA-Male 75 cm RG 223/U RM141 SMAM-SMAM/75/RG223
SMA-Male to SMA-Female 75 cm RG 142 armoured stainless steel SMAM-SMAF/75/RG142/Test
SMA-Male to SMA-Male 1 m RM141 stainless steel SMAM-SMAM/100/RM141
SMA-Male to SMA-Female 1 m RM141 stainless steel SMAM-SMAF/100/RM141
SMA-Male to SMA-Male 1.25 m RG 223/U gold-plated brass SMAM-SMAM/125/RG223
SMA-Male to SMB-Female 75 cm RG 316/U gold-plated brass SMAM-SMBF/75/RG316



Connectors length cable VSWR @ 3 GHz ins. loss @ 3 GHz ins. loss @ 6 GHz
N-Male to N-Male 35 cm RG 223/U ≤ 1.2 ≤ 0.7 dB ≤ 1.3 dB
N-Male to N-Male 75 cm RG 58/U ≤ 1.2 ≤ 1.1 dB ≤ 2 dB
N-Male to N-Male 75 cm RG 223/U ≤ 1.2 ≤ 1.1 dB ≤ 1.5 dB
N-Male to N-Male 75 cm RG 142 ≤ 1.12 ≤ 0.8 dB ≤ 1.2 dB
N-Male to N-Male 3 m RG 142 ≤ 1.2 ≤ 3.1 dB ≤ 4.8 dB
N-Male to N-Male 3,12 m RG 213 ≤ 1.25 ≤ 2.6 dB ≤ 4.5 dB
N-Male to N-Male 5 m RG 223/U ≤ 1.3 ≤ 5.3 dB ≤ 7.5 dB
N-Male to N-Male 5 m RG 213/U ≤ 1.25 ≤ 4.7 dB ≤ 6.8 dB
N-Male to N-Male 10 m RG 142 ≤ 1.2 ≤ 9.4 dB ≤ 14.8 dB
N-Male to SMA-Male 35 cm RG 223/U ≤ 1.2 ≤ 0.7 dB ≤ 1.2 dB
N-Male to SMA-Male 75 cm RG 58 ≤ 1.2 ≤ 1.3 dB ≤ 2 dB
N-Male to SMA-Male 75 cm RG 223/U ≤ 1.2 ≤ 1.1 dB ≤ 1.5 dB
N-Male to SMA-Male 75 cm RG 142 ≤ 1.12 ≤ 0.8 dB ≤ 1.2 dB
N-Male to BNC-Male 35 cm RG 223/U ≤ 1.3 ≤ 0.8 dB
N-Male to BNC-Male 75 cm RG 58/U ≤ 1.3 ≤ 1.4 dB
N-Male to BNC-Male 75 cm RG 223/U ≤ 1.3 ≤ 1.2 dB
BNC-Male to BNC-Male 35 cm RG 223/U ≤ 1.3 ≤ 0.8 dB
BNC-Male to SMA-Male 35 cm RG 223/U ≤ 1.3 ≤ 0.8 dB
SMA-Male to SMA-Male 25 cm RG 316/U ≤ 1.2 ≤ 0.5 dB ≤ 0.9 dB
SMA-Male to SMA-Male 75 cm RG 142 ≤ 1.12 ≤ 0.8 dB ≤ 1.2 dB
SMA-Male to SMB-Female 75 cm RG 316/U ≤ 1.2 ≤ 2.7 dB



Connectors length cable VSWR @ 8.5 GHz ins. loss @ 6 GHz ins. loss @ 8.5 GHz
N-Male to N-Male 30 cm RM141 ≤ 1.2 ≤ 0.8 dB ≤ 0.9 dB
N-Male to N-Male 50 cm RM141 ≤ 1.2 ≤ 0.9 dB ≤ 1.3 dB
N-Male to N-Male 100 cm RM141 ≤ 1.2 ≤ 1.4 dB ≤ 1.6 dB
N-Male to SMA-Male 30 cm RM141 ≤ 1.18 ≤ 0.5 dB ≤ 0.6 dB
N-Male to SMA-Male 50 cm RM141 ≤ 1.18 ≤ 0.7 dB ≤ 0.8 dB
N-Male to SMA-Male 100 cm RM141 ≤ 1.18 ≤ 1.3 dB ≤ 1.5 dB
SMA-Male to SMA-Male 30 cm RM141 ≤ 1.15 ≤ 0.4 dB ≤ 0.5 dB
SMA-Male to SMA-Male 50 cm RM141 ≤ 1.15 ≤ 0.6 dB ≤ 0.8 dB
SMA-Male to SMA-Male 100 cm RM141 ≤ 1.15 ≤ 1.2 dB ≤ 1.2 dB
