TEKBOX TBAS2 RF Attenuation & Termination Set

£139.00 (£166.8 inc VAT)

FREE UK delivery: on all orders above £100+vat

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Only 1 left in stock!

SKU: TBAS2 Category:

Description

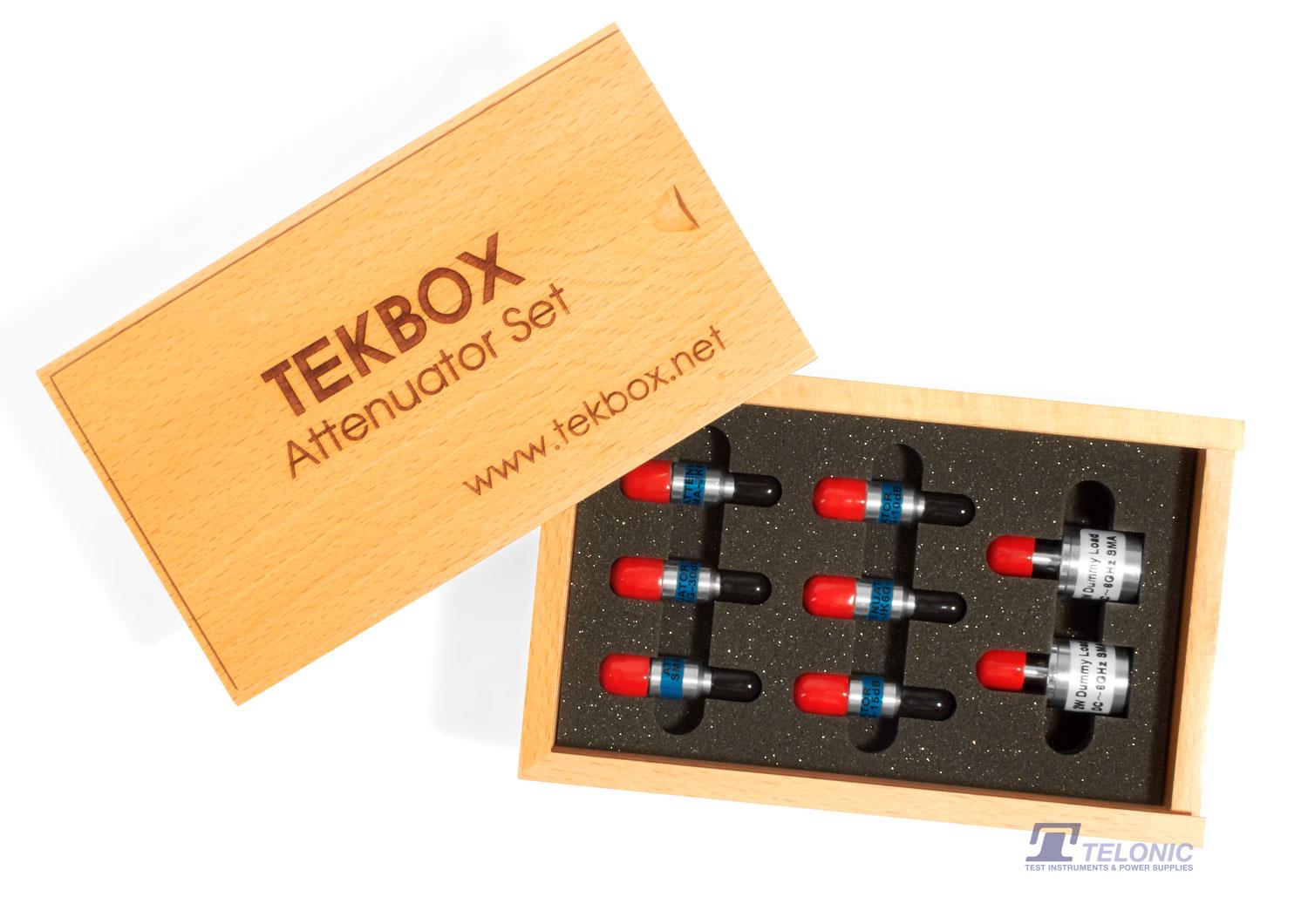

The Tekbox TBAS2 RF attenuator set consists of a 3dB, 6dB, 10dB, 15dB, 20dB and 30dB attenuator in a beech wood box. Furthermore it contains two pieces SMA 50 Ohm terminations.

Specification:

  • Attenuation: 3dB, 6dB, 10dB & 15dB (±0.5dB), 20dB & 30dB (±0.8dB)
  • Frequency Range: DC – 6GHz
  • VSWR: <1.2:1
  • Power Rating: 2W @ -55°C to 70°C, Up to 125°C with 50% power de-rating
  • Connectors: SMA-type male / SMA-type female, bidirectional
  • Impedance: 50Ω
  • Frequency Range: DC – 6GHz
  • VSWR: <1.1:1
  • Power Rating: 2W @ -55°C to 70°C, Up to 125°C with 50% power de-rating
  • Connector: SMA-type male
  • Box: Beech Wooden Box
  • Dimensions: 150 x 95 x 45mm
  • Weight: 490g
