Siglent SNA5014A 9kHz – 8.5GHz Vector Network Analyser

£19203.00 (£23043.60 inc VAT)

Request Demo SKU: SNA5014A Categories: ,

Description

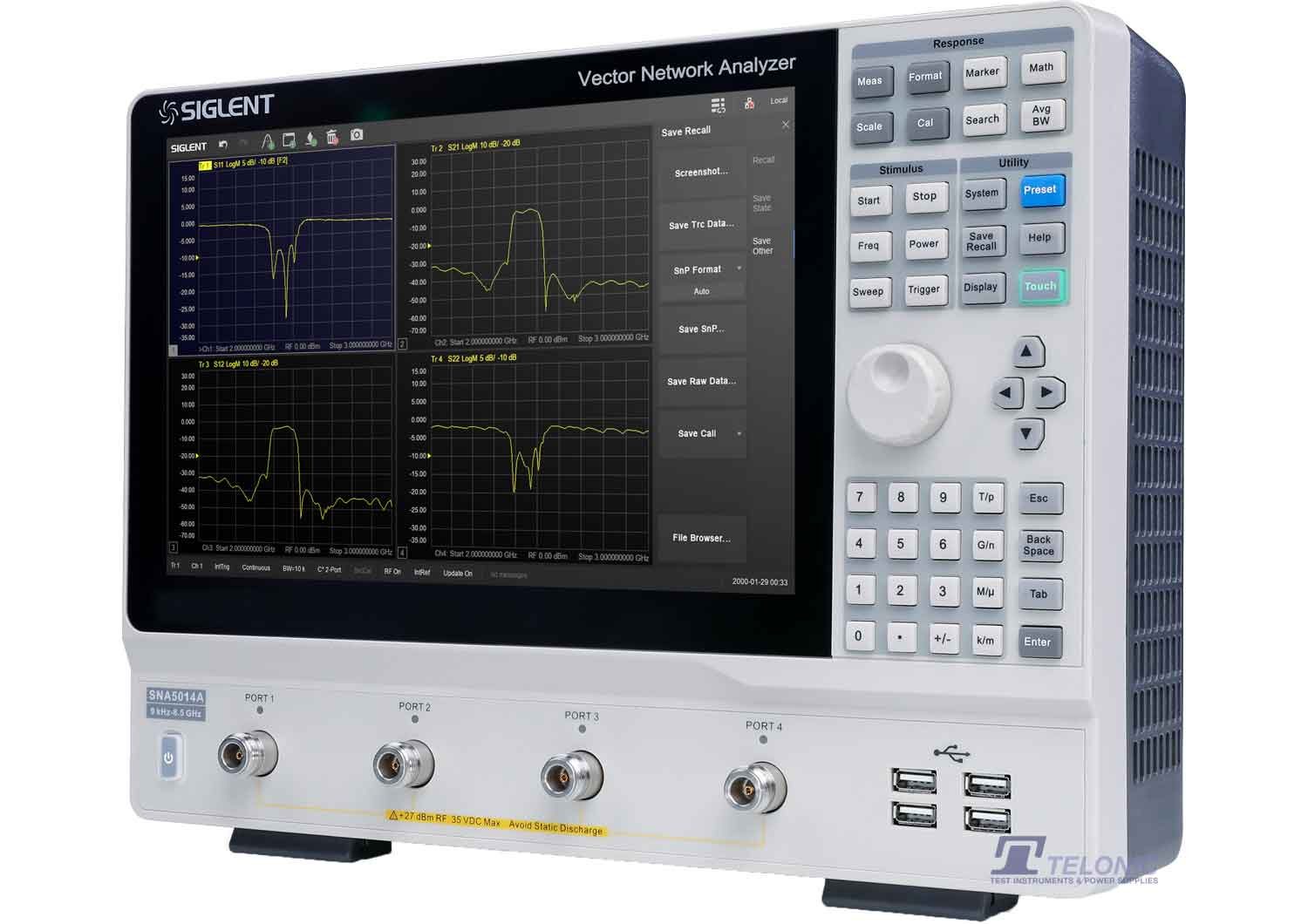

Siglent SNA5014A Vector Network Analyser

The SNA5014A is a Vector Network Analyser with a Frequency Range up to 8.5GHz. The SIGLENT SNA5000A series of Vector Network Analysers have a frequency range of 9kHz to 8.5GHz, which support 2/4-ports scattering-parameter, differential-parameter, and time-domain parameter measurements. The SNA5000A series of VNAs are effective instrumentation for determining the Q-factor, bandwidth and insertion loss of a filter, They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode and Segment-Sweep mode. The SNA5000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for increased flexibility in R&D and manufacturing applications.

Features:

  • Frequency Range: 9kHz – 8.5GHz
  • Ports: 4
  • Frequency Resolution: 1Hz
  • Level Resolution: 0.05dB
  • Range of IFBW: 10Hz ~ 3MHz
  • Setting Range of Output Level: -55dBm ~ +10dBm
  • Dynamic Range: 125dB
  • Bias-Tees: Standard
  • Interface: LAN, USB Device, USB Host (USB-GPIB)
  • Remote Control: SCPI/LabView/IVI based on USB-TMC/VXI-11/Socket/Telnet/WebServer
  • Display: 12.1-inch Touch Screen
  • Video Output: HDMI
  • Types of Calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
  • Types of Measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis(TDR)

Siglent SNA5000A Vector Network Analyser Comparison Table

ModelFrequency RangePortsFrequency ResolutionRange of IFBWDynamic RangeOutput Level Range
SNA5002A9kHz – 4.5GHz21Hz10Hz ~ 3MHz125dB-55dBm ~ +10dBm
SNA5004A9kHz – 4.5GHz41Hz10Hz ~ 3MHz125dB-55dBm ~ +10dBm
SNA5012A9kHz – 8.5GHz21Hz10Hz ~ 3MHz125dB-55dBm ~ +10dBm
SNA5014A9kHz – 8.5GHz41Hz10Hz ~ 3MHz125dB-55dBm ~ +10dBm

Product Images

Documentation


Specifications
Frequency Range4.5GHz/8.5GHz
Frequency resolution1Hz
Level Resolution0.05dB
Range of IFBW10Hz~3MHz
Setting range of output level-55dBm ~ +10dBm
Dynamic range125dB
Types of calibrationResponse calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
Support Bias-TeesYes
PortsSupport 2/4-ports scattering-parameter, differential-parameter, and time-domain parameter measurements
One-Key MeasurementSupport one-key measurement of Q-factor, bandwidth and insertion loss of a filter
Support featuresSupport impedance conversion, fixture simulation and adapter removal/insertion adjustments
InterfaceLAN, USB Device, USB Host(USB-GPIB)
Remote controlSCPI / Labview / IVI based on USB-TMC / VXI-11/ Socket / Telnet / Webserver
Touch controlMulti Touch, Mouse, Keyboard
Screen12.1-inch touch screen
Video outputHDMI
Types of measurementScattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion
Operating environment
Temperature0 to 40 ℃
Humidity85%: 40 ℃,24 hours
Altitude0 to 3000 m
Non-operating storage environment
Temperature-20 ℃ to 60 ℃
Humidity85%: 65 ℃,24 hours
Altitude0 to 15000 m
SizeW×H×D=378×284×126 mm
Weight2-port: 5.5 kg, 4-port 7.4 kg
EMC
Conducted disturbance: CISPR 11/EN 55011CLASS A group 1, 150 kHz – 30 MHz
Radiated disturbance: CISPR 11/EN 55011CLASS A group 1, 30 MHz -1 GHz
Electrostatic discharge(ESD): IEC61000-4-2/
EN61000-4-2		4.0 kV (contact), 8.0 kV (air)
Radio-frequency electromagnetic field Immunity:
IEC 61000-4-3/EN 61000-4-3		10 V/m (80 MHz to 1 GHz)
3 V/m (1.4 GHz to 2 GHz)
1 V/m (2.0 GHz to 2.7 GHz)
Electrical fast transients (EFT):IEC 61000-4-4/
EN 61000-4-4		2 kV (AC power ports)
Surges: IEC 61000-4-5/EN 61000-4-51 kV (Line to line)
2 kV (Line to ground)
Radio-frequency continuous conducted Immunity:
IEC 61000-4-6/EN 61000-4-6		3 V, 0.15-80 MHz
Voltage dips and interruptions: IEC 61000-4-11/
EN 61000-4-11		Voltage dips:
0% UT during 1 cycle;
40% UT during 10/12 cycles;
70% UT during 25/30 cycles
Voltage interruptions: 0% UT during 250
cycles
SafetyUL 61010-1:2012/R: 2018-11; CAN/CSA-C22.2 No. 61010-1:2012/A1:2018-11.
UL 61010-2-030:2018; CAN/CSA-C22.2 No. 61010-2-030:2018.

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
