Siglent SDM4065A 6.5 Digit Digital Multimeter, ACV 200 mV – 750 V, DCV 200 mV -1000 V

£761.00 (£913.20 inc VAT)

Available on back-order, delivery normally 1 - 2 weeks

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SDM4065A Categories: , ,

Description


Siglent SDM4065A Digital Multimeter

The SDM4065A series is Dingyang Technology’s flagship digital multimeter, providing 6½-digit high accuracy and a maximum reading rate of up to 50,000 times/second, ensuring fast and accurate measurements. Built-in thermocouple cold-end compensation supports a variety of data visualization functions such as histograms and trend charts, allowing users to analyze data intuitively. USB Device, USB Host and LAN interfaces are standard, supporting remote control and data transmission. Its 2Gb large-capacity storage can save a large amount of measurement data and setting files, making it an ideal choice for professional engineers and researchers.

Key Features:

  • 6½ digit reading resolution (2,200,000 counts)
  • Maximum reading rate 50k rdgs/s, minimum sampling interval 20μs
  • True RMS AC voltage and AC current measurements
  • Recorder function and digitizer function
  • 5-inch touch screen, resolution 800*480

Comparison of Model Types:

ModelSDM4065ASDM4065A-SC[1]
Number of Digits6½
DCV Basic Accuracy35 ppm
Max Reading Rate50,000 rdgs/s
MemoryUp to 2 million readings
Support ScannerNoYes
DCV Range200 mV ~ 1000 V
ACV Range200 mV ~ 750 V
DCI Range200 uA ~ 10 A
ACI Range200 uA ~ 10 A
2/4-Wire Resistance Range200 Ω ~ 100 MΩ
Continuity / DiodeBuzzer, 4 V
Frequency / Period Range3 Hz ~ 1 MHz
TemperatureRTD, thermocouple
Capacitance Range2 nF ~ 10 mF
IOUSB Host, USB Device, LAN, GPIB (optional)
External InterfaceExit trigger, VMC out
Display Screen5-inch TFT touchable display screen

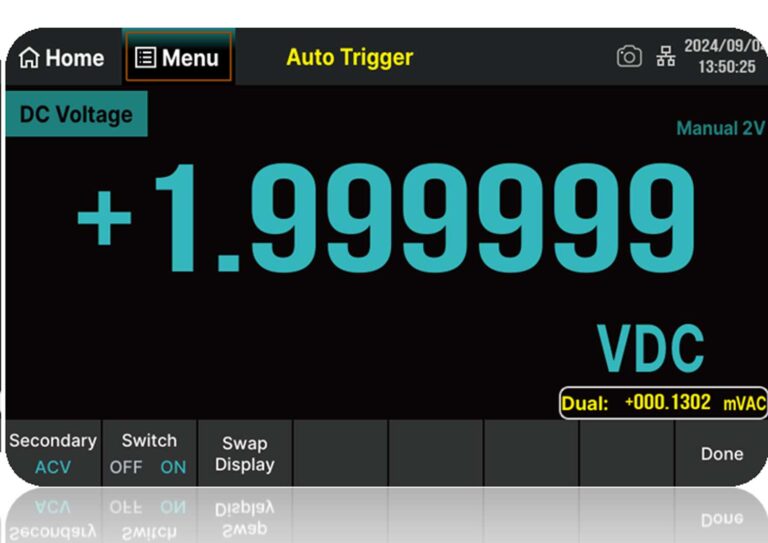

Product Images

Documentation

.download-link { display: inline-flex; align-items: center; gap: 10px; margin-bottom: 10px; } .download-link img { width: 24px; height: auto; vertical-align: middle; }

SDM4055A Datasheet

PDF SDM4055 Datasheet

SDM4055A User Manual

PDF SDM4055 User Manual

SDM4065A Datasheet

PDF SDM4065 Datasheet

SDM4065A User Manual

PDF SDM4065 User Manual

Power Supply
AC 100 V – 120 V45 Hz ~ 66 Hz
AC 200 V – 240 V45 Hz ~ 66 Hz
Consumption30 VA max
Mechanism
Dimension
(length*width *height)		379*260*103mm
Weight3.8kg
Other Characteristics
Display Screen5-inch TFT display screen with resolution 800*480. Touchable screen
Operation EquipmentFull accuracy for 0°C to 50°C; Full accuracy to 40°C, 80% RH, non-condensing
Storage temperature: -20°C~70°C
Altitude: up to 2000 meters
Remote InterfaceLAN, USB Device, USB Host, GPIB (optional)
Programmer LanguageSCPI-compliant with the latest widely used multimeter command sets
Warm-up Time90 minutes
Standard
Electromagnetic
Compatibility		Compliant with EMC directive (2014/30/EU), compliant with or superior to IEC 61326-1:2020/EN61326-1:2021 (basic requirements)
Conducted EmissionCISPR 11/EN 55011CLASS A group 1,
150kHz~ 30MHz
Radiated EmissionCISPR 11/EN 55011CLASS A group 1,
30MHz~ 1GHz
Electro-Static
Discharge(ESD)		IEC 61000-4-2/EN 61000-4-24.0 kV(touch), 8.0 kV(air)
RF Electromagnetic
Field Immunity		IEC 61000-4-3/EN 61000-4-310 V/m(80 MHz to 1 GHz)
3 V/m(1.4 GHz to 2 GHz)
1 V/m(2.0 GHz to 2.7GHz)
Electrical Fast Transient
(EFT)		IEC 61000-4-4/EN 61000-4-42kV (AC input port)
SurgeIEC 61000-4-5/EN 61000-4-51kV (Line to Line)
2kV (Line to Earth)
RF Continuous
Conduction Immunity		IEC 61000-4-6/EN 61000-4-63 V,0.15~ 80MHz
Voltage Dips and Short
Interruptions		IEC 61000-4-11/EN 61000-4-11Voltage Dips:
0% UT during 1 cycle
40% UT during 10/12 cycles
70% UT during 25/30 cyclesShort Interruptions:
0% UT during 250/300 cycles
Safety
Compliant with the Low Voltage Directive (2006/95/EC) and standard EN61010-1:2010

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
