Siglent SDM3065X DC: 200mV – 1000V, AC: 200mV – 1000V, DC: 200Β΅A – 10A, Dual-Display Digital Multimeter

£617.00 (Β£740.40 inc VAT)

5 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: SDM3065X Categories: ,

Description


Siglent SDM3065X Digital Multimeter

The SDM3065X is a 6.5 digit DMM (Digital multimeter with 2,200,000 counts) incorporating a dual-display. The SDM3065X series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.

  • Real 6.5 digit display (2,200,000 counts)
  • True-RMS AC Voltage and AC Current measuring
  • 1 Gb NAND flash size, mass storage configuration files and data files
  • Standard interfaces: USB Device, USB Host, LAN (Optional Accessories: USB-GPIB Adapter)
  • Supports double display, Chinese and English menu
  • File management (support for U-disc and local storage)
  • Built-in cold terminal compensation for thermocouple
  • Comes with easy, convenient and flexible sensor measurement control software: EasyDMM
  • Math Function: Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Meter, Etc.

Siglent SDM3000X Digital Multimeter Comparison Table

ModelReading ResolutionDC Voltage Accuracy In A YearDC Voltage Measurement RangeAC Voltage Measurement RangeDC Current Measurement RangeScanner Card
SDM3045X4 1/2 Digit0.01% of reading + 6 counts600 mV – 1000 V600 mV – 750 V600 Β΅A – 10 ANo
SDM30555 1/2 Digit0.015% of reading + 0.003% of range200 mV – 1000 V200 mV – 750 V200 Β΅A – 10 ANo
SDM3055-SC5 1/2 Digit0.015% of reading + 0.003% of range200 mV – 1000 V200 mV – 750 V200 Β΅A – 10 AYes
SDM3065X6 1/2 Digit0.0035% of reading + 0.0006% of range200 mV – 1000 V200 mV – 750 V200 Β΅A – 10 ANo
SDM3065X-SC6 1/2 Digit0.0035% of reading + 0.0006% of range200 mV – 1000 V200 mV – 750 V200 Β΅A – 10 AYes

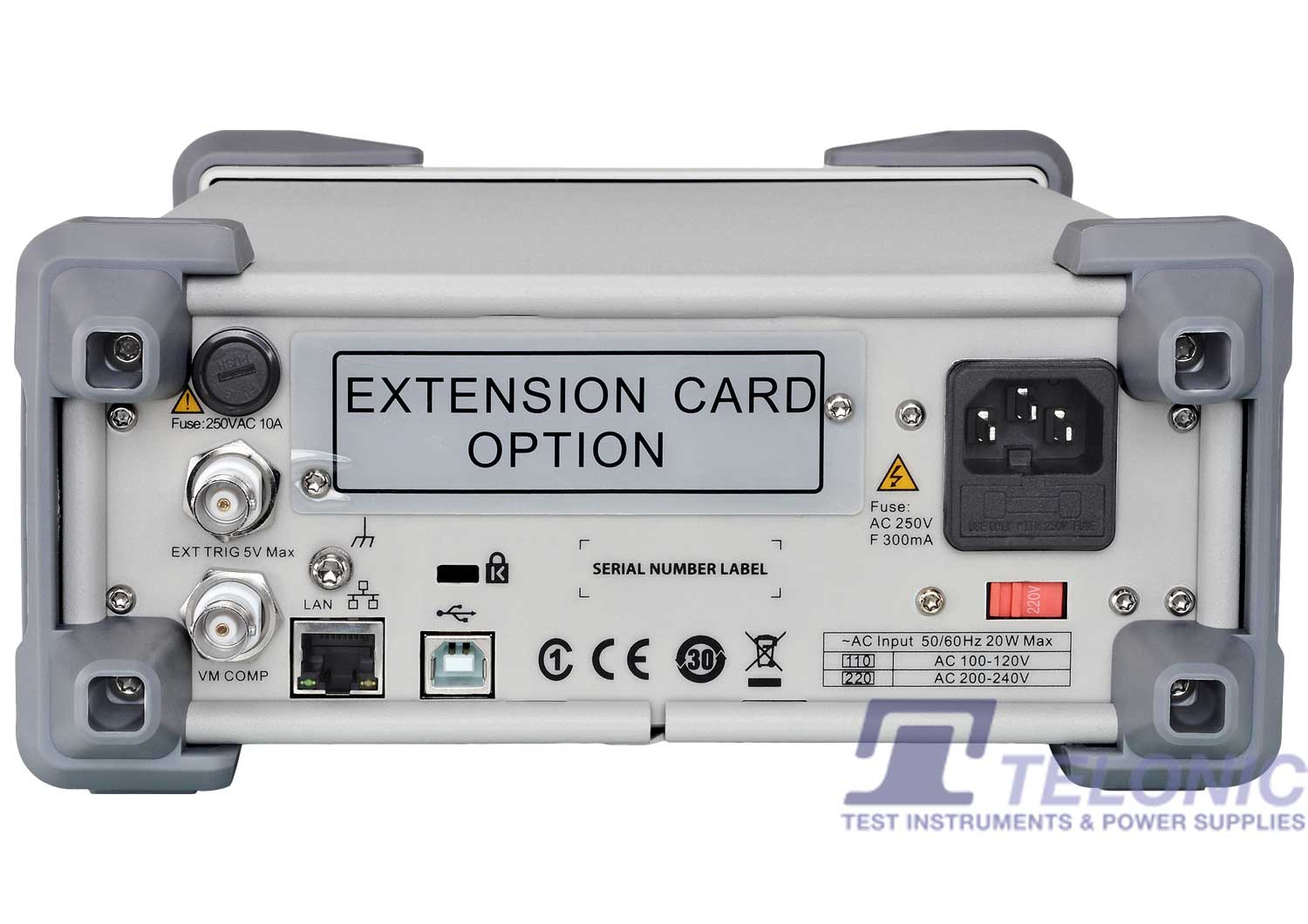

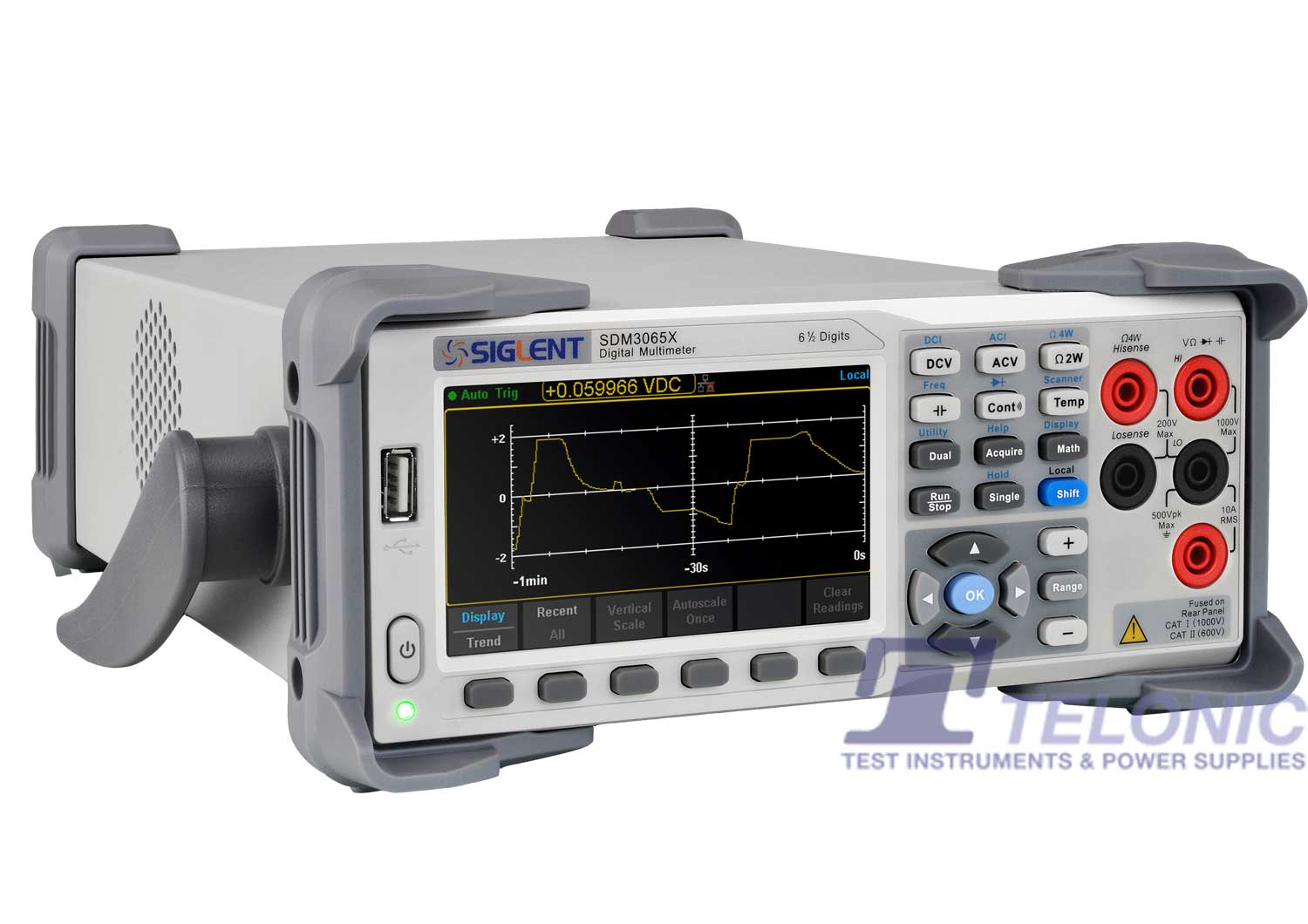

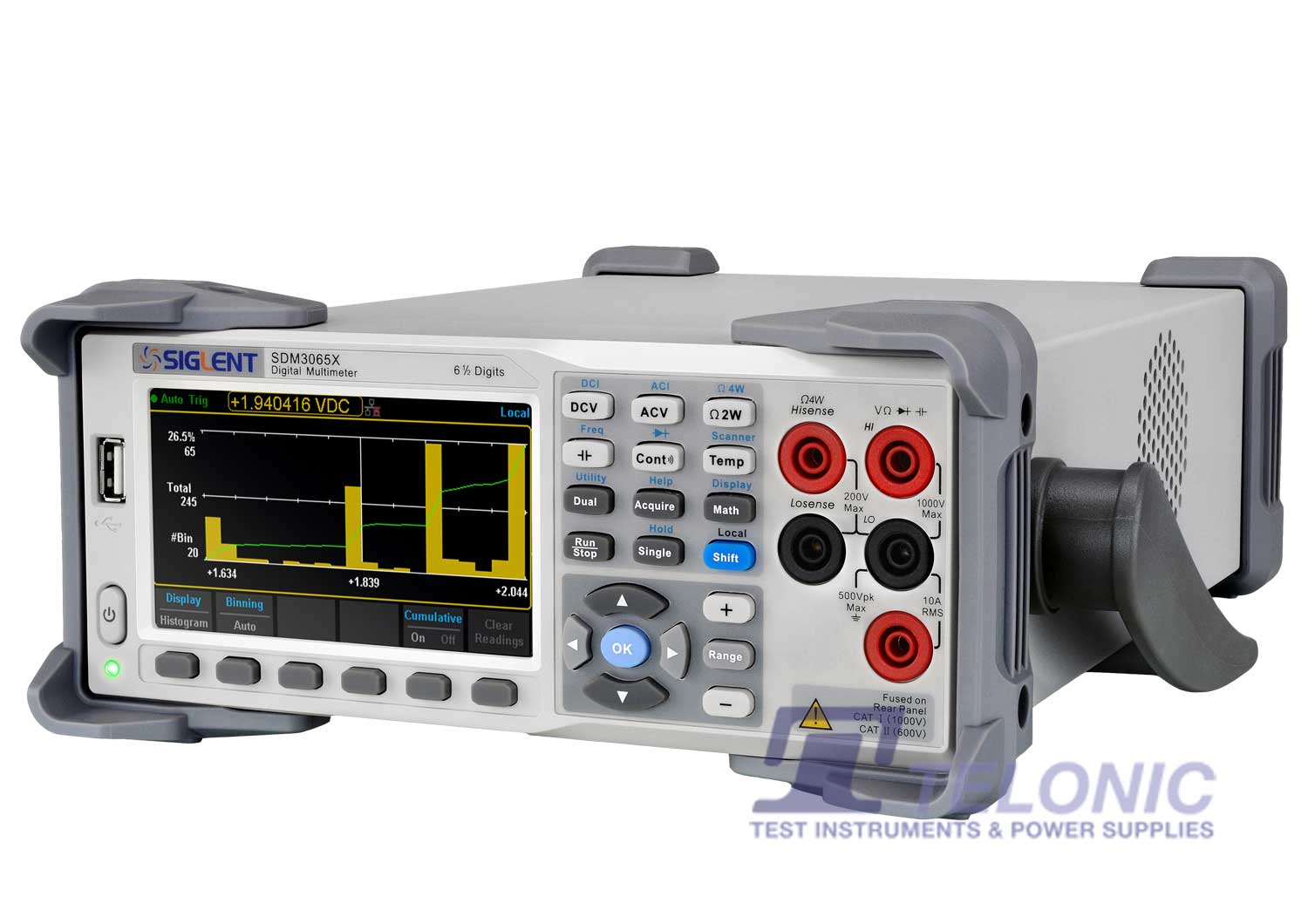

Product Images

Product Videos

YouTube Video
YouTube Video
YouTube Video

Documentation

Datasheet

Siglent SDM3065X Datasheet



User Manual

Siglent SDM3065X User Manual



Quick Start

Siglent SDM3065X Quick Start



Application Notes

Testing Intrinsic Safety Barrier fusing and circuitry using an Electronic Load

Secure products without K-lock slots

Programming Example: List connected VISA compatible resources using PyVISA

Verification of a working remote communications connection using NI – MAX

Open Socket LAN connection using Python

Verification of a LAN connection using Telnet

Testing Open Socket Communications Using PuTTY



DC Characteristics

FunctionRangeTest
Current
Or Burden
Voltage		24Hour
TCAL℃ Β±1℃		90day
TCAL℃ Β±5℃		1Year
TCAL℃ Β±5℃		Temperature
coefficient
0℃ to（TCAL℃ -5℃）
（TCAL℃ +5℃）to50℃
DC Voltage200.0000mV0.0020 + 0.00150.0030 + 0.00200.0040 + 0.00230.0005 + 0.0003
2.000000V0.0015 + 0.00040.0020 + 0.00040.0035 + 0.00060.0005 + 0.0001
20.00000V0.0020 + 0.00030.0030 + 0.00040.0040 + 0.00040.0005 + 0.0001
200.0000V0.0020 + 0.00050.0040 + 0.00040.0050 + 0.00050.0005 + 0.0001
1000.000V0.0020 + 0.00050.0040 + 0.00080.0055 + 0.00080.0005 + 0.0001
DC Current200.0000 ΞΌA<0.03V0.009 + 0.0100.040 + 0.0050.050 + 0.0050.0020 + 0.0026
2.000000mA<0.25V0.007 + 0.0010.030 + 0.0010.050 + 0.0020.0020 + 0.0001
20.00000mA<0.07V0.006 + 0.0080.030 + 0.0050.050 + 0.0050.0020 + 0.0015
200.0000mA<0.7V0.009 + 0.0010.030 + 0.0010.050 + 0.0020.0020 + 0.0001
2.000000A<0.12V0.045 + 0.0150.080 + 0.0050.100 + 0.0120.0050 + 0.0008
10.00000A<0.6V0.090 + 0.0020.120 + 0.0050.150 + 0.0050.0050 + 0.0018
Resistance200.0000Ξ©1mA0.0030 + 0.00310.008 + 0.0050.010 + 0.0040.0006 + 0.0006
2.000000KΞ©1mA0.0020 + 0.00050.008 + 0.0010.010 + 0.0010.0006 + 0.0001
20.00000KΞ©100 ΞΌA0.0020 + 0.00050.008 + 0.0010.010 + 0.0010.0006 + 0.0001
200.0000KΞ©10 ΞΌA0.0020 + 0.00050.008 + 0.0010.010 + 0.0010.0006 + 0.0001
1.000000MΞ©2 ΞΌA0.0020 + 0.00100.010 + 0.0010.012 + 0.0010.0010 + 0.0002
10.00000MΞ©200 nA0.015 + 0.0010.030 + 0.0010.040 + 0.0010.0030 + 0.0005
100.0000MΞ©200 nA || 10
MΞ©		0.300 + 0.0100.800 + 0.0100.800 + 0.0100.1500 + 0.0002
Diode Test0~2V1 mA0.002 + 0.0090.008 + 0.0200.010 + 0.0200.0010 + 0.0020
2~4V1 mA0.002 + 0.0100.008 + 0.0200.010 + 0.0200.0010 + 0.0020
Continuity Test2000.0Ξ©1 mA0.002 + 0.0100.008 + 0.0200.010 + 0.0200.0010 + 0.0020

AC Characteristics

FunctionRangeFrequency Range24 Hour
TCAL℃
Β±1℃		90 Day
TCAL℃
Β±5℃		1 Year
TCAL℃
Β±5℃		Temperature
coefficient
0℃ to（TCAL℃ -5℃）
（TCAL℃ +5℃）to 50℃
True RMS AC Voltage200.0000mV3Hz – 5Hz
5Hz – 10Hz
10Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz
100kHz – 300kHz		1.00 + 0.03
0.35 + 0.03
0.04 + 0.03
0.10 + 0.05
0.55 + 0.08
4.00 + 0.50		1.00 + 0.04
0.35 + 0.04
0.05 + 0.04
0.11 + 0.05
0.60 + 0.08
4.00 + 0.50		1.00 + 0.04
0.35 + 0.04
0.06 + 0.04
0.12 + 0.05
0.60 + 0.08
4.00 + 0.50		0.100 + 0.004
0.035 + 0.005
0.005 + 0.004
0.011 + 0.005
0.060 + 0.008
0.20 + 0.02
2.000000V3Hz – 5Hz
5Hz – 10Hz
10Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz
100kHz – 300kHz		1.00 + 0.03
0.35 + 0.03
0.04 + 0.03
0.10 + 0.05
0.55 + 0.08
4.00 + 0.50		1.00 + 0.04
0.35 + 0.04
0.05 + 0.04
0.11 + 0.05
0.60 + 0.08
4.00 + 0.50		1.00 + 0.04
0.35 + 0.04
0.06 + 0.04
0.12 + 0.05
0.60 + 0.08
4.00 + 0.50		0.100 + 0.004
0.035 + 0.005
0.005 + 0.004
0.011 + 0.005
0.060 + 0.008
0.20 + 0.02
20.00000V3Hz – 5Hz
5Hz – 10Hz
10Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz
100kHz – 300kHz		1.00 + 0.03
0.35 + 0.03
0.04 + 0.03
0.10 + 0.05
0.55 + 0.08
4.00 + 0.50		1.00 + 0.04
0.35 + 0.04
0.05 + 0.04
0.11 + 0.05
0.60 + 0.08
4.00 + 0.50		1.00 + 0.04
0.35 + 0.04
0.06 + 0.04
0.12 + 0.05
0.60 + 0.08
4.00 + 0.50		0.100 + 0.004
0.035 + 0.005
0.005 + 0.004
0.011 + 0.005
0.060 + 0.008
0.20 + 0.02
200.0000V3Hz – 5Hz
5Hz – 10Hz
10Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz
100kHz – 300kHz		1.00 + 0.03
0.35 + 0.03
0.04 + 0.03
0.10 + 0.05
0.55 + 0.08
4.00 + 0.50		1.00 + 0.04
0.35 + 0.04
0.05 + 0.04
0.11 + 0.05
0.60 + 0.08
4.00 + 0.50		1.00 + 0.04
0.35 + 0.04
0.06 + 0.04
0.12 + 0.05
0.60 + 0.08
4.00 + 0.50		0.100 + 0.004
0.035 + 0.005
0.005 + 0.004
0.011 + 0.005
0.060 + 0.008
0.20 + 0.02
750.0000V3Hz – 5Hz
5Hz – 10Hz
10Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz
100kHz – 300kHz		1.00 + 0.03
0.35 + 0.03
0.04 + 0.03
0.10 + 0.05
0.55 + 0.08
4.00 + 0.50		1.00 + 0.04
0.35 + 0.04
0.05 + 0.04
0.11 + 0.05
0.60 + 0.08
4.00 + 0.50		1.00 + 0.04
0.35 + 0.04
0.06 + 0.04
0.12 + 0.05
0.60 + 0.08
4.00 + 0.50		0.100 + 0.004
0.035 + 0.005
0.005 + 0.004
0.011 + 0.005
0.060 + 0.008
0.20 + 0.02
True RMS AC Current200.0000 uA3Hz – 5Hz
5Hz – 10Hz
10Hz – 5kHz
5kHz – 10kHz		1.10 + 0.06
0.35 + 0.06
0.15 + 0.06
0.35 + 0.70		1.10 + 0.06
0.35 + 0.06
0.15 + 0.06
0.35 + 0.70		1.10 + 0.06
0.35 + 0.06
0.15 + 0.06
0.35 + 0.70		0.200 + 0.005
0.100 + 0.005
0.015 + 0.005
0.030 + 0.005
2.000000mA3Hz – 5Hz
5Hz – 10Hz
10Hz – 5kHz
5kHz – 10kHz		1.00 + 0.04
0.30 + 0.04
0.12 + 0.04
0.20 + 0.25		1.00 + 0.04
0.30 + 0.04
0.12 + 0.04
0.20 + 0.25		1.00 + 0.04
0.30 + 0.04
0.12 + 0.04
0.20 + 0.25		0.100 + 0.005
0.035 + 0.005
0.015 + 0.005
0.035 + 0.005
20.00000mA3Hz – 5Hz
5Hz – 10Hz
10Hz – 5kHz
5kHz – 10kHz		1.10 + 0.06
0.35 + 0.06
0.15 + 0.06
0.35 + 0.70		1.10 + 0.06
0.35 + 0.06
0.15 + 0.06
0.35 + 0.70		1.10 + 0.06
0.35 + 0.06
0.15 + 0.06
0.35 + 0.70		0.200 + 0.005
0.100 + 0.005
0.015 + 0.005
0.030 + 0.005
200.0000mA3Hz – 5Hz
5Hz – 10Hz
10Hz – 5kHz
5kHz – 10kHz		1.00 + 0.04
0.30 + 0.04
0.10 + 0.04
0.20 + 0.25		1.00 + 0.04
0.30 + 0.04
0.10 + 0.04
0.20 + 0.25		1.00 + 0.04
0.30 + 0.04
0.10 + 0.04
0.20 + 0.25		0.100 + 0.006
0.035 + 0.006
0.015 + 0.006
0.030 + 0.006
2.000000A3Hz – 5Hz
5Hz – 10Hz
10Hz – 5kHz
5kHz – 10kHz		1.10 + 0.06
0.35 + 0.06
0.15 + 0.06
0.35 + 0.70		1.10 + 0.06
0.35 + 0.06
0.15 + 0.06
0.35 + 0.70		1.10 + 0.06
0.35 + 0.06
0.15 + 0.06
0.35 + 0.70		0.100 + 0.006
0.035 + 0.006
0.015 + 0.006
0.030 + 0.006
10.00000A3Hz – 5Hz
5Hz – 10Hz
10Hz – 5kHz		1.10 + 0.08
0.35 + 0.08
0.15 + 0.08		1.10 + 0.10
0.35 + 0.10
0.15 + 0.10		1.10 + 0.10
0.35 + 0.10
0.15 + 0.10		0.100 + 0.008
0.035 + 0.008
0.015 + 0.008

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
