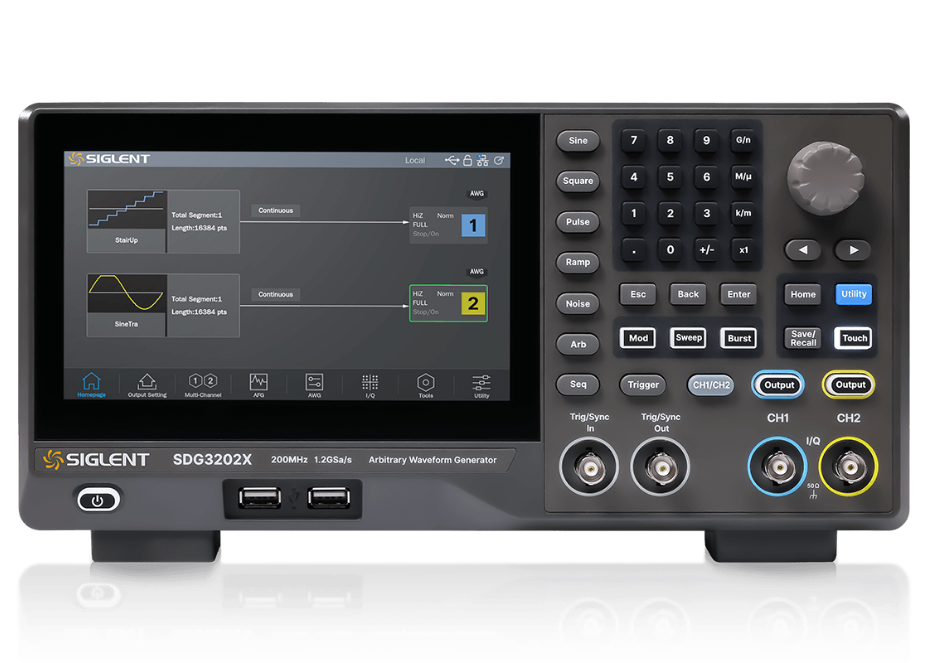

Siglent SDG3000X Series Arbitrary Waveform Generators

The SDG3000X series dual-channel function/arbitrary waveform generator has a maximum bandwidth of 200MHz, an excellent sampling system specifications of 1.2 GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, it incorporates the innovative TrueArb and EasyPulse technologies, which address the inherent limitations of DDS technology in generating arbitrary waves and square waves/pulses, providing users with high-fidelity, low-jitter signals. In addition, the SDG3000X also provides PRBS pattern generation, sequence, dual pulse, and vector signal output functions to meet a wider range of application needs.

Key Features

  • Maximum output amplitude 20 Vpp
  • Rich analogue and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
  • Sweep and Burst functions
  • Harmonic function
  • Waveform Combining Function
  • 196 built-in arbitrary waveforms
  • Built-in WebServer supports instrument control via a web browser
  • 7-inch display touch screen
SKUImageFrequencySample Rate(s)Resolution (Bit)Arb WaveformCHStockPrice

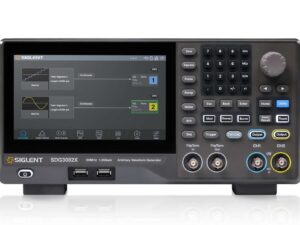

SDG3082XSiglent SDG3082X 2Ch, 80 MHz, 1.2GSa/s, Function Generator80 MHz1.2 GSa/s16-bit20 Mpts (std) / 40 Mpts (opt)2 CH1£590.00

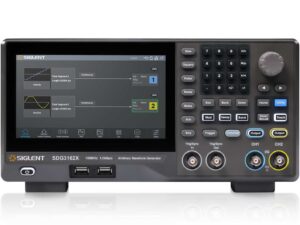

SDG3162XSiglent SDG3162X 2Ch, 160 MHz, 1.2GSa/s, Function Generator160 MHz1.2 GSa/s16-bit20 Mpts (std) / 40 Mpts (opt)2 CH4£853.00

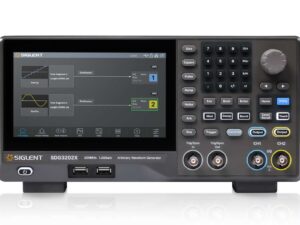

SDG3202XSiglent SDG3202X 2Ch, 200 MHz, 1.2GSa/s, Function Generator200 MHz1.2 GSa/s16-bit20 Mpts (std) / 40 Mpts (opt)2 CH2£1,053.00
