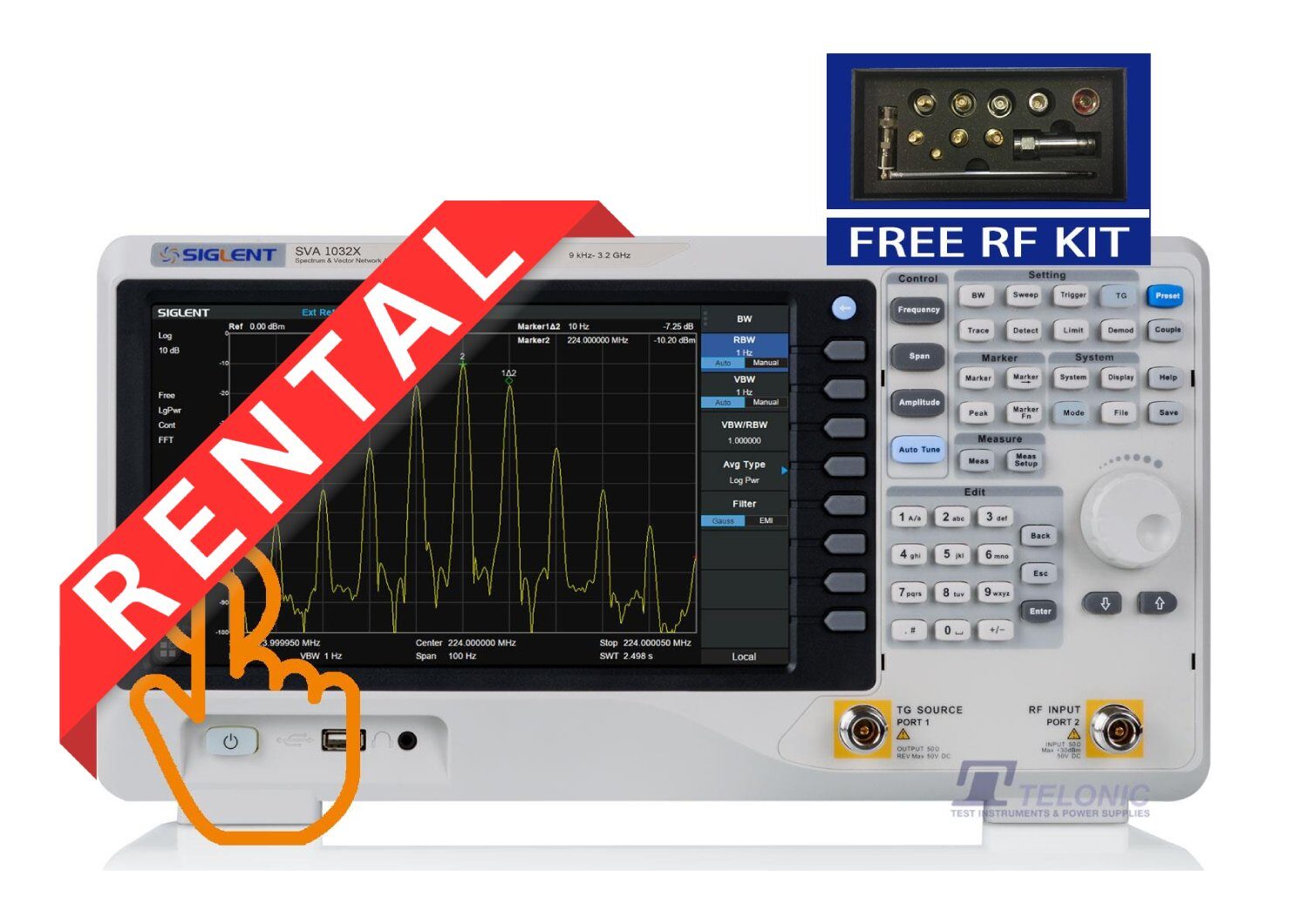

Siglent SVA1000X Series Spectrum / Vector Network Analysers

Frequency Range: 9kHz to 1.5/3.2/7.5GHz Models| Resolution Bandwidth(RBW): 1Hz to 1MHz | Vector Network Analysis: 100kHz to 7.5GHz

• Vector Network Analysis from 100 kHz – 7.5 GHz
• Distance-to-fault (Optional)
• Frequency Range from 9 kHz to 7.5 GHz

• -165 dBm/Hz Displayed Average Noise Level (Typ.)

• • -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)

  • • 1 Hz Minimum Resolution Bandwidth (RBW)

  Siglent SVA1000X Series Spectrum & Vector Network Analysers are powerful and flexible tools for RF signal and network analysis. With a frequency range to 7.5GHz, the analyser delivers reliable automatic measurements and multiple modes of operation: the base model of a spectrum analyser and a vector network analyser, optional functions include a distance-to-fault locator, a vector signal analyser. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, cable and antenna testing, analogue/digital modulation analysis, EMI pre-compliance test, research and development, education, production and maintenance.

  Model	Frequency Range	Resolution Bandwidth (RBW)	Phase Noise	Total Amplitude Accuracy	Display Average Noise Level (DANL)	Price
  SVA1015X	9kHz to 1.5GHz	1Hz to 1MHz	<- 99dBc/Hz	≤1.2dB	-156dBm/Hz	£1,580.00 £1,235.00
  SVA1032X	9kHz to 3.2GHz	1Hz to 1MHz	<- 99dBc/Hz	≤0.7dB	-161dBm/Hz	£2,698.00
  SVA1075X	9kHz to 7.5GHz	1Hz to 1MHz	<- 99dBc/Hz	≤0.7dB	-165dBm/Hz	£6,616.00
