Siglent Passive Oscilloscope Probes

The Everyday Workhorse for Reliable Bench Testing Every engineer needs a reliable, rugged, and versatile tool for general-purpose debugging. Siglent Passive Probes offer a wide dynamic range and a robust physical build that stands up to the rigors of the lab. With high input resistance and a variety of attenuation ratios, these probes are the essential first step for analysing everything from low-frequency control signals to power supply rails.

SKUImageAttenuation RatioFrequency BandwidthInput ImpedanceInput CapacitanceCompensationMax. rated Voltage to earthOperation TempCable LengthStockPrice
HPB4010Siglent HPB4010 High Voltage Probe1:1000DC~40 MHz100 MΩ ±5%3.0 pF ±0.5 pF5 pF~50 pFDC: 0~10 kV DC
AC: ≤20 kV peak to peak (pulse)
AC: ≤7 kV rms (sine wave)		0~50 ℃2.0 meter (±0.2 m)On Backorder£386.00
PB470Siglent PB470 Passive Probe1X/10X10X: DC~70 MHz1 MΩ/10 MΩ10X: 13 pF~17 pF10 pF~35 pF1X: CAT II 150 V
10X: CAT II 300 V		-10 ℃~55 ℃130cmOn Backorder£14.00
PB925Siglent PB925 Passive Probe10X250 MHz10 MΩ16 pF10 pF~35 pFCAT III 600 V
CAT II 1000 V		0 ℃~50 ℃120 cmOn Backorder£88.00
pp215PP215 Probe1X/10X10X: DC~100 MHz1 MΩ/10 MΩ10X: 13 pF~17 pF10 pF~35 pF1X: CAT II 150 V
10X: CAT II 300 V		-10 ℃~55 ℃130cm5+£26.00

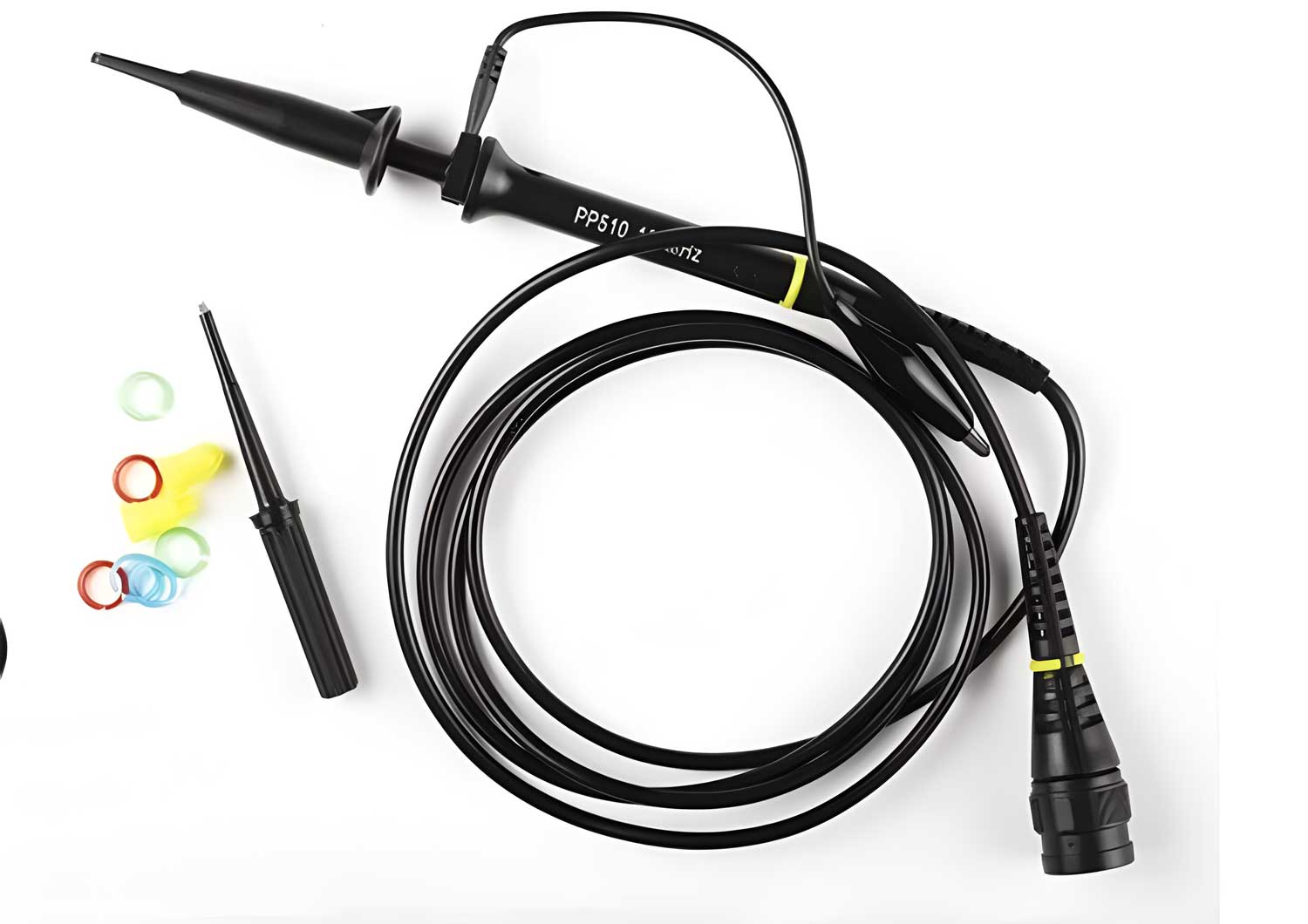

PP510Siglent PP510 Passive Probe 100MHz1X/10X10X: DC~200 MHz1 MΩ/10 MΩ10X: 13 pF~17 pF10 pF~35 pF1X: CAT II 150 V
10X: CAT II 300 V		-10 ℃~55 ℃130cm4£18.00
SP3050ASiglent SP3050A 500MHz Oscilloscope Probe10X500 MHz10 MΩ11 pF8 pF~20 pFCAT II 400 V0 ℃~50 ℃120 cmOn Backorder£94.00
SP3150ASiglent SP3150A 500MHz Oscilloscope Probe10X500 MHz10 MΩ11 pF8 pF~20 pFCAT II 400 V0 ℃~50 ℃120 cmOn Backorder£94.00
SP5050ASiglent SP5050A 500MHz Oscilloscope Probe10X500 MHz10 MΩ12 pF12 pF~22 pFCAT II 300 V-10 ℃~55 ℃130 cmOn Backorder£82.00
SP6150ASP6150A 1.5 GHz Passive Oscilloscope probe10X1.5 GHz500 Ω ±10 Ω1.8 pFN/A8.5 V0~50 ℃130 cmOn Backorder£199.00
