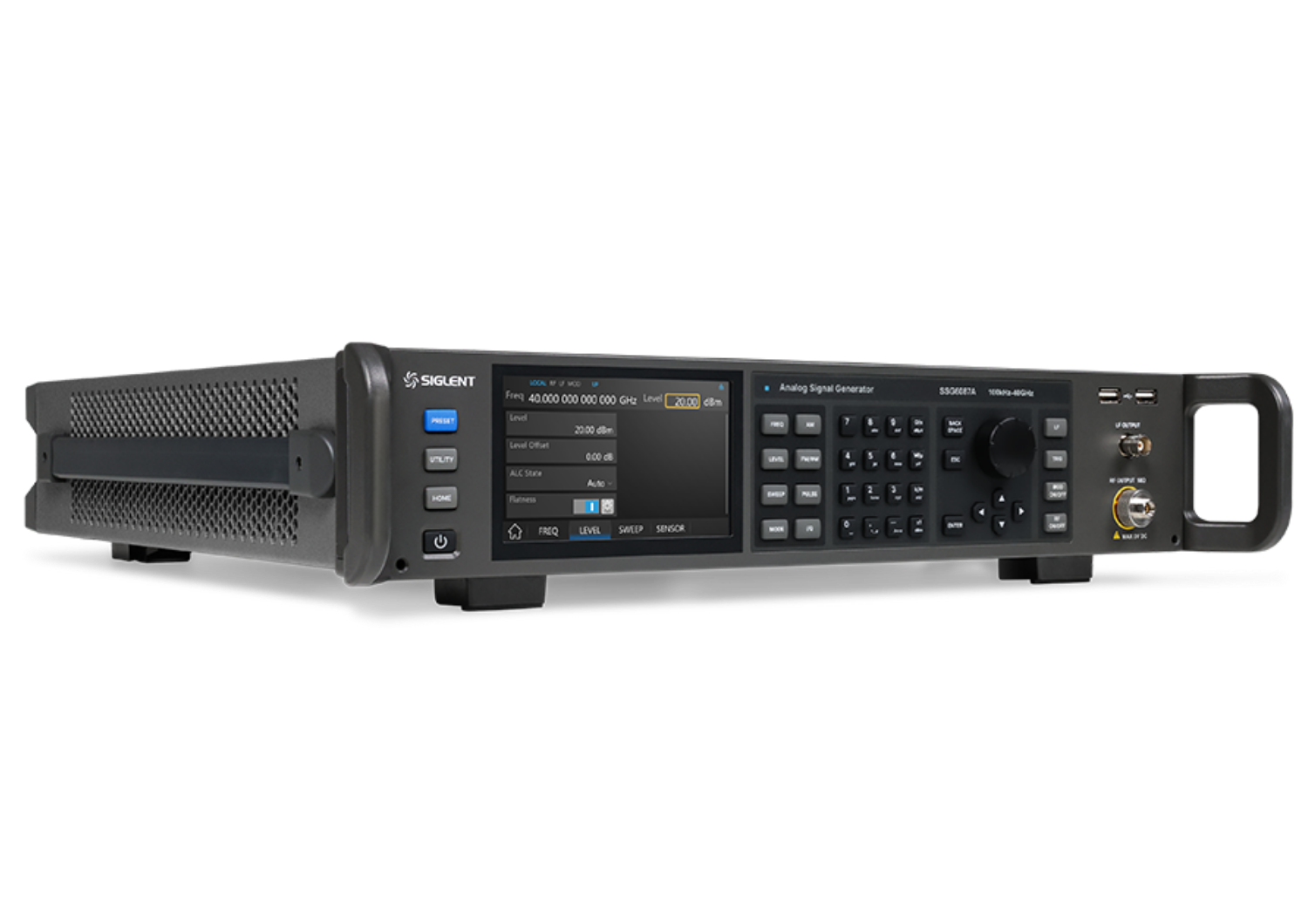

SSG6000A Series Microwave Analogue Signal Generator

Frequency Range: 13.6 GHz, 20 GHz, 40GHz Models | Phase Noise: Phase Noise: -135 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)

• Frequency up to 13.6 GHz/ 20 GHz/ 40 GHz
• Level setting range: -130 dBm ~ 24 dBm
• Phase Noise: -135 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
• Level error ≤ 0.7 dB (typ.)
• Standard AM modulation
• Standard OCXO and step attenuator (0 to 110 dB, 10dB step
• Pulse modulation and pulse train generator (option)

Siglent’s SSG6000A Series RF Signal Generator supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is not only an ideal local oscillator and clock source, but also a high-performance analogue signal source suitable for applications in R&D and production. SIGLENT provides a total solution backed by proven reliability and our standard 3 years warranty plus pre-sale and post-sale support. Coupled with solid RF performance, a flexible and pure signal, the Siglent SSG6000A is a complete solution that makes a great addition to any RF engineer’s workbench kit
