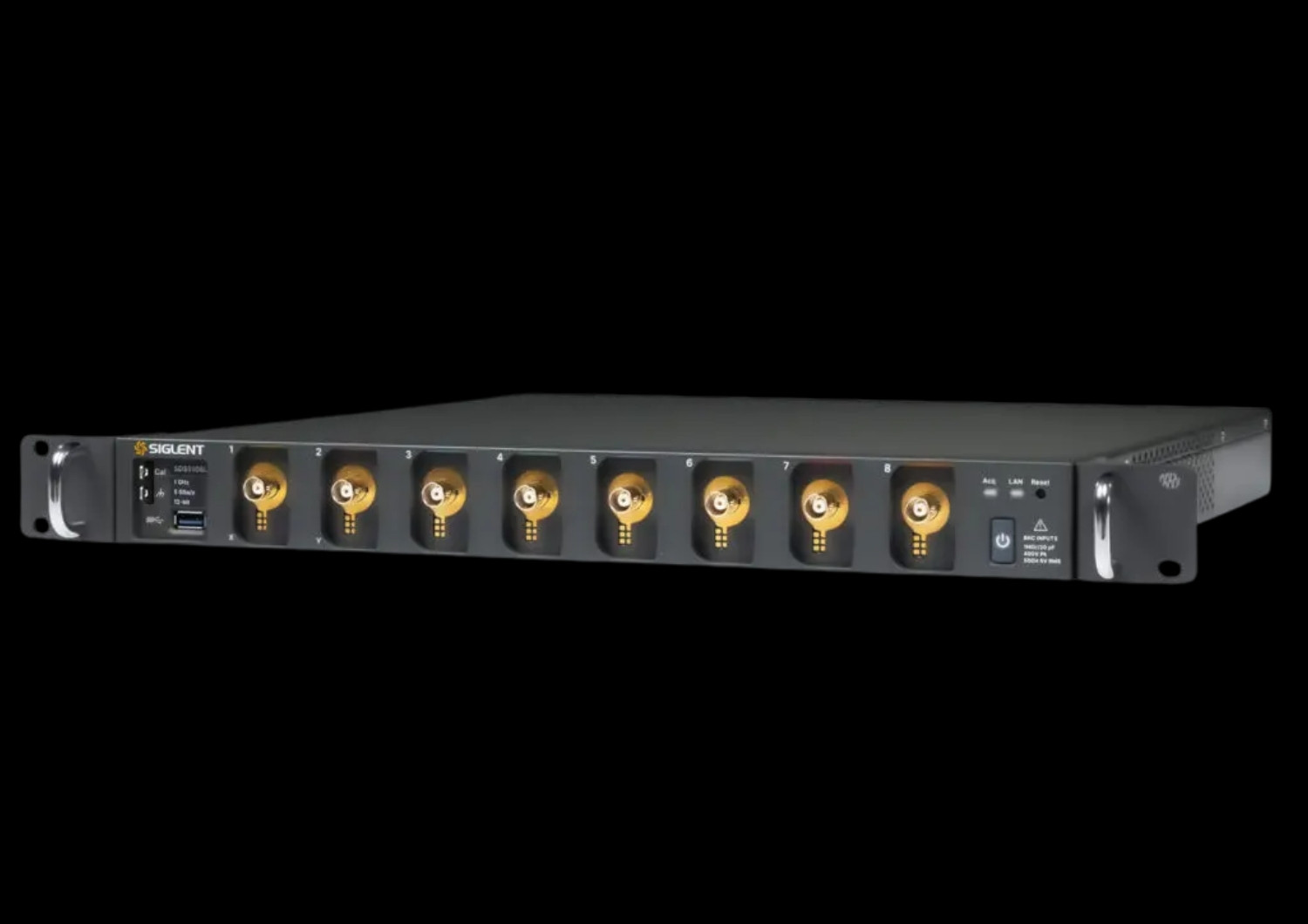

Siglent SDS5000L Low Profile Oscilloscopes

SDS5000L is available in 8 channels, with bandwidths of 350 MHz, 500 MHz, and 1 GHz, has 12-bit ADCs with a sample rate up to 5 GSa/s, and a maximum record length of 2.5 Gpts/ch. SDS5000L series employs Siglent’s SPO technology, with a maximum waveform capture rate of 160,000 wfm/s, a 256-level intensity grading display function, and a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes, including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, and Power Analysis allow for extended waveform records to be captured, stored, and analysed. An impressive array of measurement and math capabilities, as well as serial decoding, is also among their features.

The SDS5000L is a low-profile module without an integrated display or digital input channels (MSO capability). Multiple SDS5000L modules can be synchronised using a 64-channel distributor (SYN64) to form a high-channel-count acquisition system scalable up to 512 channels. Alternatively, an individual SDS5000L module can function as a standalone oscilloscope when connected to an external display and mouse. Remote control is supported via LAN, including via a web browser. A comprehensive SCPI command set over the integrated 1000 Mbps Ethernet interface facilitates rapid data acquisition for automated test applications.
