Description
Siglent SSG6080A-PU Pulse Modulation Activation License

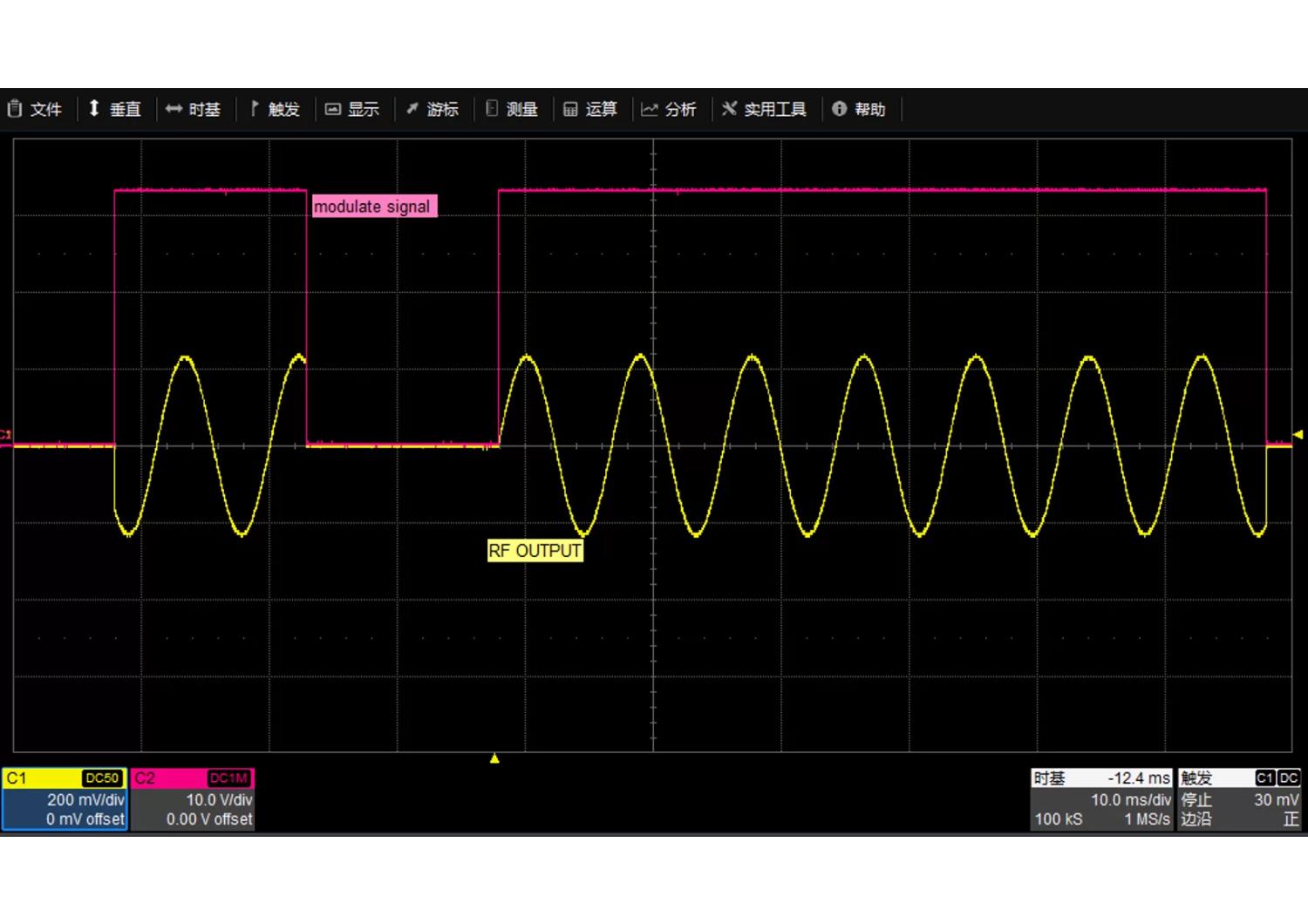

Unlock internal and external pulse modulation for the SSG6000A series RF Signal Source.
Siglent SSG6080A-PU Pulse Modulation Activation License
£1879.00 (£2254.8 inc VAT)
Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
| Parameter | Condition / Setting | Specification |
|---|---|---|
| Modulation source | Internal, external | |
| On/off ratio | 1 MHz < f ≤ 6 GHz | > 70 dBc (typ.) |
| On/off ratio | 6 GHz < f ≤ 13.6 GHz | > 80 dBc (typ.) |
| On/off ratio | 13.6 GHz < f ≤ 40 GHz | > 75 dBc (typ.) |
| Rise/fall time (10% / 90%) | 10 % to 90 % of RF amplitude | < 15 ns (typ.) |
| Pulse repetition time | Setting range | 40 ns – 300 s |
| Level accuracy/alc off | ± 0.5 dB typ | |
| Width compression | 10 ns | |
| Video feed-through | < 20 mv | |
| Video delay | 45 ns | |
| RF delay | 45 ns | |
| Pulse overshoot | < 8% |
