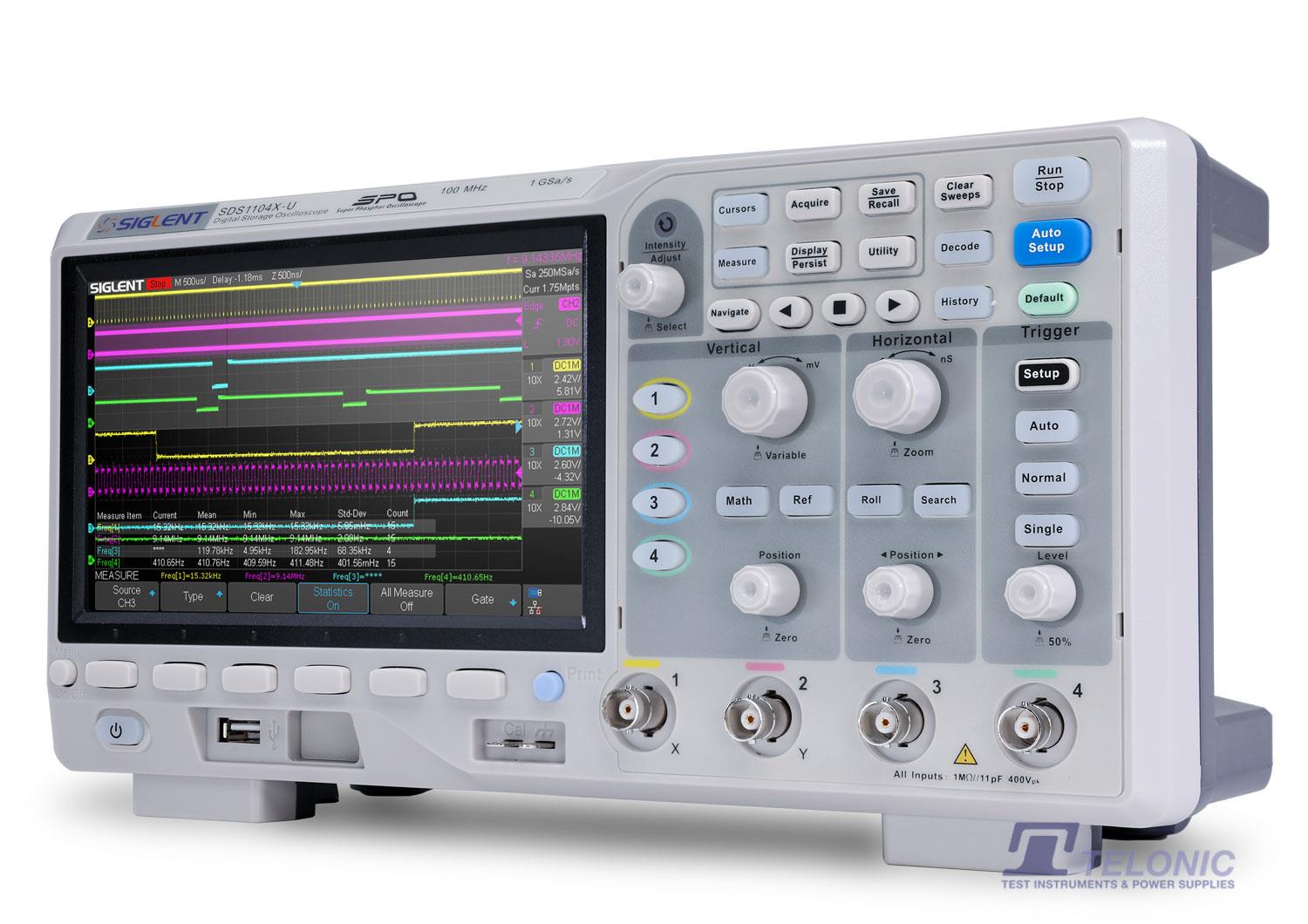

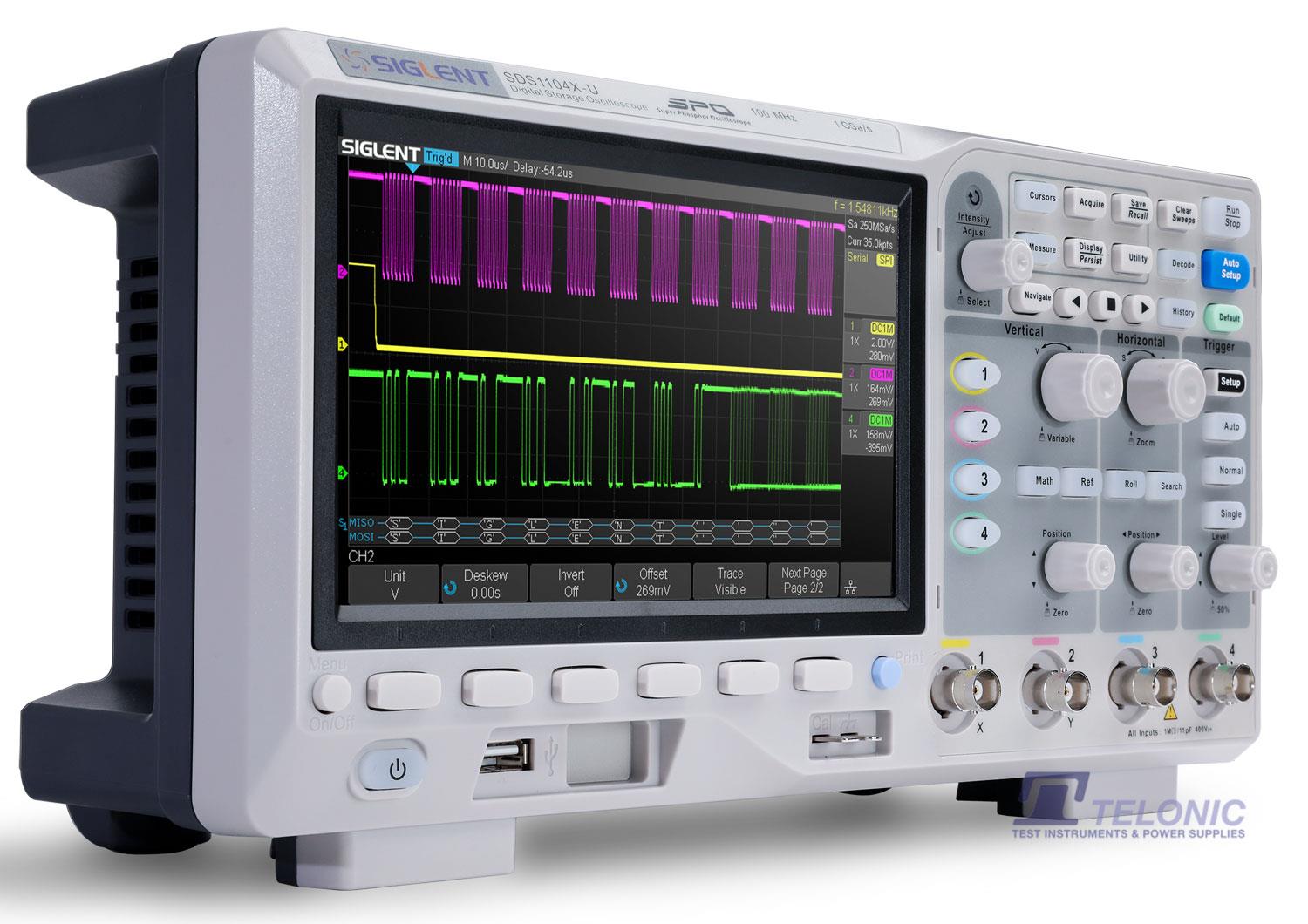

Siglent SDS1104X-U Super Phosphor Oscilloscope

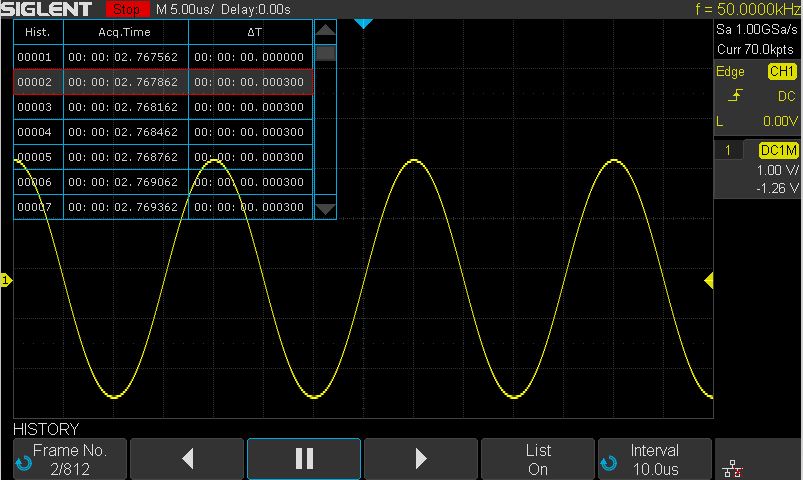

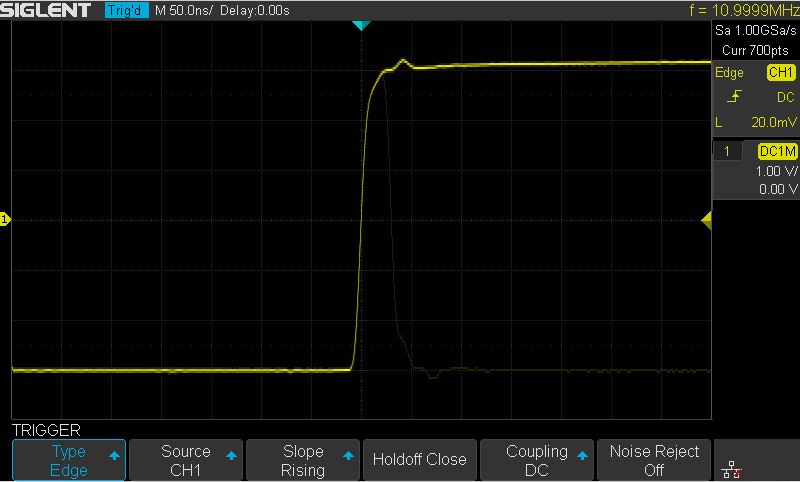

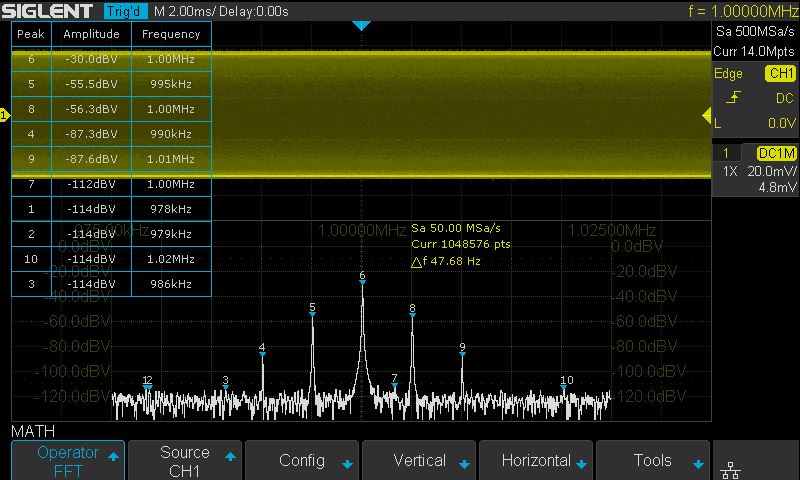

The SDS1104X-U is a 4CH, 100MHz Super Phosphor Oscilloscope and has a maximum sample rate of 1GSa/s and a maximum record length of 14Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design. The SDS1000X-U series employs the well-known SPO (Super -Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. It comes with an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X-U also employs a 256-level intensity grading display function and a colour temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, and LIN bus types are included. The X-U models also include History waveform recording and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new 128k point FFT math function that gives the SDS1000X-U very high frequency resolution when observing signal spectra. The digital design includes a hardware co-processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. SDS1000X-U also supports searching and navigating. The features and performance of SIGLENT’s new SDS1000X-U cannot be matched anywhere else in this price class
Features:

  • Bandwidth: 100MHz
  • Sample Rate: 1GSa/s (One Channel), 500MSa/s (Two Channels), 250MSa/s (Four Channels)
  • Channels: 4

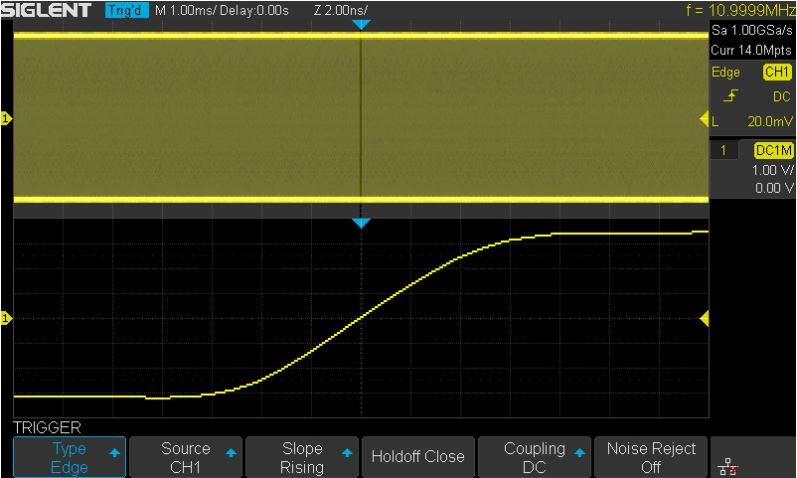

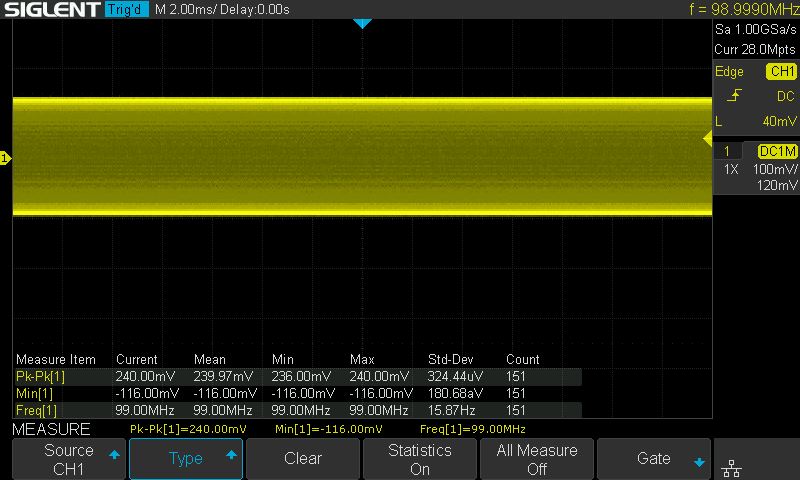

  • Memory Depth: 14Mpts
  • Waveform Capture Rate: 100,000wfm/s (Normal Mode), 400,000wfm/s (Sequence Mode)
  • Trigger Type: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video

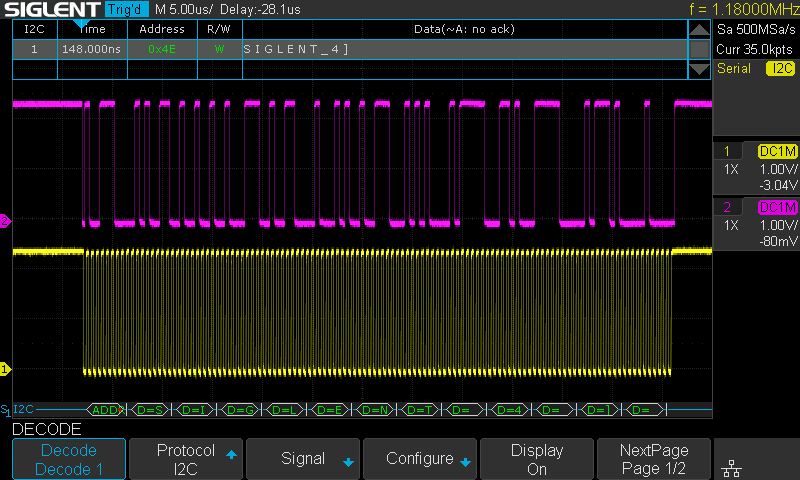

  • Serial Trigger and Decoder: IIC, SPI, UART, CAN, LIN

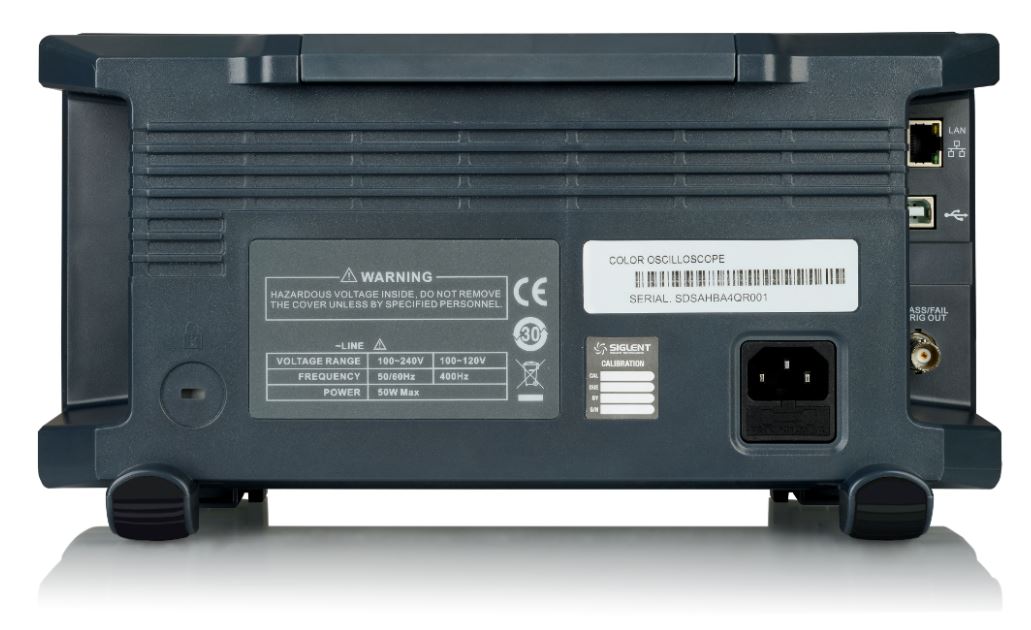

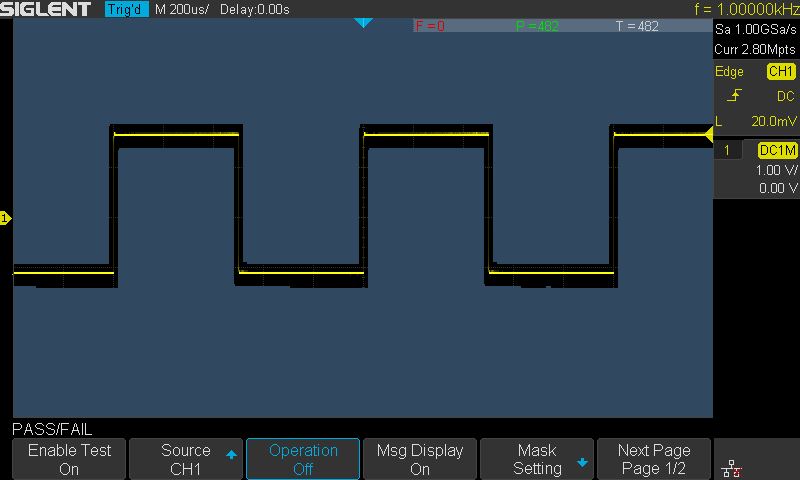

  • I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out
  • Probe: 4 x Passive Probe PP510

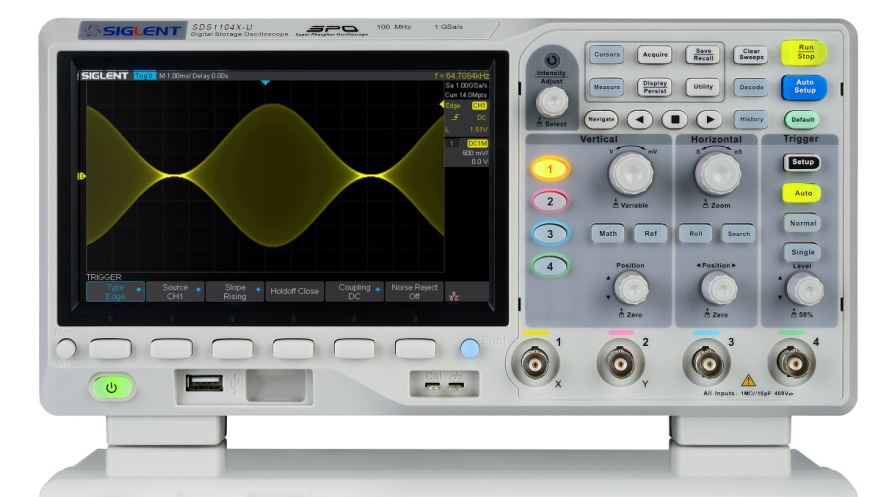

  • Display: 7-Inch TFT-LCD (800X480)
  • Weight: Without Package 2.6kg; With Package 3.8kg

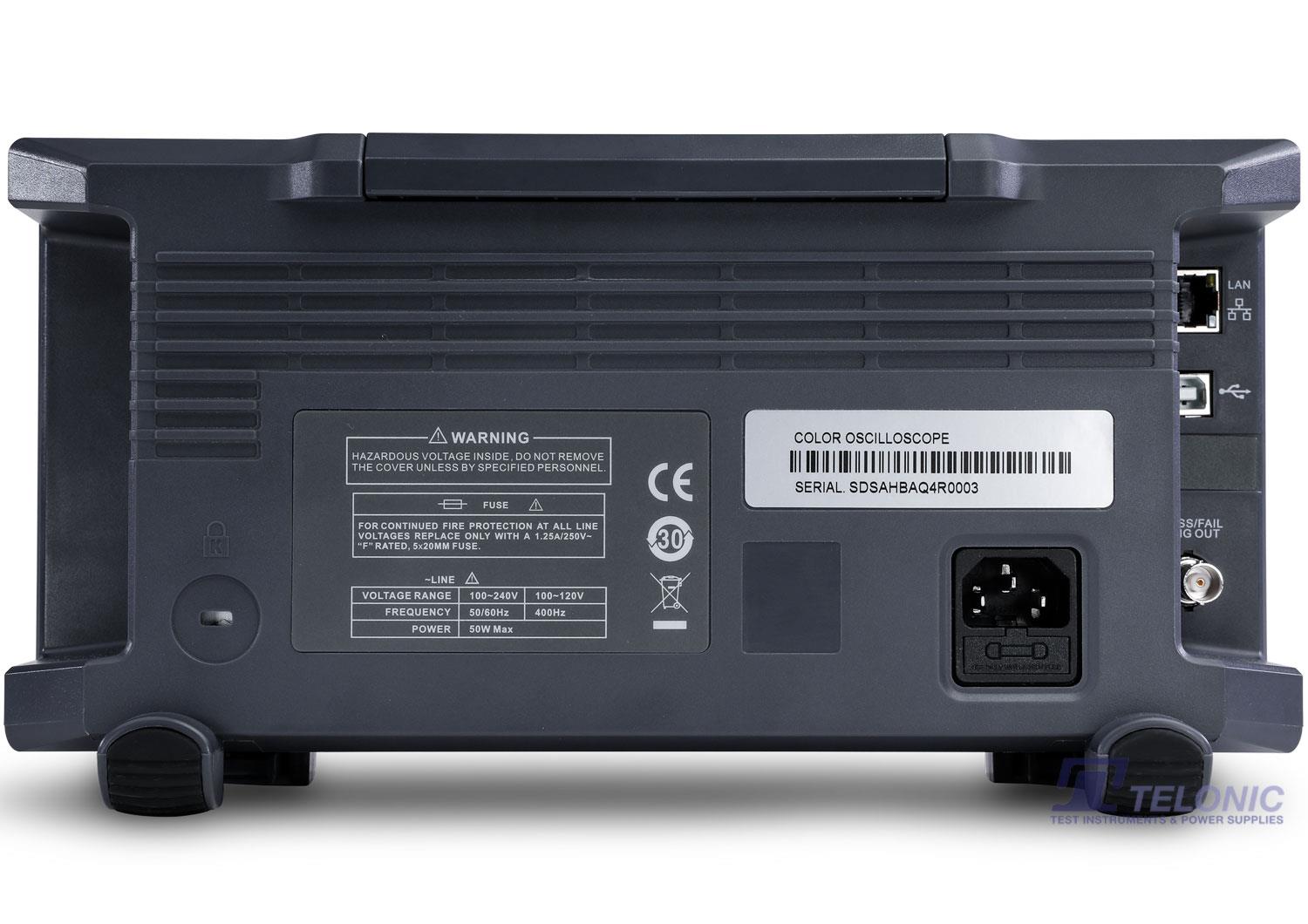

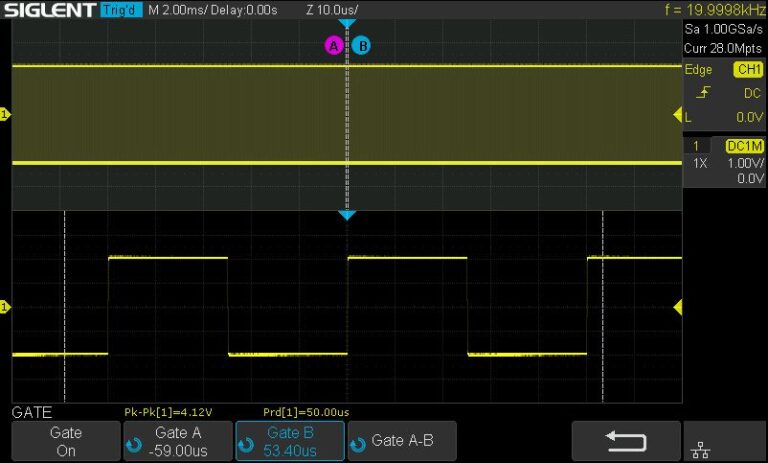

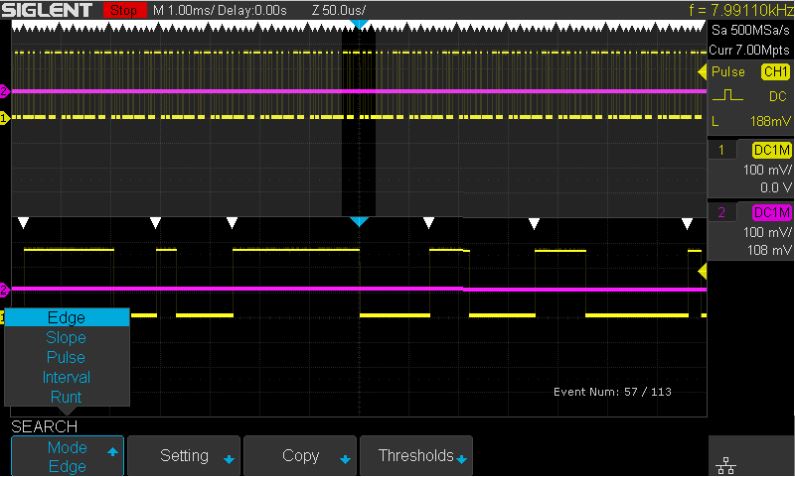

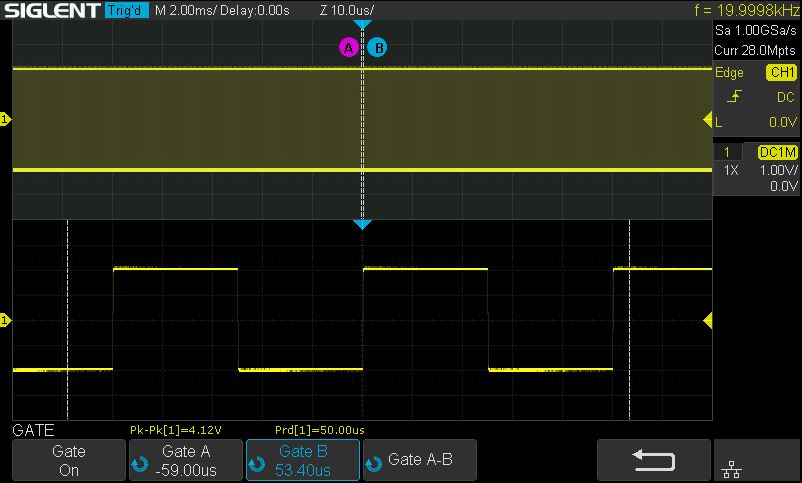

Product Images

Product Videos

YouTube Video
YouTube Video
YouTube Video

Documentation

Datasheet

Siglent SDS1000X-U Datasheet



User Manual

Siglent SDS1000X-U User Manual



Application Notes

Power Supply Design: Load Step Response with a SIGLENT DC Electronic Load

Programming Example: SDS Oscilloscope save a copy of a screen image via Python/PyVISA

Measuring the Modulation Index of an AM Signal using an FFT

Measuring Power Supply Control Loop Response with Bode Plot II

Programming Example: SDS Oscilloscope screen image capture using Python over LAN

SDS FFT performance on low frequency signals

Programming Example: List connected VISA compatible resources using PyVISA

Comparison / Differences between the SDS1000X and SDS1000X-E oscilloscope families



Acquisition System
Sampling Rate (Max.)1 GSa/s (One channel), 500 MSa/s(Two channels), 250 MSa/s(Four channels)
Memory Depth (Max.)14 Mpts
Peak Detect2 ns
AverageAverages: 4,16, 32, 64, 128, 256, 512, 1024
EresEnhance bits: 0.5, 1, 1.5, 2, 2.5, 3
Waveform
interpolation		Sin(x)/x, Linear
Input
Channels4
CouplingDC, AC, GND
ImpedanceDC: (1 MΩ±2%) || (11 pF ±2 pF)
Max. Input Voltage1 MΞ©: ≀400 Vpk (DC + Peak AC <=10 kHz)
CH to CH IsolationDC-Max BW :>40 dB
Probe Attenuation1E-6X ~ 1E6X
Vertical System
Bandwidth (-3dB)100 MHz
Vertical Resolution8-bit
Vertical Scale (Probe
1X)		1 mV/div – 10 V/div (1-2-5 sequence)
Offset Range (Probe
1X)		1 mV- 200 mV: Β± 2 V
206 mV- 10 V: Β± 100 V
Bandwidth limit20 MHz Β± 40%
Bandwidth FlatnessDC- 10% (BW): Β± 1 dB
10% – 50% (BW): Β± 2 dB
50% – 100% (BW): + 2 dB/-3 dB
Low frequency
response
(AC coupling -3 dB)		≀2 Hz (at input BNC)
NoiseST-DEV ≀ 0.2 division (<2 mV/div)
ST-DEV ≀ 0.1 division (β‰₯ 2 mV/div)
SFDR including
harmonics		β‰₯ 35 dB
DC Gain Accuracy≀ Β± 3.0%: 5 mV/div-10 V/div
≀ Β± 4.0% : ≀ 2 mV/div
Offset AccuracyΒ± (1%* Offset+1.5%*8*div+2 mV): β‰₯2 mV/div
Β± (1%* Offset+1.5%*8*div+500 uV): 1 mv/div
Rise timeTypical 3.5 ns
Overshoot (500 ps
Pulse)		< 10%
Horizontal System
Timebase Scale2 ns/div-100 s/div
Channel Skew<100 ps
Waveform Capture
Rate		Up to 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Intensity grading256 Levels
Display FormatY -T, X -Y, Roll
Timebase AccuracyΒ±25 ppm
Roll Mode50 ms/div-100 s/div (1-2-5 sequence)
Trigger System
ModeAuto, Normal, Single
LevelInternal: Β±4.5 div from the center of the screen
Hold off range80 ns- 1.5 s
CouplingAC
DC
LFRJ
HFRJ
Noise RJ
Coupling Frequency
Response		DC: Passes all components of the signal
AC: Blocks DC components and attenuates signals below 8Hz
LFRJ: Blocks the DC component and attenuates the low-frequency
components below 2 MHz
HFRJ: Attenuates the high-frequency components above 1.2 MHz
Accuracy (typical)Internal: Β±0.2 div
SensitivityDC – Max BW 0.6 div
Jitter<100 ps
DisplacementPre-Trigger: 0 – 100% Memory
Delay Trigger: 0 to 10,000 div
Edge Trigger
SlopeRising, Falling, Rising & Falling
SourceAll channels/AC Line
Slope Trigger
SlopeRising, Falling
Limit Range＜, ＞, ＜＞, ＞＜
SourceAll channels
Time Range2ns- 4.2s
Resolution1ns
Pulse Width Trigger
Polarity+wid , -wid
Limit Range＜, ＞, ＜＞, ＞＜
SourceAll channels
Pulse Range2 ns – 4.2s
Resolution1 ns
Video Trigger
Signal StandardNTSC，PAL，720p/50，720p/60，1080p/50，1080p/60，1080i/50，1080i/60，Custom
SourceAll channels
SyncAny, Select
Trigger conditionLine, Field
Window Trigger
Window TypeAbsolute, Relative
SourceAll channels
Interval Trigger
SlopeRising, Falling
Limit Range＜, ＞, ＜＞, ＞＜
SourceAll channels
Time Range2 ns – 4.2 s
Resolution1 ns
Dropout Trigger
Timeout TypeEdge, State
SourceAll channels
SlopeRising, Falling
Time Range2 ns – 4.2 s
Resolution1ns
Runt Trigger
Polarity+wid , -wid
Limit Range＜, ＞, ＜＞, ＞＜
SourceAll channels
Time Range2 ns – 4.2 s
Resolution1 ns
Pattern Trigger
Pattern SettingInvalid, Low, High
LogicAND, OR, NAND, NOR
SourceAll channels
Limit Range＜, ＞, ＜＞, ＞＜
Time Range2 ns – 4.2 s
Resolution1 ns
I2C Trigger
ConditionStart, Stop, Restart, No Ack, EEPROM, 7-bits Address & Data, 10-bits Address & Data, Data Length
Source(SDA/SCL)All channels
Data formatHex
Limit RangeEEPROM: =, >, <
Data LengthEEPROM: 1byte

Addr & Data: 1-2byte
Data Length: 1-12byte

R/W bitAddr & Data: Read, Write, Do not care
SPI Trigger
ConditionData
Source(CS/CL/Data)All channels
Data formatBinary
Data Length4-96-bit
Bit Value0, 1, X
Bit OrderLSB, MSB
UART Trigger
ConditionStart, Stop, Data, Parity Error
Source(RX/TX)All channels
Data formatHex
Limit Range=, >, <
Data Length1 byte
Data Width5, 6, 7, 8-bits
Parity CheckNone, Odd, Even, Space, Mark
Stop Bit1, 1.5, 2-bits
Idle LevelHigh, Low
Baud Rate(Selectable)600/1200/2400/4800/960019200/38400/57600/115200 bit/s
Baud Rate (Custom)300-5000000 bit/s
CAN Trigger
ConditionStart, Remote, ID, ID + Data, Error
SourceAll channels
IDSTD (11-bits), EXT (29-bit)
Data FormatHex
Data Length1 -2 byte
Baud Rate5k/10k/20k/50k/100k/125k/250k/500k/800k/1 Mbit/s
LIN Trigger
ConditionBreak, Frame ID, ID+Data, Error
SourceAll channels
ID1byte
Data FormatHex
Data Length1-2byte
Baud Rate
(Selectable)		600/1200/2400/4800/9600/19200 bit/s
Baud Rate (Custom)300 bit/s -20 kbit/s
I/O
StandardUSB Host, USB Device, LAN, Pass/Fail, Trigger Out
Pass/Fail3.3V TTL Output
General Specifications
Input Voltage100 ～ 240 Vrms 50/60Hz
100 ～ 120 Vrms 400Hz
Power50 W Max
TemperatureOperating: 0℃ – +40℃
Non-operating: -20℃ – + 60℃
HumidityOperating: 85% RH, 40 ℃, 24 hours
Non-operating: 85% RH, 65 ℃, 24 hours
HeightOperating: ≀ 3000 m
Non-operating: ≀ 15,000 m
Display Type7–inch TFT LCD
Display Resolution800Γ—480 pixels
Display Colour24-bit
Contrast(Typical)500:1
Backlight300 nits
Range8 x 14 divisions
DimensionsLength: 312 mm
Width: 132.6 mm
Height: 151 mm
WeightN.W: 2.6 kg; G.W: 3.8 kg

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
