Siglent SDM3045X DC:600mV – 1000V, AC:600mV – 750V, DC: 600µA – 10A, Dual-Display Digital Multimeter

£330.00 (£396.00 inc VAT)

5+ In UK Stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee

Description

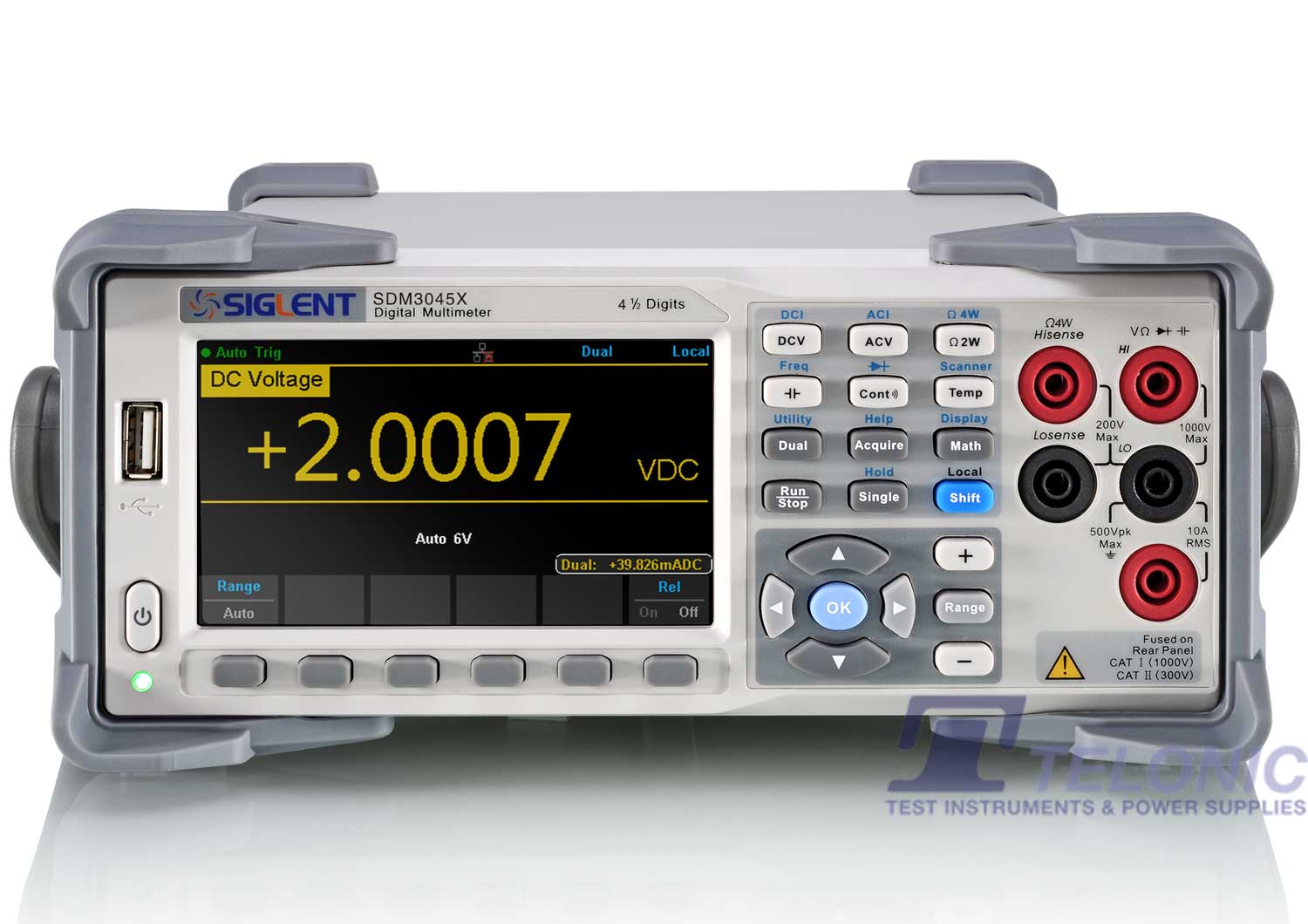

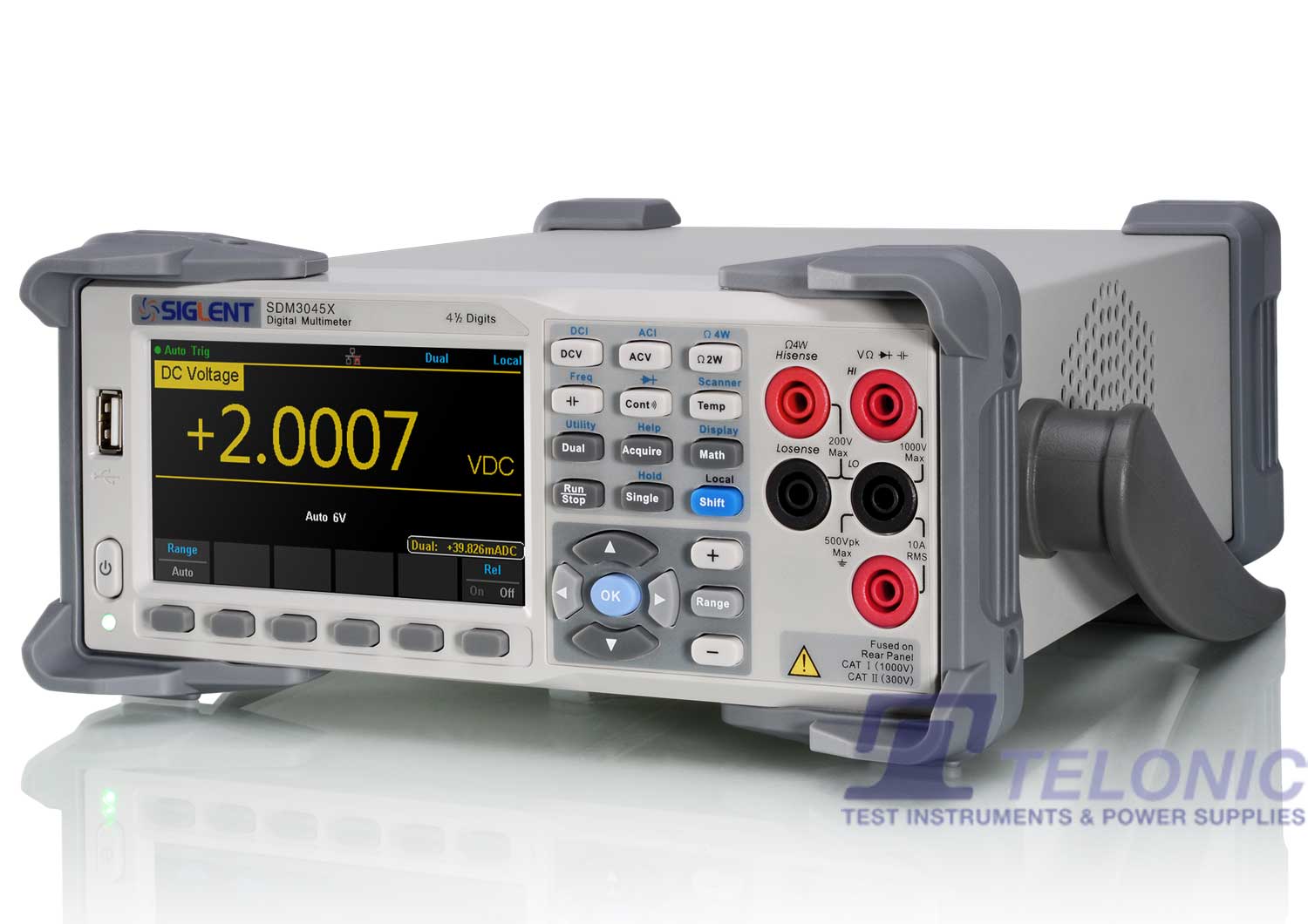

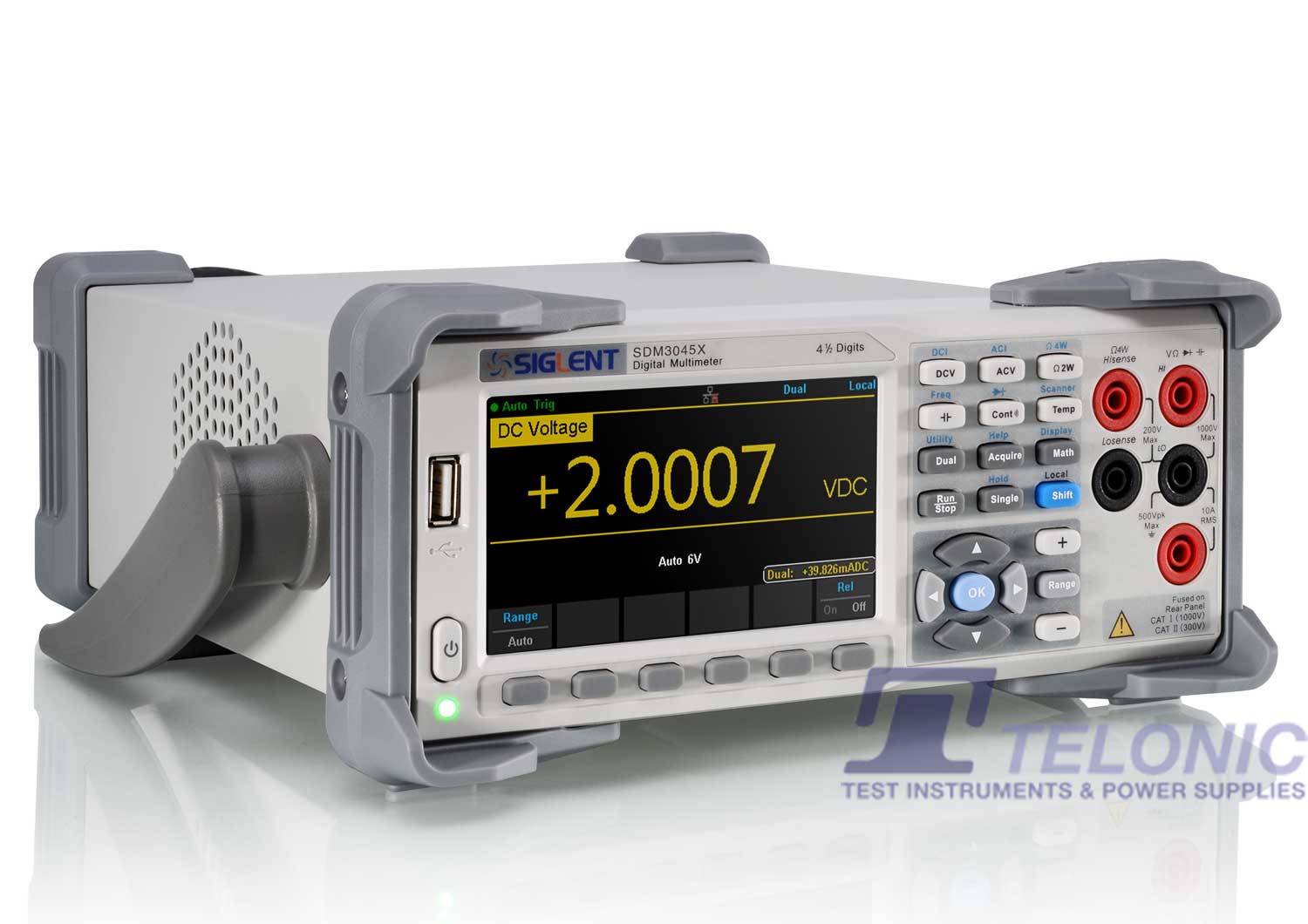

Siglent SDM3045X Digital Multimeter

SDM3045X is a 4½ digit digital (66,000 count) multimeter incorporating a dual-display and is especially well suited for the needs of high-precision, multi-function, and automatic measurement.

  • Real 4½ digit display (66,000 count) readings resolution
  • Up to 150 rdgs/s measurement speed
  • True-RMS AC Voltage and AC Current measuring
  • 1 Gb NAND flash size, mass storage configuration files and data files
  • Built-in cold terminal compensation for thermocouple
  • With easy, convenient and flexible PC software: EasyDDM
  • Standard interface: USB Device, USB Host, LAN
  • User-friendly Design
  • 4.3″ TFT-LCD, 480*272
  • Support dual display, Chinese and English menu
  • Built-in front panel accessible help system
  • File management (support for USB driver and local storage)
  • USB & LAN remote interfaces support common SCPI command set. Compatible with other popular DMMs on the market
  • Not compatible with the SC1016 Scanner Card Option

Siglent SDM3000X Digital Multimeter Comparison Table

Model Reading Resolution DC Voltage Accuracy In A Year DC Voltage Measurement Range AC Voltage Measurement Range DC Current Measurement Range Scanner Card
SDM3045X 4 1/2 Digit 0.01% of reading + 6 counts 600 mV – 1000 V 600 mV – 750 V 600 µA – 10 A No
SDM3055 5 1/2 Digit 0.015% of reading + 0.003% of range 200 mV – 1000 V 200 mV – 750 V 200 µA – 10 A No
SDM3055-SC 5 1/2 Digit 0.015% of reading + 0.003% of range 200 mV – 1000 V 200 mV – 750 V 200 µA – 10 A Yes
SDM3065X 6 1/2 Digit 0.0035% of reading + 0.0006% of range 200 mV – 1000 V 200 mV – 750 V 200 µA – 10 A No
SDM3065X-SC 6 1/2 Digit 0.0035% of reading + 0.0006% of range 200 mV – 1000 V 200 mV – 750 V 200 µA – 10 A Yes

Product Videos

Documentation


DC Characteristics

Function Range Test Current or Load Voltage Resolution Accuracy (One Year; 23°C ±5°C )
DC Voltage 600mV 0.01mV 0.01 + 5
6V 0.0001V 0.01 + 6
60V 0.001V 0.02 + 4
600V 0.01V 0.02 + 6
1000V 0.1V 0.02 + 6
DC Current 600μA < 33mV 0.01μA 0.05 + 3
6mA < 330mV 0.0001mA 0.05 + 3
60mA < 0.05V 0.001mA 0.05 + 3
600mA < 0.5V 0.01mA 0.12 + 6
6A < 0.33V 0.0001A 0.20 + 5
10A < 0.6V 0.001A 0.25 + 4
Resistance 600Ω 1mA 0.01Ω 0.04 + 5
6kΩ 100μA 0.0001KΩ 0.02 + 5
60kΩ 10μA 0.001KΩ 0.02 + 5
600kΩ 1μA 0.01KΩ 0.04 + 5
6MΩ 200nA 0.0001MΩ 0.12 + 3
60MΩ 200 nA || 10 MΩ 0.001MΩ 0.85 + 3
100MΩ 200 nA || 10 MΩ 0.01MΩ 1.75 + 3
Diode Test 0 ~ 2V 1mA 0.0001V 0.05 + 3
2 ~ 4V 1mA 0.0001V 0.35 + 3
Continuity Test 2000Ω 1mA 0.1Ω 0.05 + 3

AC Characteristics

Function Range Frequency Range Resolution Accuracy (One Year; 23°C ±5°C )
True RMS AC Voltage 600mV 20 Hz – 45 Hz
45 Hz – 100 Hz
100 Hz – 20 KHz
20 KHz – 50 KHz
50 KHz –100 KHz
0.01mV 2.0 + 20
0.6 + 10
0.2 + 10
1.0 + 10
3.0 + 10
6V 20 Hz – 45 Hz
45 Hz – 100 Hz
100 Hz – 20 KHz
20 KHz – 50 KHz
50 KHz –100 KHz
0.0001V 2.0 + 20
0.6 + 10
0.2 + 10
1.0 + 10
3.0 + 10
60V 20 Hz – 45 Hz
45 Hz – 100 Hz
100 Hz – 20 KHz
20 KHz – 50 KHz
50 KHz –100 KHz
0.001V 2.0 + 20
0.6 + 10
0.2 + 10
1.0 + 10
3.0 + 10
600V 20 Hz – 45 Hz
45 Hz – 100 Hz
100 Hz – 20 KHz
20 KHz – 50 KHz
50 KHz –100 KHz
0.01V 2.0 + 20
0.6 + 10
0.2 + 10
1.0 + 10
3.0 + 10
750V 20 Hz – 45 Hz
45 Hz – 100 Hz
100 Hz – 20 KHz
20 KHz – 50 KHz
50 KHz –100 KHz
0.01V 2.0 + 20
0.6 + 10
0.2 + 10
1.0 + 10
3.0 + 10
True RMS AC Current 60mA 20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz
0.001mA 2.0 + 20
0.5 + 20
2.5 + 30
600mA 20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz
0.01mA 2.0 + 20
0.5 + 20
2.5 + 30
6A 20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz
0.0001A 2.0 + 20
0.5 + 20
2.5 + 20
10A 20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz
0.001A 1.5 + 15
0.5 + 15
2.5 + 25

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
