Siglent SDG810 1Ch, 10MHz, 125MSa/s, Function Generator

£151.00 (£181.20 inc VAT)

5 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: SDG810 Categories: ,

Description


Siglent SDG810 Function Generator

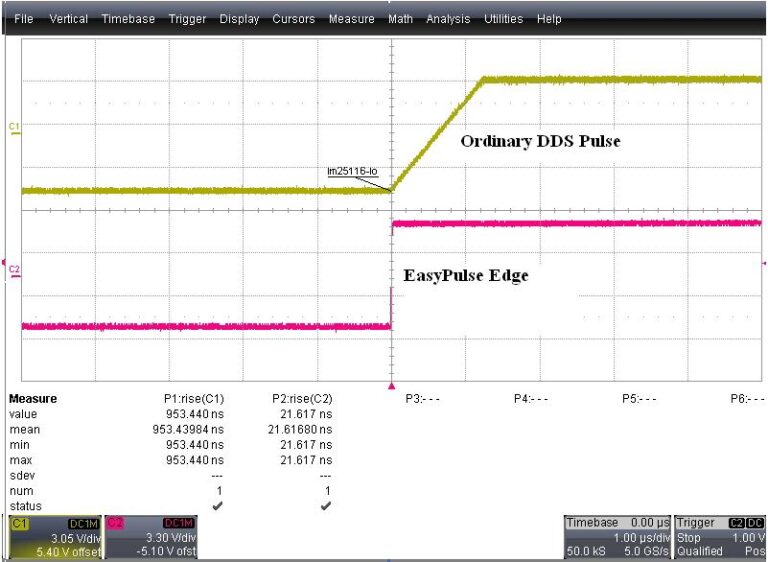

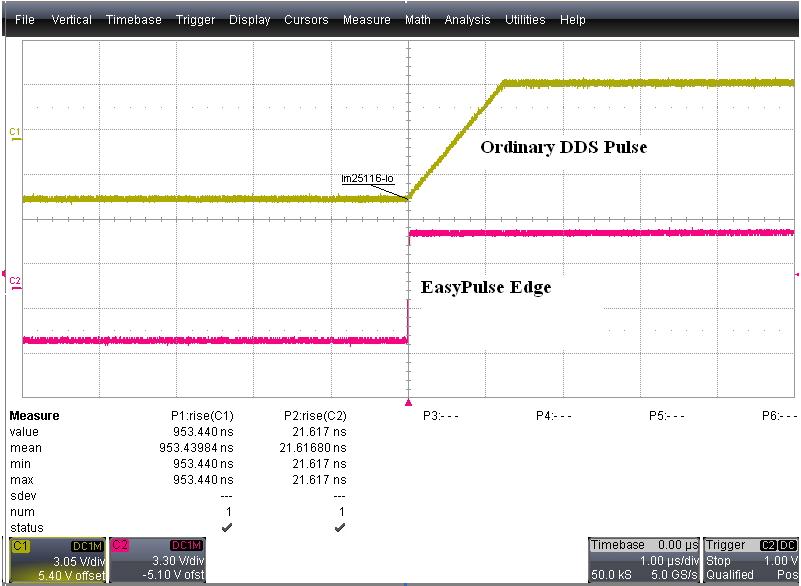

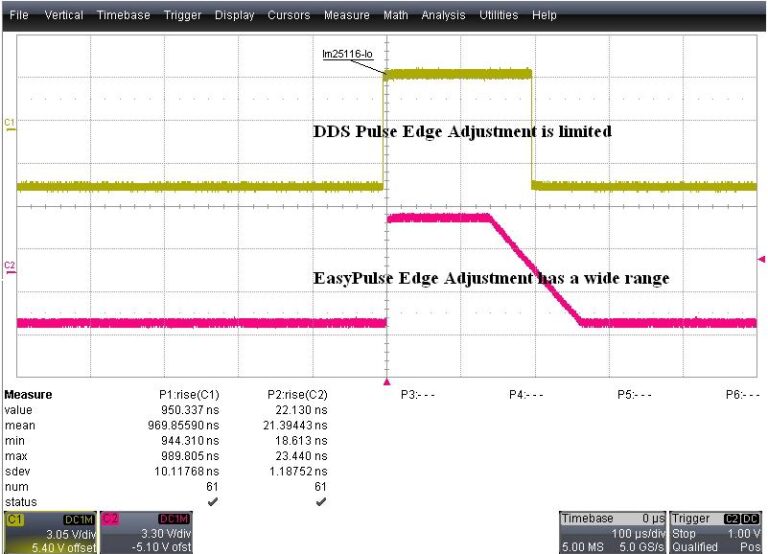

The SDG810 is a 1CH, 10MHz Function Generator with a maximum sampling rate of 125MSa/s. The SDG800 series function/arbitrary waveform generator family outputs waveform functions up to up to 5 MHz (pulse), 10 MHz (square), 30 MHz (sine) and has a sampling rate of 125 MSa/s. They are powered with SIGLENT’s EasyPulse technology which produces low jitter, fast rising/falling edges without being affected by frequency, even at low duty cycle settings, allowing the user a wide range of pulse widths and transition times. This results in a much more versatile generator than other similar DDS designs.

Features:

  • Innovative EasyPulse technology can output pulses with low jitter and quick rising/falling edges
  • Standard interfaces: USB Device, USB Host, supports U-Disk storage
  • 10 Nonvolatile storage spaces for user’s arbitrary waveforms
  • Can be seamlessly connected to SIGLENT Digital Storage Oscilloscope

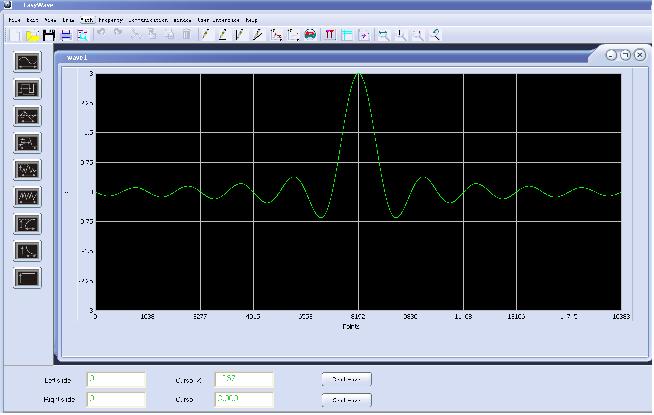

  • Includes EasyWave, the powerful arbitrary waveform editing software
  • Advanced DDS technology, 125 MSa/s sampling rate, 14-bit vertical resolution

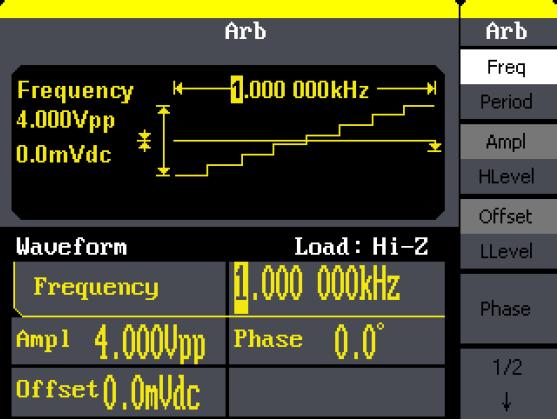

  • Single channel output, 5 standard waveforms, 46 built-in arbitrary waveforms (including DC)
  • Complete modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Linear/Logarithmic sweep, and burst

Siglent SDG800 Function Generator Comparison Table

MODELMAX OUTPUT FREQUENCYMAX SAMPLING RATEVERTICAL RESOLUTIONWAVEFORM LENGTHCHANNELS
SDG81010MHz125MSa/s14-bit16kpts1
SDG83030MHz125MSa/s14-bit16kpts1

Product Images

Product Videos

YouTube Video
YouTube Video
YouTube Video
YouTube Video
YouTube Video
Specification
ModelSDG810SDG830
Max. output
frequency		10MHz30MHz
Output channels11
Sample rate125MSa/s125MSa/s
Arbitrary waveform
length		16kpts16kpts
Frequency resolution1μHz1μHz
vertical resolution14bits14bits
WaveformSine, Square, Ramp, Pulse, Gaussian Noise. 46 built-in arbitrary
waveforms(include DC)		Sine, Square, Ramp, Pulse, Gaussian Noise. 46 built-in arbitrary
waveforms(include DC)
ModulationAM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, BurstAM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
Standard interfaceUSB Host & USB DeviceUSB Host & USB Device
DimensionW x H x D=229mm x 105mm x 281mmW x H x D=229mm x 105mm x 281mm
Frequency Specification
ModelSDG810SDG830
WaveformSine, Square, Ramp, Pulse, Noise, ArbitrarySine, Square, Ramp, Pulse, Noise, Arbitrary
Sine1μHz ~ 10MHz1μHz ~ 30MHz
Square1μHz ~ 10MHz1μHz ~ 30MHz
Pulse500μHz ~ 5MHz500μHz ~ 5MHz
Ramp/Triangular1μHz ~ 300kHz1μHz ~ 300kHz
Gaussian white noise>10MHz (-3dB)>30MHz (-3dB)
Arbitrary1μHz ~ 5MHz1μHz ~ 5MHz
Resolution1μHz1μHz
AccuracyWithin 90days ±50ppm within 1 year ±100ppmWithin 90days ±50ppm within 1 year ±100ppm
Temperature coefficient<5ppm/°C<5ppm/°C
Output Specification
ModelSDG810SDG830
Amplitude2mVpp~10Vpp(50Ω,≤10MHz)
2mVpp~5Vpp(50Ω,>10MHz)
4mVpp ~ 20 Vpp（High impedance, <10MHz） 4mVpp ~ 10Vpp（High impedance,>10MHz）		2mVpp~10Vpp(50Ω,≤10MHz)
2mVpp~5Vpp(50Ω,>10MHz)
4mVpp ~ 20 Vpp（High impedance, <10MHz） 4mVpp ~ 10Vpp（High impedance,>10MHz）
Vertical accuracy (100 kHz sine)±(1mVpp +0.3dB of setting value)±(1mVpp +0.3dB of setting value)
Amplitude flatness (compared to
100 kHz sine,5Vpp)		±0.3 dB±0.3 dB
Impedance50Ω50Ω
Protectionshort-circuit protectionshort-circuit protection
General Specification
ModelSDG810SDG830
Display type3.5 inch TFT-LCD3.5 inch TFT-LCD
Resolution320×RGB×240320×RGB×240
Colour Depth24bit24bit
Contrast Ratio350:1 (typical)350:1 (typical)
Luminance300cd/m (typical)300cd/m (typical)
Voltage100~240 VACRMS, 50/60Hz
100~120 VACRMS, 440Hz		100~240 VACRMS, 50/60Hz
100~120 VACRMS, 440Hz
Consumption<30W<30W
Fuse1.25A, 250V1.25A, 250V
TemperatureOperation:0°C~40°C
Storage:-20°C~60°C		Operation:0°C~40°C
Storage:-20°C~60°C
Humidity rangeBelow +35℃:≤90% relative humidity
+35℃~+40℃:≤60% relative humidity		Below +35℃:≤90% relative humidity
+35℃~+40℃:≤60% relative humidity
AltitudeOperation: below 3,000 meters
Storage: below 15,000 meters		Operation: below 3,000 meters
Storage: below 15,000 meters
DimensionWidth:229mm
Height:105mm
Depth:281mm		Width:229mm
Height:105mm
Depth:281mm
WeightN.W: 2.6Kg
G.W: 3.4Kg		N.W: 2.6Kg
G.W: 3.4Kg

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
