Tekbox TBDCA1 – DC to 10 MHz, 150 W DC-Coupled Power Amplifier

£4050.00 (£4860.00 inc. VAT)

Out of stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBDCA1 Categories: , , , , Brand:

Description


Tekbox TBDCA1 – DC to 10 MHz, 150 W DC-Coupled Power Amplifier

The Tekbox TBDCA1 is a low-output-impedance, DC-coupled power amplifier designed to extend the voltage, current and power capability of an arbitrary waveform generator. It delivers up to 150 W continuous output power, with a 3 dB bandwidth from DC to 3 MHz and usable operation up to 10 MHz. A maximum 56 Vpp output, 10 A RMS continuous current capability and switchable gain from 0 dB to 40 dB make it suitable for driving demanding low-impedance loads and reproducing fast automotive and EMC test waveforms.

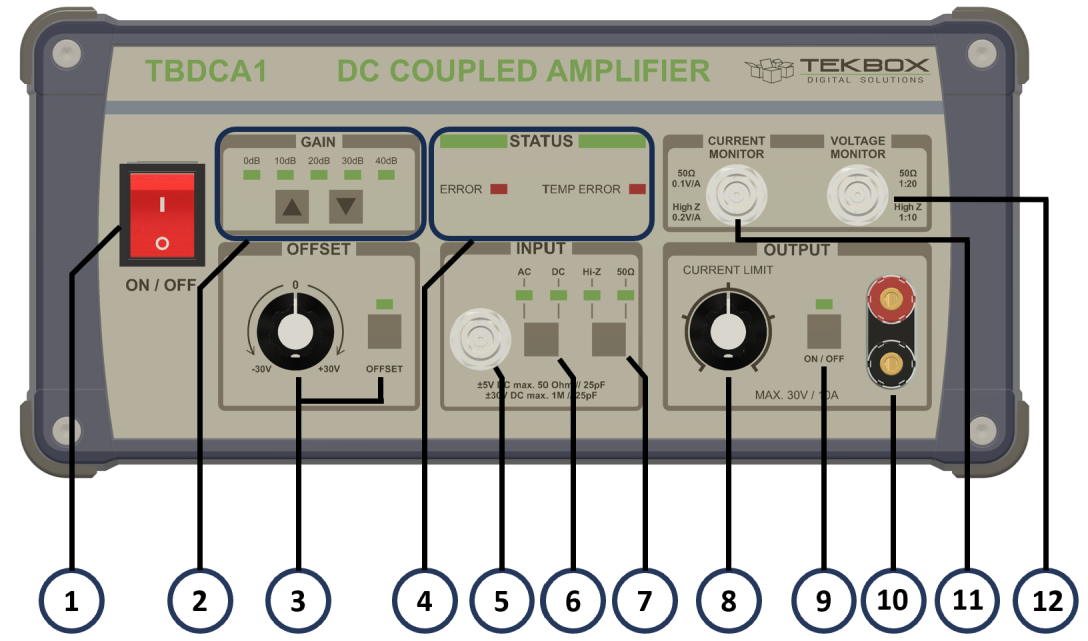

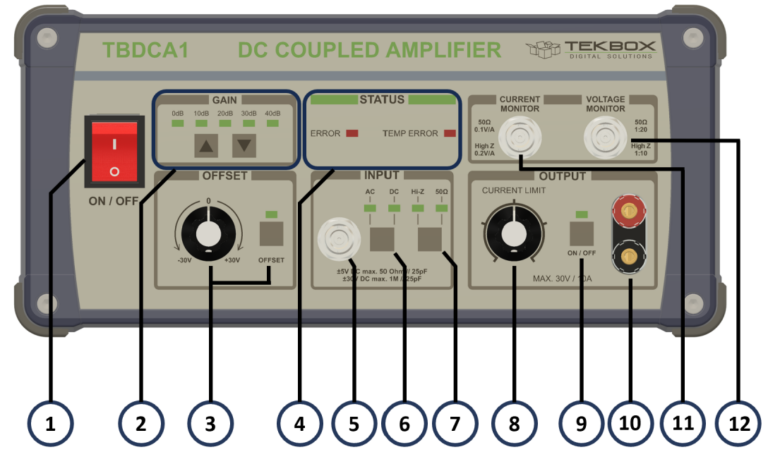

The TBDCA1 supports AC- or DC-coupled operation and selectable 50 ohm or high-impedance input termination. Its adjustable +/-25 V DC offset allows it to act as a voltage-controlled power source in suitable low-voltage applications, while dedicated voltage and current monitor outputs simplify measurement at the load. Adjustable current limiting and front-panel status indication help protect both the amplifier and the connected test setup.

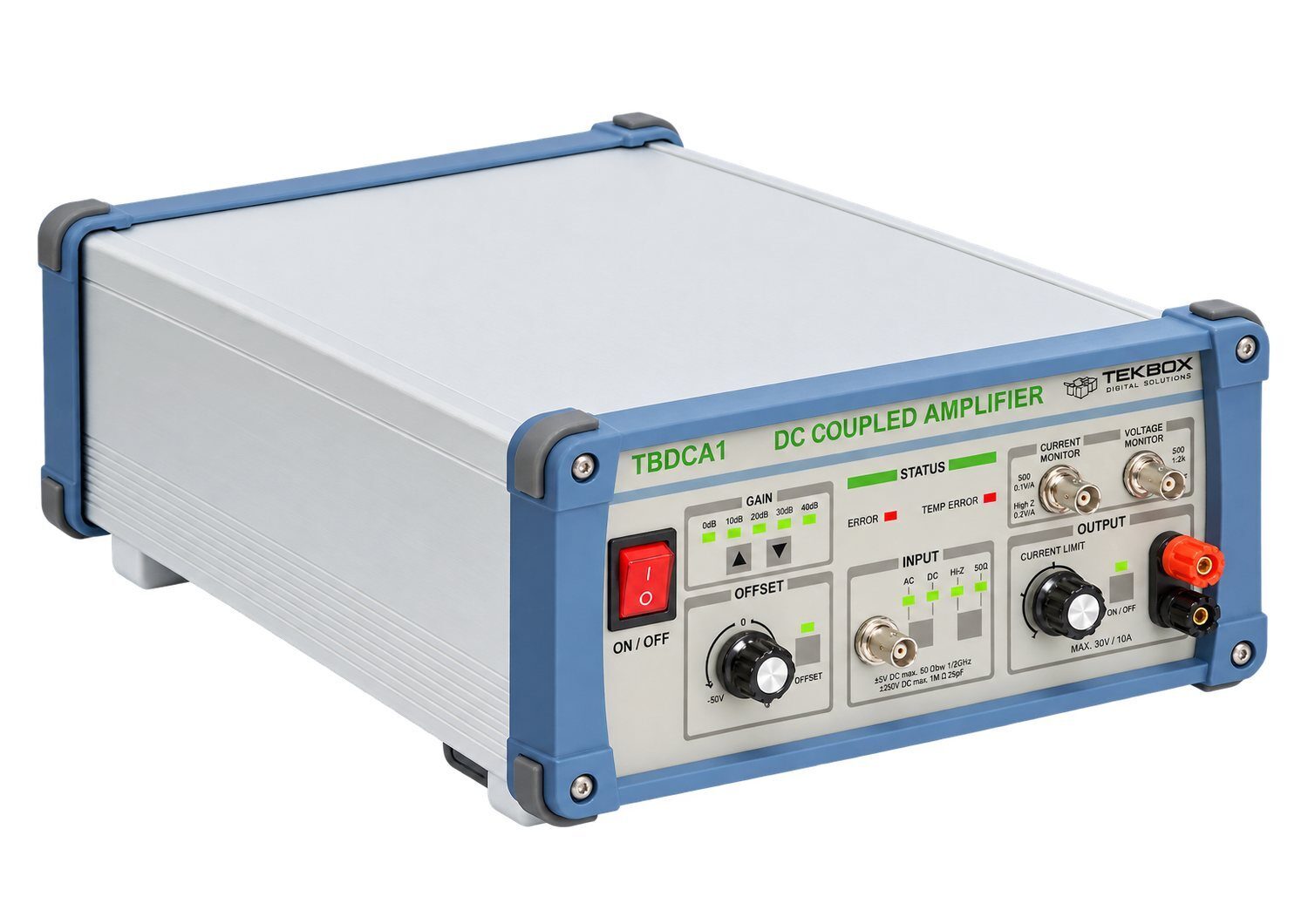

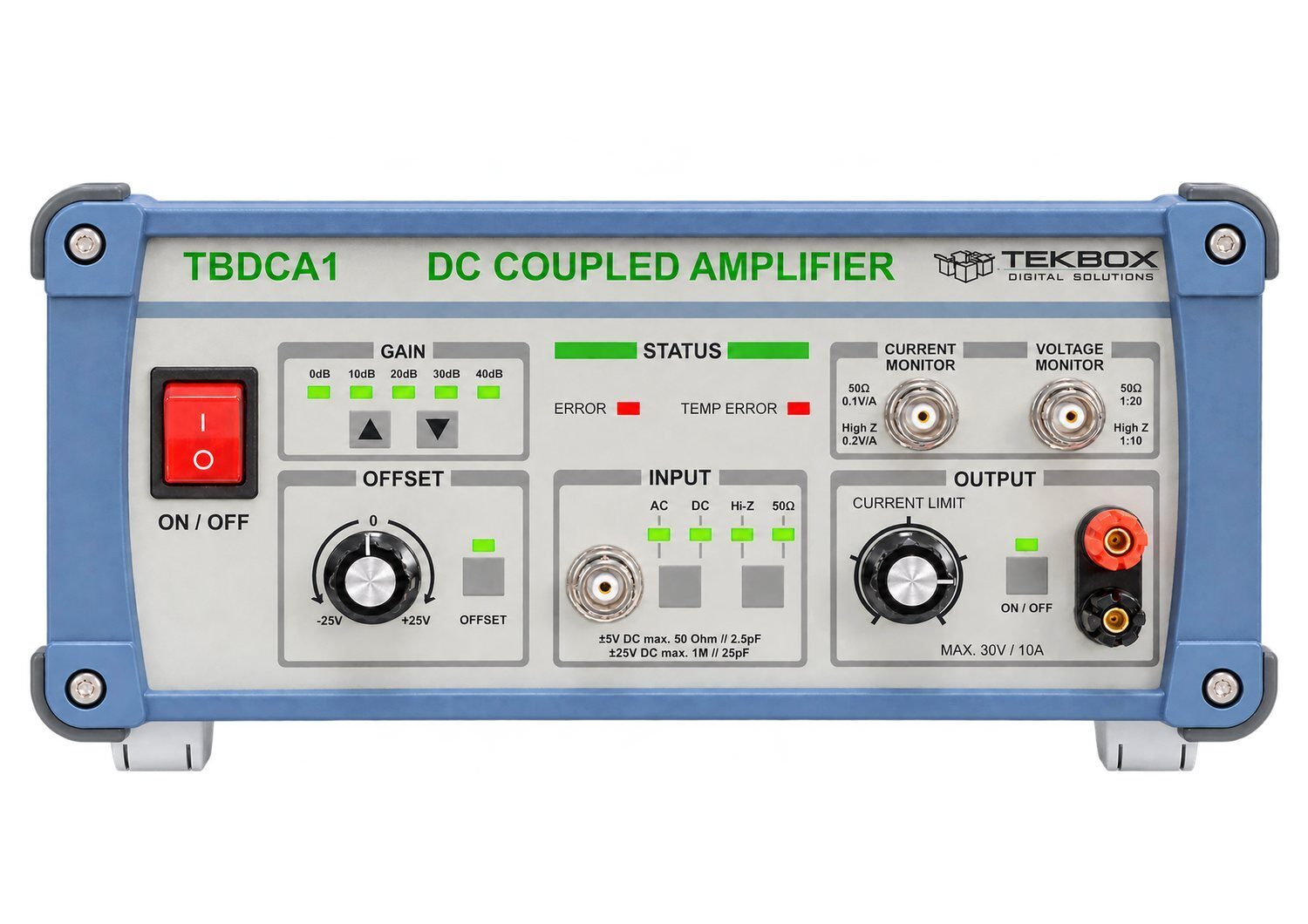

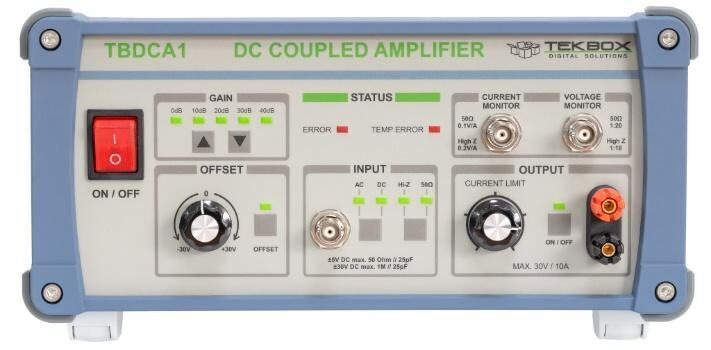

Product Images

Documentation

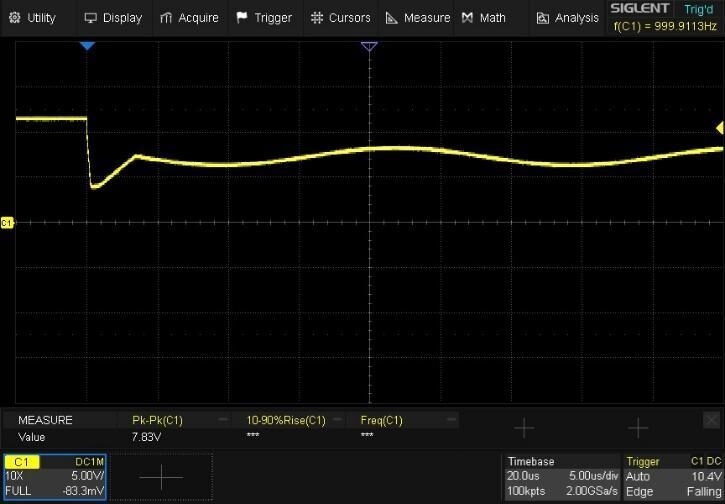

ISO16750 Python Script TBDCA1 Manual Application Notes Application Note: Creating ISO 16750-2 Cranking Waveforms with a Siglent AWG and Tekbox TBDCA1
General

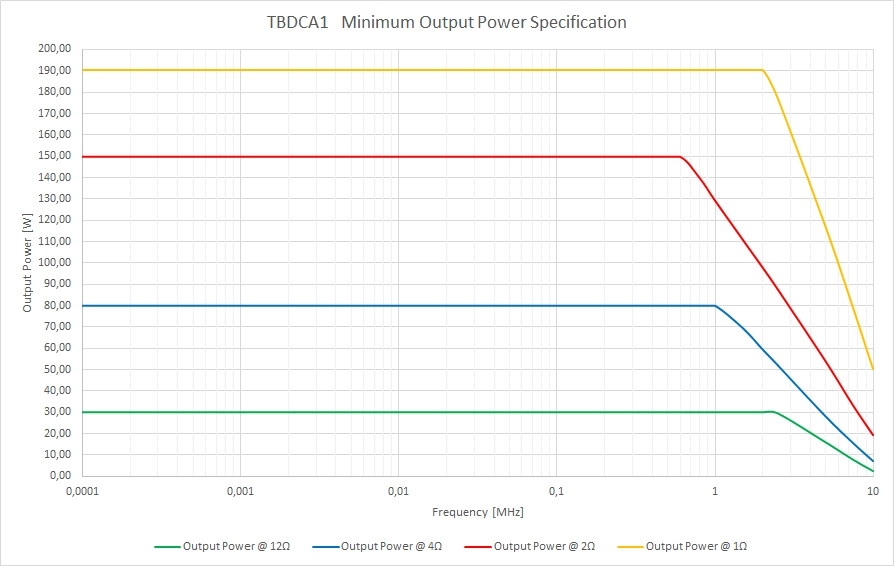

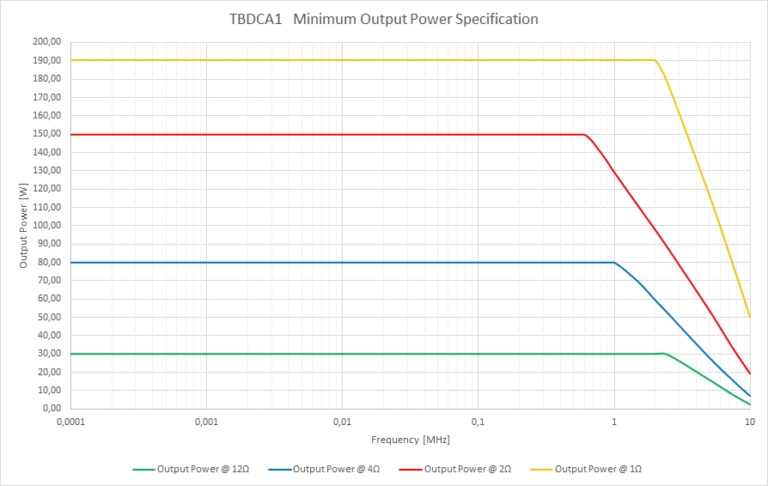

3 dB bandwidth DC to 3 MHz; usable up to 10 MHz
Output power Up to 150 W, depending on load impedance
Voltage gain Switchable: 0 dB, 10 dB, 20 dB, 30 dB, 40 dB
Operating temperature -20°C to +40°C
Dimensions 300 mm W x 150 mm H x 420 mm L
Weight 10 kg
Output
Nominal output power 150 W at Rload ≤ 2 ohms; 80 W at 4 ohms; 30 W at 12 ohms
Maximum output voltage 56 Vpp
Maximum continuous output current 10 A RMS
Maximum short-duration output current 20 A RMS for 30 seconds
Minimum output impedance 0.5 ohm
Output offset voltage Adjustable, +/-25 V
Output connector 4 mm posts
Voltage monitor output 1:20 into 50 ohms; 1:10 into High Z; BNC female
Current monitor output Inverted; 0.1 V/A into 50 ohms; 0.2 V/A into High Z; BNC female
Current limit Adjustable, 0 to +/-12 A
Rise time Typically at least 20 ns; ringing depends on load inductance and cable length
Input
Input coupling AC or DC, switchable
Input impedance 50 ohms or High Z, switchable
Input voltage range +/-3 V (6 Vpp) for maximum output power at 0 dB gain
Maximum input voltage +/-5 V with 50 ohm input; +/-30 V with High Z input
Input connector BNC female

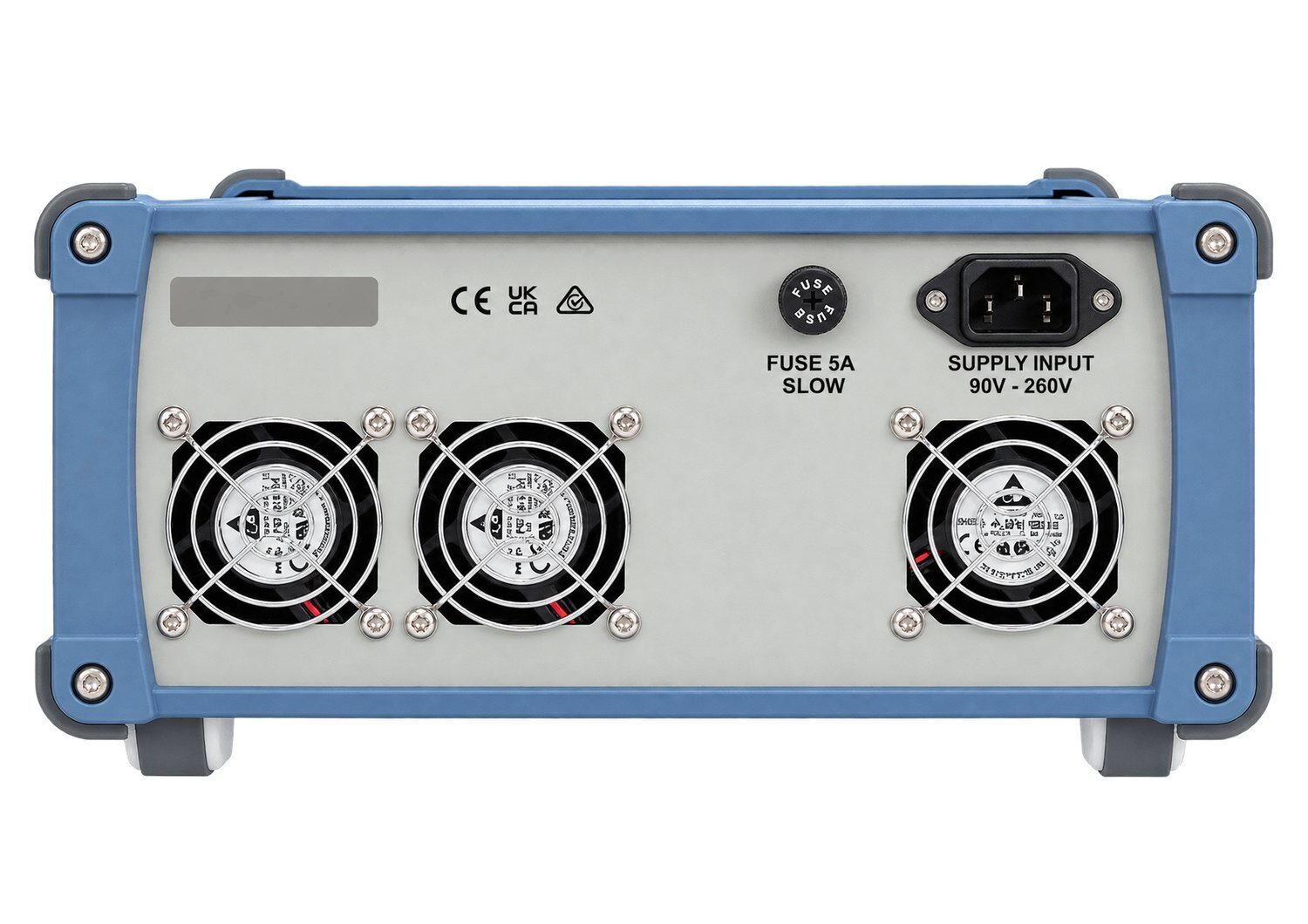

Power supply
Operating voltage 90 V to 260 V AC, 50/60 Hz
Maximum current consumption 9 A at 115 V AC; 4.5 A at 230 V AC
Mains connector IEC/EN 60320 C14
