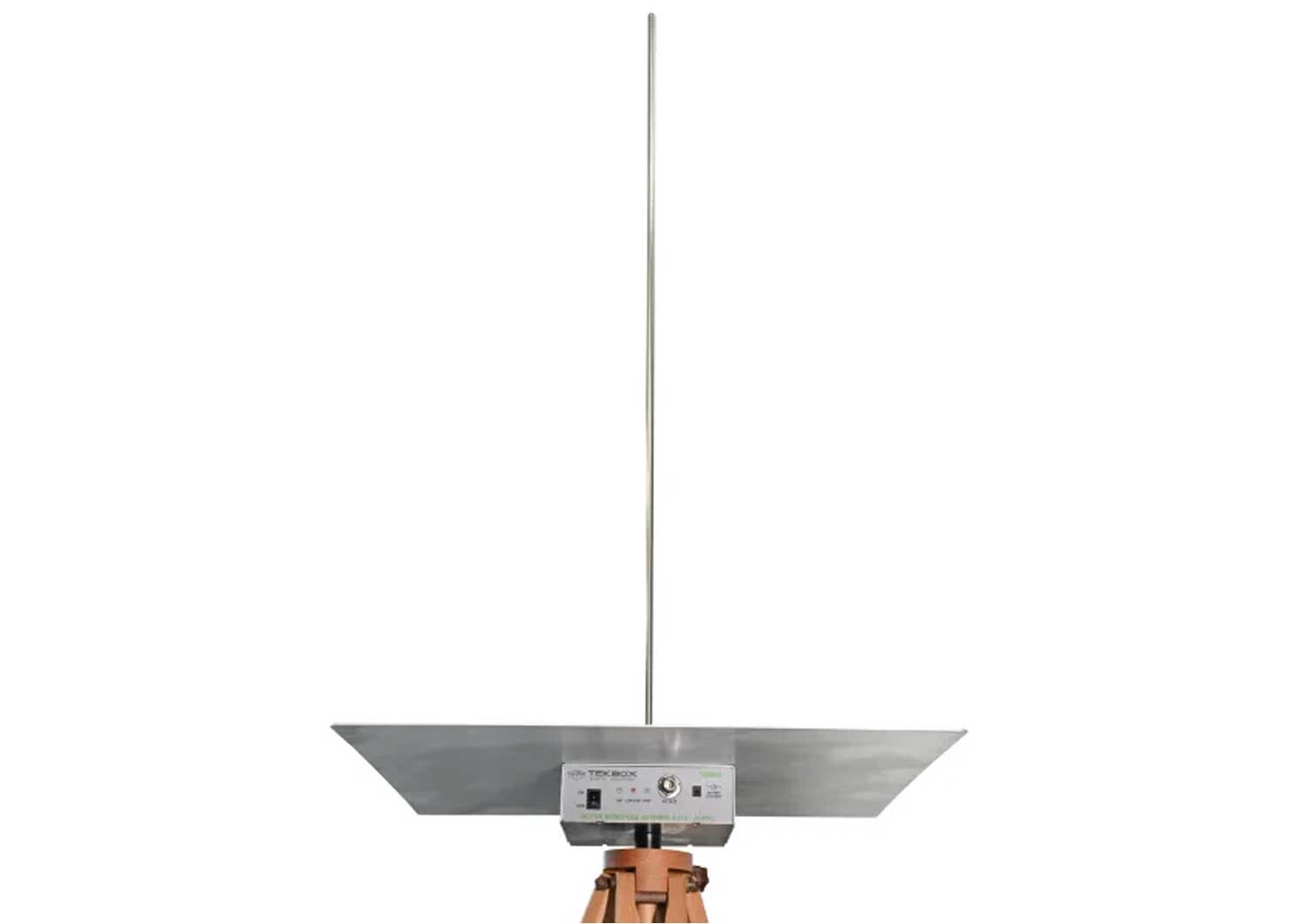

Image of Tekbox tbma5 active monopole antenna telonic uk

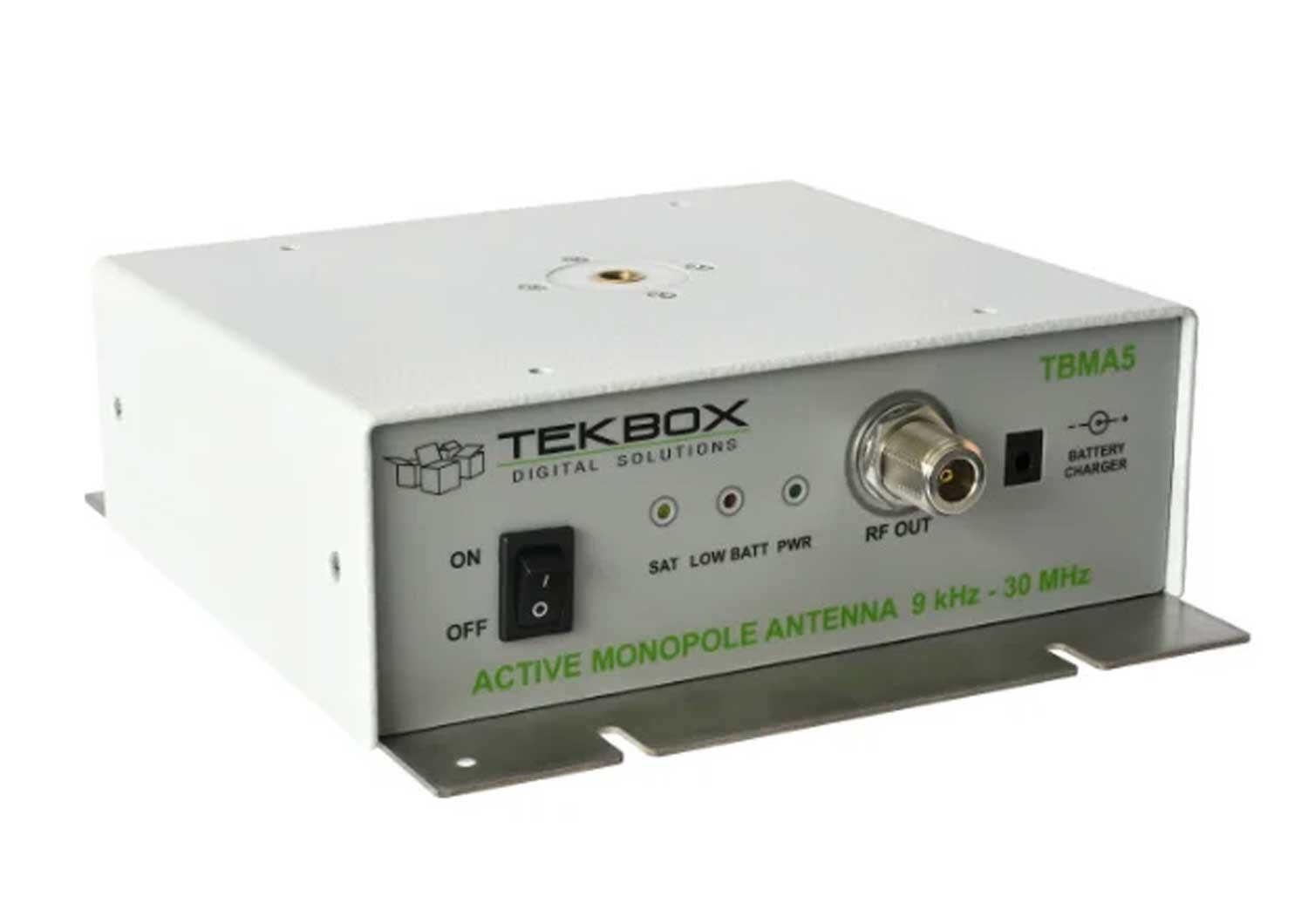

Image of Tekbox tbma5 active monopole antenna side view telonic uk

Rental: Tekbox TBMA5 Active Monopole Antenna 9kHz – 30MHz

Name: Rental: Tekbox TBMA5 Active Monopole Antenna 9kHz - 30MHz
Brand: TEKBOX
SKU: TBMA5 - DEMO
Price: 145.00 GBP
Availability: BackOrder

£145.00 (£174.00 inc. VAT)

Prices shown are weekly rental rates.

You will be charged weekly until the items are returned

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBMA5 - DEMO Categories: Antennas, EMC, Hardware, Optional Accessories, Rental EMC Pre-Compliance, Tekbox Antennas Brand: TEKBOX

Description

Tekbox TBMA5 Active Monopole Antenna 9kHz – 30MHz

The TBMA5 is an active Monopole Antenna, expanding the Tekbox product range of affordable EMC pre-compliance test equipment.
The monopole antenna is designed for radiated emission measurements within the frequency range 9 kHz – 30 MHz, according to CISPR 16. The monopole antenna has a rod with a height of 104 cm and provides sufficient sensitivity to carry out radiated emission measurements as specified in CISPR 25 or MIL-STD-461G.

The TBMA5 consists of an impedance converter, a universal charger, a 10 mm diameter rod, a 60 cm x 60 cm ground plane and a standard 10pF calibration adapter. Furthermore, it includes the coaxial cable with ferrite and grounding equipment required under MIL-STD-461G. The impedance converter is equipped with a ¼” thread to attach it to conventional tripods.
