Siglent SDG2122X 2Ch, 120MHz, 1.2GSa/s, Function Generator

Description

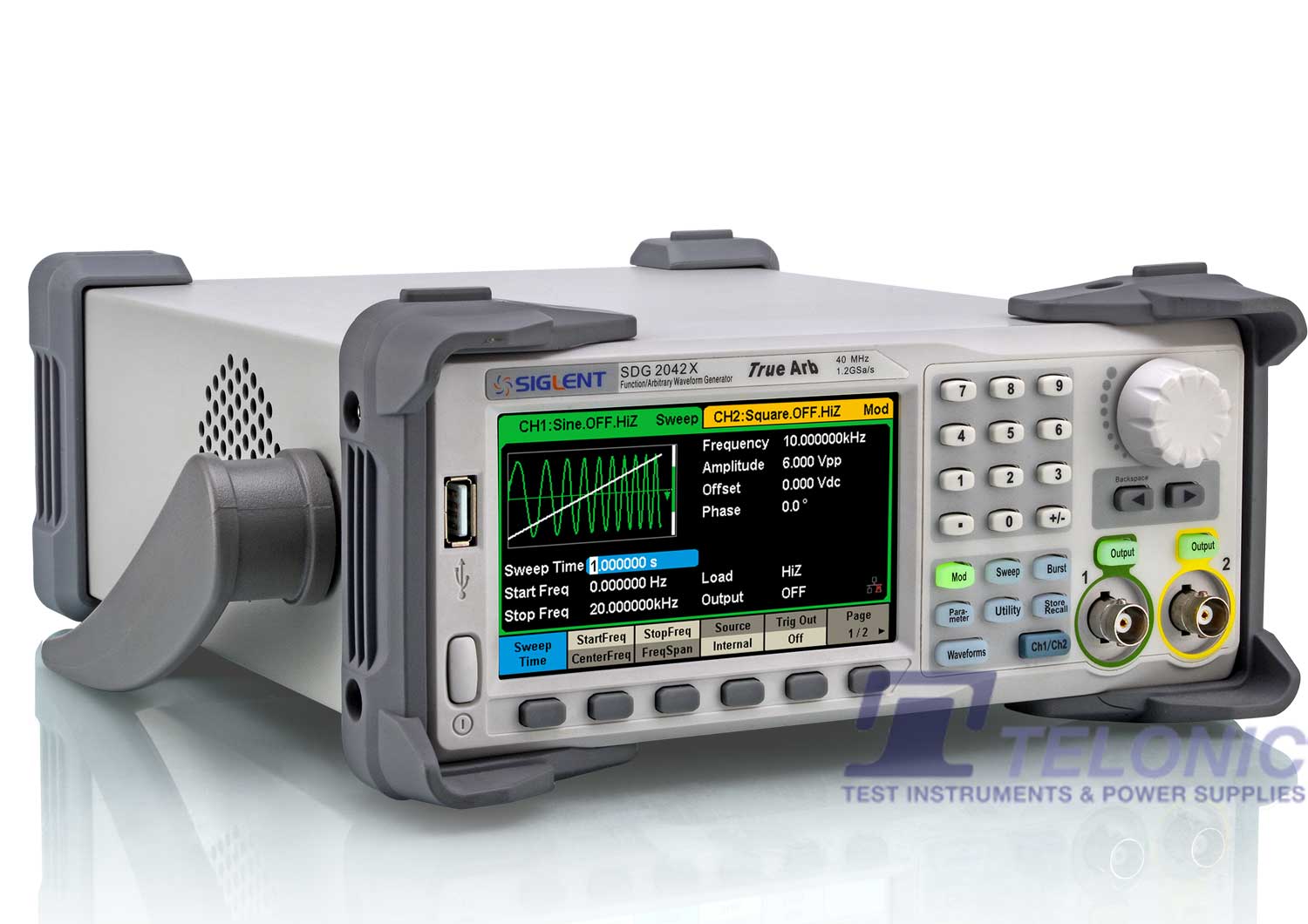

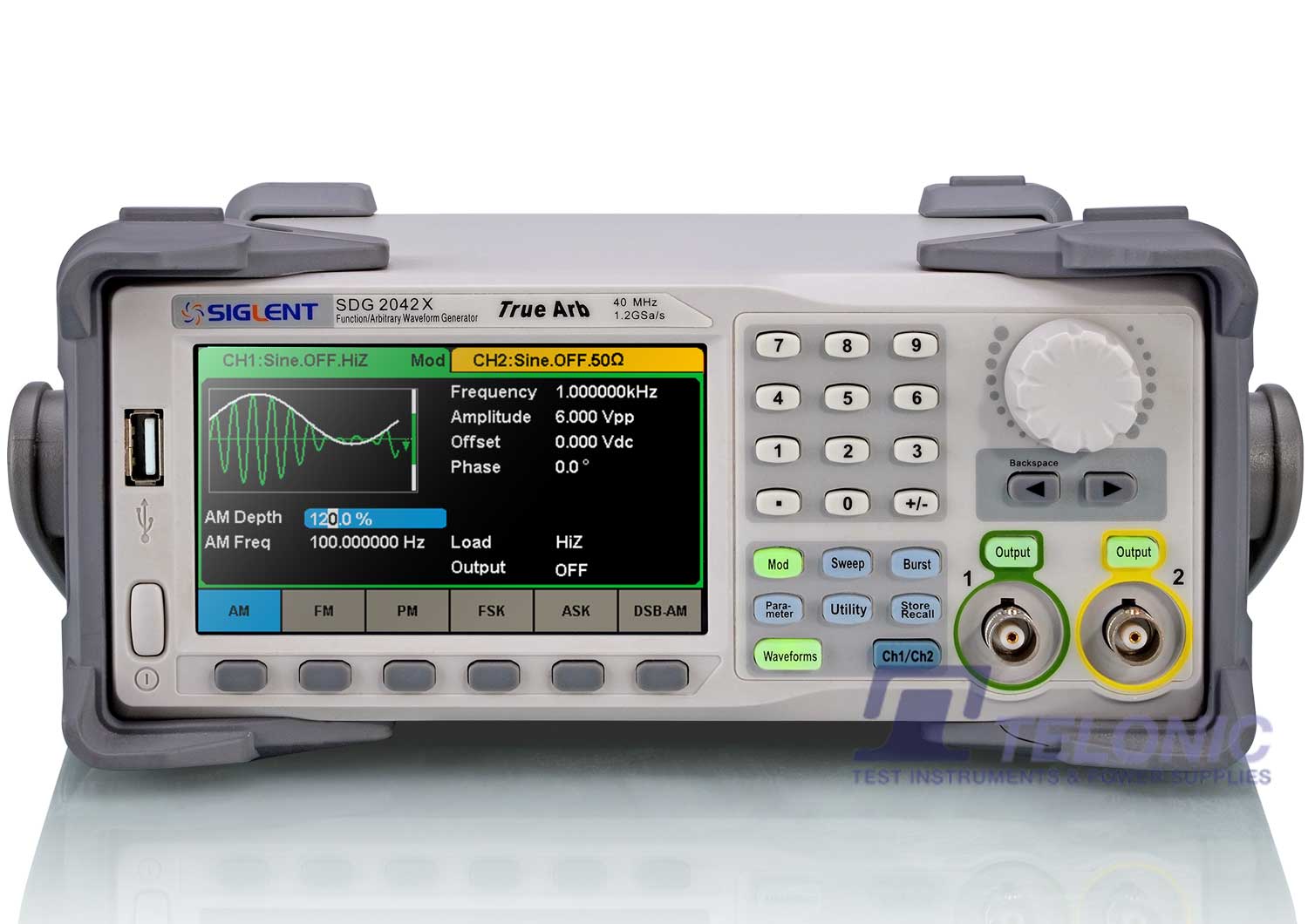

Siglent SDG2122X Function Generator

The SDG2122X is a 2CH, 120MHz Function Generator with a maximum sampling rate of 1.2GSa/s. Siglent’s SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120MHz maximum bandwidth, 1.2 GSa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

• Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
• Plenty of analogue and digital modulation types: AM, DSB-AM, FM, PM, PSK, FSK, ASK, and PWM
• Sweep and Burst function, Harmonics mode supported
• High precision Frequency counter

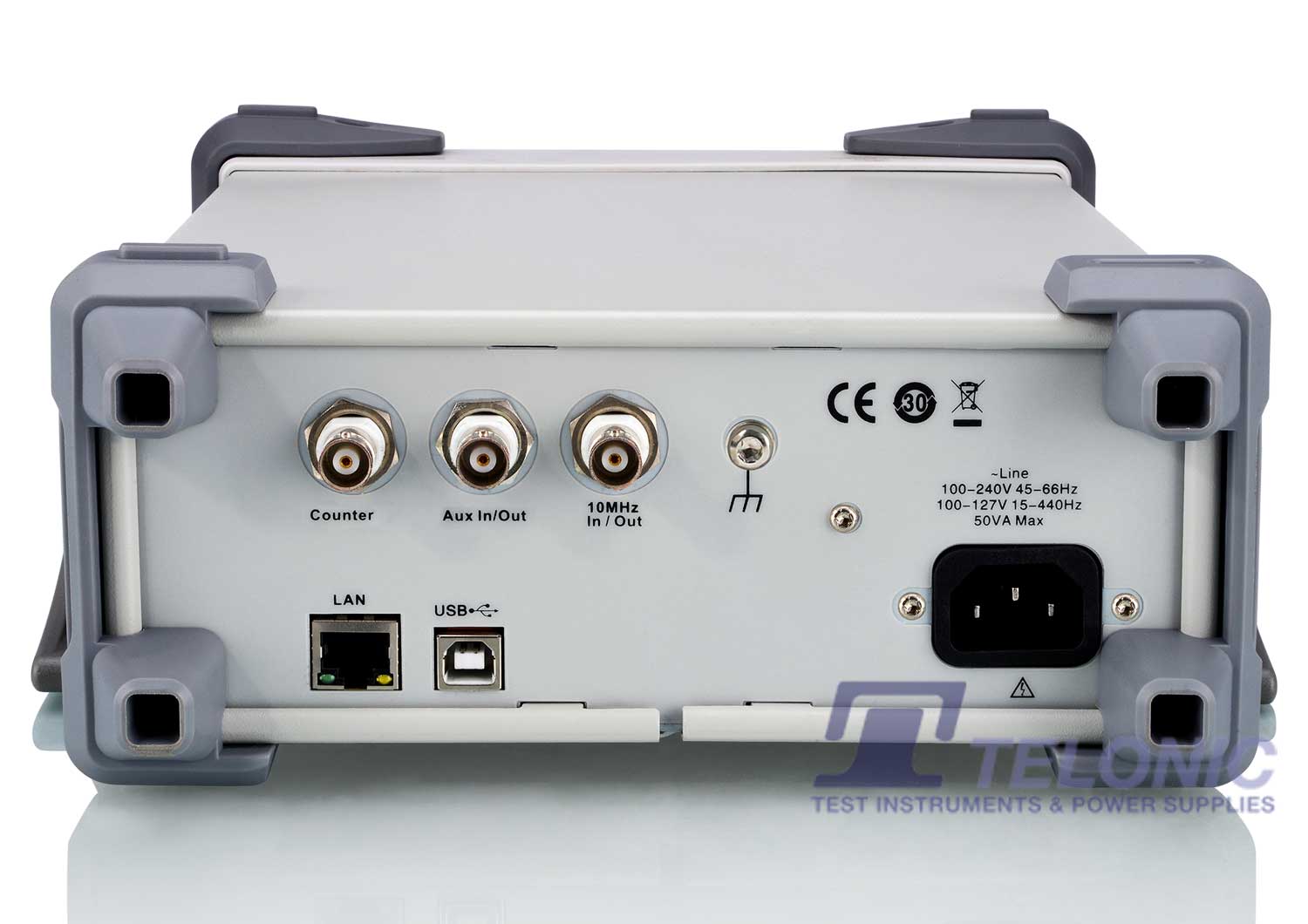

• Standard interfaces: USB Device, USB Host, LAN (VXI-11), and GPIB (optional)
• 4.3″ touchscreen display for easier operation

Siglent SDG2000X Function Generator Comparison Table

Product Images

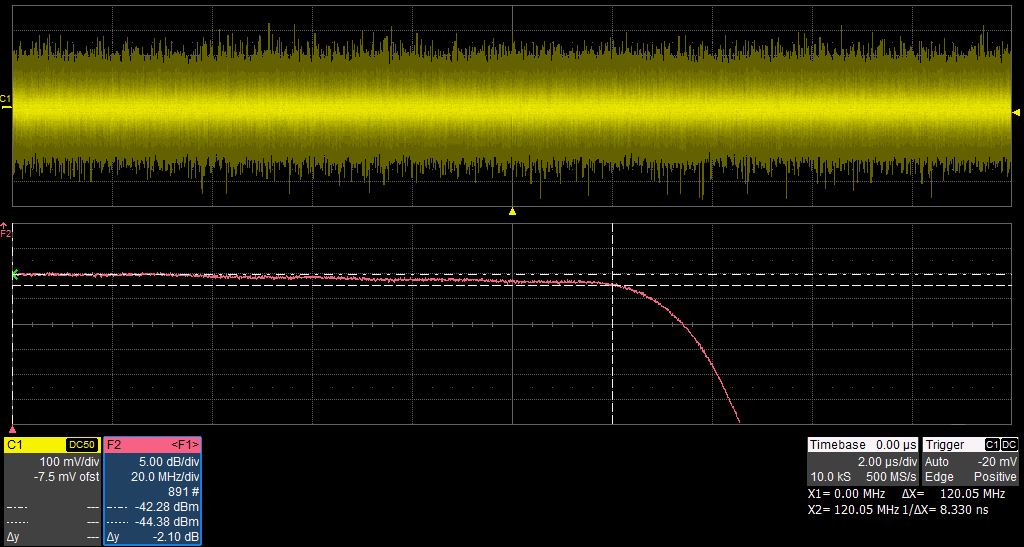

Excellent Analogue Channel Performance

EasyPulse technology

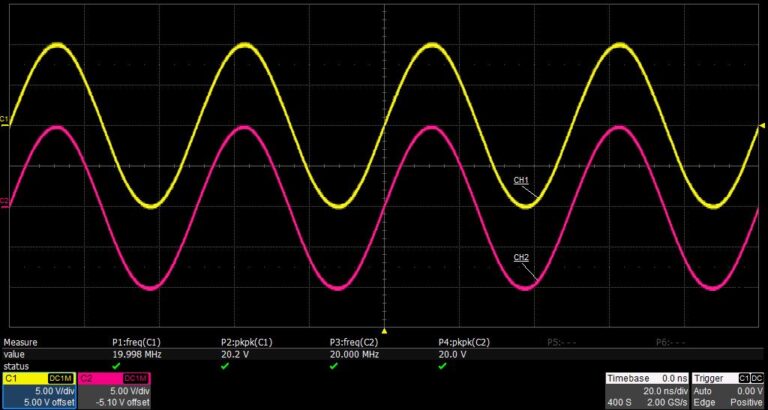

Capacity of outputting large signal at high frequency. Dual-channel, 20Vpp amplitude can be guaranteed even @20MHz.

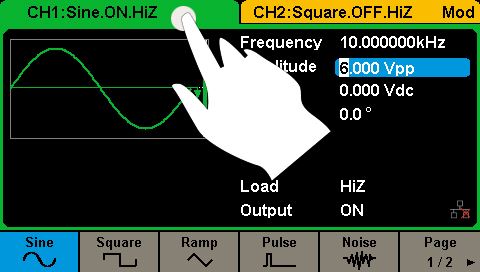

4.3 inch high definition touch screen

2-1

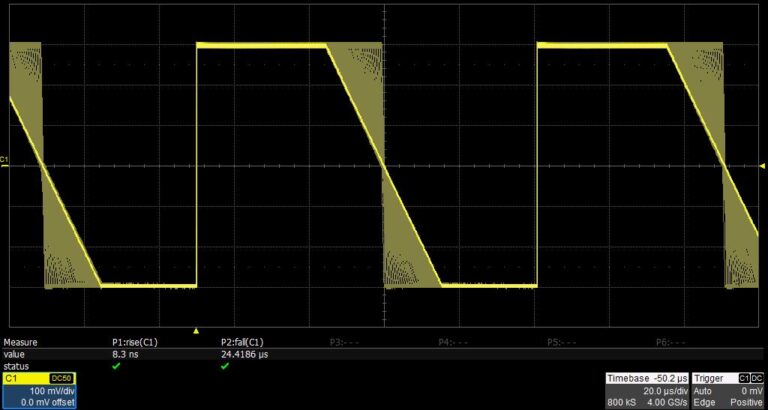

The rise/fall times can be set independently to the minimum of 8.4ns at any frequency and to the maximum of 22.4s. The adjustment step is as small as 100 ps.

Rich modulation features

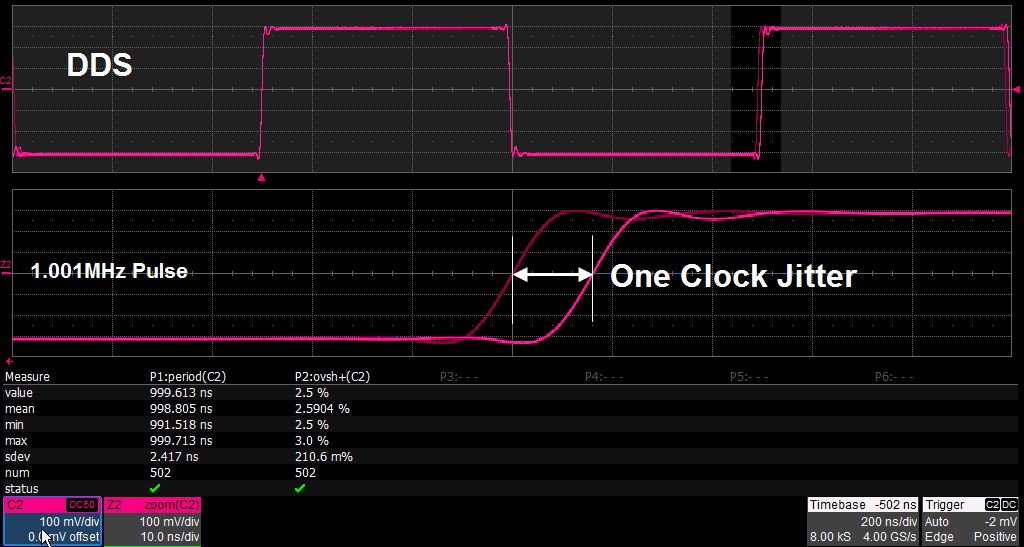

Jitter

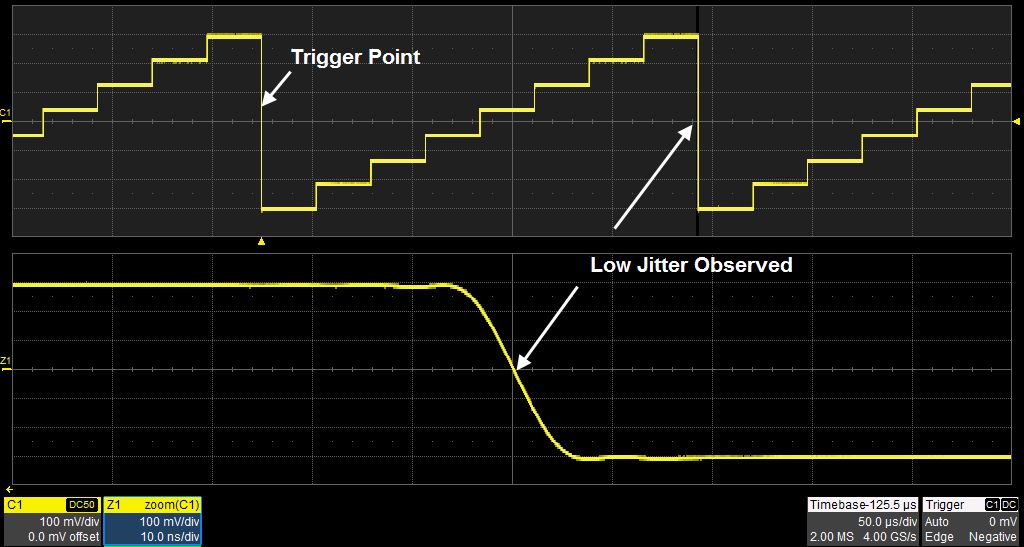

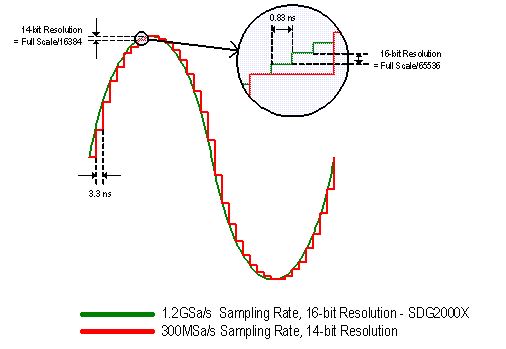

High-Performance Sampling System
