£149.00 (£178.8 inc VAT)
Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

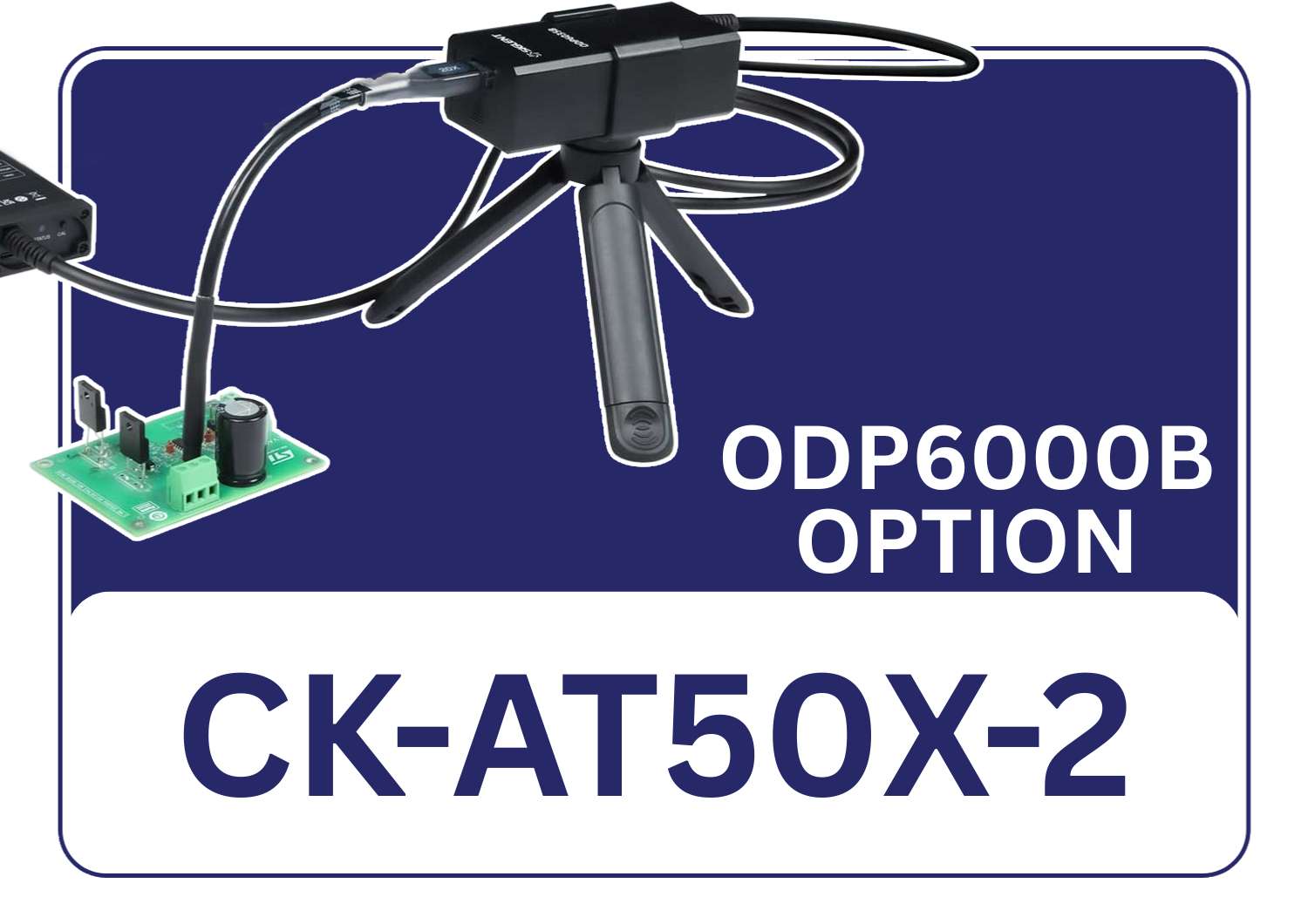

Siglent CK-AT50X-2 Attenuator for ODP6000B Series
The CK-AT50X-2 has an attenuation ratio of 50:1 and a measurement range of up to ±25 Vpk. It uses an SSMB connector and has an input impedance of 10 MΩ in parallel with 4 pF.
View Specification for Comparison
| Probe Model | Attenuator Model | Connector Type | Attenuation Ratio | Measurement Range | Input Impedance |
|---|---|---|---|---|---|
| ODP6050B ODP6100B |
CK-AT5X-2 | SSMB | 5:1 | ±2.5 Vpk | 1 MΩ||28 pF |
| CK-AT10X-2 | SSMB | 10:1 | ±5 Vpk | 1 MΩ||6 pF | |
| CK-AT20X-2 | SSMB | 20:1 | ±10 Vpk | 5 MΩ||6 pF | |
| CK-AT50X-2 | SSMB | 50:1 | ±25 Vpk | 10 MΩ||4 pF | |
| CK-AT100X-2 | SSMB | 100:1 | ±50 Vpk | 10 MΩ||2 pF | |
| CK-AT200X-2 | SSMB | 200:1 | ±100 Vpk | 10 MΩ||2 pF | |
| CK-AT500X-2 | 2.54 mm socket | 500:1 | ±250 Vpk | 10 MΩ||2 pF |
