Description

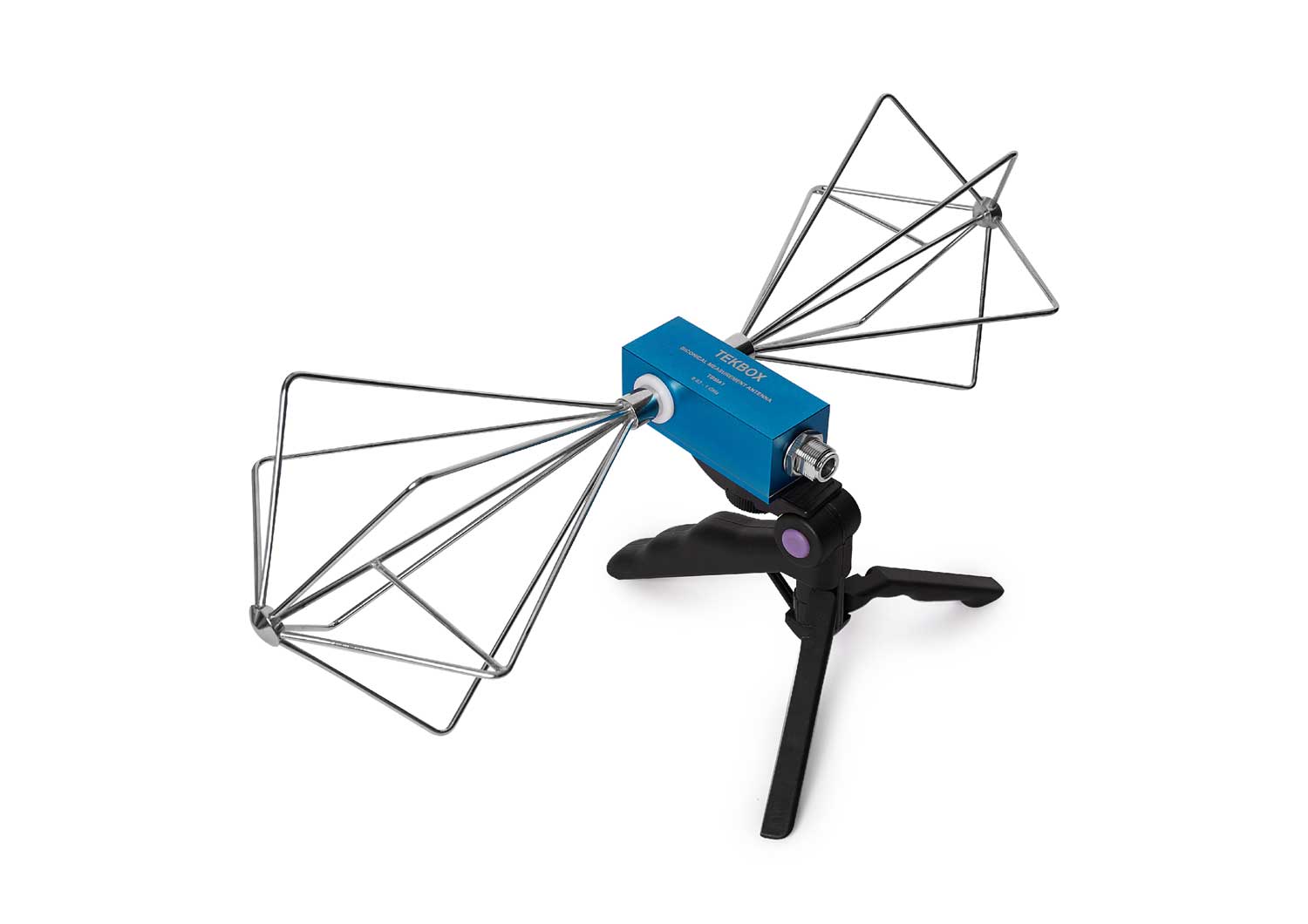

Tekbox TBMA1B Biconical Antenna 30MHz – 3GHz
The TBMA1B is a small, lightweight, wideband biconical measurement antenna. With its moderate price, it is targeting radiated noise EMC pre-compliance testing and generating defined field strengths.
It is characterized from 30 MHz to 3 GHz and has a directional pattern similar to a dipole.

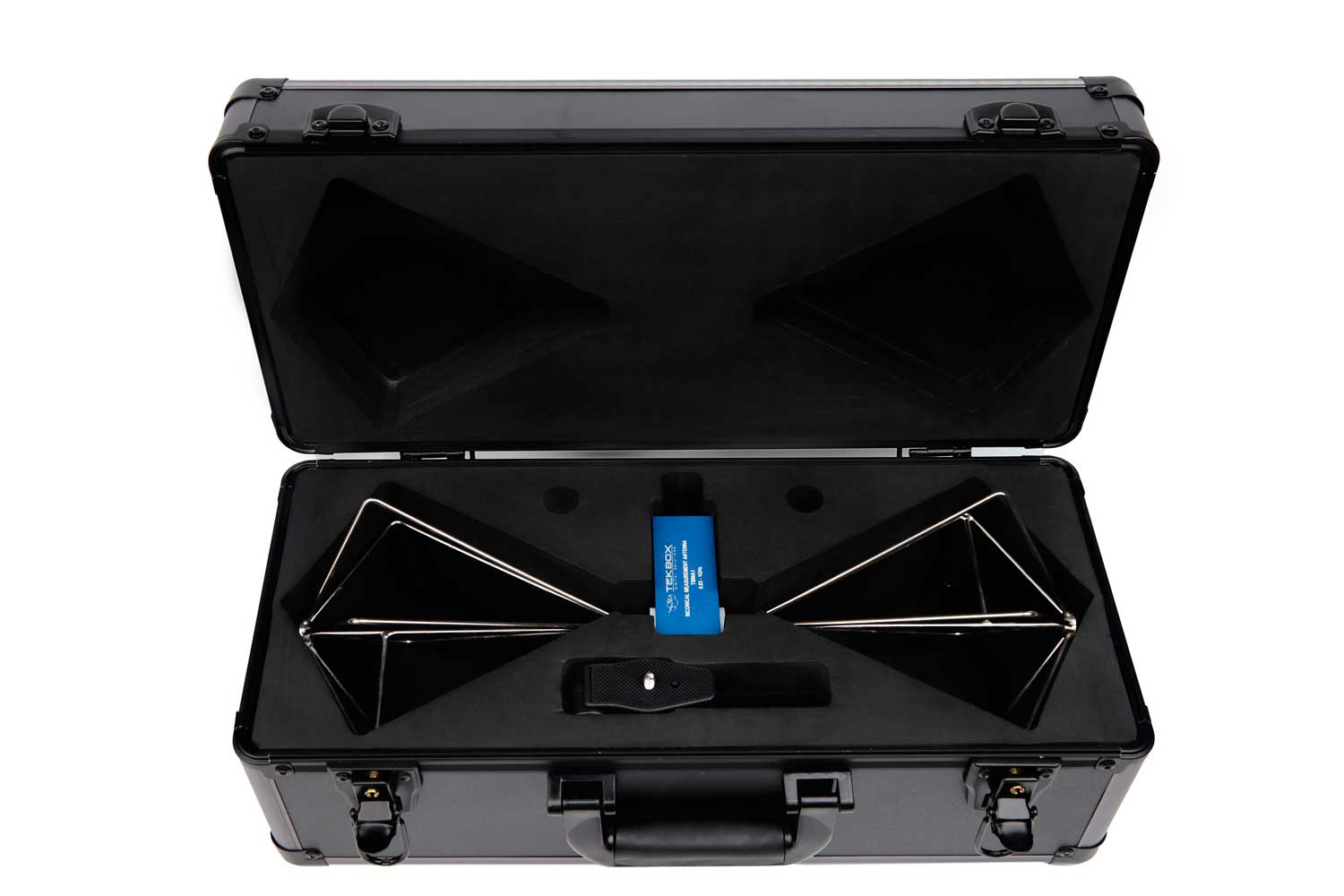

The TBMA1B comes in an aluminum carrying case, together with a “pistol-grip” tripod. A standard ¼” thread makes it easy to connect it to most standard tripods.
The elements are corrosion resistant and constructively locked against rotation. They are fed via a wideband balun with 2 W power handling capability. Furthermore they are protected against build-up of static charge.
Features:
- Type: Passive Biconical
- Frequency range: 30 MHz – 3000MHz

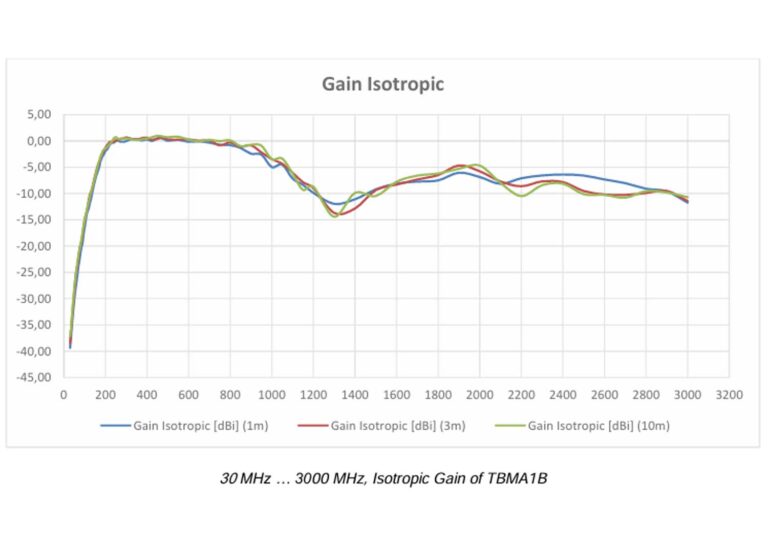

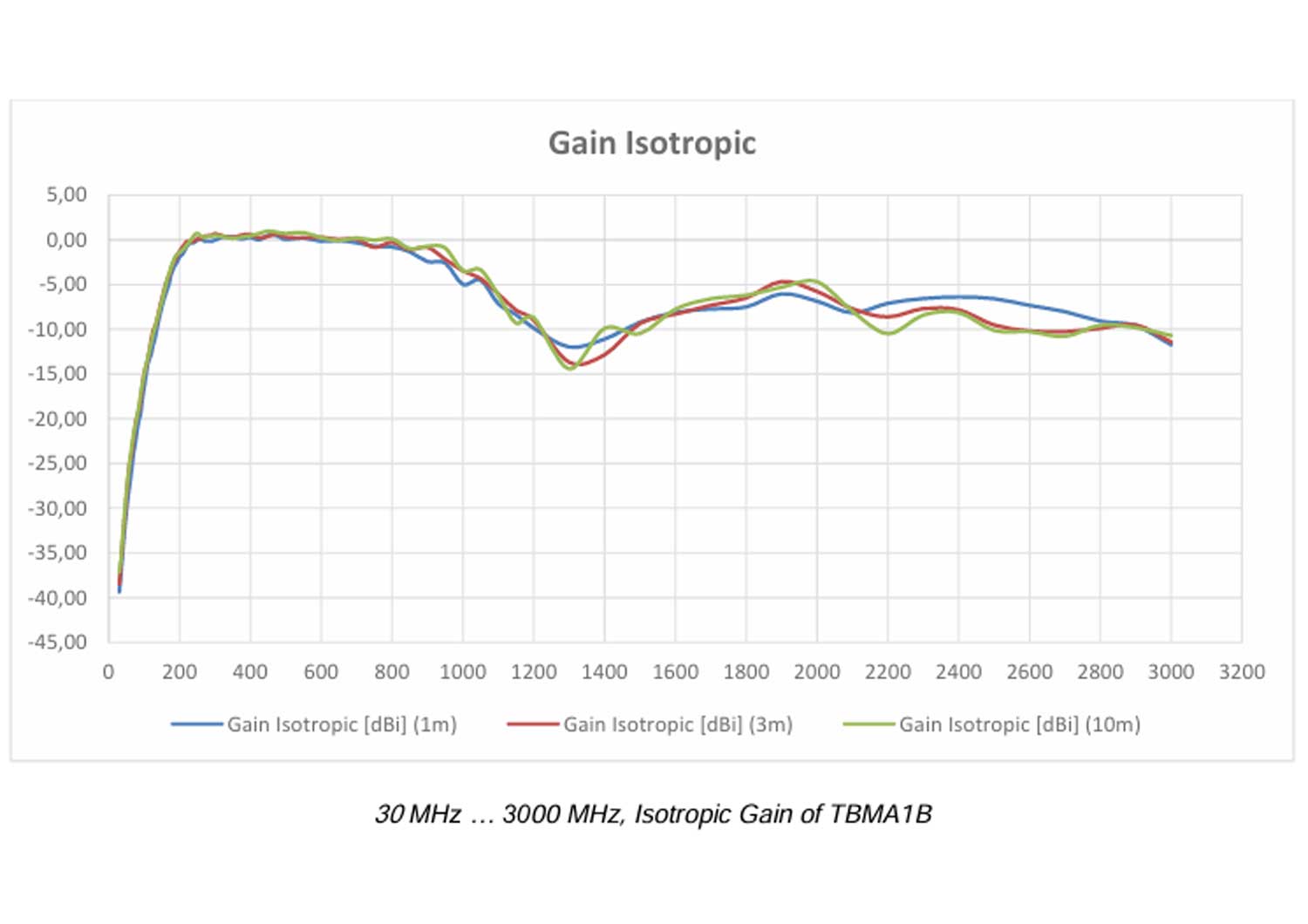

- Isotropic gain at 3m spacing: -38.46 … 1 dBi

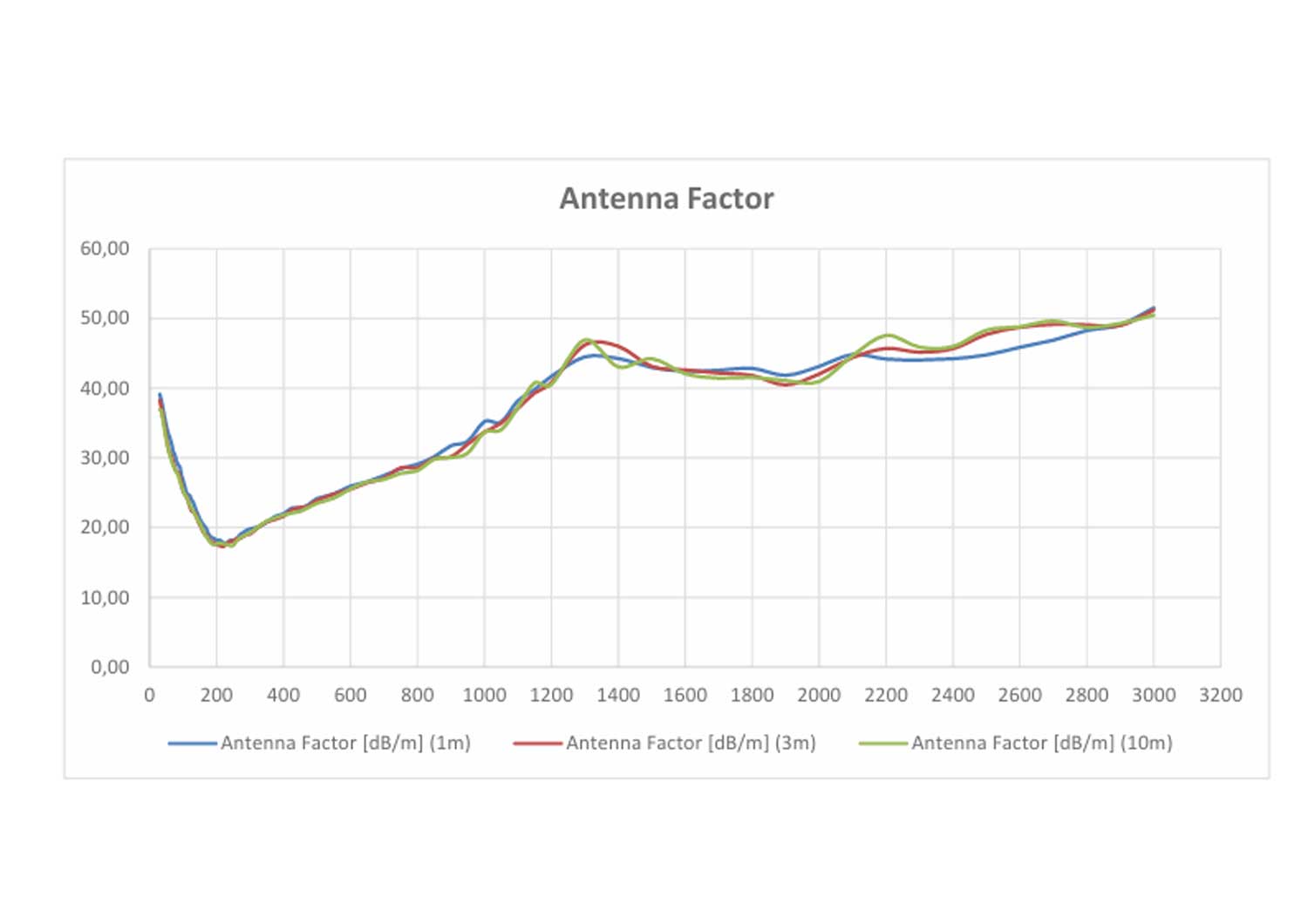

- Antenna factor at 3m spacing: 17.24 … 51.20 dB/m
- Maximum continuous input RF power: 2W
- Nominal impedance: 50 Ω
- RF Connector: N type female
- Matching: 1:2 transformer + 1:1 balun
- Tripod Adapter Thread Size: 1/4 “
- Mechanical Dimensions: L x W x H: 430.73 mm x 163.08 mm x 138.79 mm (16.96” x 6.42” x5.46”)
- Weight: 0.46 kg (1.01 lbs)
