TEKBOX TBLM01 LISN-MATE

(1 customer review)

£233.65 (£280.38 inc VAT)

4 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: TBLM01 Categories: , ,

Description


Tekbox TBLM01 LISN

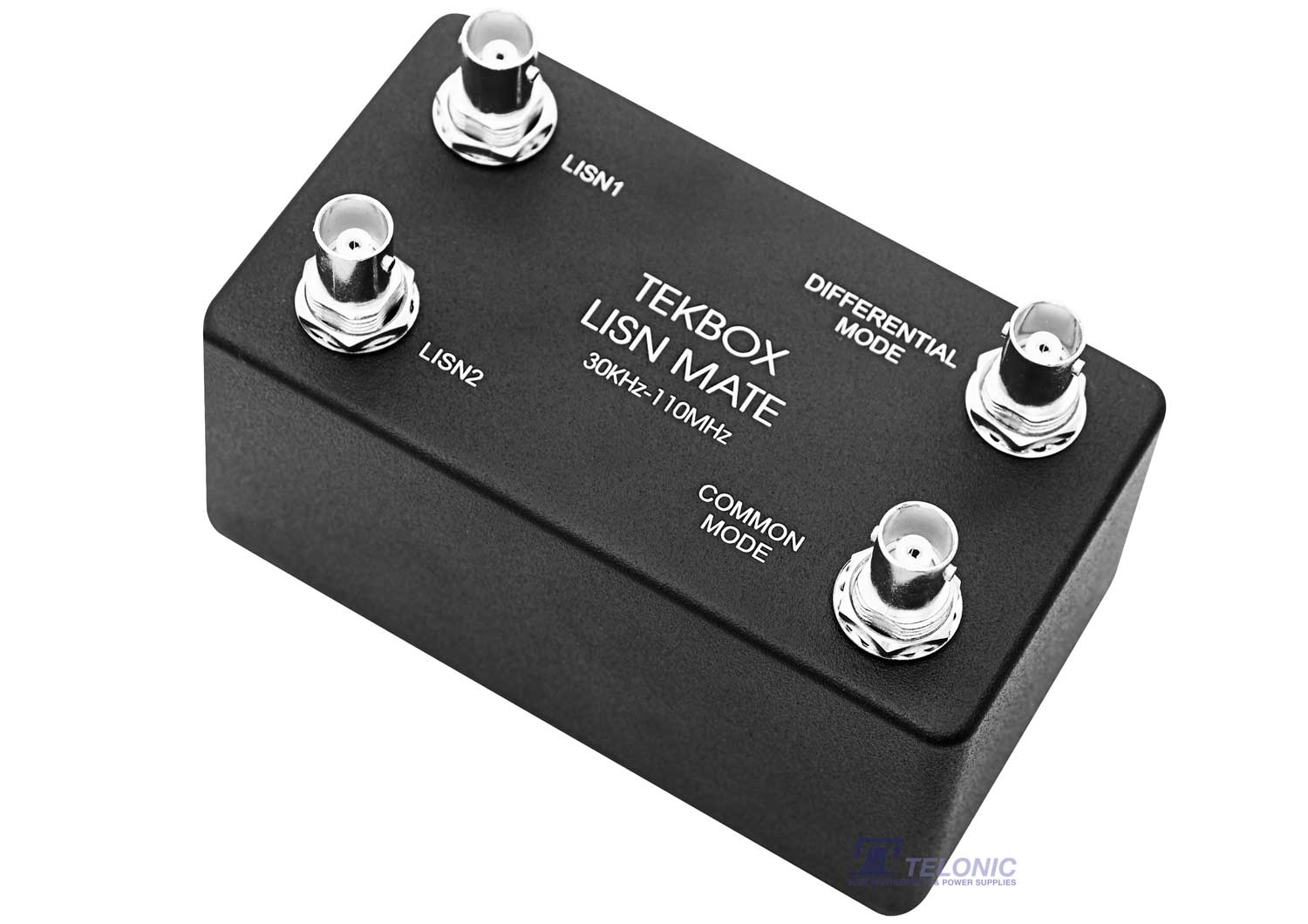

The TEKBOX TBLM01 (30kHz to 110MHz) is a companion device for LISNs, which splits the conducted noise signal into its common mode and differential mode components. The LISN Mate is connected to the output of a LISN inserted into the positive supply line and to a second LISN inserted into the negative supply line. The conducted noise signal at the output of a LISN is the sum of common mode and differential mode noise. The LISN mate splits it into the common mode and differential mode components, with each signal component available at a separate BNC port.

The TEKBOX TBLM1 is supplied with 2-off BNC-male to BNC-male RG223 cables, 35cm long.

  • Frequency Range: 30kHz to 110MHz
  • Maximum RF Level at any BC Port: 27dBm
  • Maximum DC Current at any BNC Port: 30mA

Documentation

User Manual

Tekbox TBLM1 User Manual



Specifications
Frequency range30 kHz – 110 MHz
Maximum RF level at any BNC port27dBm
Maximum DC current at any BNC port30 mA
Frequency (MHz)DM Insertion loss (dB)CM Insertion Loss (dB)DM Suppression (dB) at CM PortCM Suppression (dB) at DM Port
0.03-0.45-0.93-91.6-82.1
0.5-0.31-0.93-85.3-66.4
1-0.31-0.93-79.5-60.4
5-0.46-0.93-64.2-46.1
10-0.65-0.93-55.4-39.8
20-0.69-0.93-43.5-33.3
30-0.86-0.93-35.6-29.4
40-1.21-0.93-29.4-26.7
50-1.43-0.93-24.7-24.6
60-1.54-0.93-22.5-22.7
70-1.45-0.93-22.6-21.3
80-1.22-0.93-22.8-20.4
90-0.97-0.93-22.8-20.1
100-0.81-0.99-23.1-19.5
110-0.71-1.02-24.4-18.7
120-0.74-1.01-28.6-17.7
130-1.06-1.04-32.2-17.1
140-1.85-1.15-16.4-16.6
150-1.73-1.25-8.6-16.1
