Tekbox TBCP2-500 10kHz to 500MHz RF Current Monitoring Probe

£637.15 (£764.58 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Price Match Guarantee
SKU: TBCP2-500 Categories: ,

Description

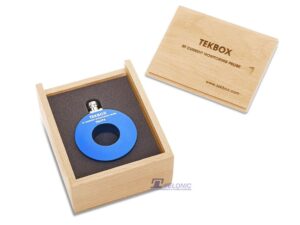

Tekbox TBCP2-500 RF Current Monitoring Probe

The TBCP2-500 is a 10kHz to 500MHz snap-on RF current monitoring probe. It has a very flat response with a 3dB bandwidth of 500 MHz and is characterized and usable over the frequency range from 10kHz to 500 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is > 17 dB Ohm in the range from 1 MHz to 500 MHz.

Features:

  • Characterized frequency range: 10 kHz to 500 MHz
  • Aperture diameter: 32 mm
  • Outside diameter: 73 mm
  • Height: 20 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 0 to 20 dBΩ between 150 kHz and 500 MHz
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C

Documentation

User Manual

Tekbox TBCP2-500 User Manual


Specifications
Characterised frequency range30 kHz to 600 MHz
Aperture diameter32 mm
Outside diameter73 mm
Height20mm
Weight320g
Connector typeN female
Transfer impedance0 to 18 dBΩ between 100 kHz and 500 MHz
Max. primary current (DC – 400 Hz)80 A
Max. primary current (RF)3A
Max. core temperature125 °C



Frequency (MHz)Transfer Impedance (dBΩ)Frequency (MHz)Transfer Impedance (dBΩ)
0.01-24.546016.63
0.02-15.827016.63
0.03-11.118016.63
0.04-7.519016.59
0.05-5.2310016.61
0.06-3.3411016.56
0.07-2.0212016.59
0.08-0.6913016.50
0.090.3614016.52
0.11.2215016.52
0.27.1716016.58
0.310.2217016.61
0.412.0618016.64
0.513.2819016.73
0.614.1420016.80
0.714.7422516.93
0.815.1725016.90
0.915.4927516.82
115.7230016.75
216.2432516.81
316.2935017.15
416.3237517.34
516.3440017.38
616.4042517.32
716.4245017.29
816.4647517.49
916.4950017.55
1016.4552517.33
2016.5455016.43
3016.5957514.24
4016.6260010.55
5016.61
