Tekbox SMAM-SMAF/100/RM141 SMA-Male to SMA-Female, 1m, 50 Ω RF Cable

Tekbox SMAM-SMAF/100/RM141 SMA-Male to SMA-Female, 1m, 50 Ω RF Cable

£31.70 (£38.04 inc VAT)

Only 1 left in stock!

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SMAM-SMAF/100/RM141 Categories: , Brand:

Description


Tekbox SMAM-SMAF/100/RM141 SMA-Male to SMA-Female, 1m, 50 Ω RF Cable

TekBox RF Coaxial Cable Assemblies are high-quality, precision-terminated cables designed for RF testing, EMC/EMI measurement, spectrum analysis, and general laboratory use.

Each cable assembly is manufactured using carefully selected coaxial cable types (RG-series or RM141) and fitted with durable RF connectors to ensure stable impedance, low insertion loss, and excellent shielding effectiveness across a wide frequency range.
Depending on configuration, TekBox RF cables support frequencies from DC up to 18 GHz, with robust mechanical construction, controlled VSWR, and consistent electrical performance. Connector options include N, SMA, BNC, and SMB, with a choice of standard or armoured cables for demanding test environments.
All assemblies are supplied with protective end caps and appropriate kink protection (plastic sleeve or glued heat-shrink), ensuring long service life and reliable measurements in both lab and field applications.

Typical applications

  • EMC / EMI testing
  • Spectrum and network analysis
  • RF signal routing
  • Test & measurement laboratories
  • Production and validation environments
Connector Type Frequency range Working voltage Withstand voltage VSWR Durability Impedance
N-Type DC – 11 GHz 1000 V 2500 V ≤ 1.3 @ 11 GHz ≥ 500 mating cycles 50 Ω
SMA DC – 18 GHz 335 V 750 V ≤ 1.1 + 0.02f (GHz) ≥ 500 mating cycles 50 Ω
BNC DC – 4 GHz 500 V 1500 V ≤ 1.22 ≥ 500 mating cycles 50 Ω
SMB DC – 4 GHz 335 V 1000 V ≤ 1.25 + 0.4f (GHz) ≥ 500 mating cycles 50 Ω

(All connectors use PTFE insulation and comply with MIL-C-39012, IEC 60169-8, CECC 22120, RoHS.)

Cable Type Frequency range Attenuation @ 1 GHz Velocity factor Temperature range Other Characteristics
RG 58/U DC – 5.8 GHz 0.57 dB/m 66% –30 °C to +70 °C Shielding effectiveness: ~ –56 dB/m
RG 142 DC – 6 GHz 0.49 dB/m 70% –55 °C to +165 °C Armoured option available, Shielding effectiveness: ~ –80 dB/m
RG 213/U DC – 3 GHz 0.23 dB/m 66% –40 °C to +85 °C High power handling
RG 223/U DC – 6 GHz 0.53 dB/m 66% –30 °C to +80 °C Flexible, double-shielded
RG 316/U DC – 6 GHz 0.89 dB/m 70% –55 °C to +165 °C Small diameter, high flexibility
RM141 (Premium / Low-Loss) DC – 18 GHz 0.38 dB/m 70% –55 °C to +200 °C Shielding effectiveness: < –100 dB/m, Excellent phase and amplitude stability
Parameters RG 58/U RG 142 RG 213/U RG 223/U RG 316/U RM 141
centre conductor Ø 0.9 mm 0.94 ± 0.02 mm 2.26 ± 0.09 mm 0.9 ± 0.01 mm 0.51 ± 0.03 mm 0.93 ± 0.02 mm
centre cond. material tinned copper silver-plated copper plain copper silver-plated copper silver-plated copper silver-plated copper
dielectric Ø 2.95 ± 0.1 mm 3 ± 0.05 mm 7.25 ± 0.18 mm 2.95 ± 0.1 mm 1.52 ± 0.05 mm 2.95 ± 0.05 mm
dielectric material low-density PTFE low-density PTFE low-density PTFE low-density PTFE PTFE PTFE
braid Ø Ø 3.13×112 Ø 4.15 mm, double Ø 0.18×192 Ø 4.2 mm, double 1.95 ± 0.08 mm 3.68 ± 0.1 mm
braid material tinned copper silver-plated copper plain copper tinned copper silver-plated copper silver-plated copper
sheath Ø 5 ± 0.1 mm 4.95 ± 0.15 mm 10.3 ± 0.18 mm 5.4 ± 0.1 mm 2.9 ± 0.1 mm 4.1 ± 0.1 mm
sheath material PVC FEP PVC PVC FEP FEP
min. bending radius single: 25 mm
repeated: 50 mm		 single: 30 mm
repeated: 50 mm		 single: 50 mm
repeated: 100 mm		 single: 26 mm
repeated: 53 mm		 single: 15 mm
repeated: 30 mm		 single: 12.7 mm
repeated: 40 mm
impedance 50 ± 2 Ω 50 ± 2 Ω 50 ± 2 Ω 50 ± 2 Ω 50 ± 2 Ω 50 ± 2 Ω
capacitance 100 pF / m 96 pF / m 100 pF / m 100 pF / m 96 pF / m 95 pF / m
inductance 0.2µH / m 0.22µH / m 0.25µH / m 0.2µH / m 0.27µH / m 0.27µH / m
velocity ratio 66 % 70 % 66 % 66 % 70 % 70 %
insulation resistance 5 GΩ km 35 GΩ km 10 GΩ km 5 GΩ km 1 GΩ km 1 GΩ km
center cond. res. 38 Ω / km 34 Ω / km 6 Ω / km 29 Ω / km 266 Ω / km 266 Ω / km
braid resistance 14 Ω / km 7.3 Ω / km 4.4 Ω / km 11 Ω / km 18 Ω / km 18 Ω / km
dielectric strength 4 kV 5 kV 5.5 kV 5 kV 1 kV 2 kV
shielding effectiveness typ. -56 dB / m typ. -80 dB / m < -57 dB / m < -83 dB / m < -52 dB / m < -100 dB / m
frequency range DC – 5.8 GHz DC – 6 GHz DC – 3 GHz DC – 6 GHz DC – 6 GHz DC – 18 GHz
temperature range -30°C ~ +70°C -55°C ~ +165°C -40°C ~ +85°C -30°C ~ +80°C -55°C ~ +165°C -55°C ~ +200°C
max. power @100MHz 230 W 1250 W 1316 W 280 W 395 W –
max. power @400MHz 110 W 650 W 658 W 121 W 209 W 950 W
max. power @ 1 GHz 65 W 380 W 416 W 80 W 135 W 620 W
max. power @ 3 GHz – 230 W – 46 W 78 W 360 W
max. power @ 6 GHz – 150 W – 32 W 11 W 220 W
max. power @ 12 GHz – – – – – 150 W
max. power @ 18 GHz – – – – – 120 W
attenuation @100MHz 0.16 dB/m 0.15 dB/m 0.06 dB/m 0.17 dB/m 0.26 dB/m 0.11 dB/m
attenuation @400MHz 0.32 dB/m 0.3 dB/m 0.13 dB/m 0.33 dB/m 0.53 dB/m 0.23 dB/m
attenuation @ 1 GHz 0.57 dB/m 0.49 dB/m 0.23 dB/m 0.53 dB/m 0.89 dB/m 0.38 dB/m
attenuation @ 3 GHz 1.15 dB/m 0.9 dB/m 0.49 dB/m 0.98 dB/m 1.63 dB/m 1.08 dB/m
attenuation @ 6 GHz 1.69 dB/m 1.37 dB/m – 1.49 dB/m 2.34 dB/m 1.08 dB/m
attenuation @ 12 GHz – – – – – 1.66 dB/m
attenuation @ 18 GHz – – – – – 2.16 dB/m
Connectors Length Cable Conn. material Part #
N-Male to N-Male 30 cm RM141 stainless steel NM-NM/30/RM141
N-Male to N-Male 35 cm RG 223/U copper-tin-zinc plated brass NM-NM/35/RG223
N-Male to N-Male 50 cm RM141 stainless steel NM-NM/50/RM141
N-Male to N-Male 75 cm RG 58/U copper-tin-zinc plated brass NM-NM/75/RG58
N-Male to N-Male 75 cm RG 223/U copper-tin-zinc plated brass NM-NM/75/RG223
N-Male to N-Male 75 cm RG 142 armoured stainless steel NM-NM/75/RG142/Test
N-Male to N-Male 1 m RM141 stainless steel NM-NM/100/RM141
N-Male to N-Male 1.25 m RG 223/U copper-tin-zinc plated brass NM-NM/125/RG223
N-Male to N-Male 3.12 m RG 213/U copper-tin-zinc plated brass NM-NM/312/RG213
N-Male to N-Male 3 m RG 142 copper-tin-zinc plated brass NM-NM/300/RG142
N-Male to N-Male 5 m RG 223/U copper-tin-zinc plated brass NM-NM/500/RG223
N-Male to N-Male 5 m RG 213/U copper-tin-zinc plated brass NM-NM/500/RG213
N-Male to N-Male 10 m RG 142 copper-tin-zinc plated brass NM-NM/1000/RG142
N-Male to SMA-Male 30 cm RM141 stainless steel NM-SMA/30/RM141
N-Male to SMA-Male 35 cm RG 223/U N: copper-tin-zinc plated brass; SMA: gold plated brass NM-SMA/35/RG223
N-Male to SMA-Male 50 cm RM141 stainless steel NM-SMA/50/RM141
N-Male to SMA-Female 50 cm RM141 N: stainless steel; SMA: gold-plated brass NM-SMAF/50/RM141
N-Male to SMA-Female 75 cm RG 58/U N: copper-tin-zinc plated brass; SMA: gold plated brass NM-SMAF/75/RG58
N-Male to SMA-Male 50 cm RG 223/U N: copper-tin-zinc plated brass; SMA: gold plated brass NM-SMA/50/RG223
N-Male to SMA-Male 75 cm RG 142 armoured stainless steel NM-SMA/75/RG142/Test
N-Male to SMA-Male 1 m RM141 stainless steel NM-SMA/100/RM141
N-Male to SMA-Female 1 m RM141 stainless steel NM-SMAF/100/RM141
N-Male to SMA-Male 1.25 m RG 223/U copper-tin-zinc plated brass NM-SMA/125/RG223
N-Male to BNC-Male 35 cm RG 223/U copper-tin-zinc plated brass NM-BNCM/35/RG223
N-Male to BNC-Male 75 cm RG 58/U copper-tin-zinc plated brass NM-BNCM/75/RG58

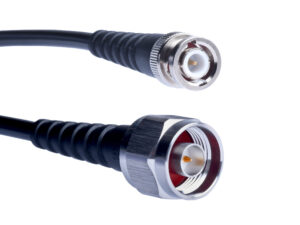

N-Male to BNC-Male 1.25 m RG 223/U copper-tin-zinc plated brass NM-BNCM/125/RG223
BNC-Male to BNC-Male 1.25 m RG 223/U copper-tin-zinc plated brass BNCM-BNCM/125/RG223
BNC-Male to BNC-Male 1.5 m RG 6, 75 Ohm copper-tin-zinc plated brass BNCM-BNCM/150/RG6/75Ω
BNC-Male to BNC-Male 3 m RG 6, 75 Ohm copper-tin-zinc plated brass BNCM-BNCM/300/RG6/75Ω
BNC-Male to BNC-Male 5 m RG 223/U copper-tin-zinc plated brass BNCM-BNCM/500/RG223
BNC-Male to SMA-Male 25 cm RG 316/U BNC: copper-tin-zinc plated brass; SMA: gold plated brass BNCM-SMA/25/RG316
BNC-Male to SMA-Male 35 cm RG 223/U copper-tin-zinc plated brass BNCM-SMA/35/RG223
BNC-Male to SMA-Male 10 m RG 142 copper-tin-zinc plated brass BNCM-SMA/1000/RG142
SMA-Male to SMA-Male 30 cm RM141 stainless steel SMAM-SMAM/30/RM141
SMA-Male to SMA-Male 35 cm RG 223/U RM141 SMAM-SMAM/35/RG223
SMA-Male to SMA-Male 50 cm RM141 stainless steel SMAM-SMAM/50/RM141
SMA-Male to SMA-Female 50 cm RM141 stainless steel; SMA: gold-plated brass SMAM-SMAF/50/RM141
SMA-Male to SMA-Male 75 cm RG 223/U RM141 SMAM-SMAM/75/RG223
SMA-Male to SMA-Female 75 cm RG 142 armoured stainless steel SMAM-SMAF/75/RG142/Test
SMA-Male to SMA-Male 1 m RM141 stainless steel SMAM-SMAM/100/RM141
SMA-Male to SMA-Female 1 m RM141 stainless steel SMAM-SMAF/100/RM141
SMA-Male to SMA-Male 1.25 m RG 223/U gold-plated brass SMAM-SMAM/125/RG223

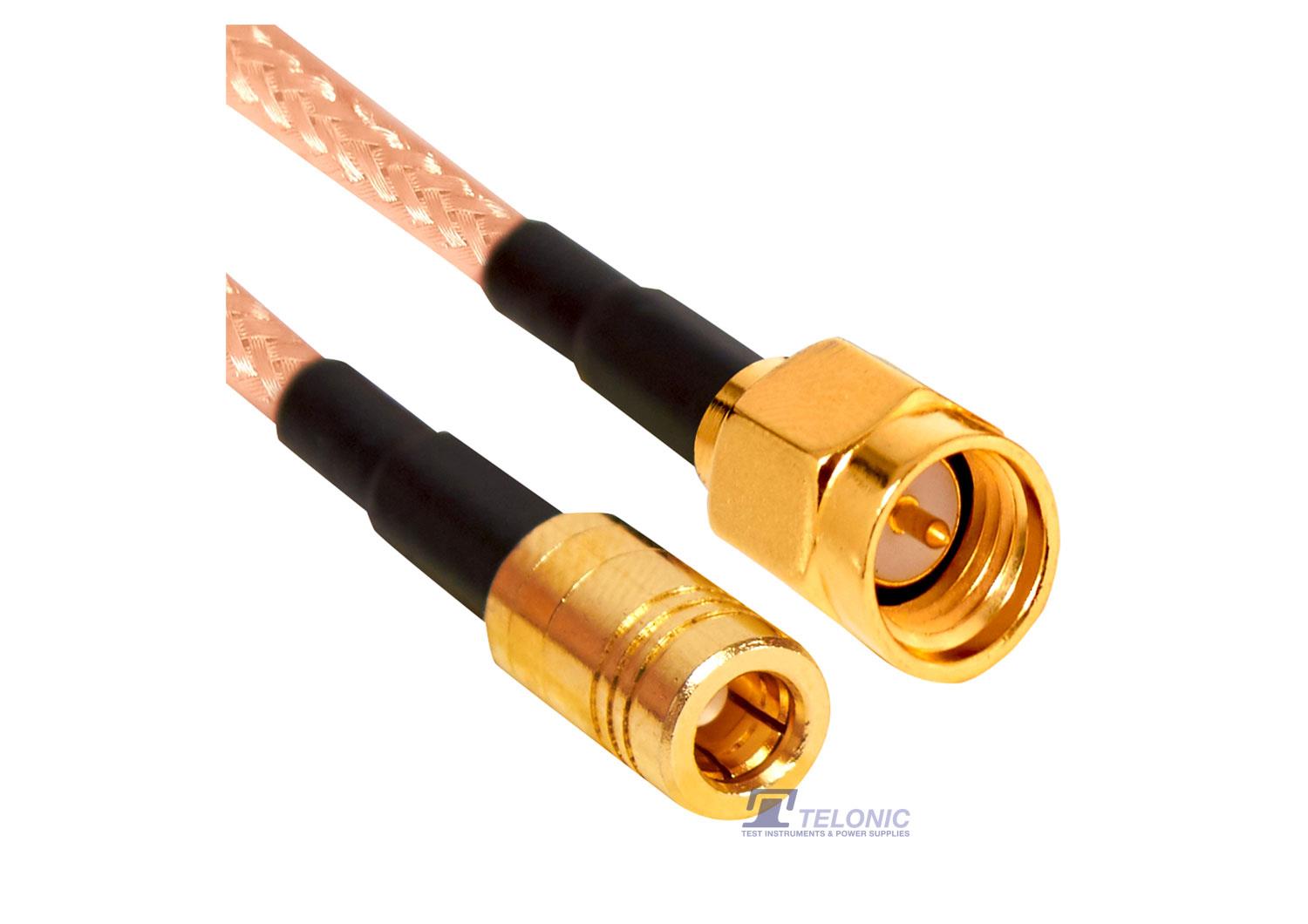

SMA-Male to SMB-Female 75 cm RG 316/U gold-plated brass SMAM-SMBF/75/RG316



Connectors length cable VSWR @ 3 GHz ins. loss @ 3 GHz ins. loss @ 6 GHz
N-Male to N-Male 35 cm RG 223/U ≤ 1.2 ≤ 0.7 dB ≤ 1.3 dB
N-Male to N-Male 75 cm RG 58/U ≤ 1.2 ≤ 1.1 dB ≤ 2 dB
N-Male to N-Male 75 cm RG 223/U ≤ 1.2 ≤ 1.1 dB ≤ 1.5 dB
N-Male to N-Male 75 cm RG 142 ≤ 1.12 ≤ 0.8 dB ≤ 1.2 dB
N-Male to N-Male 3 m RG 142 ≤ 1.2 ≤ 3.1 dB ≤ 4.8 dB
N-Male to N-Male 3,12 m RG 213 ≤ 1.25 ≤ 2.6 dB ≤ 4.5 dB
N-Male to N-Male 5 m RG 223/U ≤ 1.3 ≤ 5.3 dB ≤ 7.5 dB
N-Male to N-Male 5 m RG 213/U ≤ 1.25 ≤ 4.7 dB ≤ 6.8 dB
N-Male to N-Male 10 m RG 142 ≤ 1.2 ≤ 9.4 dB ≤ 14.8 dB
N-Male to SMA-Male 35 cm RG 223/U ≤ 1.2 ≤ 0.7 dB ≤ 1.2 dB
N-Male to SMA-Male 75 cm RG 58 ≤ 1.2 ≤ 1.3 dB ≤ 2 dB
N-Male to SMA-Male 75 cm RG 223/U ≤ 1.2 ≤ 1.1 dB ≤ 1.5 dB
N-Male to SMA-Male 75 cm RG 142 ≤ 1.12 ≤ 0.8 dB ≤ 1.2 dB
N-Male to BNC-Male 35 cm RG 223/U ≤ 1.3 ≤ 0.8 dB
N-Male to BNC-Male 75 cm RG 58/U ≤ 1.3 ≤ 1.4 dB
N-Male to BNC-Male 75 cm RG 223/U ≤ 1.3 ≤ 1.2 dB
BNC-Male to BNC-Male 35 cm RG 223/U ≤ 1.3 ≤ 0.8 dB
BNC-Male to SMA-Male 35 cm RG 223/U ≤ 1.3 ≤ 0.8 dB
SMA-Male to SMA-Male 25 cm RG 316/U ≤ 1.2 ≤ 0.5 dB ≤ 0.9 dB
SMA-Male to SMA-Male 75 cm RG 142 ≤ 1.12 ≤ 0.8 dB ≤ 1.2 dB
SMA-Male to SMB-Female 75 cm RG 316/U ≤ 1.2 ≤ 2.7 dB



Connectors length cable VSWR @ 8.5 GHz ins. loss @ 6 GHz ins. loss @ 8.5 GHz
N-Male to N-Male 30 cm RM141 ≤ 1.2 ≤ 0.8 dB ≤ 0.9 dB
N-Male to N-Male 50 cm RM141 ≤ 1.2 ≤ 0.9 dB ≤ 1.3 dB
N-Male to N-Male 100 cm RM141 ≤ 1.2 ≤ 1.4 dB ≤ 1.6 dB
N-Male to SMA-Male 30 cm RM141 ≤ 1.18 ≤ 0.5 dB ≤ 0.6 dB
N-Male to SMA-Male 50 cm RM141 ≤ 1.18 ≤ 0.7 dB ≤ 0.8 dB
N-Male to SMA-Male 100 cm RM141 ≤ 1.18 ≤ 1.3 dB ≤ 1.5 dB
SMA-Male to SMA-Male 30 cm RM141 ≤ 1.15 ≤ 0.4 dB ≤ 0.5 dB
SMA-Male to SMA-Male 50 cm RM141 ≤ 1.15 ≤ 0.6 dB ≤ 0.8 dB
SMA-Male to SMA-Male 100 cm RM141 ≤ 1.15 ≤ 1.2 dB ≤ 1.2 dB
