Siglent SSG3032X-IQE Plus 3.2 GHz RF Signal Generator with External I/Q Modulation
The Siglent SSG3032X-IQE Plus provides RF signal generation from 9 kHz to 3.2 GHz together with external I/Q modulation from 10 MHz to 3.2 GHz. Its combination of low phase noise, pulse generation, flexible sweeps, USB power meter control and external I/Q capability makes it suitable for RF component characterisation, receiver testing and communications development.
| Frequency Range | 9 kHz to 2.1 GHz (SSG3021X Plus / SSG3021X-IQE Plus) 9 kHz to 3.2 GHz (SSG3032X Plus / SSG3032X-IQE Plus) |
|---|---|
| IQ Frequency Range | 10 MHz to 2.1 GHz (SSG3021X-IQE Plus) 10 MHz to 3.2 GHz (SSG3032X-IQE Plus) |
| Frequency Resolution | 0.01 Hz |
| Amplitude Resolution | 0.01 dB |
| Level Setting Range | -110 dBm to +9 dBm (9 kHz to 100 kHz) -110 dBm to +15 dBm (100 kHz to 1 MHz) -110 dBm to +20 dBm (1 MHz to 3.2 GHz) |
| Level Performance Range | -110 dBm to +5 dBm (9 kHz to 100 kHz) -110 dBm to +10 dBm (100 kHz to 1 MHz) -110 dBm to +13 dBm (1 MHz to 3.2 GHz) |
| Level Accuracy | ≤ ±0.7 dB (typ.) |
| Phase Noise | -117 dBc/Hz at 1 GHz, 20 kHz offset (typ.) |
| Harmonics | < -30 dBc, 1 MHz to 3.2 GHz, output ≤ +13 dBm |

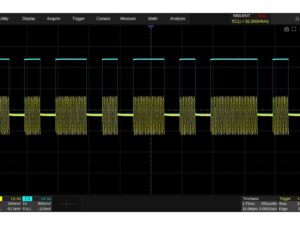

| Pulse On/Off Ratio | >63 dBc (1 MHz to 250 MHz) >68 dBc (250 MHz to 3.2 GHz) |
| Pulse Rise/Fall Time | <15 ns (typ.) |
| Modulation | AM, FM, PM and pulse modulation |
| External I/Q Bandwidth | Baseband I or Q: <100 MHz (typ.) RF (I+Q): <200 MHz (typ.) IQE models only |
| Frequency Sweep | Linear/logarithmic step and arbitrary list sweep |
| Step Sweep Points | 2 to 65,535 |
| List Sweep Points | 1 to 500 |
| Reference | Internal/external 10 MHz; optional 10M_OCXO_L high-stability OCXO |
| Display | 5-inch capacitive touchscreen, 800 × 480 |
| Interfaces | USB Host, USB Device, LAN; optional GPIB via USB-GPIB adapter |
| Dimensions | 338 × 113 × 369 mm (W × H × D) |
| Weight | 4.84 kg |
