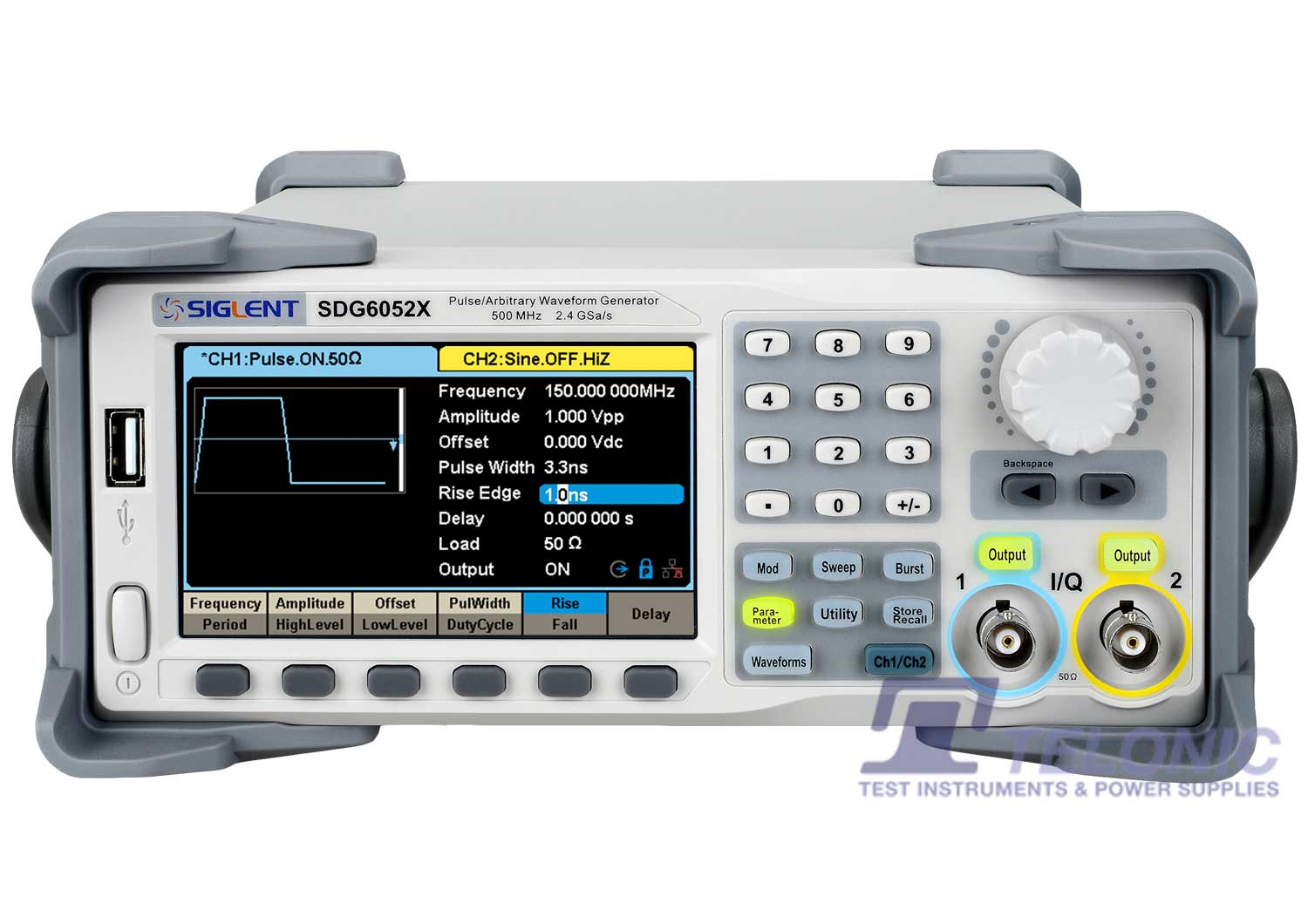

Siglent SDG6000X Function Generator Front

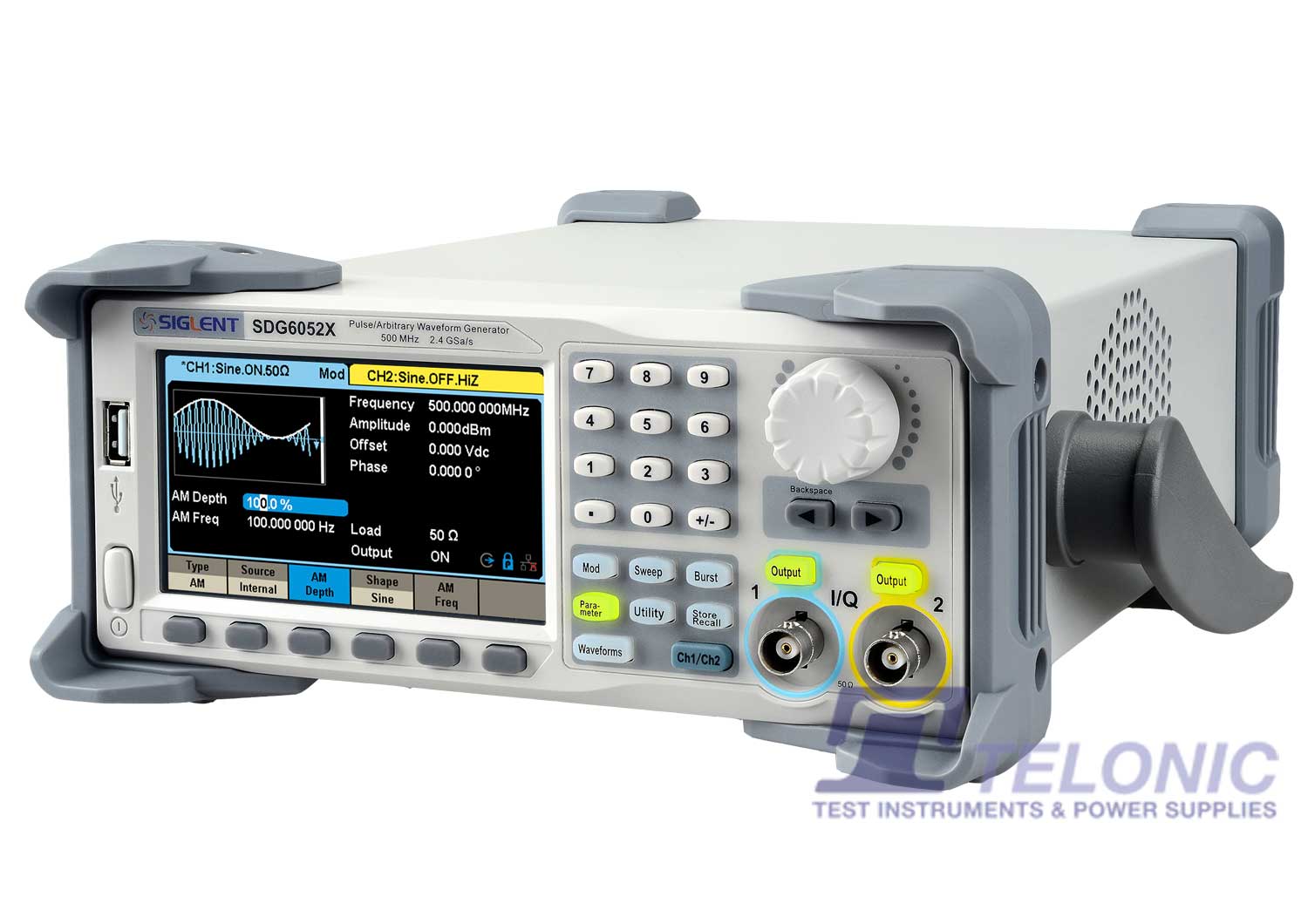

Siglent SDG6000X Function Generator Left

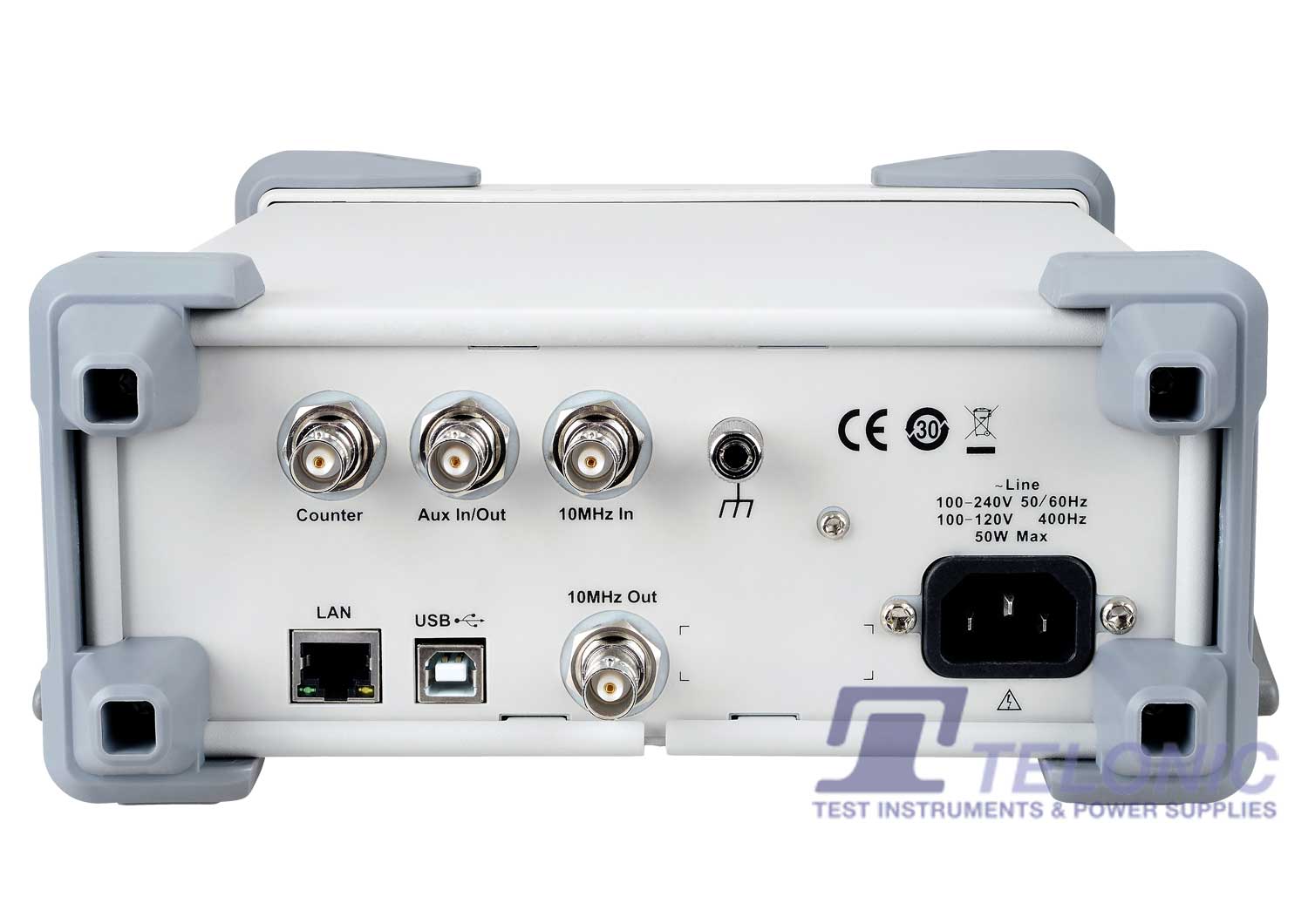

Siglent SDG6000X Function Generator Rear

Siglent SDG6022X 2Ch, 200MHz, 2.4GSa/s, Function Generator

(1 customer review)

£1103.00 (£1323.60 inc. VAT)

4 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SDG6022X Category: Tag: Brand:

Description


Siglent SDG6022X Function Generator

The SDG6022X is a 2CH, 200MHz Function Generator with a maximum sampling rate of 2.4GSa/s. Siglent’s SDG6000X is a series of dual-channel Pulse/Arbitrary waveform generators that feature up to 500MHz bandwidth, a maximum sample rate of 2.4 GSa/s and 16-bit vertical resolution. They also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the SDG6000X is a multi-function device which can generate Noise, IQ Signals and PRBS patterns. These features enable the SDG6000X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

Product Images

Product Videos

YouTube Video
YouTube Video
YouTube Video
YouTube Video
YouTube Video

Documentation

SDG6000X User Manual SDG6000X Datasheet SDG6000X Quick Guide
Frequency Characteristics
Parameter Min. Typ. Max. Unit Condition
Resolution 1μ Hz
Initial Accuracy -1
-2		 +1
+2		 ppm
ppm		 25℃
0~40℃
1st-year aging -1 +1 ppm 25℃
10-year aging -3.5 +3.5 ppm 25℃
Sine Characteristics
Parameter Min. Typ. Max. Unit Condition
Frequency 1μ
1μ
1μ		 500M
350M
200M		 Hz
Hz
Hz		 SDG6052X
SDG6032X
SDG6022X
Harmonic Distortion -65
-60
-50
-40
-30
-28		 dBc
dBc
dBc
dBc
dBc
dBc		 0 dBm, 0~1 MHz ( included )
0 dBm, 1~60 MHz ( included )
0 dBm, 60~100 MHz ( included )
0 dBm, 100~200 MHz ( included )
0 dBm, 200~300 MHz ( included )
0 dBm, above 300 MHz
Total Harmonic Distortion 0.075 % 0 dBm, 10 Hz ~ 20 kHz
Non Harmonic Spurious -60
-55		 dBc
dBc		 0 dBm, ≤350 MHz
0 dBm, >350 MHz
Output Range 2m
2m
2m
2m
2m		 20
10
5
3
1.28		 Vpp
Vpp
Vpp
Vpp
Vpp		 ≤ 40 MHz, HiZ load
40 MHz ~ 120 MHz ( included ), HiZ load
120 MHz ~ 160 MHz ( included ), HiZ load
160 MHz ~ 350 MHz ( included ), HiZ load
above 350MHz, HiZ load
Harmonics Order 10
Type Even, Odd, All Even, Odd, All Even, Odd, All Even, Odd, All Even, Odd, All
Arbitrary Wave Characteristics
Parameter Min. Typ. Max. Unit Condition
Frequency 1μ 50M Hz
Waveform Length 2 20M pts
Sampling Rate 1u
1.2G		 1.2G 300M
1.2G		 Sa/s
Sa/s		 TrueArb mode
DDS mode
Vertical Resolution 16 bit
Rise / Fall Times 2.6 ns 10% ~ 90%, 1Vpp step signal , DDS mode
Jitter (rms) Cycle to cycle 100 ps 1 Vpp, 50Ω load , TrueArb mode
Output Range 2m
2m		 20
10		 Vpp
Vpp		 ≤ 20 MHz, HiZ load
Above 20 MHz , HiZ load
DC Characteristics
Parameter Min. Typ. Max. Unit Condition
Range -10
-5		 10
5		 V
V		 HiZ load
50Ω load
Accuracy ±(1%+2mV) HiZ load
General Specifications
Power
Parameter Min. Typ. Max. Unit Condition
Voltage 100 – 240 Vrms (± 10%), 50 / 60 Hz
100 – 120 Vrms (± 10%), 400 Hz		 100 – 240 Vrms (± 10%), 50 / 60 Hz
100 – 120 Vrms (± 10%), 400 Hz		 100 – 240 Vrms (± 10%), 50 / 60 Hz
100 – 120 Vrms (± 10%), 400 Hz		 100 – 240 Vrms (± 10%), 50 / 60 Hz
100 – 120 Vrms (± 10%), 400 Hz		 100 – 240 Vrms (± 10%), 50 / 60 Hz
100 – 120 Vrms (± 10%), 400 Hz
Power Consumption 32.5 50 W Dual channels, Sine, 1kHz, 10Vpp, 50Ω load
Display
Parameter Min. Typ. Max. Unit Condition
Colour Depth 24 bit
Contrast Ratio 350:1
Luminance 300 cd/m
Environment
Parameter Min. Typ. Max. Unit Condition & Note
Operating temperature 0 40 ℃
Storage temperature -20 60 ℃
Operating humidity 5
5		 90
50		 %
%		 ≤ 30 ℃
40 ℃
Non -operating humidity 5 95 %
Operating altitude 3048 m ≤ 30 ℃
Non –operating altitude 15000 m

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.

1 review for Siglent SDG6022X 2Ch, 200MHz, 2.4GSa/s, Function Generator

  1. robert.riley2 (verified owner) –

    I bought this function generator to replace my HP32120A. The SDG6022X is very intuative and easy to use (unlike the HP32120A). Its features and flexibility are impressive and it represents very good value for money. I particularly like the PWM modulation feature and the dual output channels.
    As always with Telonic, the delivery is very prompt and the ordering process straightforward.
