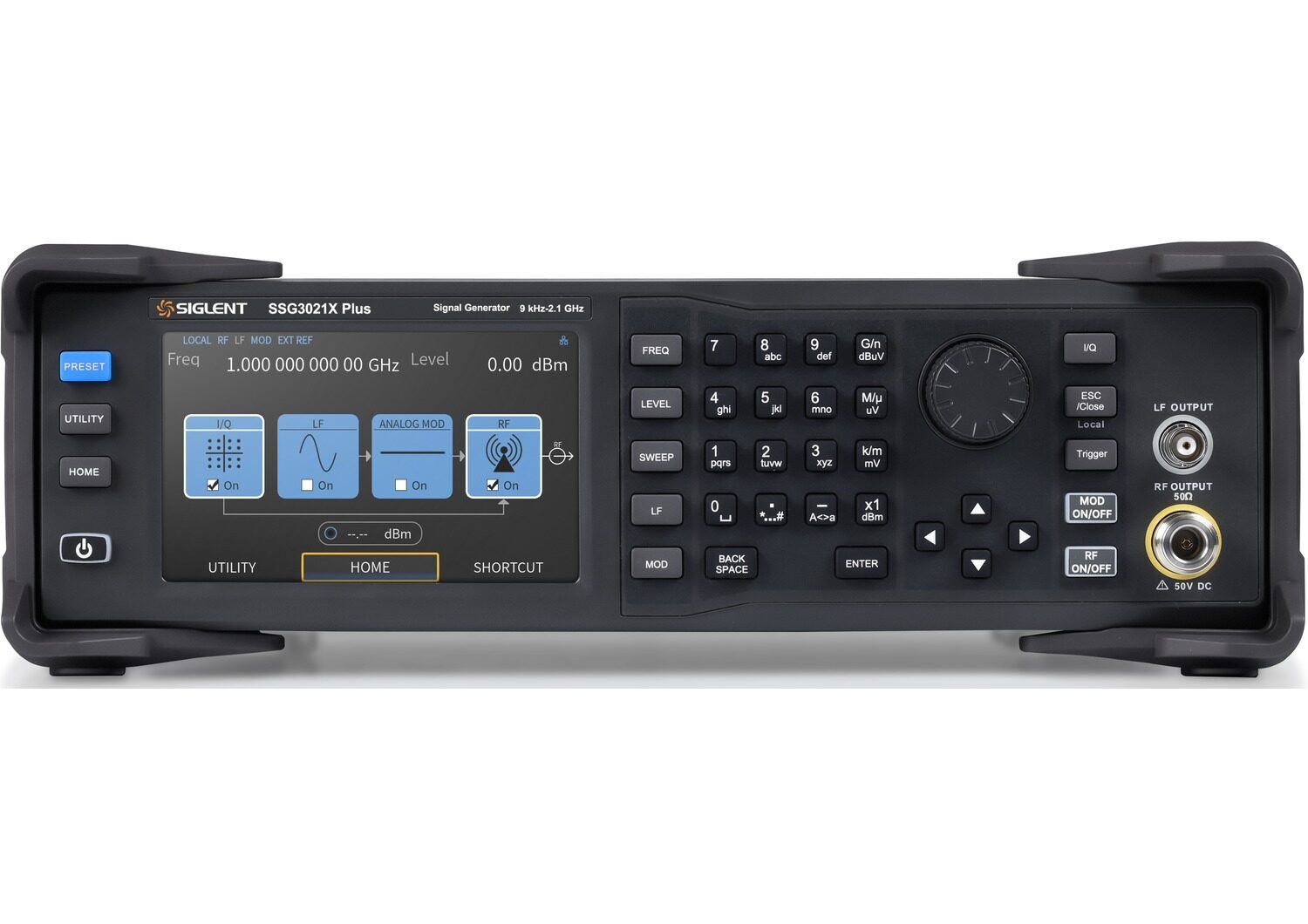

Siglent SSG3021X Plus 2.1 GHz RF Signal Generator

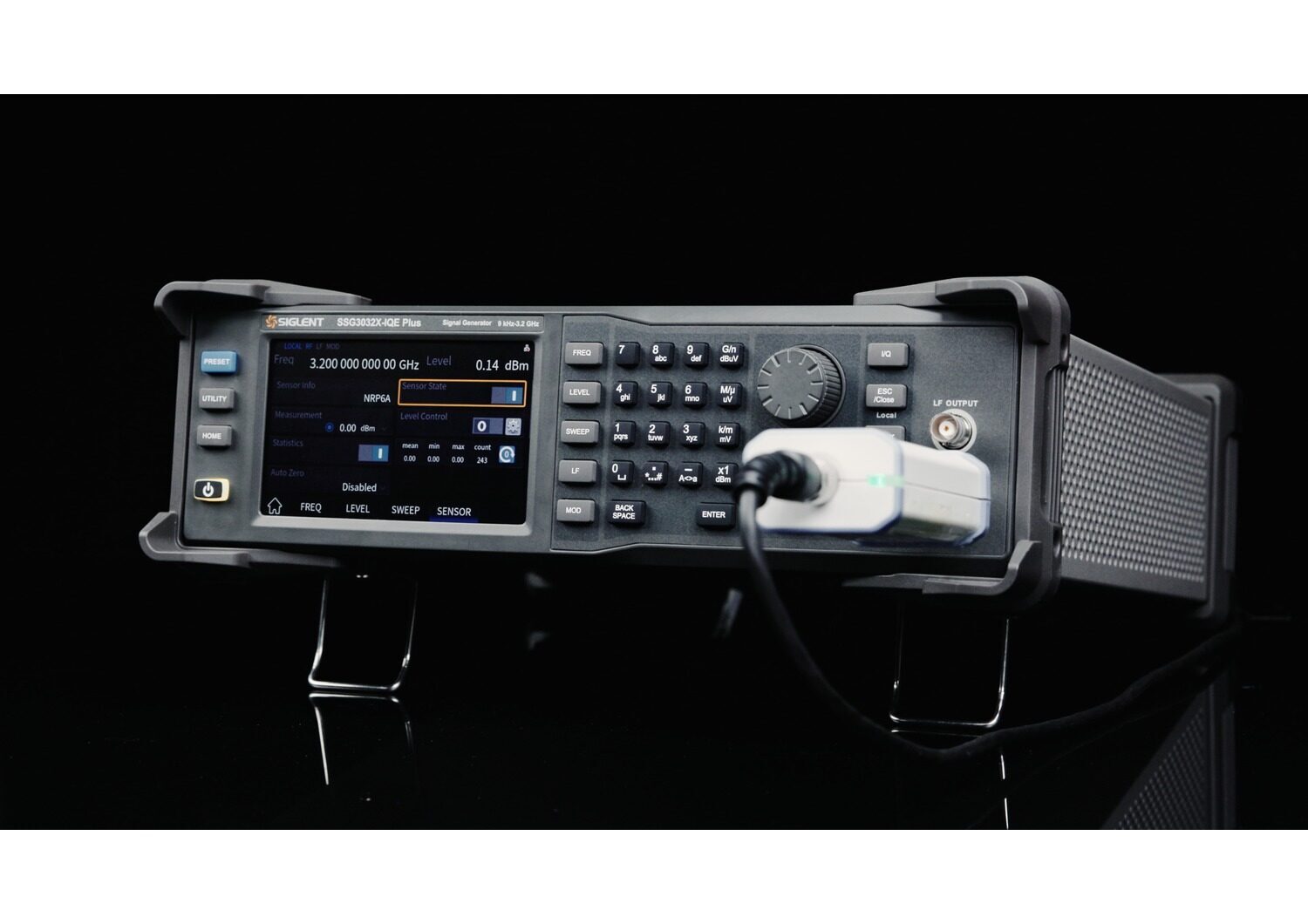

The Siglent SSG3021X Plus is a 9 kHz to 2.1 GHz RF signal generator designed to provide clean, stable signals for RF development, testing, education and production. It combines 0.01 Hz frequency resolution with AM, FM, PM and pulse modulation, flexible sweep capabilities, USB power meter support and a simple 5-inch touchscreen interface.
| Frequency Range | 9 kHz to 2.1 GHz (SSG3021X Plus / SSG3021X-IQE Plus) 9 kHz to 3.2 GHz (SSG3032X Plus / SSG3032X-IQE Plus) |
|---|---|
| IQ Frequency Range | 10 MHz to 2.1 GHz (SSG3021X-IQE Plus) 10 MHz to 3.2 GHz (SSG3032X-IQE Plus) |
| Frequency Resolution | 0.01 Hz |
| Amplitude Resolution | 0.01 dB |
| Level Setting Range | -110 dBm to +9 dBm (9 kHz to 100 kHz) -110 dBm to +15 dBm (100 kHz to 1 MHz) -110 dBm to +20 dBm (1 MHz to 3.2 GHz) |
| Level Performance Range | -110 dBm to +5 dBm (9 kHz to 100 kHz) -110 dBm to +10 dBm (100 kHz to 1 MHz) -110 dBm to +13 dBm (1 MHz to 3.2 GHz) |
| Level Accuracy | ≤ ±0.7 dB (typ.) |
| Phase Noise | -117 dBc/Hz at 1 GHz, 20 kHz offset (typ.) |
| Harmonics | < -30 dBc, 1 MHz to 3.2 GHz, output ≤ +13 dBm |

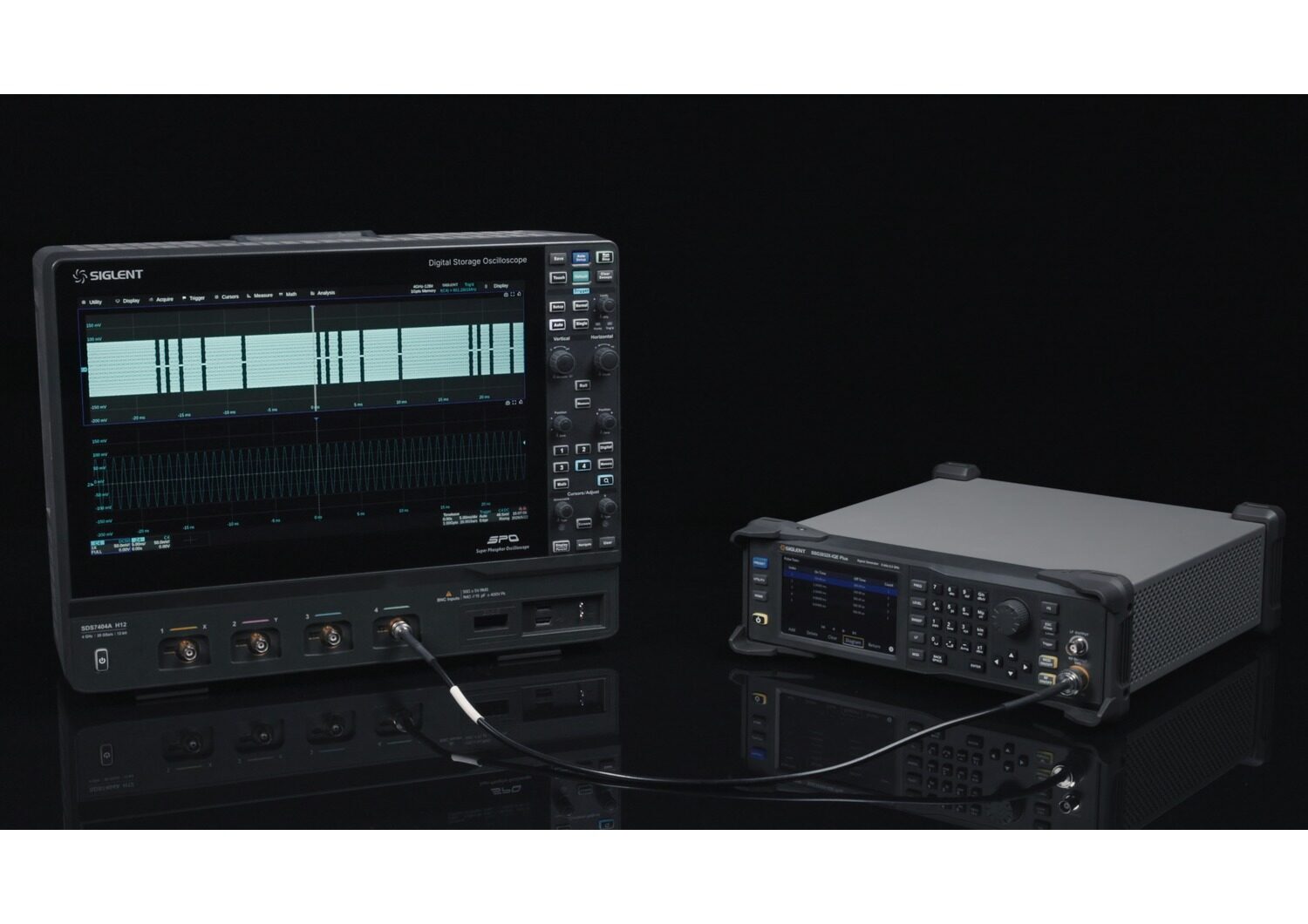

| Pulse On/Off Ratio | >63 dBc (1 MHz to 250 MHz) >68 dBc (250 MHz to 3.2 GHz) |
| Pulse Rise/Fall Time | <15 ns (typ.) |

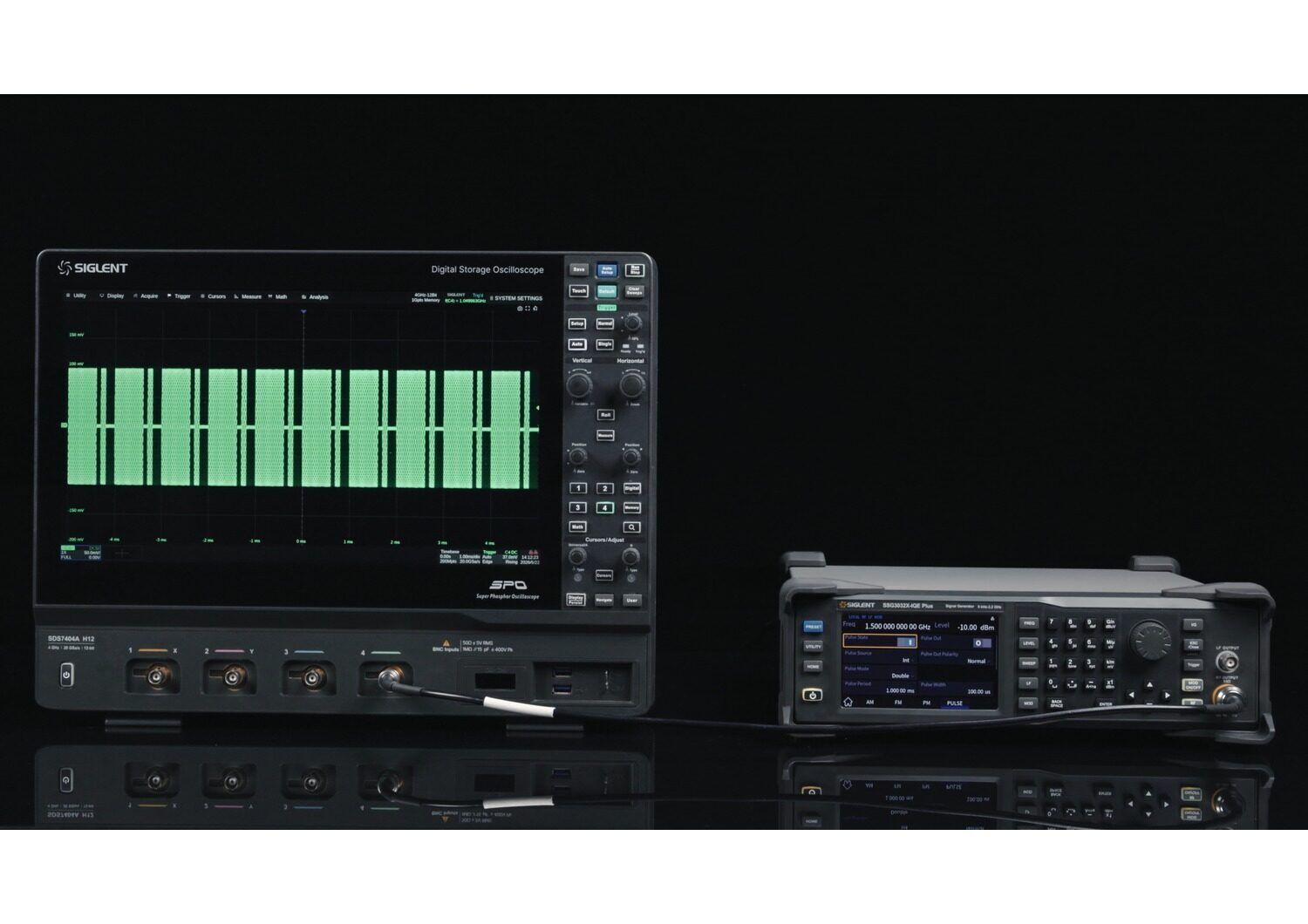

| Modulation | AM, FM, PM and pulse modulation |

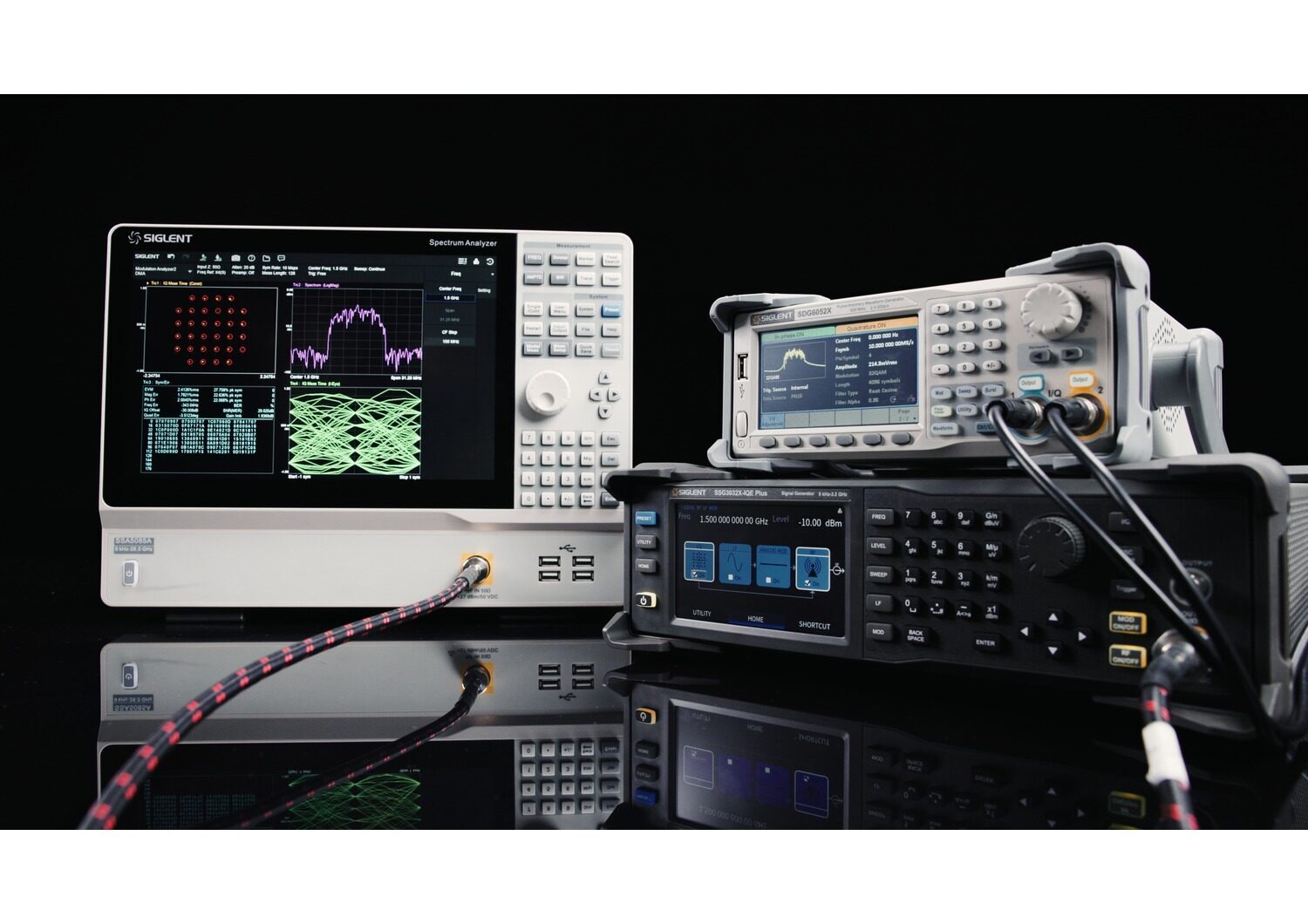

| External I/Q Bandwidth | Baseband I or Q: <100 MHz (typ.) RF (I+Q): <200 MHz (typ.) IQE models only |
| Frequency Sweep | Linear/logarithmic step and arbitrary list sweep |
| Step Sweep Points | 2 to 65,535 |
| List Sweep Points | 1 to 500 |

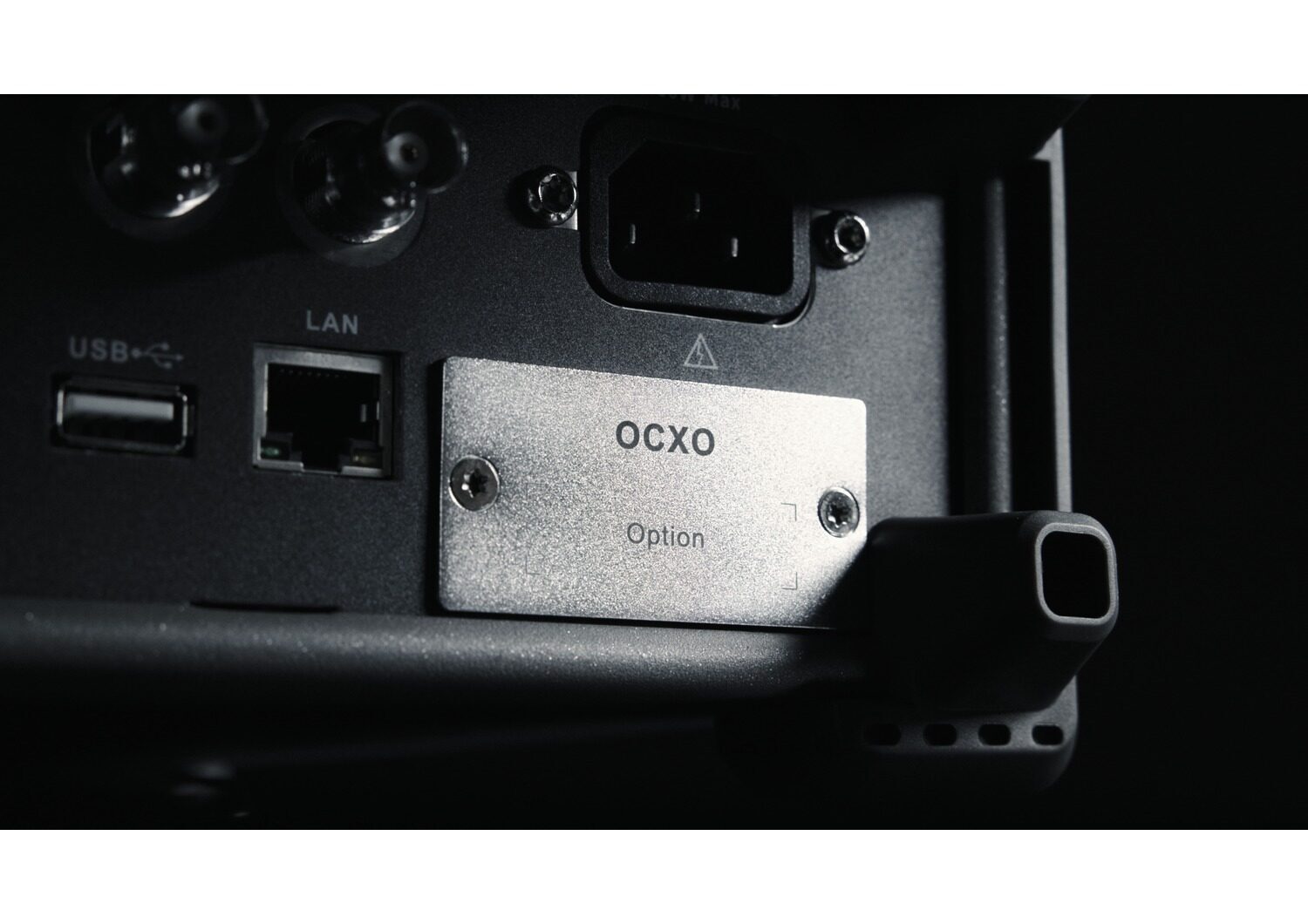

| Reference | Internal/external 10 MHz; optional 10M_OCXO_L high-stability OCXO |

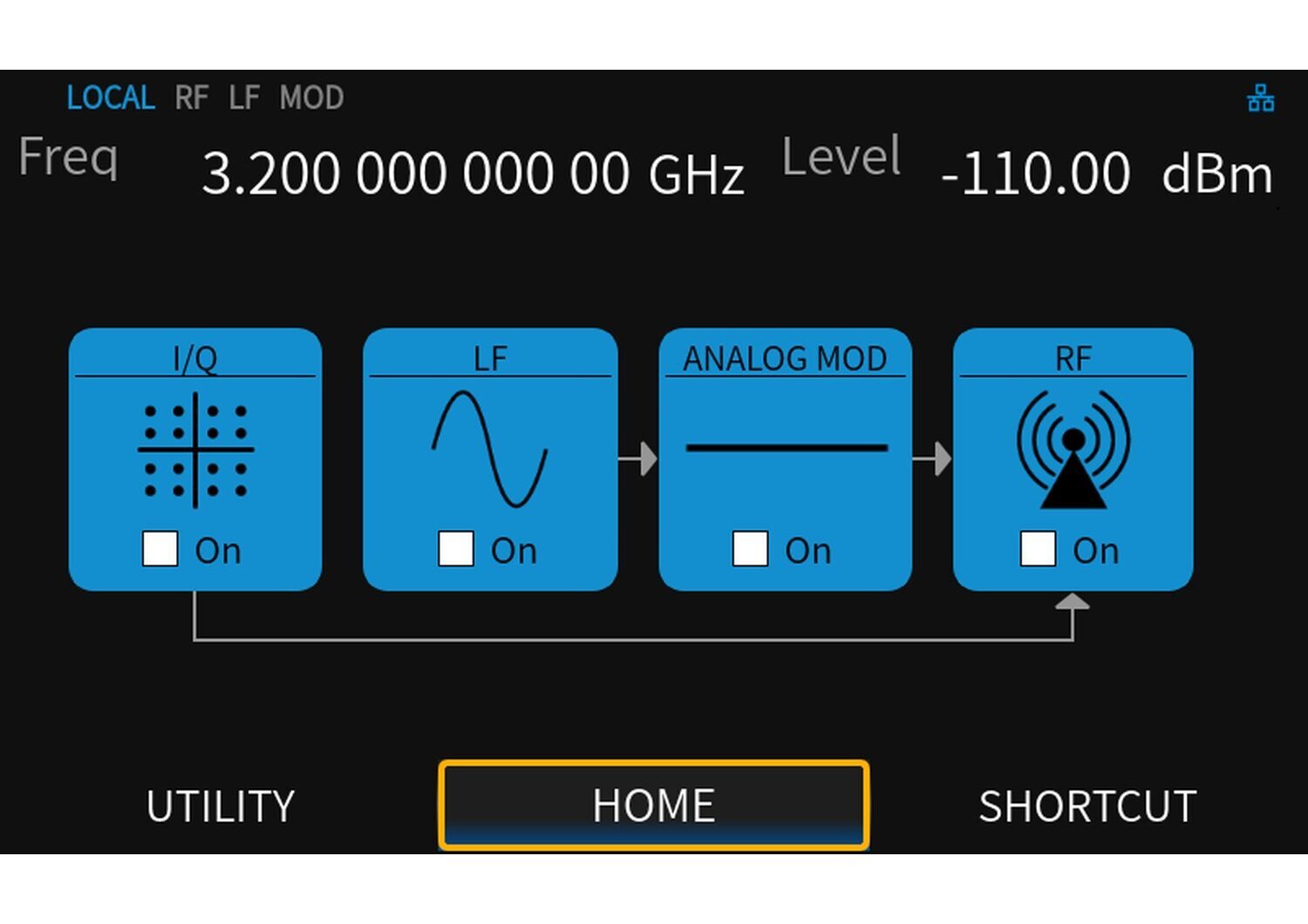

| Display | 5-inch capacitive touchscreen, 800 × 480 |

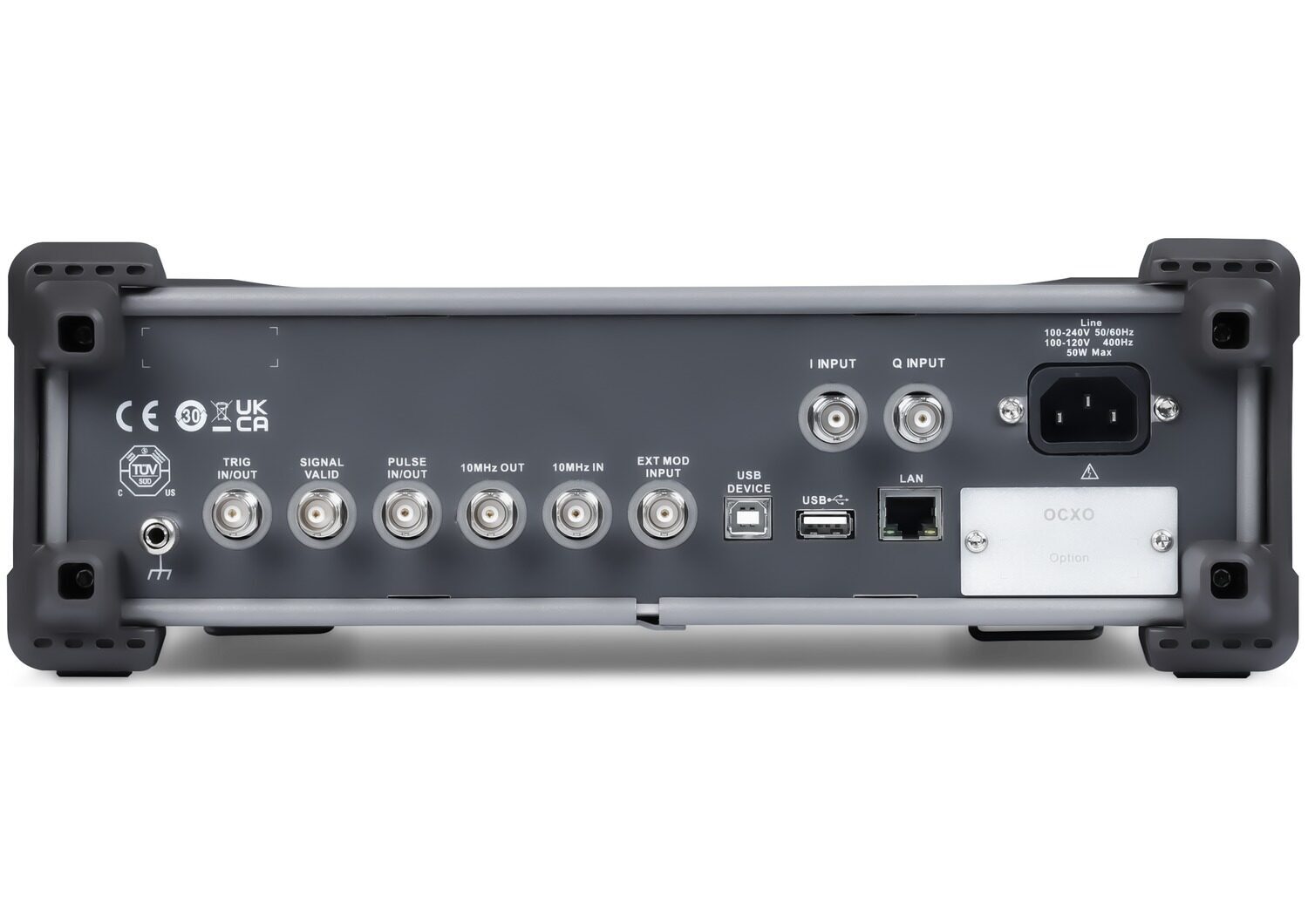

| Interfaces | USB Host, USB Device, LAN; optional GPIB via USB-GPIB adapter |
| Dimensions | 338 × 113 × 369 mm (W × H × D) |
| Weight | 4.84 kg |
