Siglent SPD1168X 0-16V, 0-8A, Programmable DC Power Supply
Siglent SPD1168X 0-16V, 0-8A, Programmable DC Power Supply
Siglent SPD1168X 0-16V, 0-8A, Programmable DC Power Supply

Siglent SPD1168X 0-16V, 0-8A, Programmable DC Power Supply

£194.00 (Β£232.80 inc VAT)

3 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: SPD1168X Categories: , Tags: , ,

Description

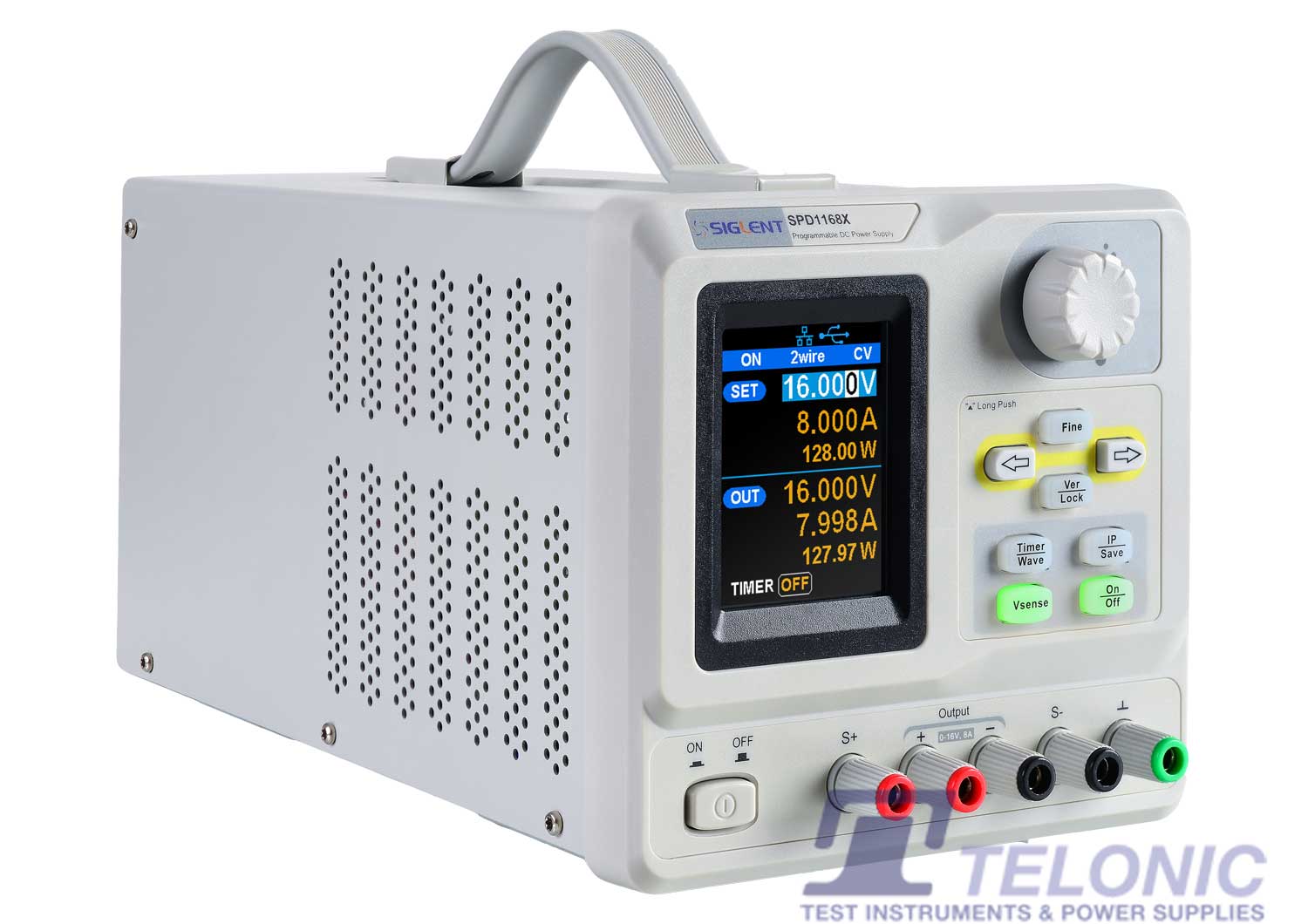

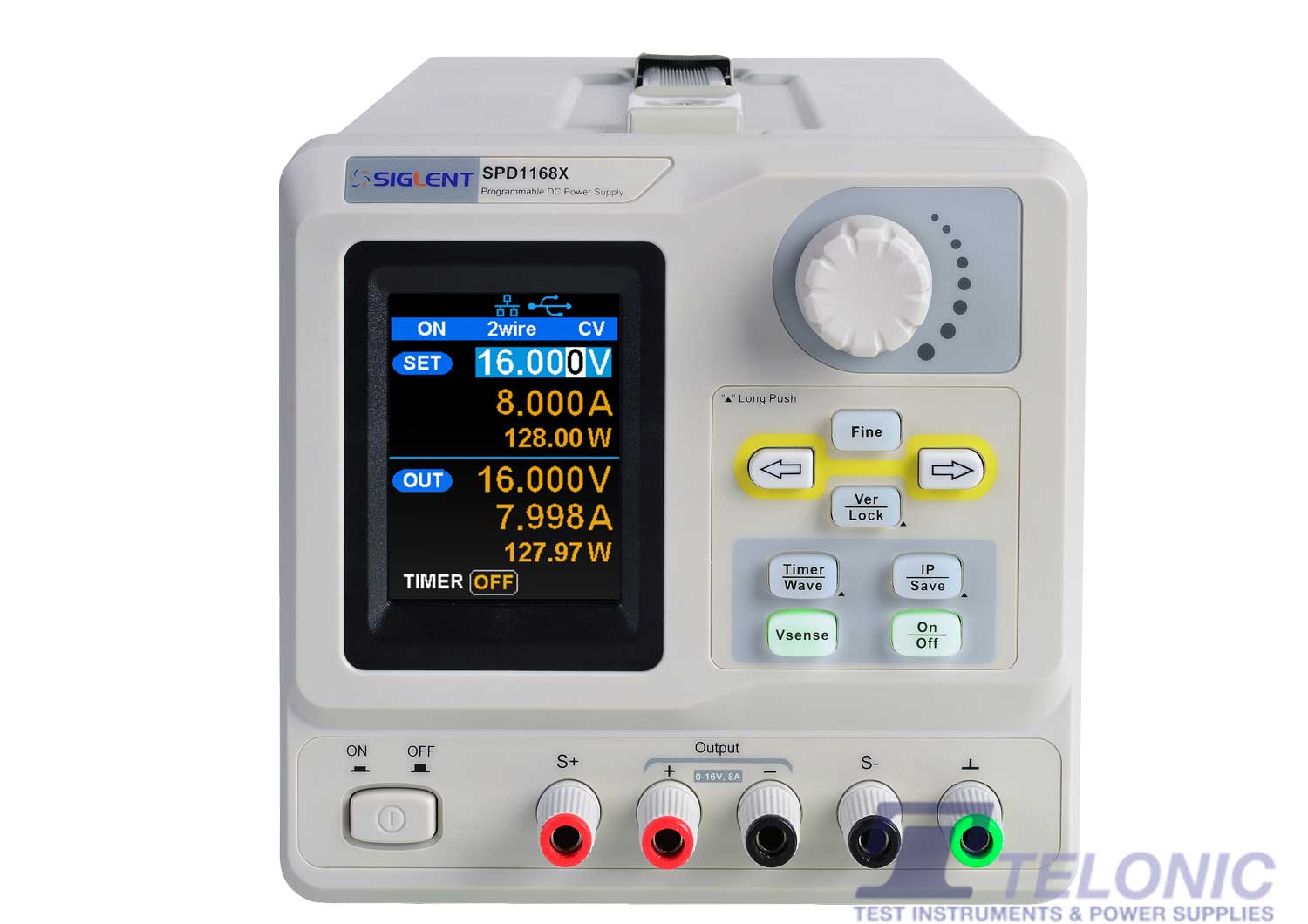

Siglent SPD1168X DC Power Supply

The SPD1168X is a 0-16V, 0-8A Bench Programmable DC Power Supply. The SPD1000X Series Programmable Linear DC Power Supply has a 2.8 inch TFT-LCD display, features remote computer control capability, and real time wave display, to deliver high performance and ease-of-use. The SPD1168X features a high precision programmable output capable of delivering up to 16 V. There are additional output short and overload protect functions to assist in production and development applications.

  • Supports front panel timing output functions
  • 100/120/220/230V Compatible design to meet the needs of different power grids
  • Intelligent temperature-controlled fan reduces noise
  • Clear graphical interface, with the waveform display function
  • Internal 5 groups of system parameter save/recall
  • Includes PC software: Easypower, supports SCPI, LabView driver

Siglent SPD1000X DC Power Supply Comparison Table

ModelChannel OutputDisplayResolutionSetting AccuracyReadback accuracy
SPD1168XOutput Voltage: 0 to 16 V Output Current: 0 to 8 A2.8 Inch true colour TFT-LCD 5 digit voltage / 4 digit current1 mV/1 mAVoltage: Β±(0.03% of reading+10 mV) Current: Β±(0. 3% of reading+10 mA)Voltage: Β±(0.03% of reading+10 mV) Current: Β±(0. 3% of reading+10 mA)
SPD1305XOutput Voltage: 0 to 30 V Output Current: 0 to 5 A2.8 Inch true colour TFT-LCD 5 digit voltage / 4 digit current1 mV/1 mAVoltage: Β±(0.03% of reading+10 mV) Current: Β±(0. 3% of reading+10 mA)Voltage: Β±(0.03% of reading+10 mV) Current: Β±(0. 3% of reading+10 mA)

Product Images

Product Videos

YouTube Video

Documentation

Datasheet

Siglent SPD1000X Datasheet



User Manual

Siglent SPD1000X User Manual



Quick Start

Siglent SPD1000X Quick Start


General Specifications
ModelSPD1168XSPD1305X
DC Output (0 ℃ to 40 ℃ )Output Voltage: 0 to 16 V
Output Current: 0 to 8 A		Output Voltage: 0 to 30 V
Output Current: 0 to 5 A
Max Output Power128W150W
Display2.8 inch true color TFT-LCD
5 digit voltage/4 digit current		2.8 inch true color TFT-LCD
5 digit voltage/4 digit current
Resolution1mV/1mA1mV/1mA
Program Accuracy
(25 Β± 5 ℃ )		Voltage: Β±(0.03% of reading+10 mV)
Current: Β±(0. 3% of reading+10 mA)		Voltage: Β±(0.03% of reading+10 mV)
Current: Β±(0. 3% of reading+10 mA)
Readback Accuracy
(25 Β± 5 ℃ )		Voltage: Β±(0.03% of reading+10 mV)
Current: Β±(0. 3% of reading+10 mA)		Voltage: Β±(0.03% of reading+10 mV)
Current: Β±(0. 3% of reading+10 mA)
Temperature Coefficient per ℃ (Output Percentage
+ Offset)		Voltage: Β±(0.01% of reading+3 mV)
Current: Β±(0.01% of reading+3 mA)		Voltage: Β±(0.01% of reading+3 mV)
Current: Β±(0.01% of reading+3 mA)
Constant Voltage Mode
Load Regulation≀ 0.01% + 2 mV≀ 0.01% + 2 mV
Ripple & Noise≀ 350 uVrms/3 mVpp (20 Hz to 20 MHz)≀ 350 uVrms/3 mVpp (20 Hz to 20 MHz)
Recovery Time< 50 ΞΌs (50% load change, minimum load 0.5 A)< 50 ΞΌs (50% load change, minimum load 0.5 A)
Constant Current Mode
Line Regulation≀ 0.2% + 3 mA≀ 0.2% + 3 mA
Load Regulation≀ 0.2% + 3 mA≀ 0.2% + 3 mA
Ripple & Noise≀ 2 mArms≀ 2 mArms
Locking KeyYesYes
Memory Save/Recall5 Sets5 Sets
Power SourceAC 100 /120/220/230 V Β± 10% 50/60HzAC 100 /120/220/230 V Β± 10% 50/60Hz
Standard Configuration InterfaceUSB Device, LANUSB Device, LAN
InsulationCase to Terminal β‰₯ 20 MΞ© (DC 500 V)
Case to AC line β‰₯ 30 MΞ© (DC 500 V)		Case to Terminal β‰₯ 20 MΞ© (DC 500 V)
Case to AC line β‰₯ 30 MΞ© (DC 500 V)
Operating EnvironmentOutdoor Usage:
Elevation: ≀2000 m Environment Temperature 0 to 40 ℃ Relative Humidity ≀ 80%
Installation Level: β…‘ Pollution Level: 2		Outdoor Usage:
Elevation: ≀2000 m Environment Temperature 0 to 40 ℃ Relative Humidity ≀ 80%
Installation Level: β…‘ Pollution Level: 2
Storage EnvironmentEnvironment Temperature: -10 to 70 ℃ Relative Humidity ≀ 70%Environment Temperature: -10 to 70 ℃ Relative Humidity ≀ 70%
Dimension154.6 (W) Γ— 144.5 (H) Γ— 280(D) mm154.6 (W) Γ— 144.5 (H) Γ— 280(D) mm
Weightβ‰ˆ5.5kgβ‰ˆ5.5kg

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the β€˜Documentation’ tab.
