Siglent SNA5000-VMM Vector Mixer Measurement Software Option

Siglent SNA5000-VMM Vector Mixer Measurement Software Option

£3664.00 (£4396.8 inc VAT)

Available on back-order, delivery normally 1 - 2 weeks

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SNA5000-VMM Categories: , Brand:

Description

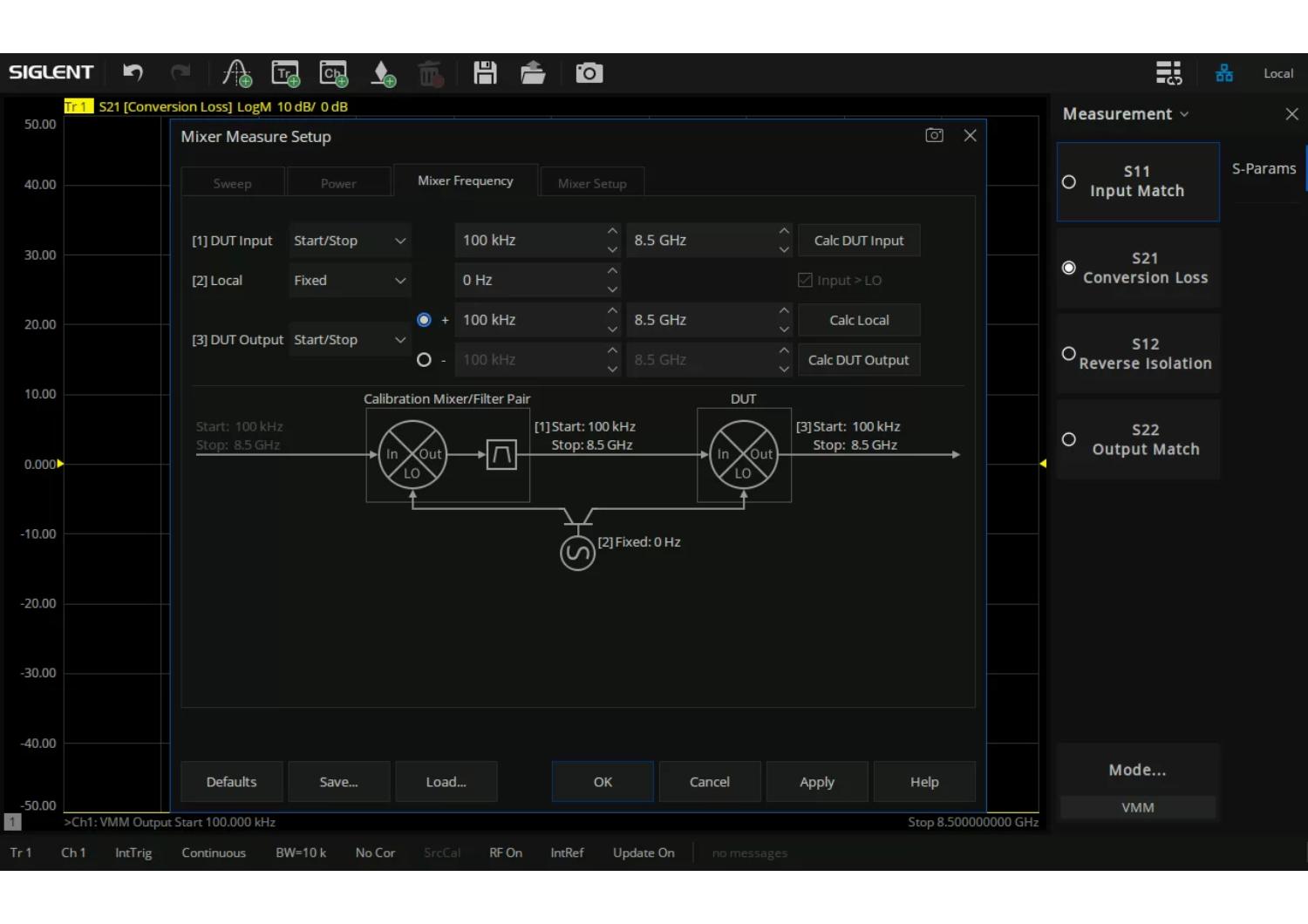

Siglent SNA5000-VMM Vector Mixer Measurement Software Option

The function supports various sweep modes such as linear frequency sweep, power sweep and segment sweep, and allows flexible setting of parameters such as source port power, LO port power, and attenuation.

  • Vector Mixer Measurement (VMM) Functionality:
    • Measurements: Conversion Loss, Phase, Group Delay, Isolation, Port VSWR.
    • Frequency Modes: Supports standard (Normal) and mirror mode (when F_LO > F_RF).
    • Control: Allows flexible settings for LO power, RF power, and attenuators.
    • Integration: Leverages VNA’s 3-port (RF, LO, IF) capability for detailed analysis.
  • Supporting Functions (Integrated/Optional): Scalar Mixer Measurement, Gain Compression, Impedance Conversion, Fixture Simulation, Adapter Removal/Insertion, Spectrum Analysis (SNA5000-SA), Time-Domain Analysis (SNA5000-TDR).
  • Interface & Control: SCPI, LabVIEW, Web Server, HDMI output, 12.1″ touch screen.
