Siglent SNA5000-MT Material Measurement Licence Software Option

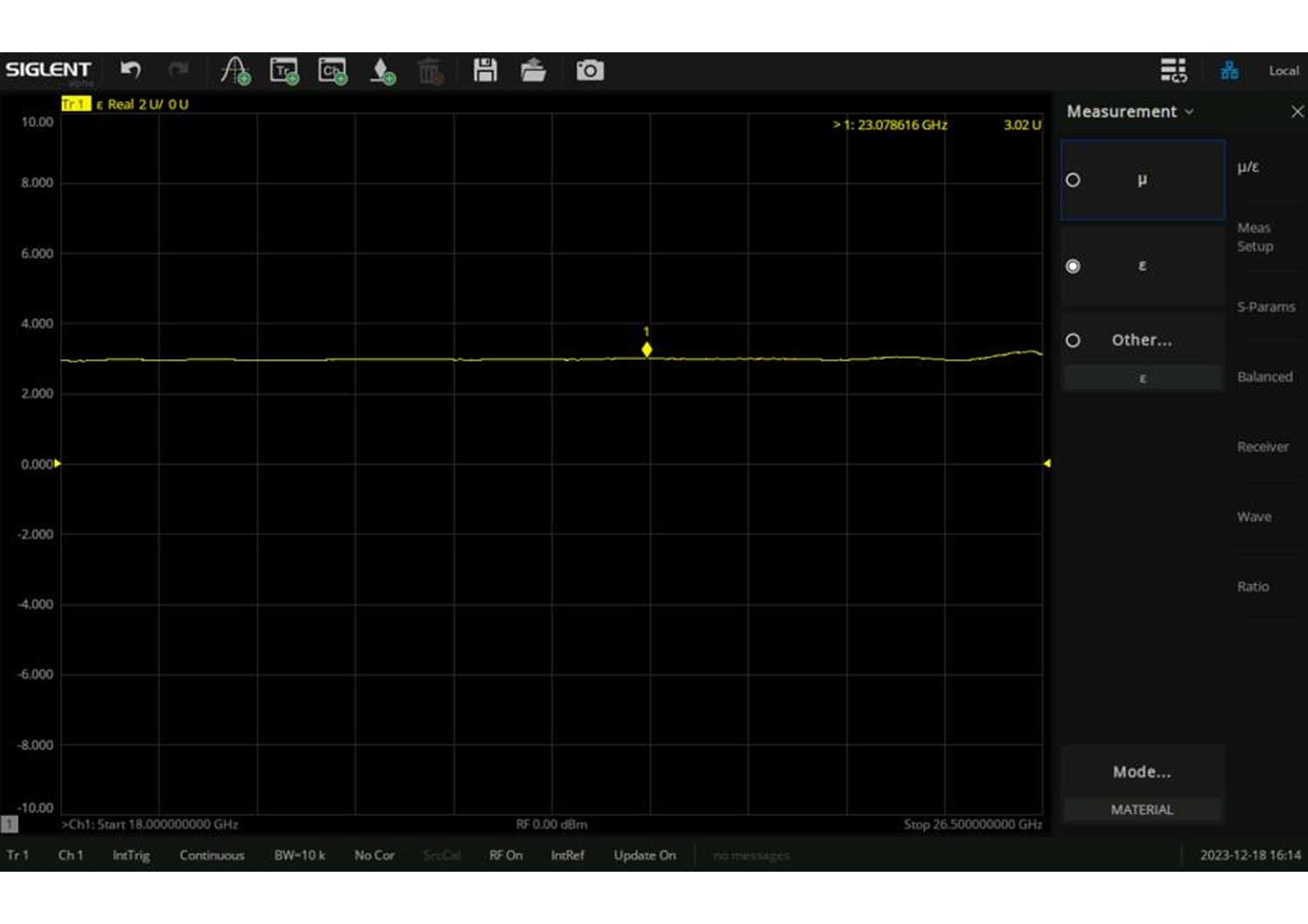

The SNA5000A-MT Material Measurement License is an optional feature for the Siglent SNA5000A series vector network analysers (VNA). This option enables advanced material measurements by analysing permittivity and permeability using waveguide-based techniques. By connecting a calibrated waveguide device to the VNA, users can measure S-parameters (S11, S21, S12, S22) and compute the complex relative permittivity and permeability of a sample. The system includes tools for waveguide TRL calibration, sample measurement setup, and gap correction, making it ideal for characterising dielectric and magnetic properties of materials.

Functions:

• Waveguide TRL Calibration: Ensures accurate measurements by compensating for test fixture variations.
• Sample Holder Configuration: Supports different waveguide and coaxial fixtures to accommodate various material types.
• Gap Correction: Adjusts for air gaps or mechanical inaccuracies in waveguide setups.
• Custom Measurement Models: Allows users to select different material measurement models for more precise calculations.

Applications:

• Dielectric and Magnetic Material Characterisation: Used in R&D for materials like ceramics, polymers, composites, and ferrites.
• Microwave and RF Component Testing: Supports design and testing of materials used in antennas, radomes, and absorbers.
• Aerospace & Defence: Evaluates stealth materials and coatings for radar absorption.
• Automotive & Wireless Communication: Assesses material properties for high-frequency electronic applications.
• Biomedical & Medical Imaging: Studies tissue-mimicking materials for MRI and RF safety assessments.

The SNA5000A-MT expands the capabilities of the Siglent SNA5000A series, making it a valuable tool for researchers and engineers involved in material science, RF engineering, and microwave technology
