Description
Independent signal source.

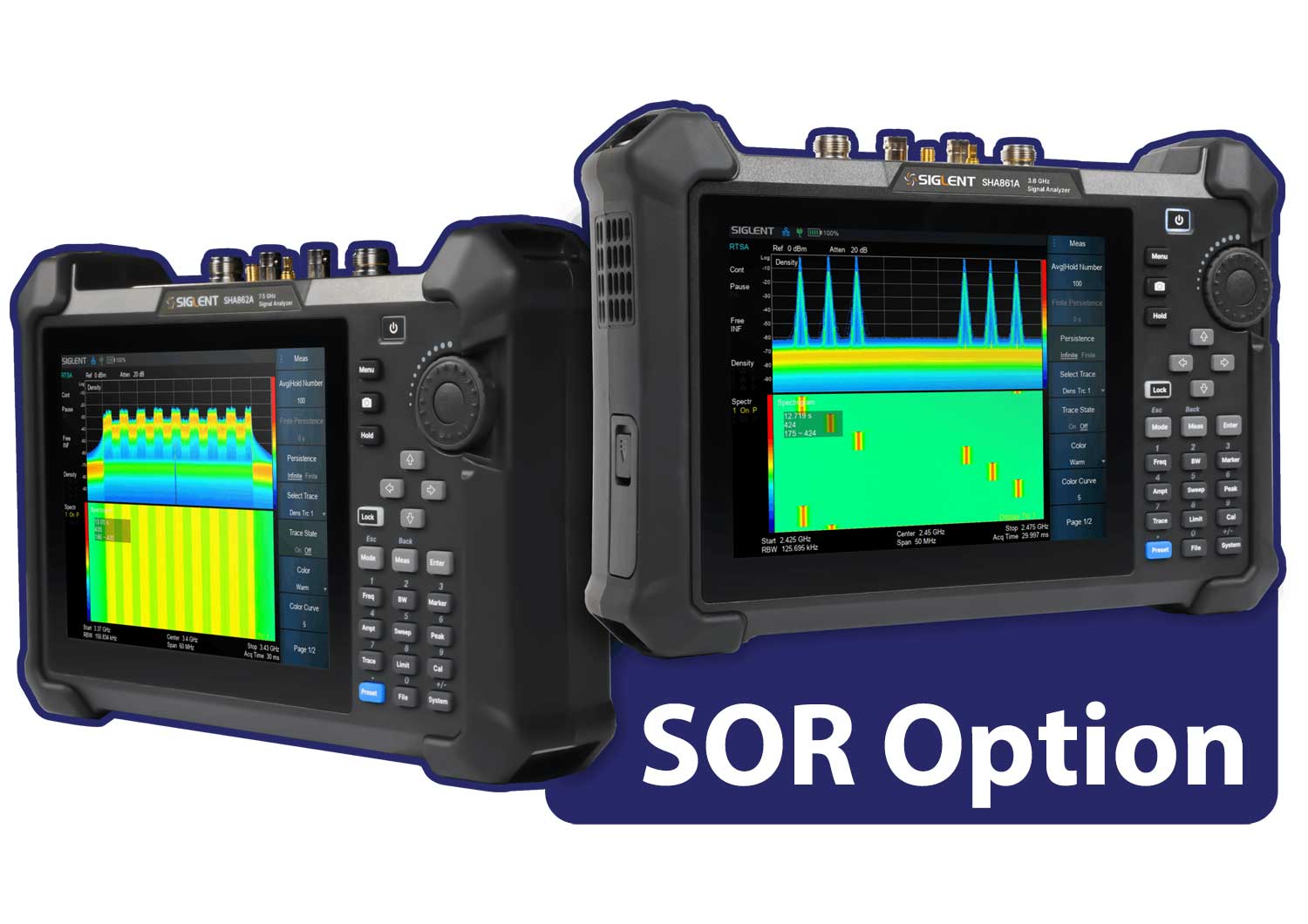

Option available for the Siglent SHA861A and SHA862A Handheld Spectrum / Vector Network Analysers.
| SHA861A | SHA862A | |
|---|---|---|
| Frequency | ||
| Frequency Range | 100 kHz~3.6 GHz(30 kHz usable) | 100 kHz~7.5 GHz(30 kHz usable) |
| Frequency Resolution | 1 Hz | |
| Source Type | CW，CW Offset | |
| Power | ||
| Output Level | -40 dBm ~ 0 dBm | |
| Output Level Resolution | 1 dB | |
| Output Flatness | ±2 dB (nom.) | |
| Normalisation Trace | Ref A/B/C/D-> Ref trace | |
| VSWR | < 2 (nom.) | |
| Connector and Impendence | N-type female, 50 Ω | |
| Avg. safe reverse power | Total 27 dBm (0.5 W) | |
| Max safe reverse level | ±50 VDC | |
