Description
The CP6500 is a Current Probe that can be used with Siglent Oscilloscopes.
Specifications
| Parameter | Value |
|---|---|
| Bandwidth | 5 MHz; |
| Maximum continuous current | 500 Arms; |
| Peak current 750 A; Switching ratio | 75 A/500 A; |
| Accuracy | 75 A(±1%±10 mA); 500 A(±1%±100 mA); |
| Details | Standard DC12 V/1 A power adapter |
| Max. rated Voltage to earth | 600V CAT II |
| Conductor Diameter Max | 20mm |
| Cable Length | 1.5m |

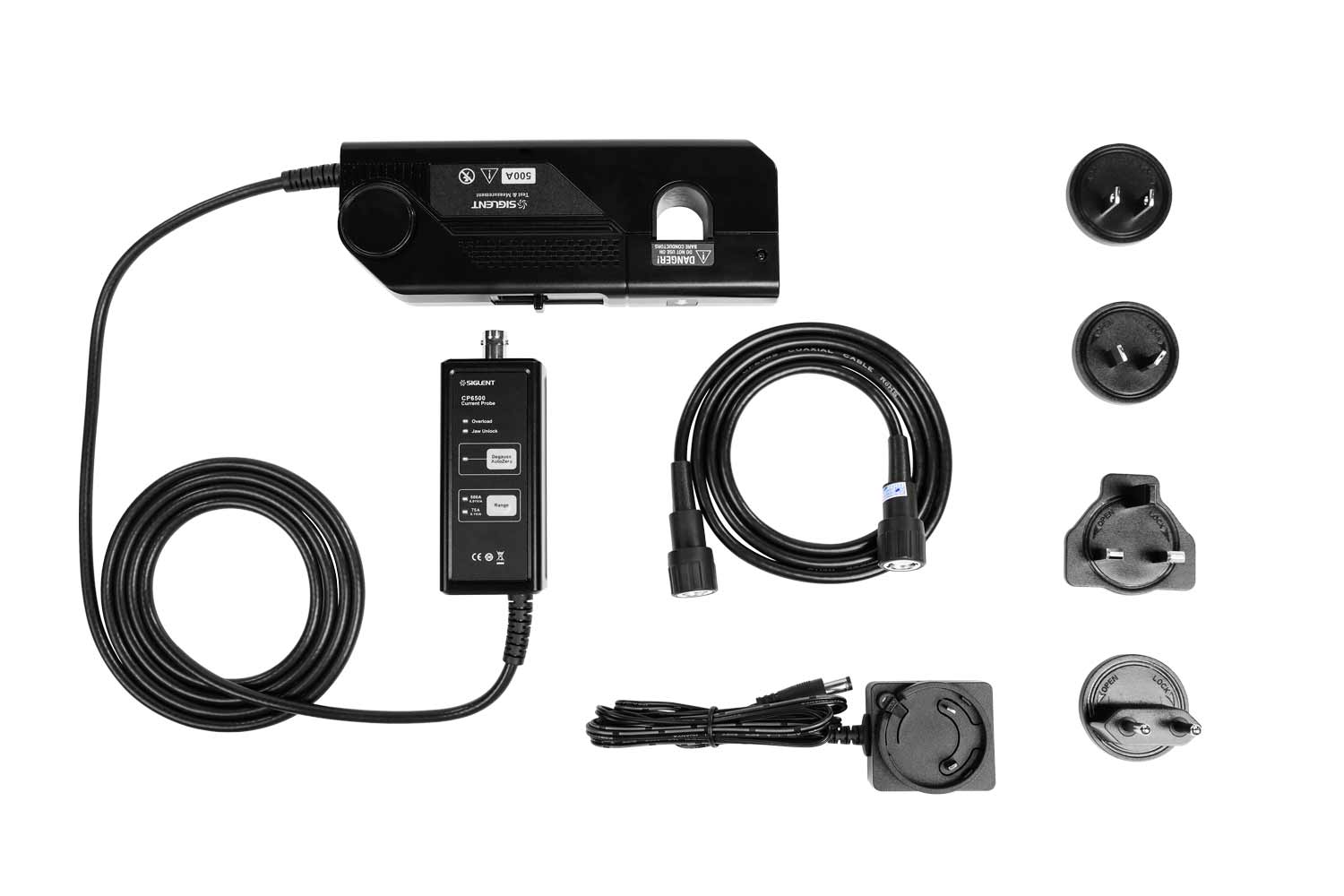

Product Images
Amp Frequency Curve
Continuous Maximum Input Measurement
Input Impedance vs Frequency
×
![]()
