Description

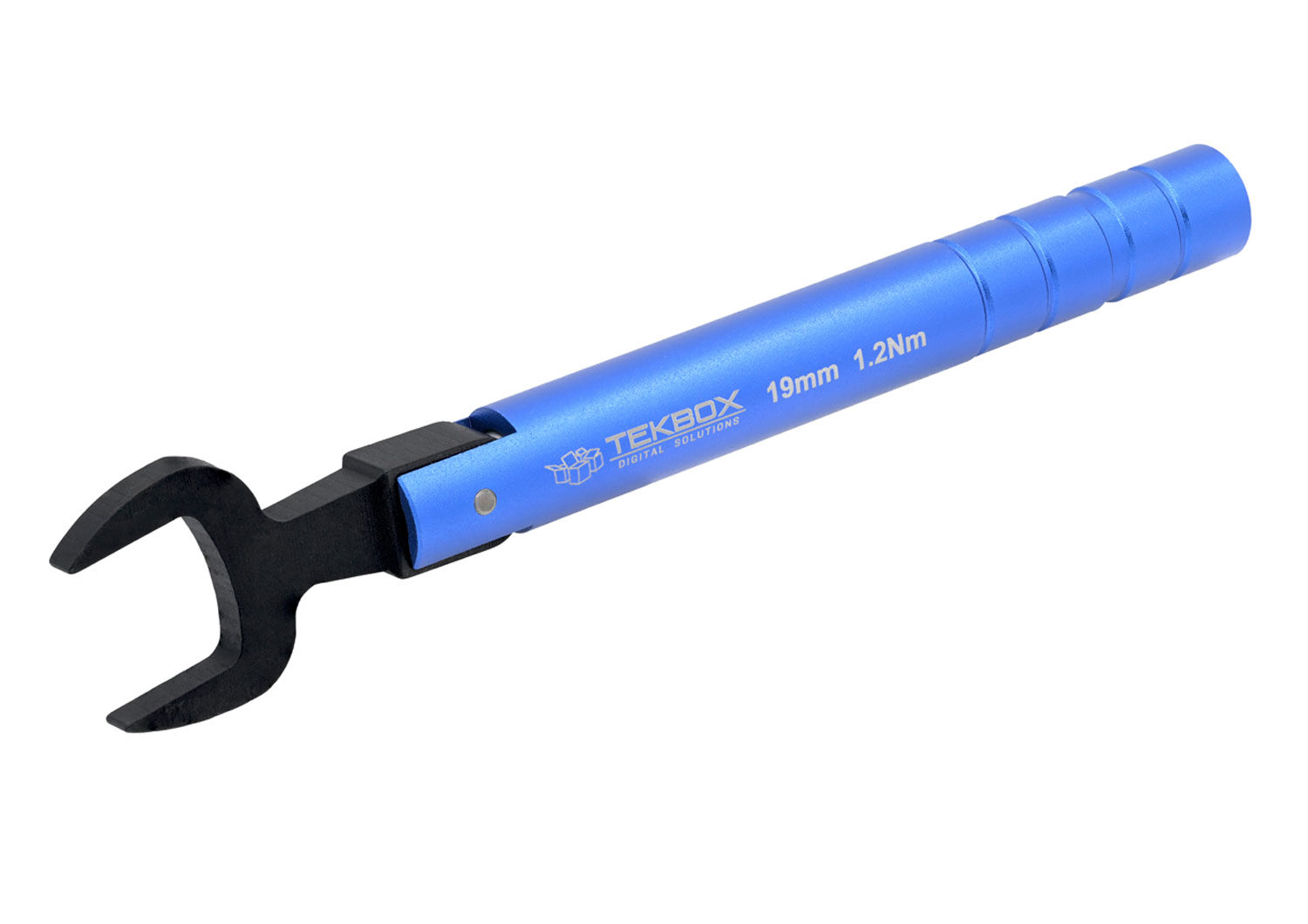

TBTWR-1.2NM-N-19mm N Type Torque Wrenchr
Tekbox offers an SMA and type N torque wrenchesr
The SMA torque wrench is a break-over type with a standard SMA 5/16″ (8 mm) opening (also suitable for 3.5 mm and 2.92 mm connectors).r
The break-over type-N torque wrenches have an opening of 20 mm or 19 mm (0.8”/0.75”). The 20 mm model should cover most applications.
Specifications
| Parameter | Value |
|---|---|
| SMA | |
| Details | Economical SMA torque wrench to ensure consistent and reliable connections for RF/microwave measurements |
| Break-over type with a standard SMA | 5/16″ (8mm) opening |
| Details | Bidirectional operation |
| Default factory calibration | 0.5 Nm |
| Torque accuracy | ± 0.05 Nm |
| Available in | 0.5 Nm or 0.9 Nm (custom torque settings also available) |
| Type N | |
| Details | Economical type-N torque wrench to ensure consistent and reliable connections for RF/microwave measurements |
| Break-over type for type-N connectors with | 20 mm or 19 mm (0.8”/0.75”) opening |
| Details | Bidirectional operation |
| Default factory calibration | 1.2 Nm |
| Torque accuracy | ± 0.05 Nm |
Applications
- SMA: SMA with brass connectors: 0.5 Nm (5 in-lbs)
- SMA: SMA with stainless steel connectors: 0.9 Nm (8 in-lbs)
- SMA: For connecting 3.5 mm or 2.92 mm to SMA: 0.56 Nm (5 in-lbs)
- SMA: For 3.5 mm and 2.92 mm: 0.9 Nm (8 in-lbs)
- Type N: Type-N connectors: 1.2 Nm (10.6 in-lbs)
