TekBox TBSB-105/60 Shielded Bag

£336.87 (Β£404.24 inc VAT)

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: TBSB-105-60 Categories: , , ,

Description

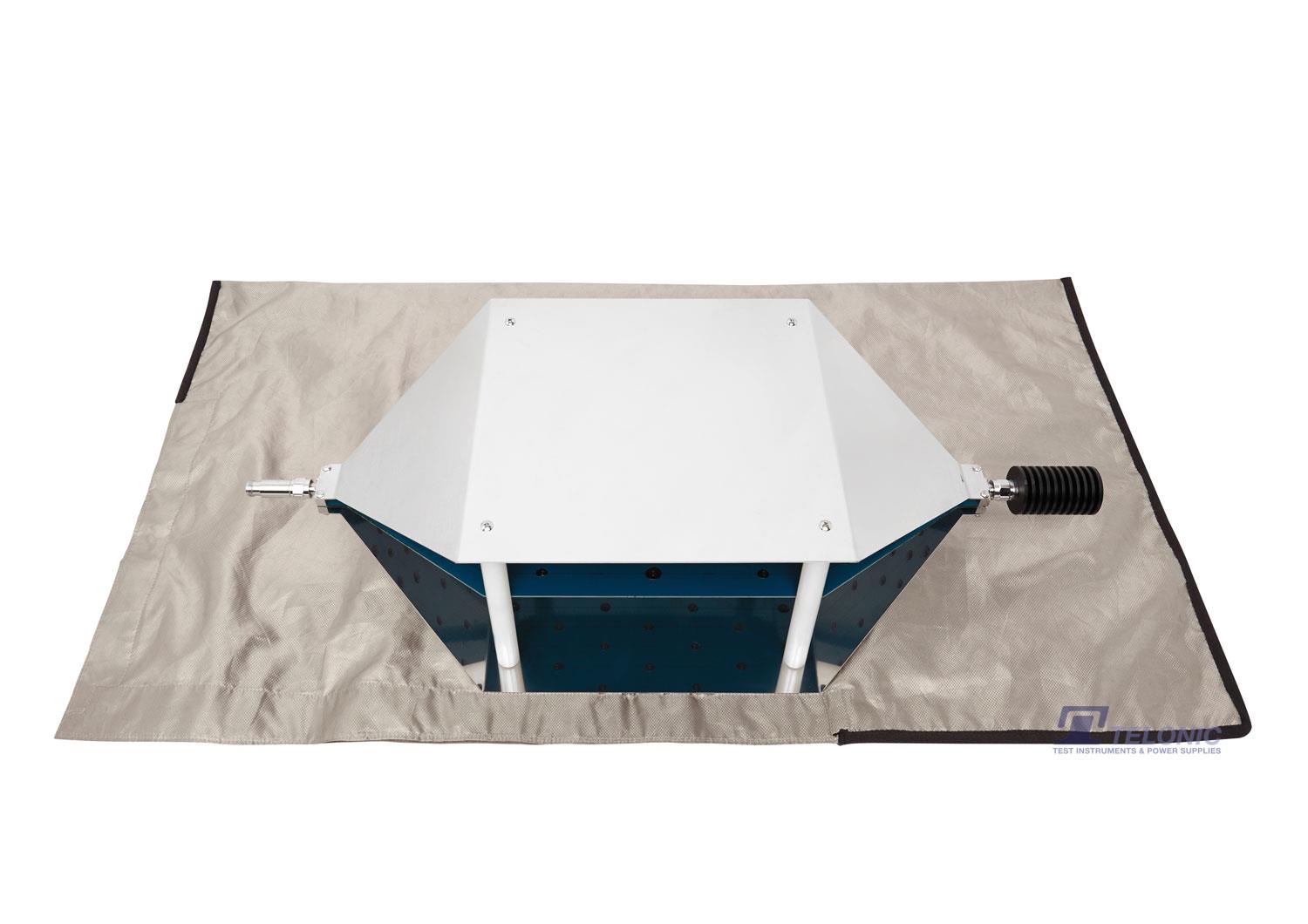

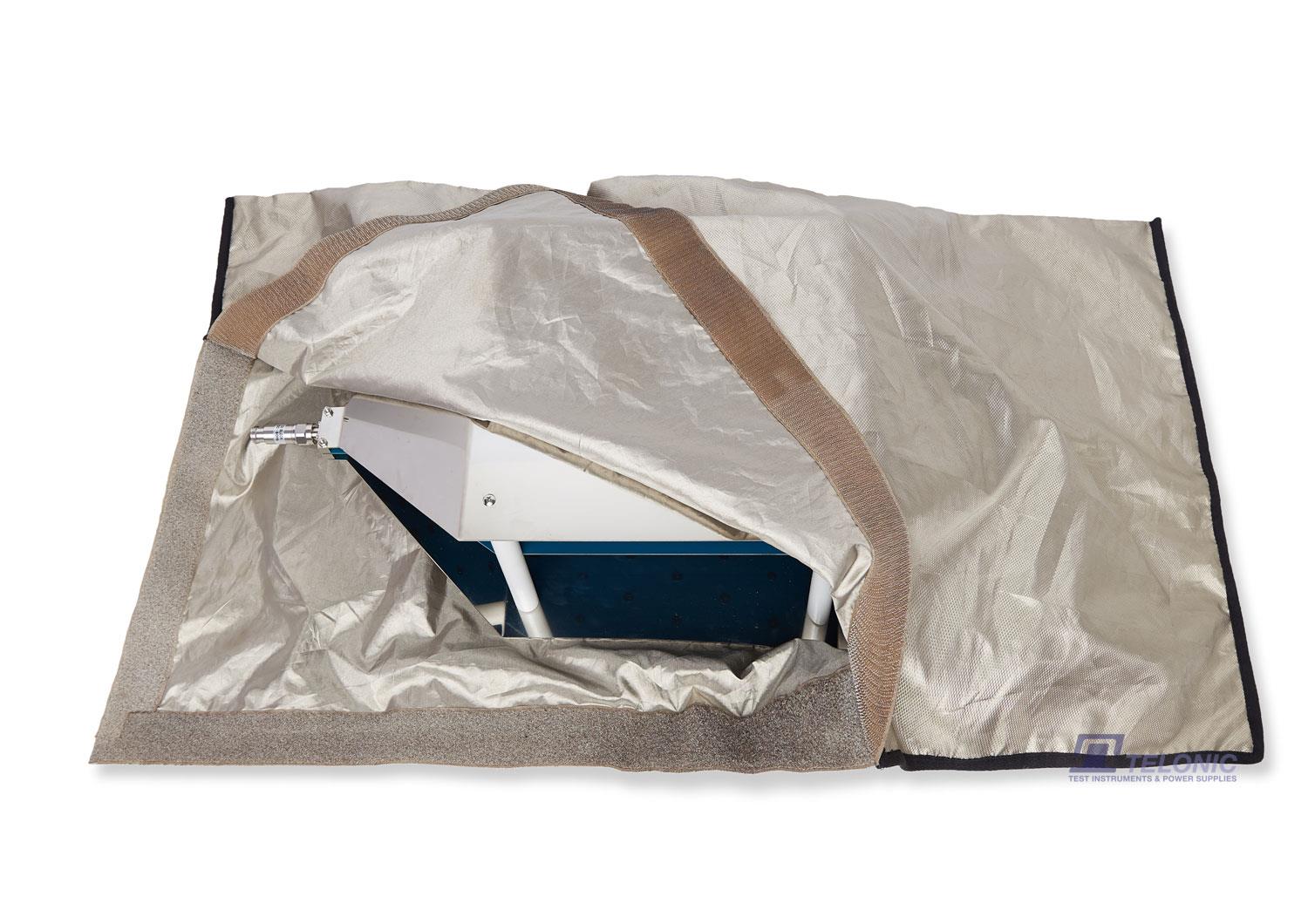

Tekbox TBSB-105/60 Shielded Bag

The TBSB line of shielded bags is designed to suppress interference from ambient noise when carrying out EMC pre-compliance measurements. The shielded bags are low cost alternatives to shielded tents for test equipment such as LISN’s or TEM-cells.

The shielded bags are composed of two layers of conductive fabrics. The access opening is sealed with conductive Velcro tape.

Features:

  • Outer Dimensions:Β 105cm x 60cm
  • Opening Dimensions:Β Diagonal 80cm
  • Frame:Β None
  • Shielding:Β 2 layers of conductive fabrics
  • Seal:Β Conductive Velcro tape
  • Filter Panel:Β None
  • Attenuation:Β ~50dB in the range DC to 2GHz
  • Weight:Β 250g
  • The TBSB-105/60 fits the TEM-cells TBTC2, TBTC1 and TBTC0

Documentation

Specifications
Outer Dimensions 105 cm x 60 cm
Opening Dimensions diagonal 80 cm
Frame none
Shielding 2 layers of conductive fabrics
Seal conductive Velcro tape
Filter Panel none
Attenuation ~ 50 dB in the range DC to 2 GHz
Weight 250 g
