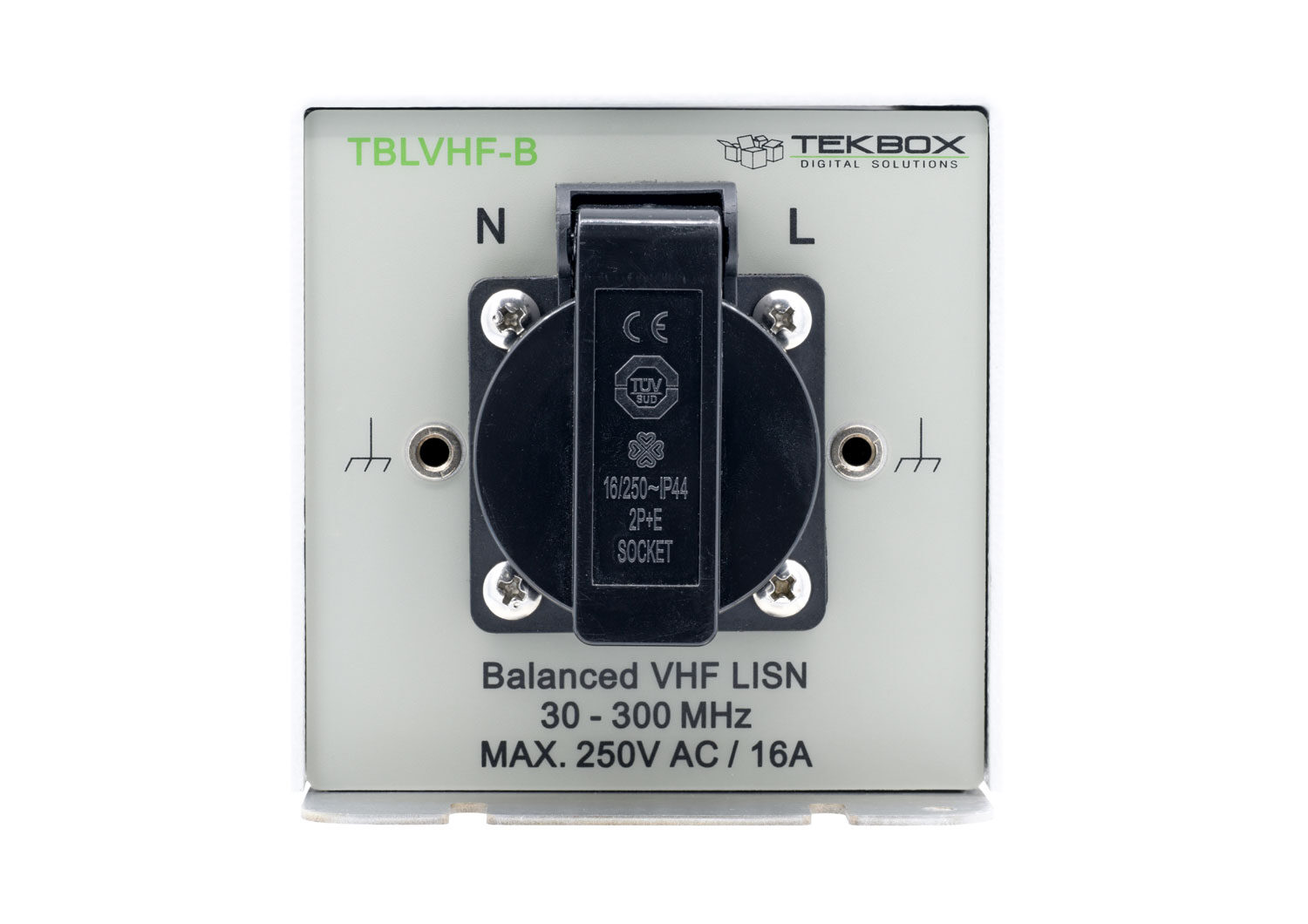

Image of Tblvhf b telonicuk

TEKBOX TBLVHF-B Balanced VHF Line Impedance Stabilization Network

£807.00 (£968.40 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBLVHF-B Categories: , Brand:

Description


TEKBOX TBLVHF-B Balanced VHF Line Impedance Stabilisation Network

The model TBLVHF-B, Balanced Very High Frequency Impedance Stabilisation Network (Balanced VHF LISN) is an artificial mains network providing a defined RF termination impedance for AC mains cables supplying EUTs in radiated emission test setups. The LISN is suitable for EUTs with or without protective earth and provides defined, symmetrical line impedances, resulting in a balanced load.

Product Videos

YouTube Video
YouTube Video

Documentation

LISN Basics And Overview TBISN-T4 Manual TBL0110 2 LISN Manual TBL0225 2 LISN Manual TBL0510-1, 5ΜH LISN, Conducted Emissions, EMC TBL05100-1C 5uH LISN TBL0550-1B 5ΜH LISN TBL5008 2B LISN Manual TBL5008 2C LISN Manual TBL50100-1B 50ΜH LISN TBL501000-1 50ΜH LISN TBL5016-2C Manual TBL5016-3 50ΜH LISN TBL5016 2B LISN Manual TBL5032-1 50ΜH LISN TBL5032-3 50ΜH LISN TBL5063-3 50ΜH LISN TBLDC32-2 150 Ohm DC LISN TBLM2 LISN MATE TBVHF B Balanced VHF LISN
Design Designed for mains-supplied EUTs with or without protective Earth
Frequency range 30-300 MHz
Maximum supply voltage 250V AC
Maximum supply current 16 A rms
Termination Defined termination impedance
Isolation > 40 dB isolation
Mains sockets Country-specific mains sockets
Physical Compact design
Conformity CISPR 16-1-4 conformant
