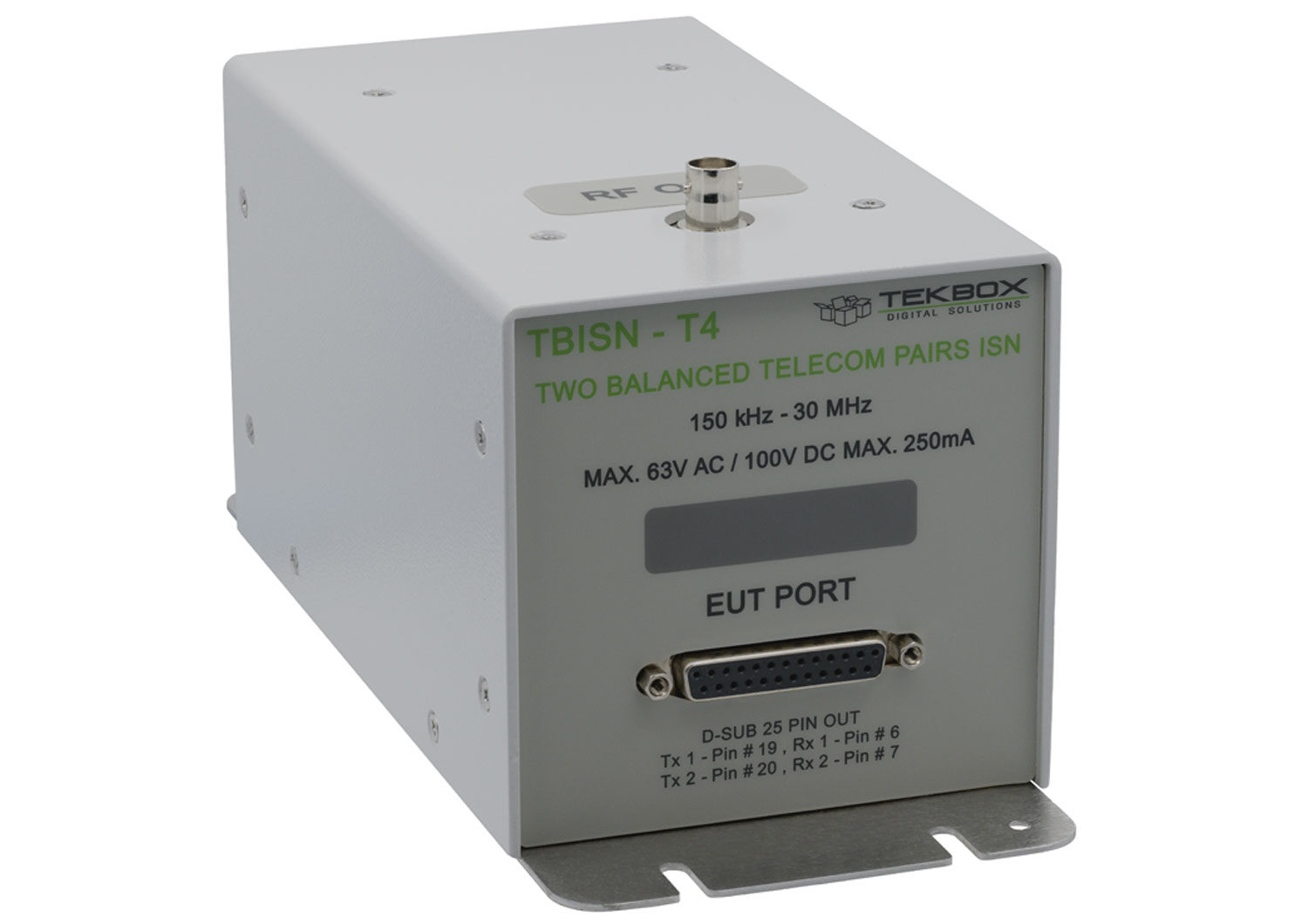

TEKBOX TBISN-T4 Two Balanced Pairs ISN
Per CISPR 22 (2005), ISNs are specialised coupling decoupling devices used for measuring the conducted asymmetric common mode radio interference voltages of ITE. TBISN-T4 has been designed to perform conducted emissions testing per CISPR 22 on two balanced pair telecom lines. It meets the requirements for Longitudinal Conversion Loss, as defined in CISPR 22, item 9.6.2.c)1) page 24 accepted by CISPR.
| Frequency Range | 150 kHz – 30 MHz |
|---|---|
| Impedance (asymmetric) | 150 Ω± 20 Ω |
| Phase (asymmetric) | 0° ± 20° |
| Longitudinal Conversion Loss (LCL) | CISPR 22 item 9.6.2.c)1) page 24 |
| Voltage Division Ratio (VDF) for asymmetrical voltage | 10 dB +/- 1 dB |
| EuT, AE Terminals | D-SUB 25 |
| Measuring Port | 50Ω BNC |
| Max. Voltage | 63V AC / 100V DC |
| Max. Current | 250mA |
| Insertion Loss (Differential Mode) | < 3dB |
| Decoupling AE-EuT | 150kHz to 1.5 MHz > (35dB to 55dB); > 1.5MHz ( > 55dB) |
| Outer dimensions (W x H x D) | 100 x 100 x 235 mm |
| Weight approx. | 1.0 kg |
| According to standards | CISPR 16-1-2,CISPR 22,CISPR 32 & CISPR 15 |
| Operating Temperature | +5° C to 40° |
| Relative humidity | up to 80% |
