Tekbox TBCCP1-400K600 10 Hz to 100 MHz Coaxial RF Current Monitoring Probe

£834.20 (£1001.04 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: TBCCP1-400K600 Categories: , , ,

Description


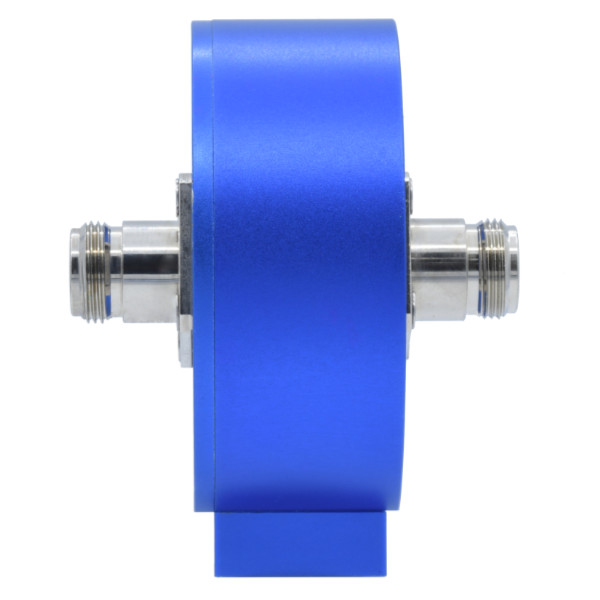

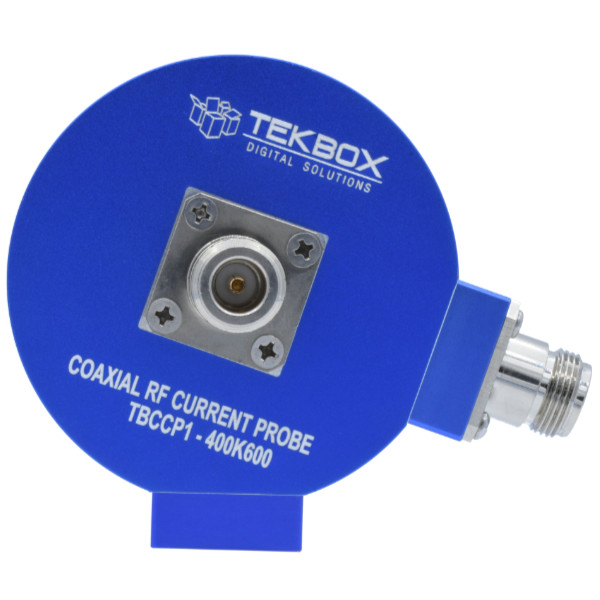

Tekbox TBCCP1-400K600 RF Current Monitoring Probe

The TBCCP1-400K600 is a coaxial RF current monitoring probe, expanding the Tekbox product range of affordable EMC pre-compliance test equipment.

The probe has a 3 dB bandwidth from 400 kHz to 600 MHz and a very flat response from 1 MHz to 200 MHz. The transimpedance is characterized over the frequency range from 10 Hz to 100 MHz. The TBCCP1-400K600 is primarily designed as transducer for passive loop antennas or for measurement of RF currents in coaxial cables.

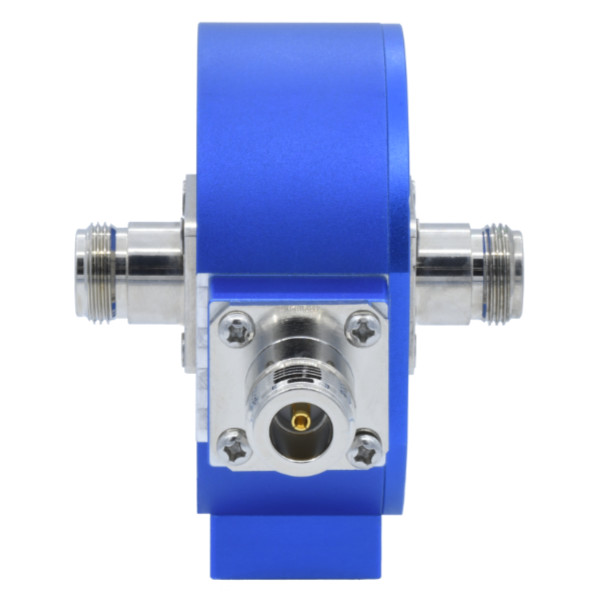

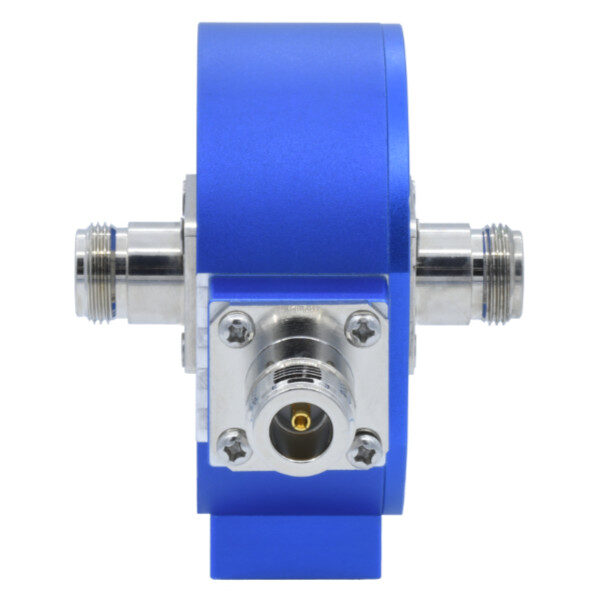

The probe is equipped with N-connectors. An attachment with a ¼” thread permits connectivity to standard tripods.

Specification:

  • Characterized frequency range: 10 Hz to 600 MHz
  • Transfer impedance: 23 dB Ohm
  • 3 dB bandwidth: 400 kHz to 600 MHz, typ.
  • Dimensions: 76 mm x 102 x 69 mm
  • Weight: 400 g
  • Connector type: N female
  • Max. primary current (RF): 12 A
  • Max. core temperature: 125 °C

Documentation

Specifications
Characterised frequency range 10 Hz to 600 MHz
3 dB bandwidth: 400 kHz to 600 MHz, typ.
Footprint 76 mm x 102 x 69 mm
Weight 400 g
Connector type N female
Transfer impedance 23 dB Ohm
Max. primary current (RF) 12 A
Max. core temperature 125 °C

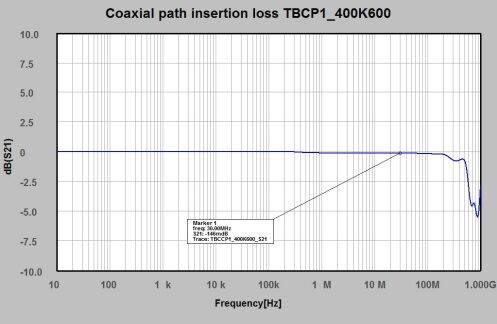

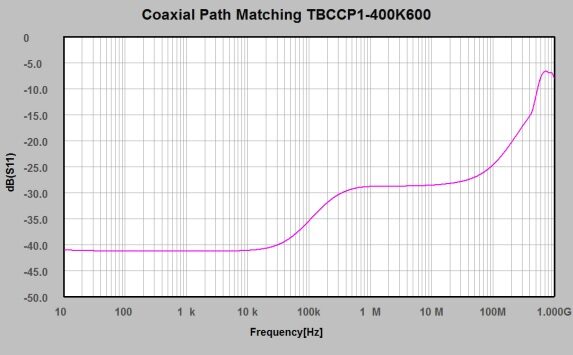

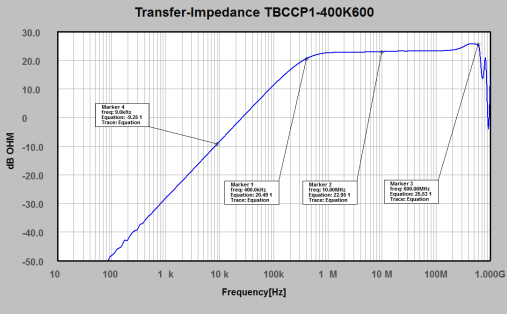

Frequency (MHz) Transfer Impedance (dBΩ) Frequency (MHz) Transfer Impedance (dBΩ)
0.00001 -62.56 1 22.57
0.000025 -58.21 2.5 22.74
0.00005 -56.10 5 22.82
0.000075 -50.92 7.5 22.89
0.0001 -48.21 10  22.95
0.00025 -40.06 20 23.15
0.0005 -34.26 30 23.19
0.00075 -30.77 40 23.25
0.001 -28.20 50 23.26
0.00125 -26.37 55 23.26
0.0015 -24.76 60 23.25
0.00175 -23.49 65 23.26
0.002 -22.30 70 23.25
0.00225 -21.29 75 23.24
0.0025 -20.39 80 23.24
0.005 -14.34 85 23.25
0.0075 -10.83 90 23.24
0.01 -8.33 95 23.24
0.025 -0.39 100 23.24
0.05 5.55 200 23.51
0.075 8.98 300  24.41
0.1 11.34 400 25.57
0.25 18.04 500 25.70
0.5 21.32 550 25.53
0.75 22.28 600 25.53
