Siglent SNA6022A 100kHz-13.5GHz Vector Network Analyser
Siglent SNA6022A 100kHz – 13.5GHz Vector Network Analyser The SIGLENT SNA6000A Series Vector Network Analysers (VNAs) are versatile tools designed for high-performance RF testing and analysis. With frequency ranges of 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz, these VNAs offer 2/4-port scattering, differential-parameter, and time-domain parameter measurements, making them ideal for […]
Available on back-order
Description

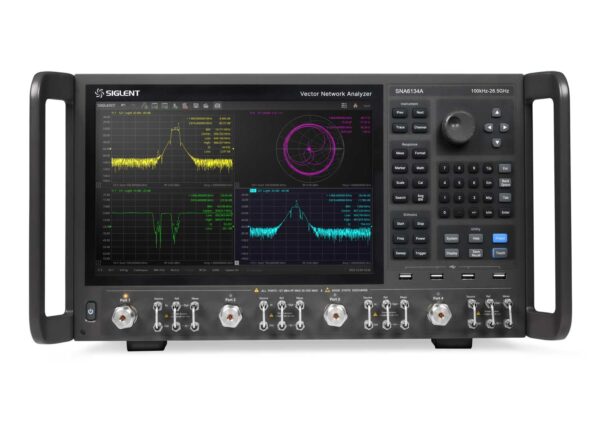

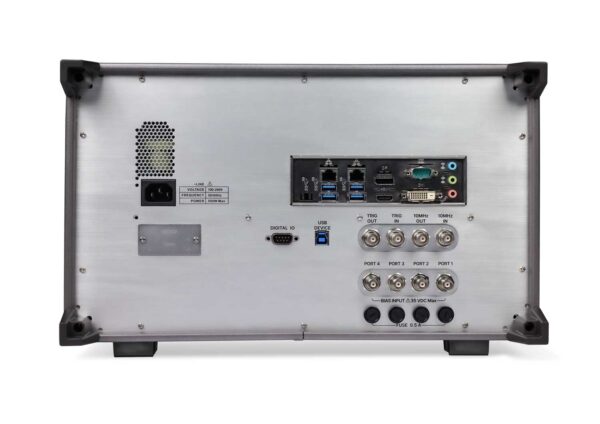

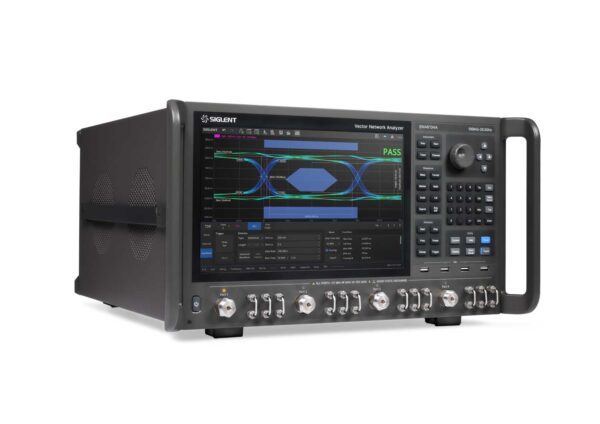

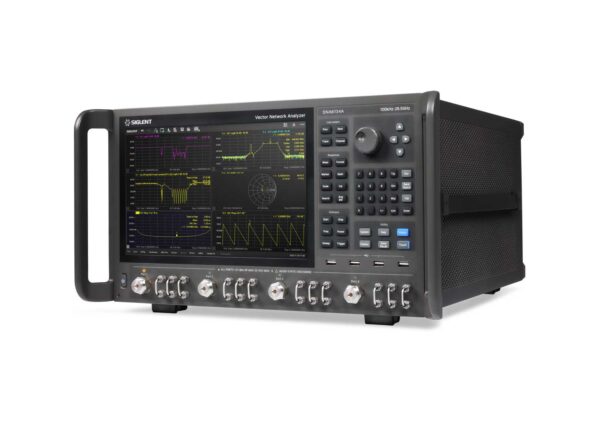

Siglent SNA6022A 100kHz – 13.5GHz Vector Network Analyser
The SIGLENT SNA6000A Series Vector Network Analysers (VNAs) are versatile tools designed for high-performance RF testing and analysis. With frequency ranges of 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz, these VNAs offer 2/4-port scattering, differential-parameter, and time-domain parameter measurements, making them ideal for a wide variety of R&D and manufacturing applications.
The SNA6000A series excels in measuring Q-factor, bandwidth, and insertion loss of filters, while also offering features such as impedance conversion, fixture simulation, limit testing, and ripple tests. Its five sweep modes—Linear-Frequency, Log-Frequency, Power-Sweep, CW-Time, and Segment-Sweep—provide users with flexible measurement options.
Key features include:
– Frequency range: 100 kHz to 13.5 GHz
– Frequency resolution: 1 Hz; Level resolution: 0.05 dB
– Dynamic range: 135 dB
– Multiple calibration types: SOLT, SOLR, TRL, and Enhanced Response
– Built-in Bias-Tee connections and material measurement capabilities
– Remote control via SCPI, Labview, IVI, and WebServer
– 12.1-inch touch screen with HDMI/DVI-D/DP video output
The SNA6000A series delivers precision and flexibility for tasks ranging from scattering-parameter analysis to time-domain testing, enhancing performance in RF circuit design and production environments.
Siglent SNA6000A Vector Network Analyser Comparison Table
Model | Frequency Range | Ports | Dynamic Range | Trace Noise | Range of Output |
---|---|---|---|---|---|
SNA6034A | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6032A | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6024A | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6022A | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6134A | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6132A | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6124A | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6122A | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
