Siglent SHS1202X 2CH, 200MHz, 1GSa/s Handheld Digital Oscilloscopes

£1517.00 (£1820.40 inc VAT)

FREE UK delivery: on all orders above £100+vat

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Available on back-order, delivery normally 1 week

Description

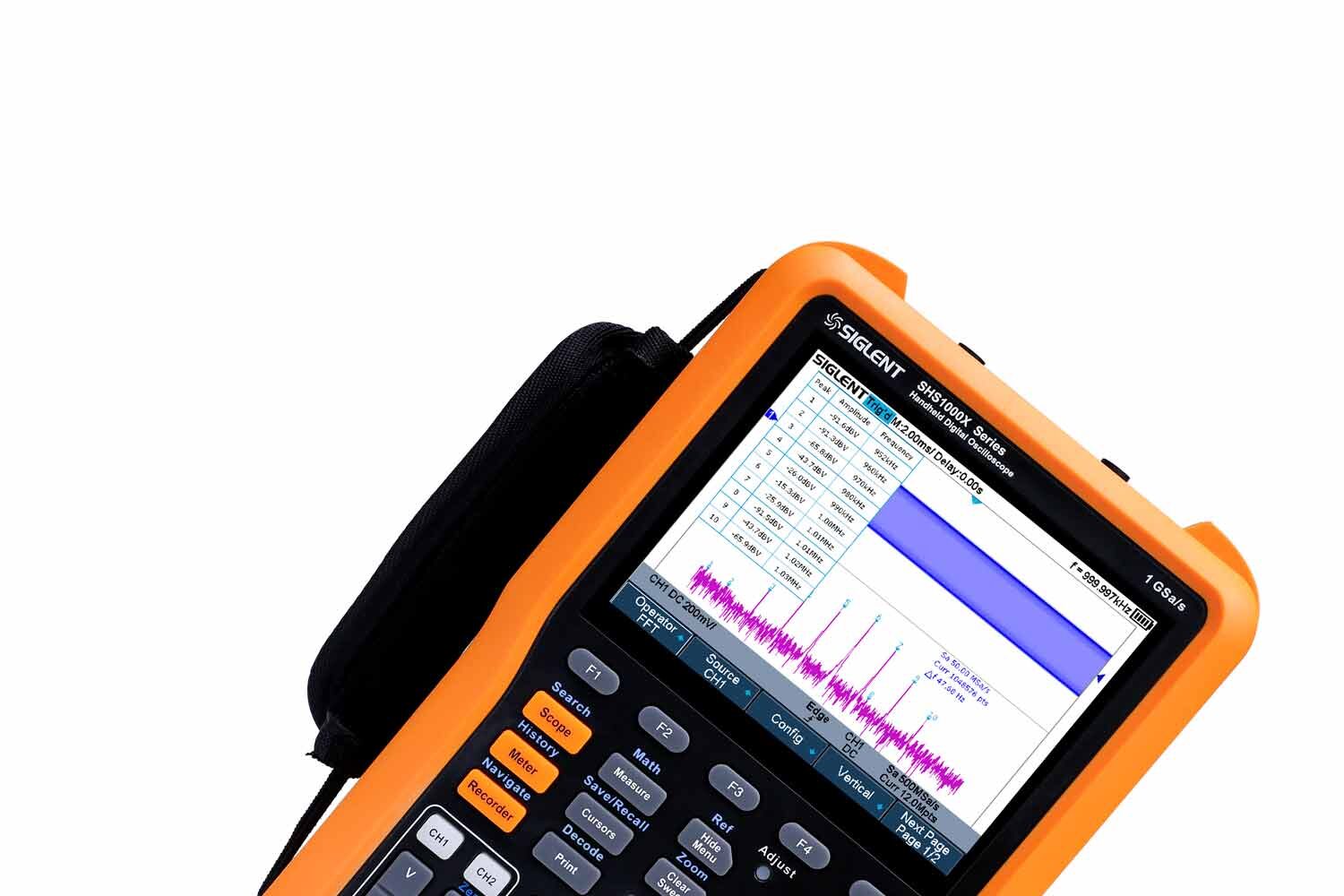

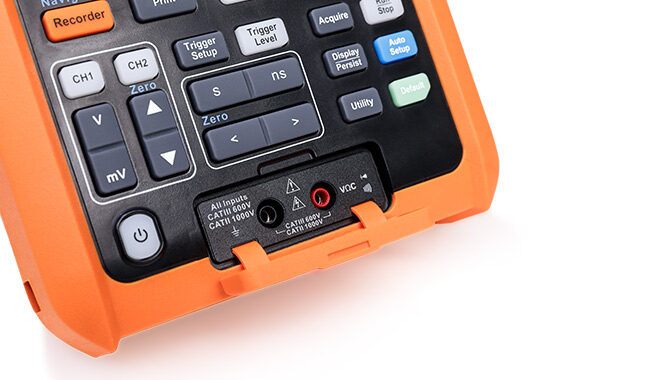

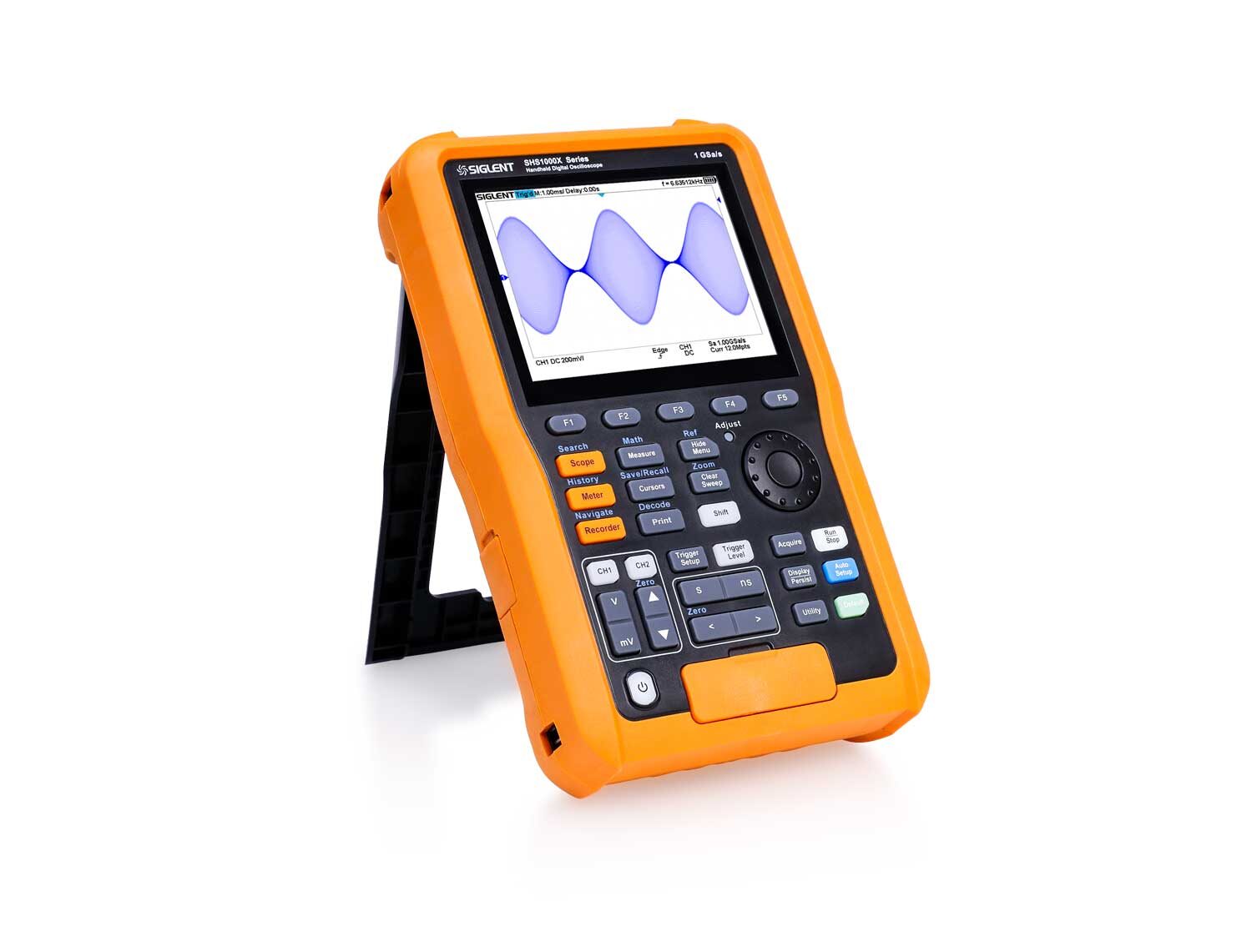

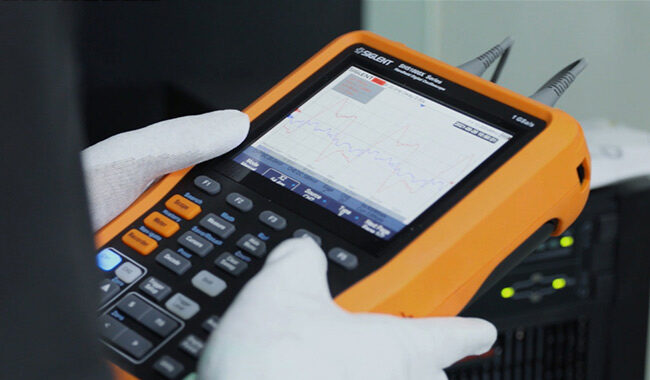

The SHS1202X is a 2CH, 200MHz Handheld Digital Oscilloscope with a maximum sampling rate of 1GSa/s and features full isolation between the two oscilloscope channels, one multimeter channel, power adapter and the USB host/device port. A single ADC with 1 GSa/s maximum sample rate, and a single memory module with 12 Mpts memory depth. When two channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 6 Mpts. When only a single channel is actived, the maximum sample rate is 1 GSa/s and the maximum record length is 12 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits.

Key Features:

  • Siglent SPO technology
      • Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
      • Supports 256-level intensity grading and color temperature display modes
      • Record length up to 12 Mpts
      • Digital trigger system
    • Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern

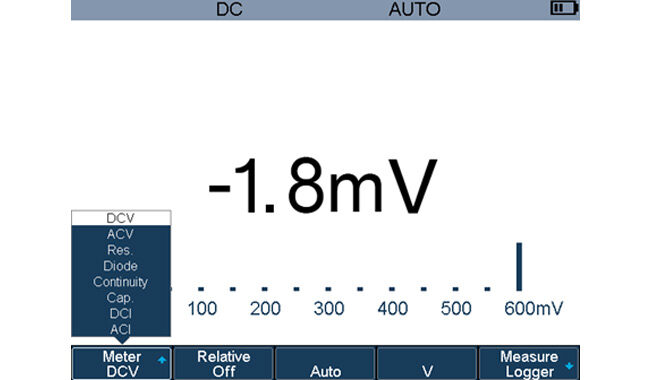

    • 6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test.
    • 3 one-button shortcuts for Oscilloscope, Multimeter and Recorder functions
    • 5.6-inch TFT-LCD display with 640 * 480 resolution

Siglent SHS1000X Oscilloscope Comparison table

Model Channels Bandwidth Real-Time Sampling Rate Multimeter Isolation Level Memory Depth
SHS1102X 2 100MHz 1GSa/s voltage, current, resistance, etc, 8 regular functions 1000 V CAT II,
600 V CAT III
12Mpts
SHS1202X 2 200MHz 1GSa/s voltage, current, resistance, etc, 8 regular functions 1000 V CAT II,
600 V CAT III
12Mpts

Documentation

Datasheets

SHS800X 1000X

Datasheets


SHS800X 1000X datasheets



Datasheet

Siglent SHS800X-1000X Datasheet


User Manual

Siglent SHS800X-1000X User Manual



Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Mandatory Accessories …

  • Pre-Delivery Inspection

    £0.00

    FREE UK delivery: on all orders above £100+vat

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Available on back-order, delivery normally 1 week

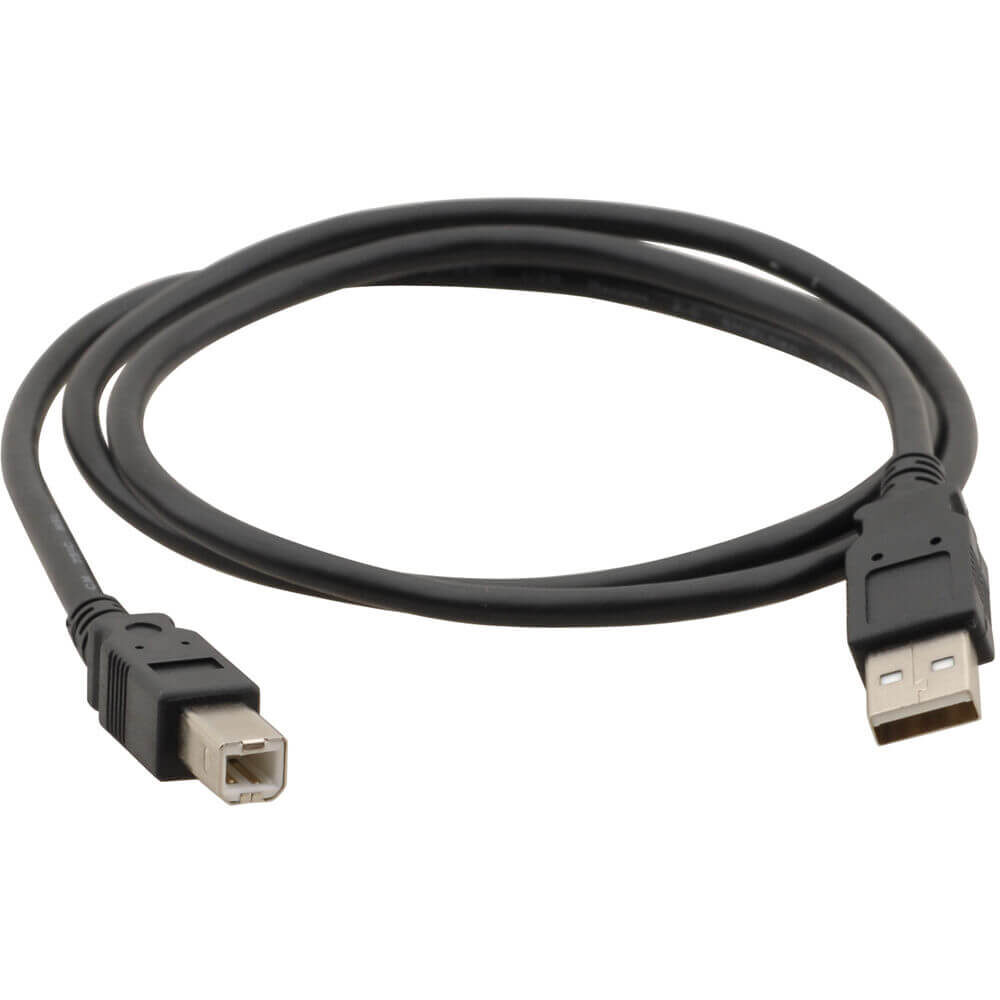

  • USB Cable

    USB Cable

    £0.00

    FREE UK delivery: on all orders above £100+vat

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Available on back-order, delivery normally 1 week

Optional Accessories …

  • Siglent-CP5030-Current-Probe

    Siglent CP5030 Current Probe

    £1,861.00
    Read more
    Siglent CP5030 has been discontinued please see CP6030 below

    FREE UK delivery: on all orders above £100+vat

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Available on back-order, delivery normally 1 week

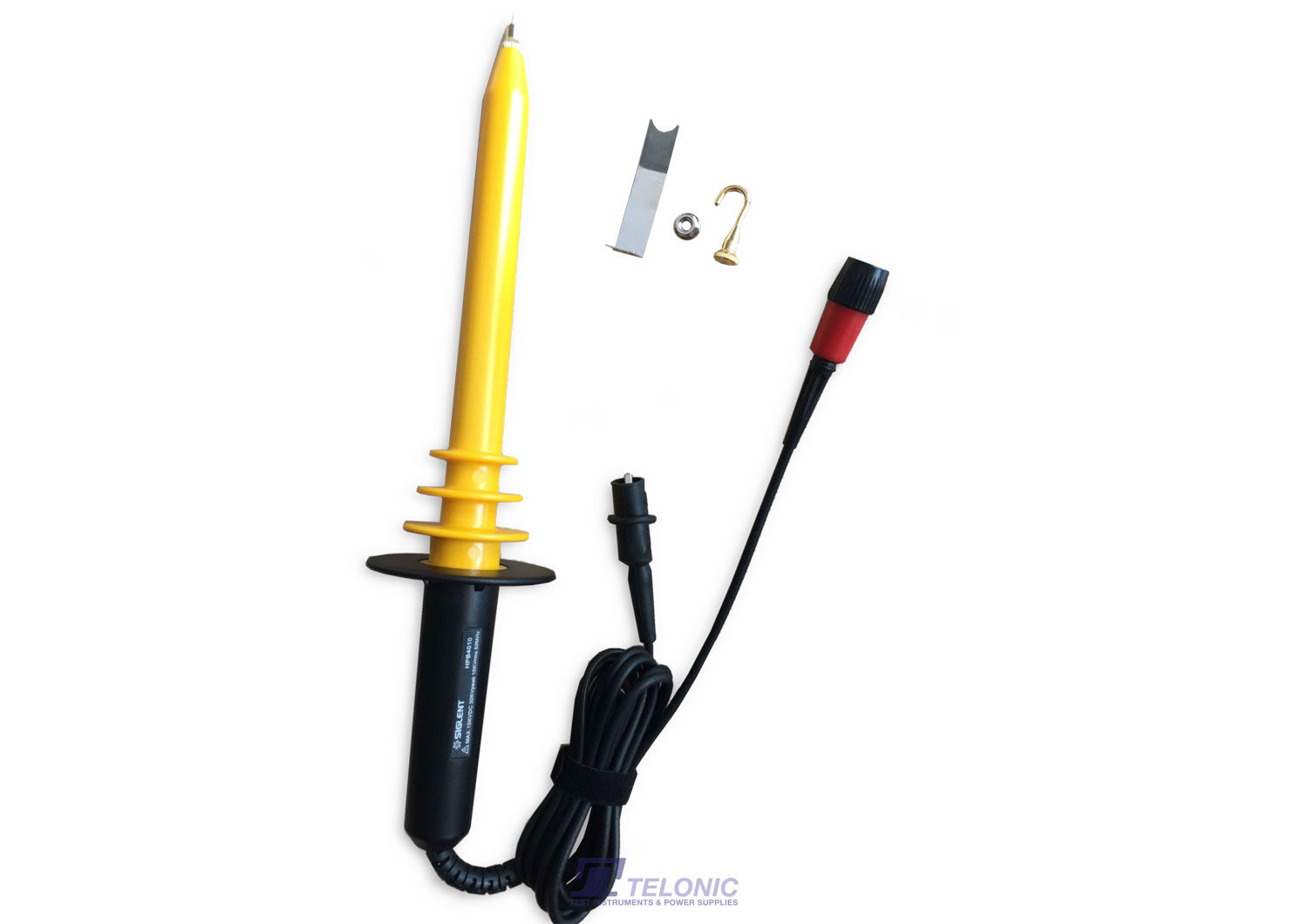

  • Siglent HPB4010 High Voltage Probe

    £411.00
    Add to basket

    FREE UK delivery: on all orders above £100+vat

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Available on back-order, delivery normally 1 week

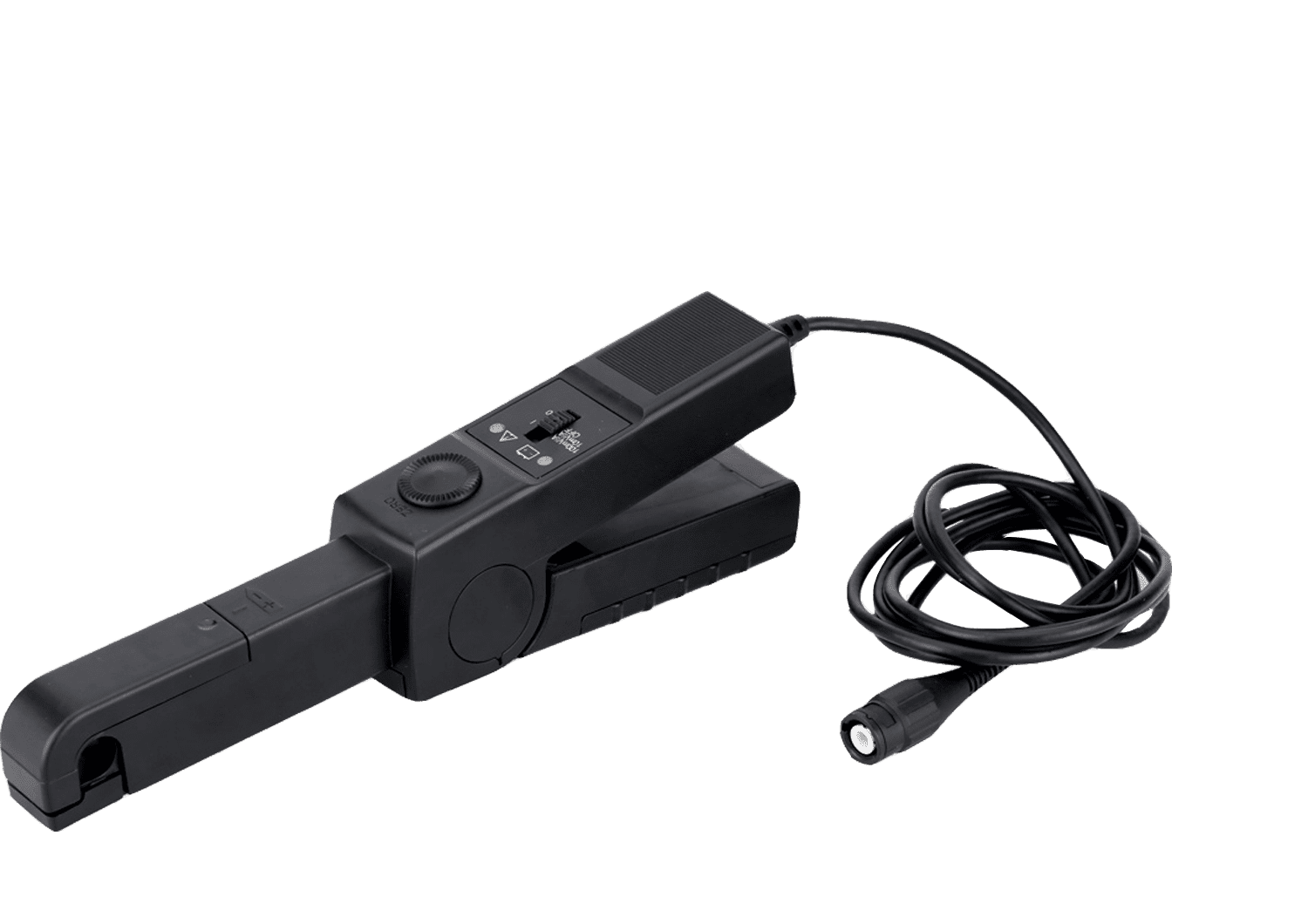

  • Siglent-CP4070-Current-Probe
