Siglent SDS824X-HD 4Ch, 200MHz, 2GSa/s, 12 Bit, HD high resolution oscilloscope

£607.00 (£728.40 inc VAT)

5 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: SDS824X HD Category: Tags: ,

Description


The Siglent SDS824X HD oscilloscope 200MHz, 4 channels, 2GSa/s, 12-bit high resolution, 100Mpts memory depth mixed signal oscilloscope & 7” touch screen

SIGLENT’s SDS800X HD series digital storage oscilloscopes feature high-resolution capabilities, utilising a 2 GSa/s 12-bit Analogue-Digital Converters. These oscilloscopes are designed with front ends that provide outstanding noise floor performance. Available in bandwidth options of 200 MHz, 100 MHz, and 70 MHz, they offer a maximum record length of 100 Mpts and support 2/4 analogue channels along with optional 16 digital channels for mixed signal analysis.

The SDS800X HD series integrates Siglent’s SPO technology, achieving a maximum waveform capture rate of up to 120,000 wfm/s in normal mode and up to 500,000 wfm/s in Sequence mode. It includes a 256-level intensity grading display function and a color temperature display mode. These oscilloscopes feature an advanced digital trigger system with high sensitivity and low jitter, accommodating various triggering modes including serial bus triggering.

For comprehensive waveform analysis, the series offers advanced features like History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis, and extended waveform record capabilities. It also provides extensive measurement and mathematical functionalities, with options for a 25 MHz arbitrary waveform generator and logic analyser. Serial bus triggering and decoding support protocols such as I2C, SPI, UART, CAN, and LIN, and come fitted as standard.

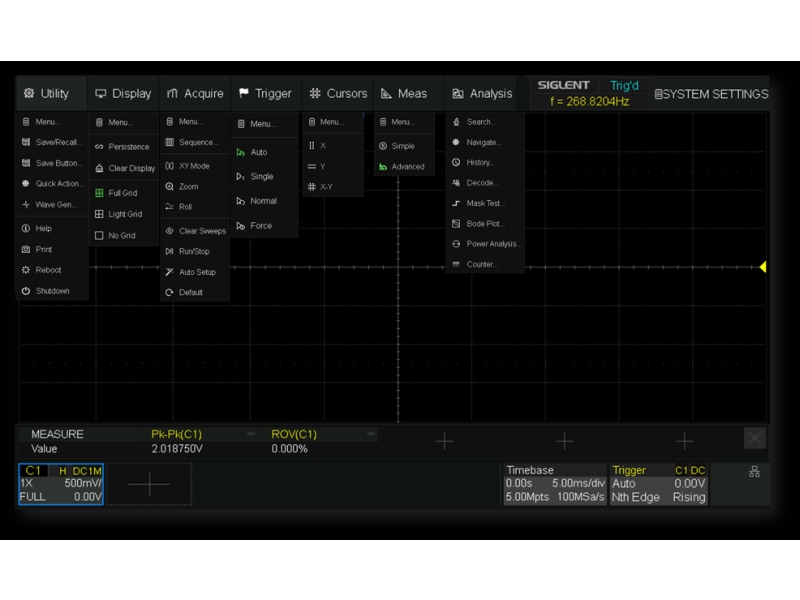

The 7-inch capacitive touch screen display supports multi-touch gestures and features a user-friendly UI design, enhancing operational efficiency. Additionally, these oscilloscopes support mouse control and remote web control over LAN for increased convenience.

Series Features:

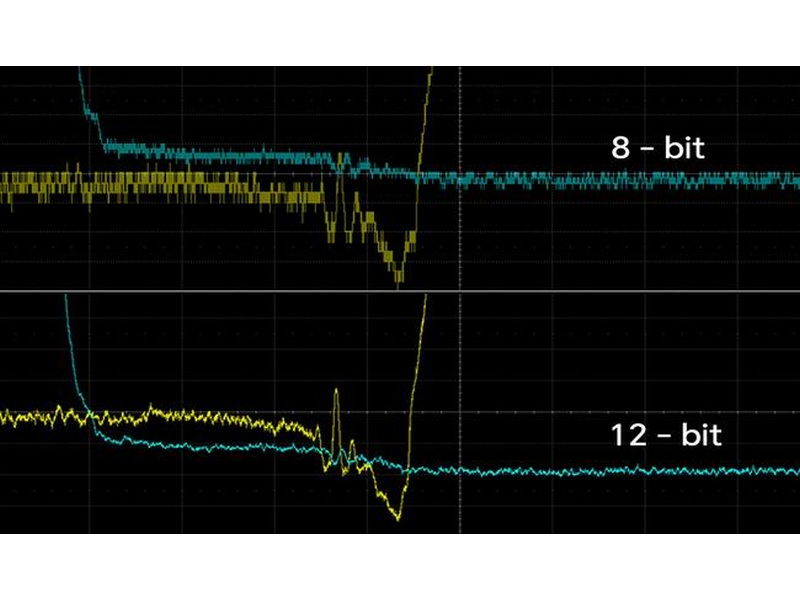

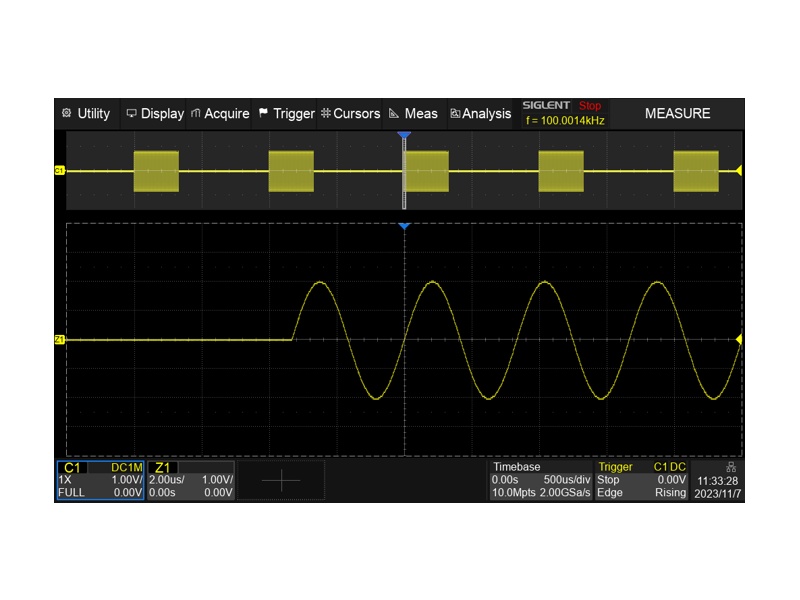

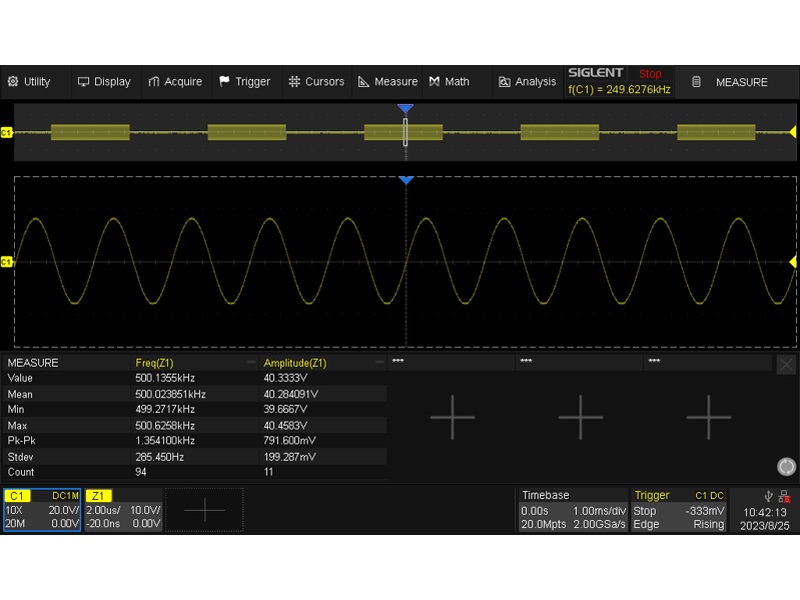

  • Utilises 12-bit Analogue-Digital Converters with a sample rate of up to 2 GSa/s

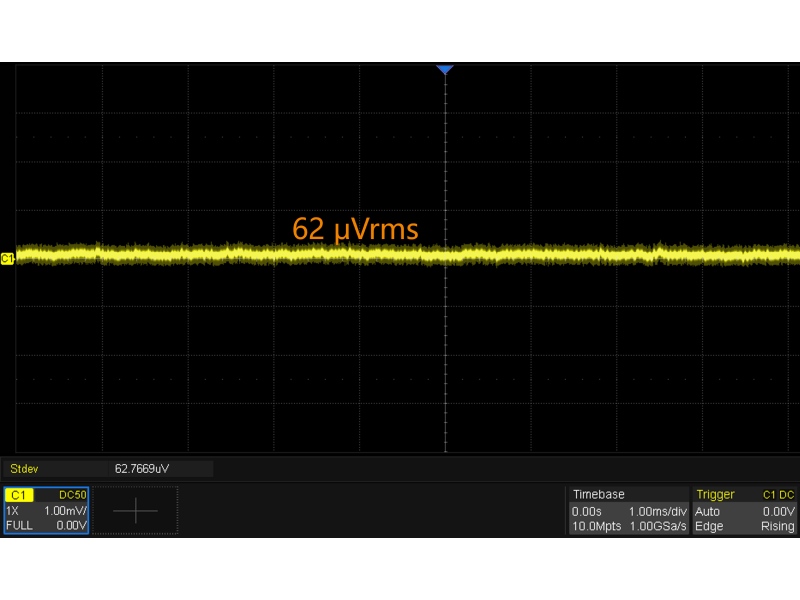

  • Front ends feature a 70 μVrms noise floor at a bandwidth of 200 MHz
  • Offers 2/4 analogue channels with a maximum bandwidth of up to 200 MHz
  • Incorporates SPO technology for enhanced performance

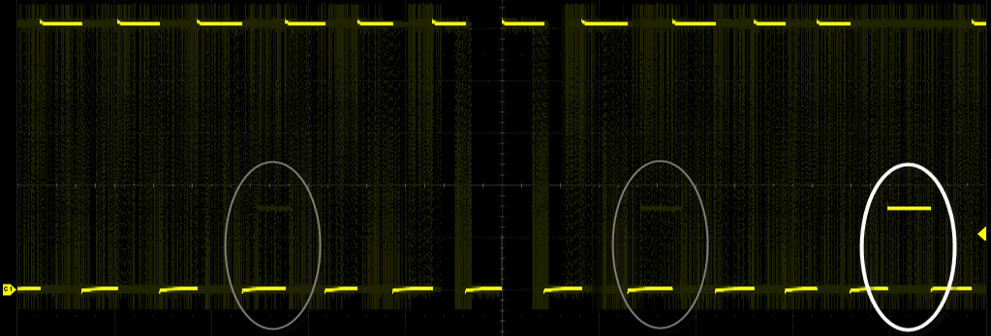

  • Achieves a waveform capture rate of up to 120,000 wfm/s in normal mode and 500,000 wfm/s in sequence mode

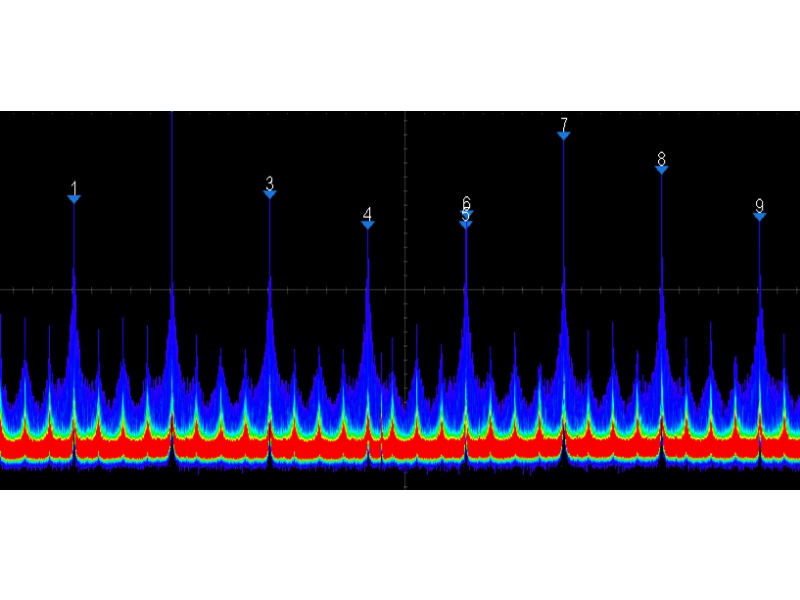

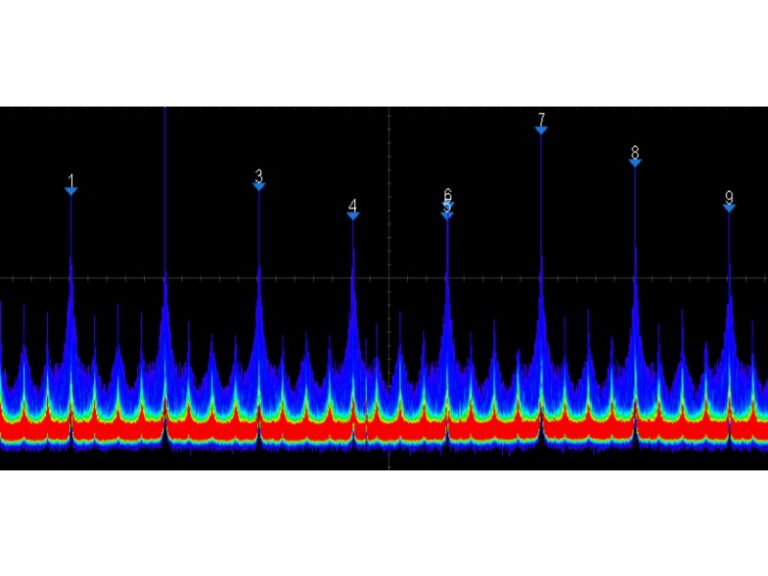

  • Supports 256-level intensity grading and colour temperature display modes

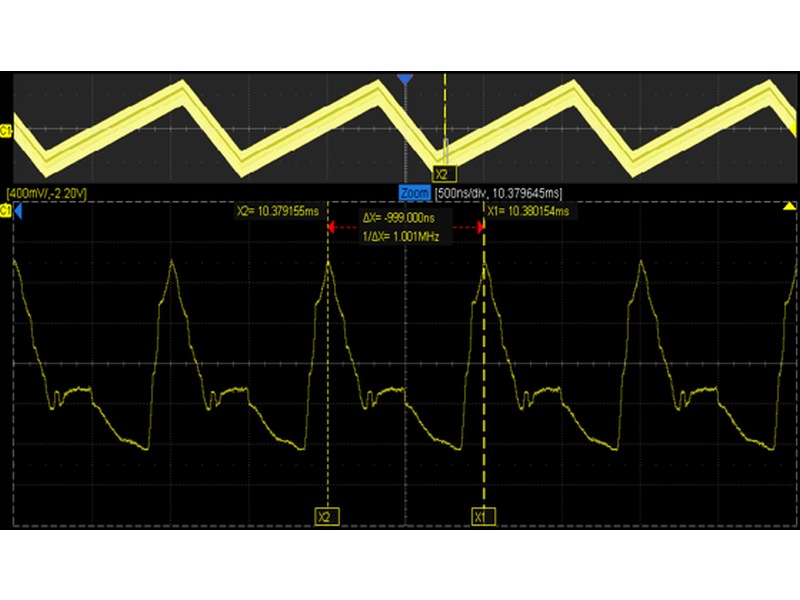

  • Provides up to 100 Mpts record length

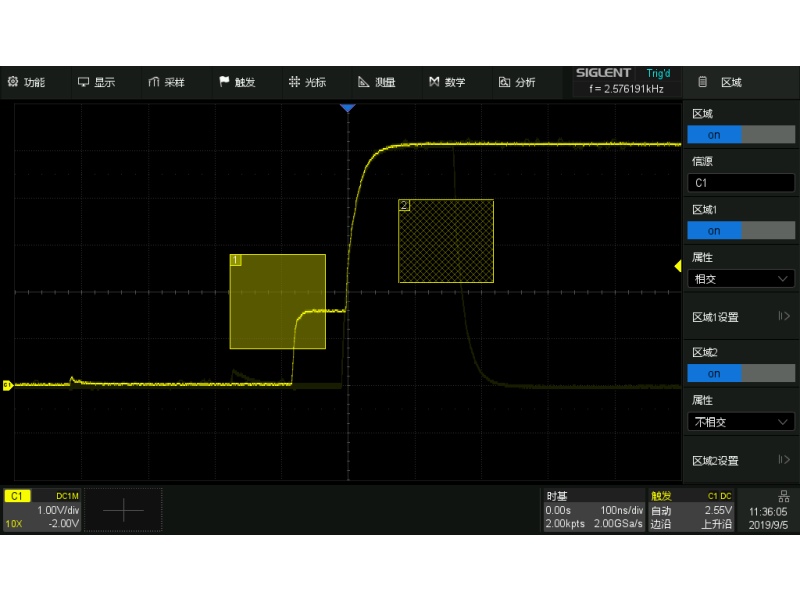

  • Features a digital trigger system with various intelligent triggering options, including Edge, Slope, Pulse width, Window, Runt, Interval, and more

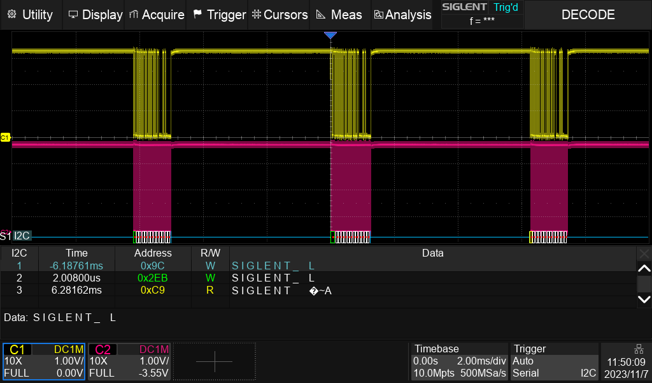

  • Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN Fitted as standard.

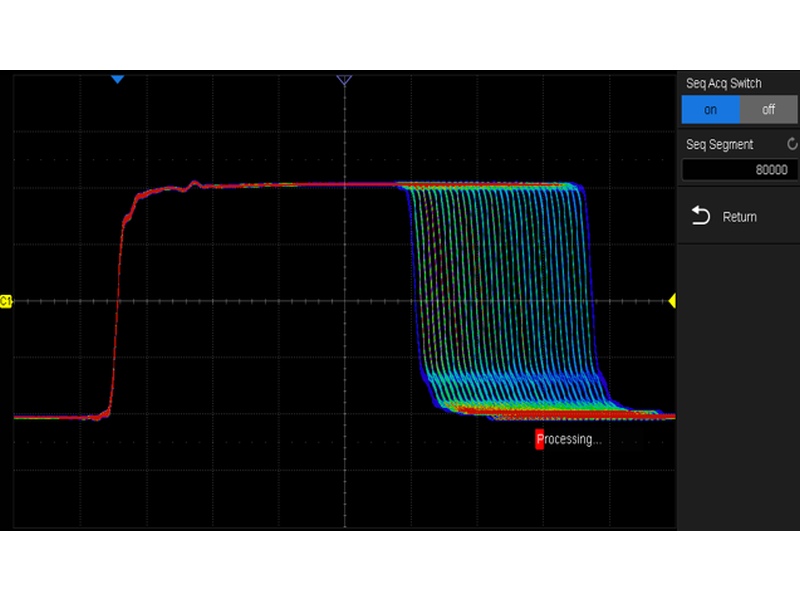

  • Implements segmented acquisition (Sequence) mode, allowing the division of the maximum record length into multiple segments based on user-defined trigger conditions, with minimal dead time between segments
  • Offers History waveform record (History) function with a maximum recorded waveform length of 80,000 frames
  • Conducts automatic measurements on over 50 parameters, supporting statistics with histogram, track, trend, Gating measurement, and measurements on Math, History, and Ref

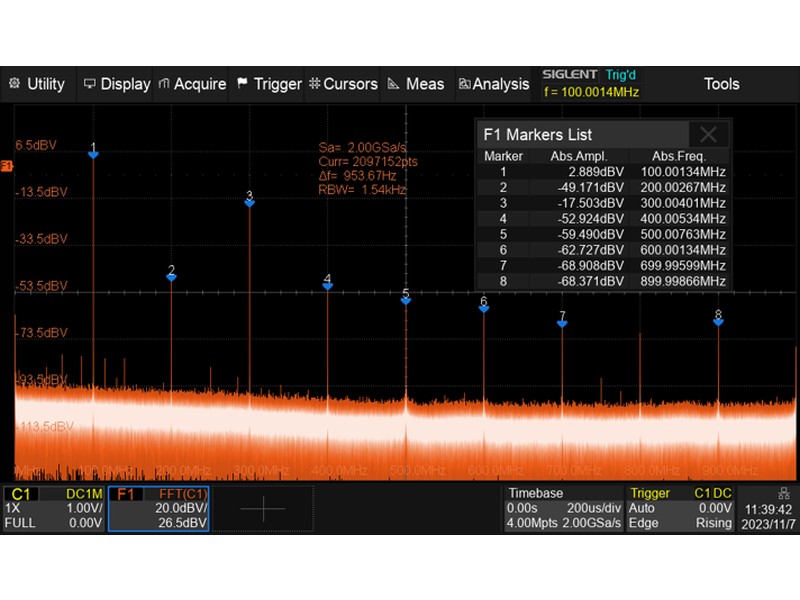

  • Provides 4 Math traces with options for FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc., and supports formula editing

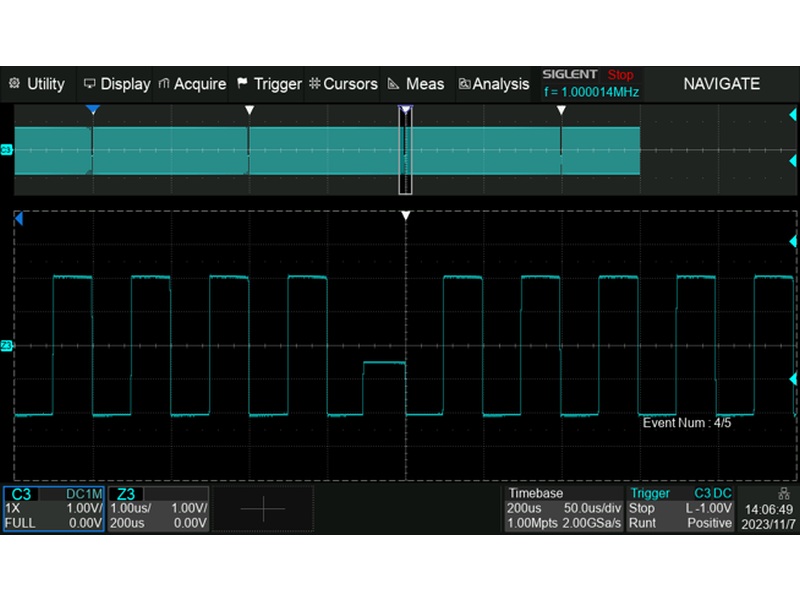

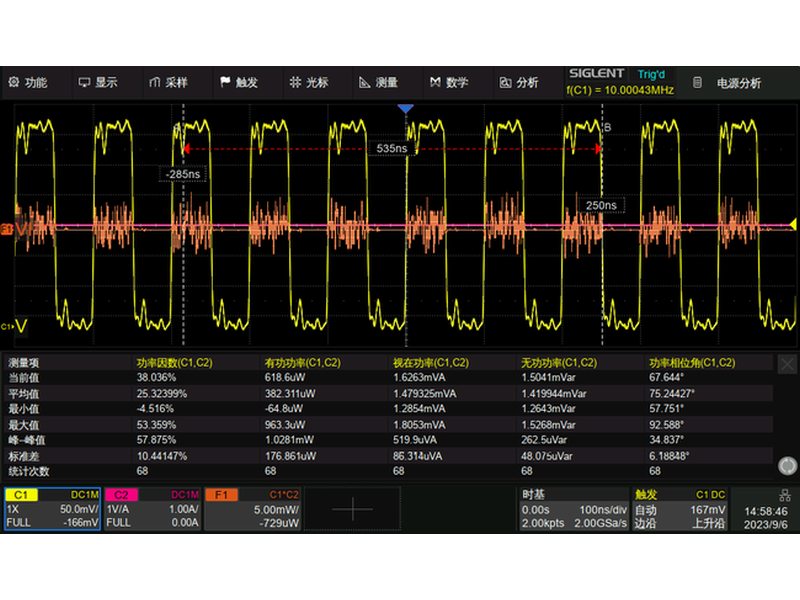

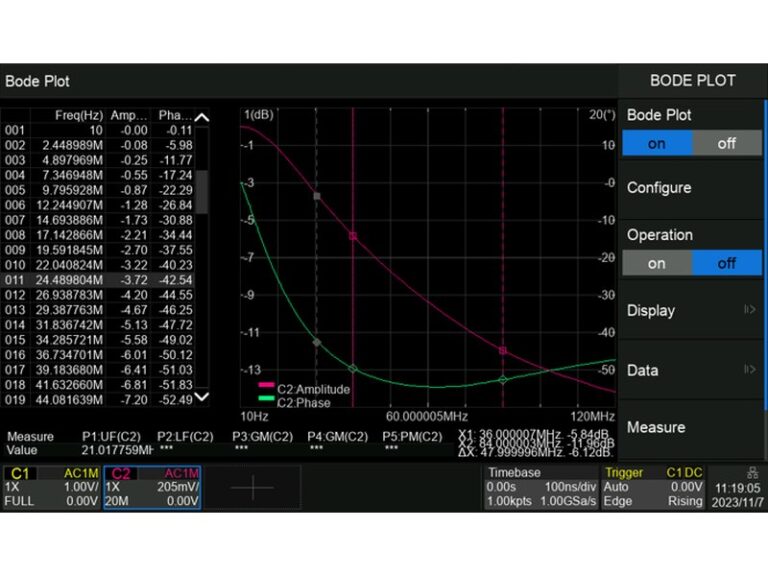

  • Includes data analysis functions such as Search, Navigate, Counter, Bode plot, and Power Analysis
  • Features a high-speed hardware-based Mask Test function, complemented by a Mask Editor tool for creating user-defined masks

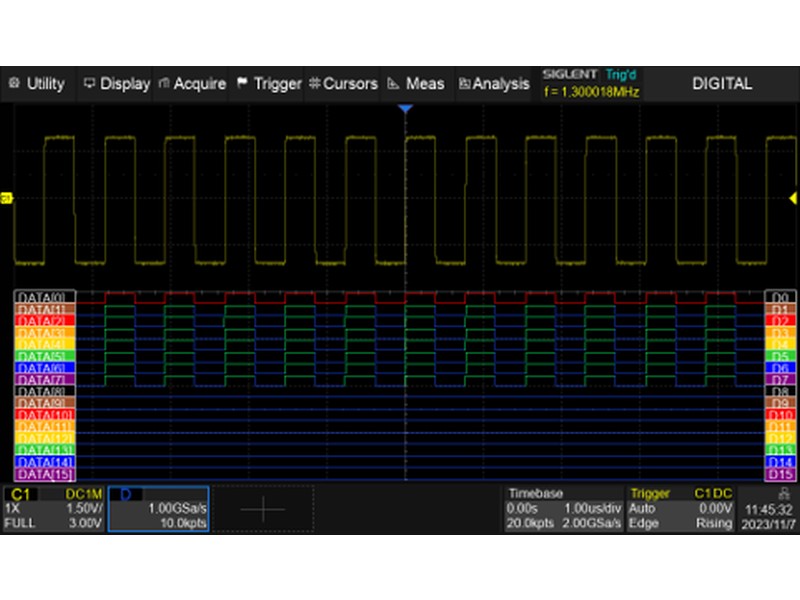

  • Offers optional 16 digital channels and a 25 MHz waveform generator
  • Equipped with a 7” TFT-LCD display boasting a resolution of 1024 * 600, with a capacitive touch screen supporting multi-touch gestures
  • Provides various interfaces including USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, and Trigger Out
  • Includes a built-in web server supporting remote control over the LAN port using a web browser, SCPI remote control commands, as well as support for external mouse and keyboard, and NTP integration.

Optional Accessories

AWG Software SDS800XHD-FG
USB Isolated AWG Module Hardware SAG1021I
16 Channels MSO Software SDS800XHD-16LA
16 Channels Logic Analyzer SLA1016
Power Analysis Software SDS800XHD-PA
Power Analysis deskew fixture DF2001A

Siglent SDS800X-HD Oscilloscope Comparison Table

ModelAnalogue BandwidthNumber of ChannelsHighest Real-time Sampling RateHighest Waveform Capture RateMaximum Storage DepthVertical Resolution
SDS802X HD70MHz22GSa/s500,000 wfm/s50 Mpts12-bit
SDS804X HD70MHz42GSa/s500,000 wfm/s50 Mpts12-bit
SDS812X HD100MHz22GSa/s500,000 wfm/s50 Mpts12-bit
SDS814X HD100MHz42GSa/s500,000 wfm/s50 Mpts12-bit
SDS822X HD200MHz22GSa/s500,000 wfm/s100 Mpts12-bit
SDS824X HD200MHz42GSa/s500,000 wfm/s100 Mpts12-bit

Product Images

Product Videos

YouTube Video
YouTube Video
YouTube Video

Documentation

Datasheet

Siglent SDS800X HD Datasheet

User Guide

Siglent SDS800X HD User Guide

Programming Guide

Siglent SDS800X HD Programming Guide

Siglent SDS800X-HD Oscilloscope Specification Table

SDS804X HD
SDS802X HD		SDS814X HD
SDS812X HD		SDS824X HD
SDS822X HD
Channels4 (4-Channel Series)4 (4-Channel Series)4 (4-Channel Series)
2 (2-Channel Series)2 (2-Channel Series)2 (2-Channel Series)
Bandwidth70 MHz100 MHz200 MHz
Sample rate (Max.)2 GSa/s (single-channel);
1 GSa/s (dual-channel);
500 MSa/s (4 channels)		2 GSa/s (single-channel);
1 GSa/s (dual-channel);
500 MSa/s (4 channels)		2 GSa/s (single-channel);
1 GSa/s (dual-channel);
500 MSa/s (4 channels)
Memory depth (Max.)100 Mpts (single-channel);
50 Mpts (dual-channel);
25 Mpts (4 channels)		100 Mpts (single-channel);
50 Mpts (dual-channel);
25 Mpts (4 channels)		100 Mpts (single-channel);
50 Mpts (dual-channel);
25 Mpts (4 channels)
Waveform capture rate (Max.)Normal mode: 120,000 wfm/s;
Sequence mode: 500,000 wfm/s		Normal mode: 120,000 wfm/s;
Sequence mode: 500,000 wfm/s		Normal mode: 120,000 wfm/s;
Sequence mode: 500,000 wfm/s
Vertical resolution12-bit12-bit12-bit
Serial trigger and decoderStandard: I2C, SPI, UART, CAN, LINStandard: I2C, SPI, UART, CAN, LINStandard: I2C, SPI, UART, CAN, LIN
Measurement50+ parameters; statistics, histogram, trend and track supported50+ parameters; statistics, histogram, trend and track supported50+ parameters; statistics, histogram, trend and track supported
Data analysisSearch, Navigate, History, Mask Test, Counter, Bode plot and Power Analysis (Optional)Search, Navigate, History, Mask Test, Counter, Bode plot and Power Analysis (Optional)Search, Navigate, History, Mask Test, Counter, Bode plot and Power Analysis (Optional)
Math4 traces; 2 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor4 traces; 2 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor4 traces; 2 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor
I/O2x USB 2.0 Host, USB 2.0 Device, 10M/100M LAN, AUX out (TRIG OUT, PASS/FAIL), SBUS (Logic Analyzer)2x USB 2.0 Host, USB 2.0 Device, 10M/100M LAN, AUX out (TRIG OUT, PASS/FAIL), SBUS (Logic Analyzer)2x USB 2.0 Host, USB 2.0 Device, 10M/100M LAN, AUX out (TRIG OUT, PASS/FAIL), SBUS (Logic Analyzer)
Display7” HD capacitive touch screen (1024*600)7” HD capacitive touch screen (1024*600)7” HD capacitive touch screen (1024*600)
Mechanical dimensionsWeight: 2.6 kg; Width × Height × Depth = 312 mm × 151 mm × 132.6 mmWeight: 2.6 kg; Width × Height × Depth = 312 mm × 151 mm × 132.6 mmWeight: 2.6 kg; Width × Height × Depth = 312 mm × 151 mm × 132.6 mm
