Siglent SDS5104X 4Ch, 1GHz, 5/2.5GSa/s, Super Phosphor Oscilloscope

£5698.00 (Β£6837.60 inc VAT)

SKU: SDS5104X Category:

Description

Siglent SDS5104X Super Phosphor Oscilloscope

The SDS5104X is a 1GHz, 4CH, Super Phosphor Oscilloscope and has a maximum sample rate of 5GSa/s and a maximum record length of 250Mpts. Siglent’s SDS5000X Series Digital Storage Oscilloscopes are available in bandwidths of 1GHz, 500 MHz and 350MHz, have a maximum sample rate of 5 GSa/s, maximum record length of 250Mpts, and display up to 4 analogue channels + 16 digital channels mixed-signal analysis ability.

The SDS5000X series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 110,000 wfms/s (normal mode, up to 480,000 wfms/s in sequence mode), 256-level intensity grading display function plus a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. History waveform recording, Sequence acquisition, Search and Navigate functions allow for extended waveform records to be captured, stored and analysed. An impressive array of measurement and math capabilities, options for a 25MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS5000X.

The large 10.1″ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly one-button design for most commonly used functions, can greatly improve the operation efficiency of the SDS5000X. It also supports mouse and external keyboard control.

  • 1GHz, 500MHz, 350MHz models with a real-time sample rate up to 5 GSa/s
  • SPO Technology
  • Waveform capture rates up to 110,000 wfms/s (normal mode), and 480,000 wfms/s (sequence mode)
  • Supports 256-level intensity grading and colour temperature display modes
  • Record length up to 250Mpts
  • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified and Video (HDTV supported).
  • Trigger zone helps to simplify advanced triggering
  • STANDARD SERIAL BUS TRIGGERING AND DECODER, SUPPORTS PROTOCOLS: I2C, SPI, UART, CAN and LIN.
  • Optional Serial Bus Triggering and Decoder include: CAN FD, FlexRay, I2S and MIL-STD-1553B.
  • Low background noise, supports 0.5mV/div to 10 V/div voltage scales
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 100,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
  • History waveform record (History) function, the maximum recorded waveform length is 100,000 frames

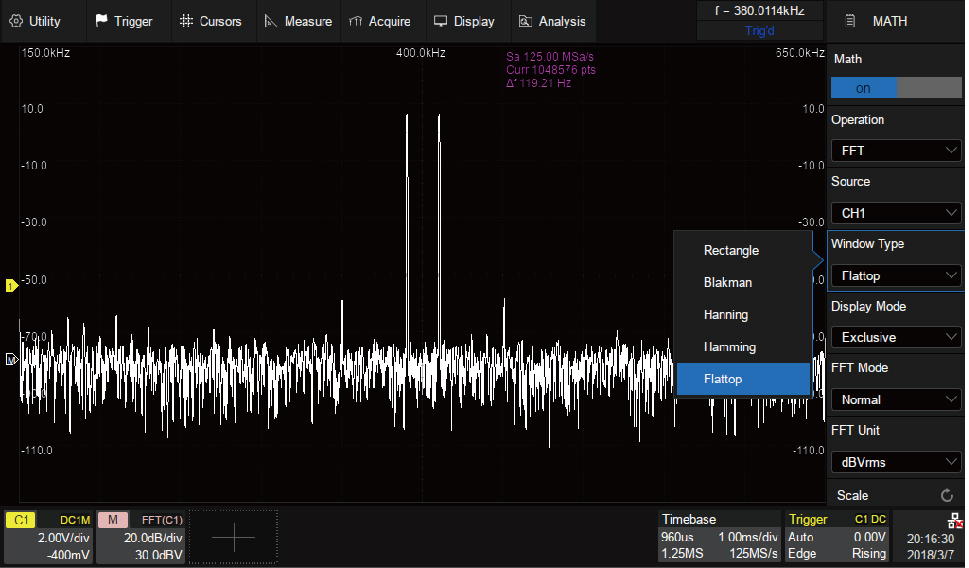

  • Automatic measurement function on 39 parameters, supports statistics with histogram, Gating measurement, Math measurement, History measurement, and Ref measurement
  • 25MHz function / arbitrary waveform generator, built-in multiple predefined waveforms
  • Large 10.1″ TFT-LCD display with 1024 / 600 resolution, Capacitive touch screen supports multi-touch gestures
  • Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11, telnet, socket, web), Pass/Fail, Trigger Out. 10MHz in, 10MHz out, VGA output
  • Built-in web server supports remote control by the LAN port using a web browser
  • Supports SCPI remote control commands

Product Images

Product Videos

YouTube Video
YouTube Video
YouTube Video

Documentation

Acquire System (Analogue Channel)
Sample Rate5 GSa/s (interleaving mode),
2.5 GSa/s (non-interleaving mode)
Memory Depth250 Mpts (interleaving mode),
125 Mpts (non-interleaving mode)
Peak Detect400 ps
Average4, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096, 8192, 16384, 32768, 65536
EresEnhanced bit: 0.5, 1, 1.5, 2, 2.5, 3
SequenceUp to 100,000 segments, interval between triggers = 2 ΞΌs min
HistoryUp to 100,000 frames
Interpolationsinx/x, x
Vertical System (Analogue Channel)
Bandwidth (-3dB) @50 Ξ©350MHz, 500MHz, 1GHz
Rise time (typical) @50 Ξ©1.0ns, 0.7ns, 0.4ns
Vertical range8 divisions
DC gain accuracy< 1.5%, β‰₯5mV/div
< 3.0%, <5mV/div
Offset accuracyΒ±(1.5%*offset+1.5%*full scale+1mV)
Bandwidth limit20 MHz (Β±40%)
200 MHz (Β±40%)
CouplingDC, AC, GND
ImpedanceDC1M: (1 MΩ±2%) || (16 pF±2 pF)
AC1M: (1.2 MΩ±2%) || (16 pF±2 pF)
50 Ω: 50 Ω±1%
Max. Input voltage1MΞ© ≀ 400Vpk(DC + AC), DC~10kHz
50Ξ© ≀ 5Vrms, Β±10V Peak
CH to CH Isolation (@50Ξ©)DC ~ 100 MHz >40 dB
100 MHz ~ BW: β‰₯34 dB
Horizontal System
Time ScaleSDS5032X/SDS5034X: 1 ns/div – 1000 s/div
SDS5052X/SDS5054X: 500 ps/div – 1000 s/div
SDS5102X/SDS5104X: 200 ps/div – 1000 s/div
Waveform Update RateUp to 110,000 wfm/s
Intensity Grading256-level
Display ModeY-T, X-Y, Roll
Roll Modeβ‰₯ 50 ms/div
Skew (CH1~CH4)< 150 ps
Time Base AccuracyΒ±1ppm initial; Β±1ppm 1st year aging; Β±3.5ppm 10-year aging
Trigger System
ModeAuto, Normal, Single
LevelInternal: Β±4.1 div from the centre of the screen
EXT: Β±0.61 V
EXT/5: Β±3.05 V
Hold Off RangeBy time: 8 ns ~ 30 s (8 ns step)
By event: 1 ~ 10
CouplingCH1~CH4
DC: Passes all components of the signal
AC: Blocks DC components and attenuates signals below 8 Hz
LFRJ: Attenuates the frequency components below 1.2 MHz
HFRJ: Attenuates the frequency components above 740 kHz
Noise RJ: Increases the trigger hysteresis
EXT
DC: Passes all components of the signal
AC: Blocks DC components and attenuates signals below 10 Hz
LFRJ: Attenuates the frequency components below 400 kHz
HFRJ: Attenuates the frequency components above 1.6 MHz
AccuracyCH1～CH4: ±0.2div
EXT: Β±0.3div
Jitter<9ps RMS (typical) for β‰₯300MHz sine and β‰₯6 divisions peak to peak amplitude for vertical gain
settings from 2.5mV/div to 10V/div
<5ps RMS (typical) for β‰₯500MHz sine and β‰₯6 divisions peak to peak amplitude for vertical gain
settings from 2.5mV/div to 10V/div
DisplacementPre-Trigger: 0 ~ 100% memory
Delay-Trigger: 0 ~ 5,000 div
ZoneUp to 2 zones
Source: CH1~CH4
Property: Intersect, Not Intersect
Edge Trigger
SourceCH1~CH4/EXT/(EXT/5)/AC Line/D0~D15
SlopeRising, Falling, Rising & Falling
Slope Trigger
SourceCH1~CH4
SlopeRising, Falling
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Pulse Width Trigger
SourceCH1~CH4/D0~D15
Polarity+wid, -wid
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Video Trigger
SourceCH1~CH4
StandardNTSC，PAL，720p/50，720p/60，1080p/50，1080p/60，1080i/50，1080i/60，Custom
SynchronizationAny, Select
Trigger ConditionLine, Field
Window TriggerΒ
SourceCH1~CH4
Window typeAbsolute, Relative
Interval Trigger
SourceCH1~CH4/D0~D15
SlopeRising, Falling
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Dropout Trigger
SourceCH1~CH4/D0~D15
Timeout typeEdge, State
SlopeRising, Falling
Time range2ns ～ 20s，Resolution = 1 ns
Runt Trigger
SourceCH1~CH4
PolarityPositive, Negative
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Pattern Trigger
SourceCH1~CH4/D0~D15
Pattern SettingDon’t Care, Low, High
LogicAND, OR, NAND, NOR
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Qualified Trigger
TypeState, State with Delay, Edge, Edge with Delay
Qualified SourceCH1~CH4/D0~D15
Edge Trigger SourceCH1~CH4/D0~D15
Nth Edge Trigger
SourceCH1~CH4/D0~D15
SlopeRising, Falling
Idle time8ns ～ 20s，Resolution = 1 ns
Edge Number1 ～ 65535
Delay Trigger
Source ACH1~CH4/D0~D15
Source BCH1~CH4/D0~D15
SlopeRising, Falling
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Serial Trigger
SourceCH1~CH4/D0~D15
ProtocolStandard：I2C、SPI、UART、CAN、LIN
Optional：CAN FD、FlexRay、I2S、MIL-STD-1553B、SENT
I2CType: Start, Stop, Restart, No Ack, EEPROM, Address & Data, Data Length
SPIType: Data
UARTType: Start, Stop, Data, Parity Error
CANType: All, Remote, ID, ID+Data, Error
LINType: Break, Frame ID, ID+Data, Error
CAN FD（OptionalοΌ‰Type: Start, Remote, ID, ID+Data, Error
FlexRay（OptionalοΌ‰Type: TSS, Frame, Symbol, Errors
I2S（OptionalοΌ‰Type: Data, Mute, Clip, Glitch, Rising Edge, Falling Edge
MIL-STD-1553B (OptionalοΌ‰Type：Transfer, Word, Error, Timing
SENT（OptionalοΌ‰Type：Start, Slow channel, Fast channel, Error
General Specifications
Input Voltage & Frequency100 ～ 240 Vrms 50/60Hz
Power consumption100 W max., 70 W typical, 4 W typical in standby mode
Standard3 USB Hosts, 1 USB Device, LAN, AUX (Pass/Fail+Trigger Out), 10 MHz In/ Out
Pass/Fail3.3 V TTL output
Ext Trigger ChannelExt≀1.5 Vrms, Ext/5≀7.5 Vrms
Display Type10.1”TFT LCD with capacitive touch screen
Resolution1024Γ—600
Contrast500:1 typical
Backlight500 nit typical
TemperatureOperating: 0 Β°C ~ 40 Β°C
Non-operating: -20 Β°C ~ 60 Β°C
HumidityOperating: 85% RH, 40 Β°C , 24 hours
Non-operating: 85% RH, 65 Β°C, 24 hours
AltitudeOperating: ≀3,000 m
Non-operating: ≀15,000 m
DimensionsLength x Width x Height = 370 mmΓ—144 mmΓ—231 mm
WeightNet Weight: 3.9 kg(2-ch); 4.0 kg(4-ch)
Gross Weight: 5.4 kg(2-ch); 5.6 kg(4-ch)

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
