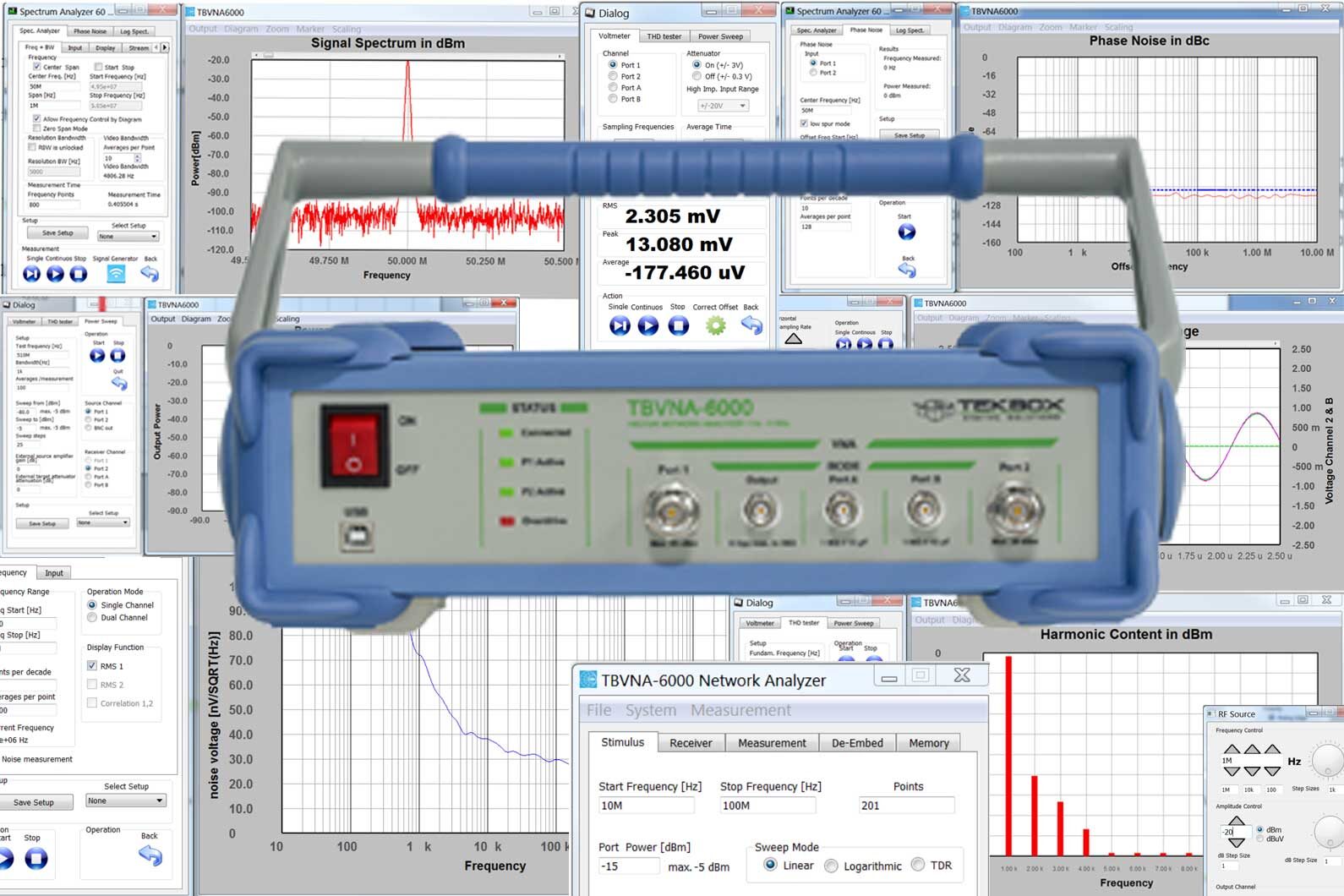

Image of Tbvna 6000 vna telonic uk

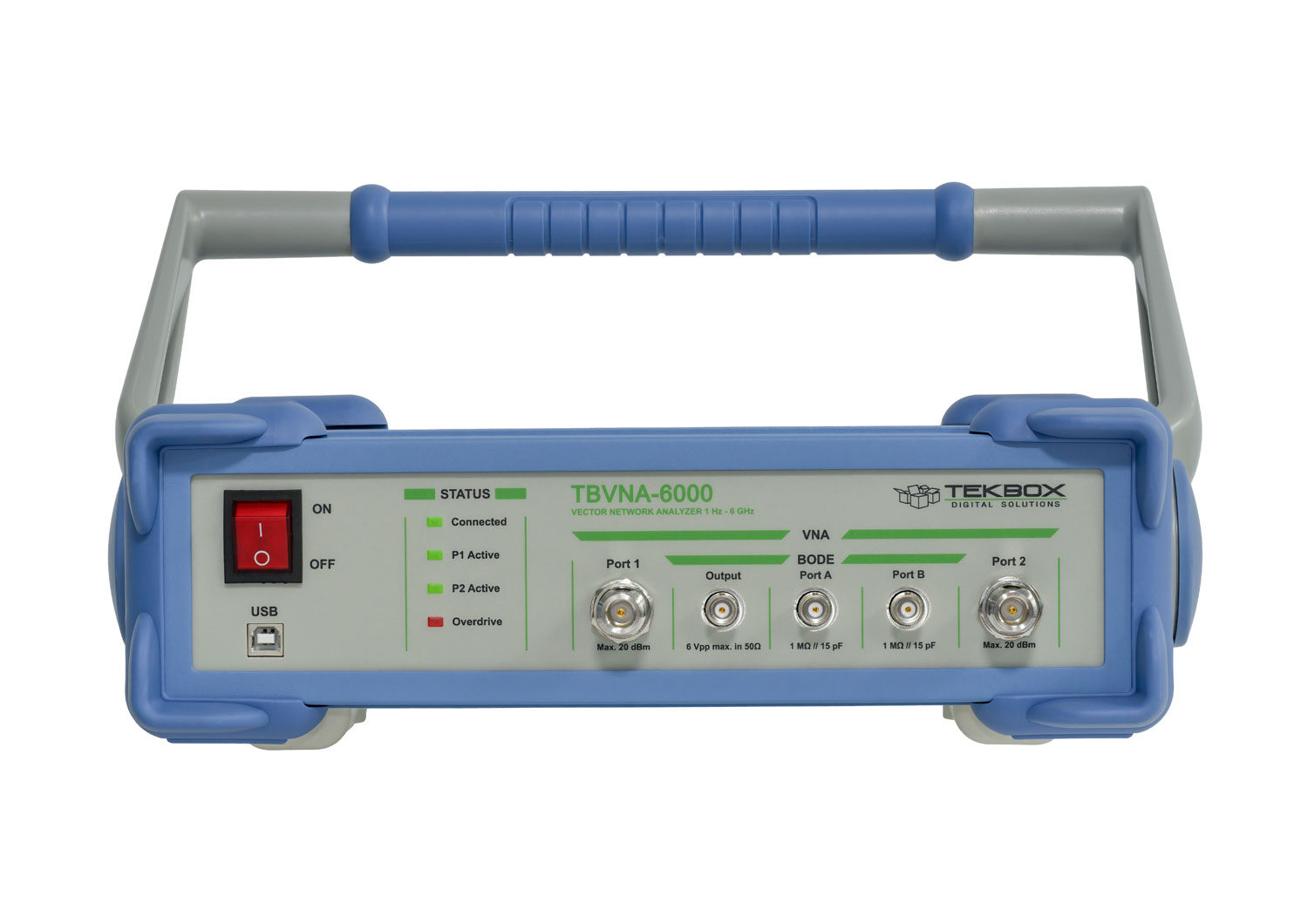

Image of Tekbox tbvna 6000 front telonic uk

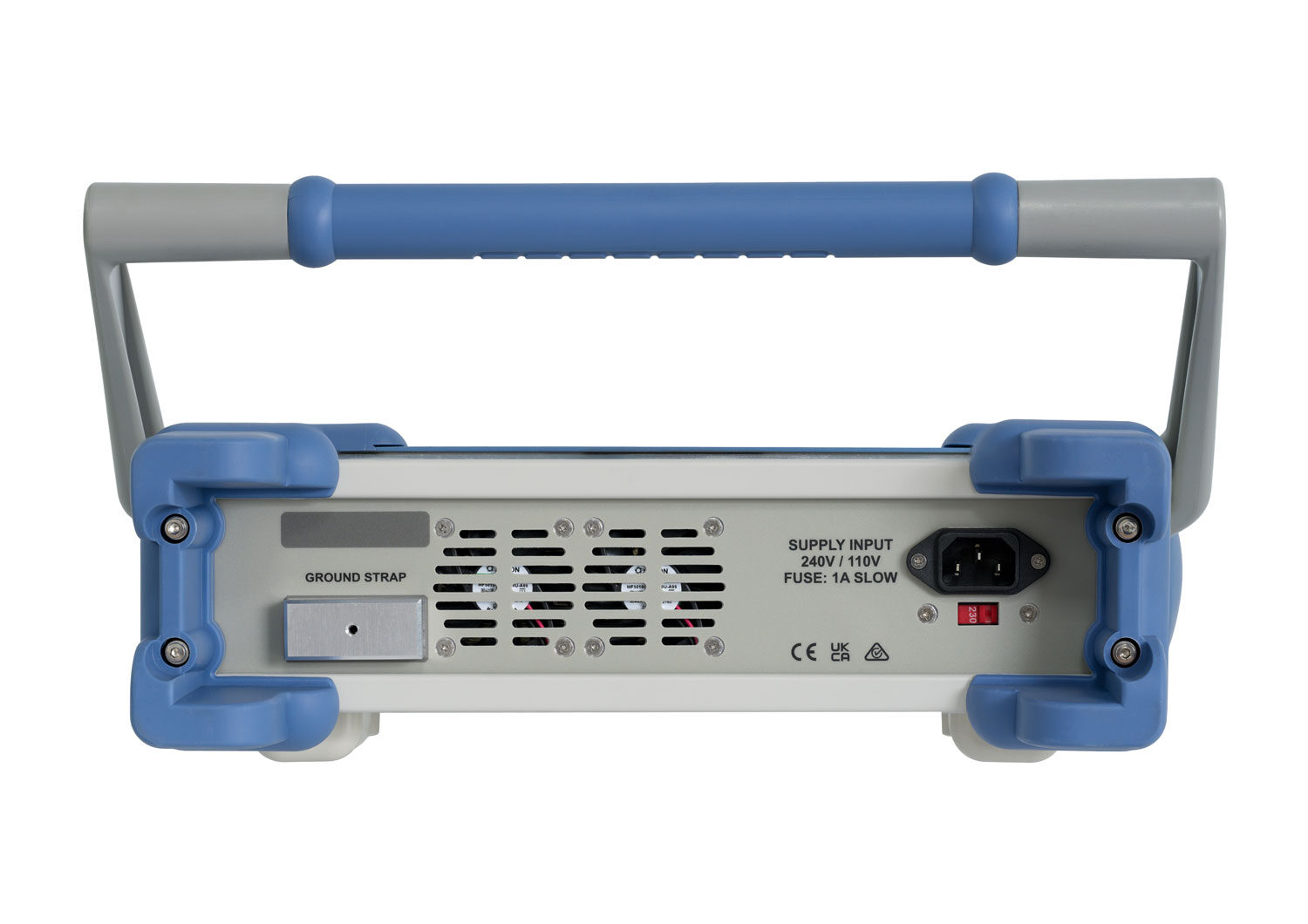

Image of Tekbox tbvna 6000 back telonic uk

Rental: TBVNA-6000 1 Hz –6 GHz Vector Network Analyser

£450.00 (£540.00 inc. VAT)

Prices shown are weekly rental rates.

You will be charged weekly until the items are returned

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Request Demo SKU: TBVNA-6001 Categories: , Tag: Brand:

Description


Tekbox TBVNA-6000: 1 Hz to 6 GHz Vector Network Analyser & Combi-RF Analyser

High-Performance RF Analysis in One Compact Device

The Tekbox TBVNA-6000 is a powerful and versatile two-port vector network analyser (VNA) that combines a broad frequency range with comprehensive analysis tools. Covering 1 Hz to 6.0 GHz with 0.1 Hz resolution, it’s designed for engineers, researchers, and technicians who demand precision, flexibility, and functionality in a single instrument.

Whether you’re working in R&D, production testing, or advanced diagnostics, the TBVNA-6000 delivers the performance and features of multiple lab instruments—VNA, spectrum analyser, signal generator, oscilloscope, Bode analyser, and more—in one compact package.

Product Videos

YouTube Video
YouTube Video

Documentation

Software Bundle TBVNA-6000 Software Bundle Datasheet TBVNA-6000 Datasheet Getting Started TBVNA-6000 Getting Started Application Notes TBVNA-6000 Antenna Characterisation at the Push of a Button   TBVNA-6000 Control Loop Stability Measurement
  • VNA1 Hz – 6.0 GHz with 0.1 Hz resolution
  • CW Signal generator 1 Hz – 6.0 GHz with 0.1 Hz resolution
  • Four channel 60 MHz digital oscilloscope with 125 Ms/s and 14 bit resolution.
  • 1 Hz – 6 GHz spectrum analyser, with an unambiguous frequency range of DC – 60 MHz and an active sideband suppression for spurious-free signal measurements up to 6 GHz (under certain conditions).
  • Dual channel spectrum analysis with cross correlation
  • IQ streaming receiver with file or ethernet streaming capabilities. (GNU radio compatible)
  • Power sweep measurements.
  • RF Wideband Power/Voltage measurements.
  • THD analyser.
  • Phase noise analyser.
  • General noise and Bode measurements.
  • BODE adds two additional high impedance inputs with 1Mohm // 15 pF for gain /phase measurements and/or as a vector voltmeter.
  • BODE adds an additional high voltage signal output (+/- 10V high impedance and +/- 5V into 50 Ohms) with a bandwidth of > 200 MHz (at full power)
