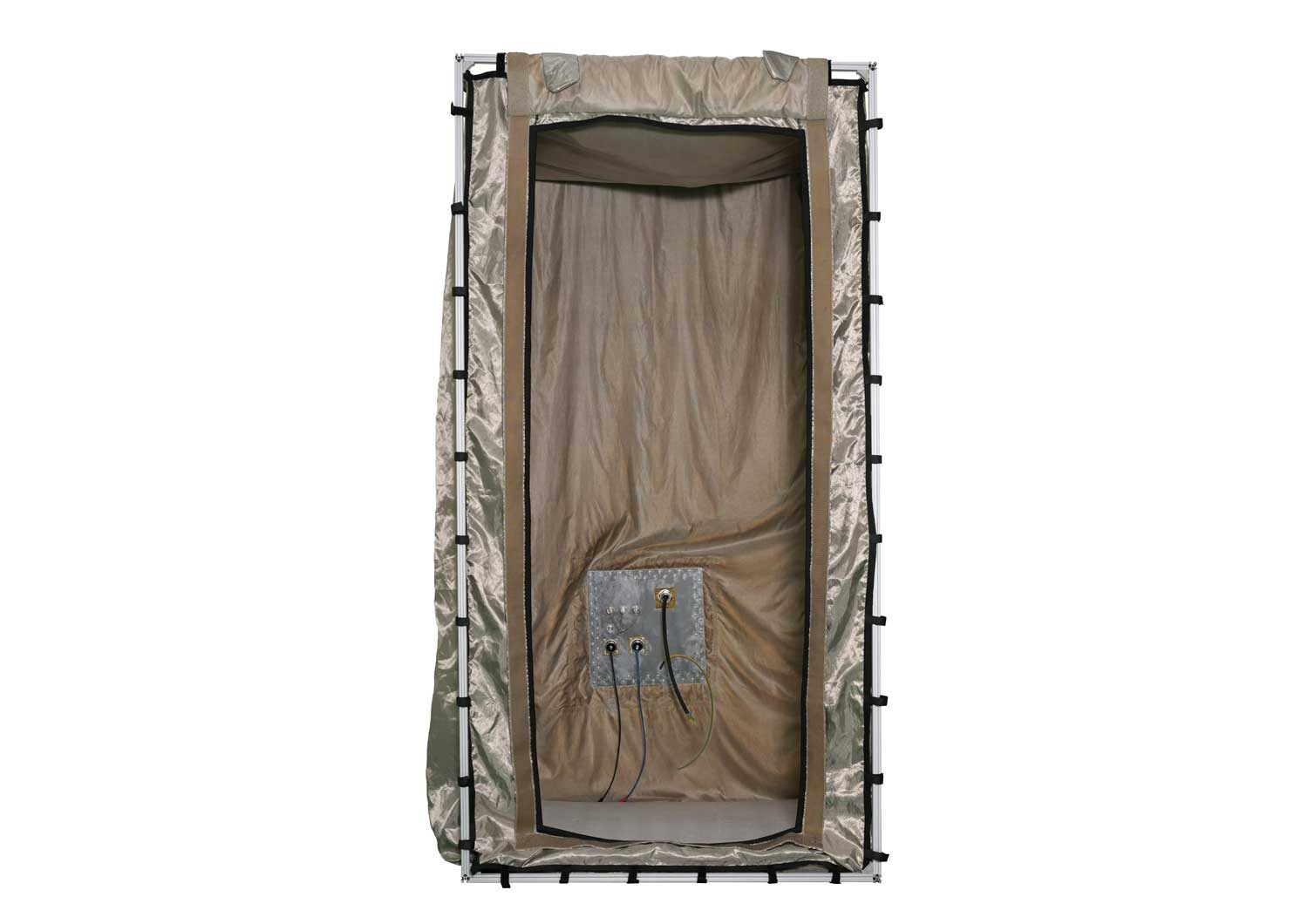

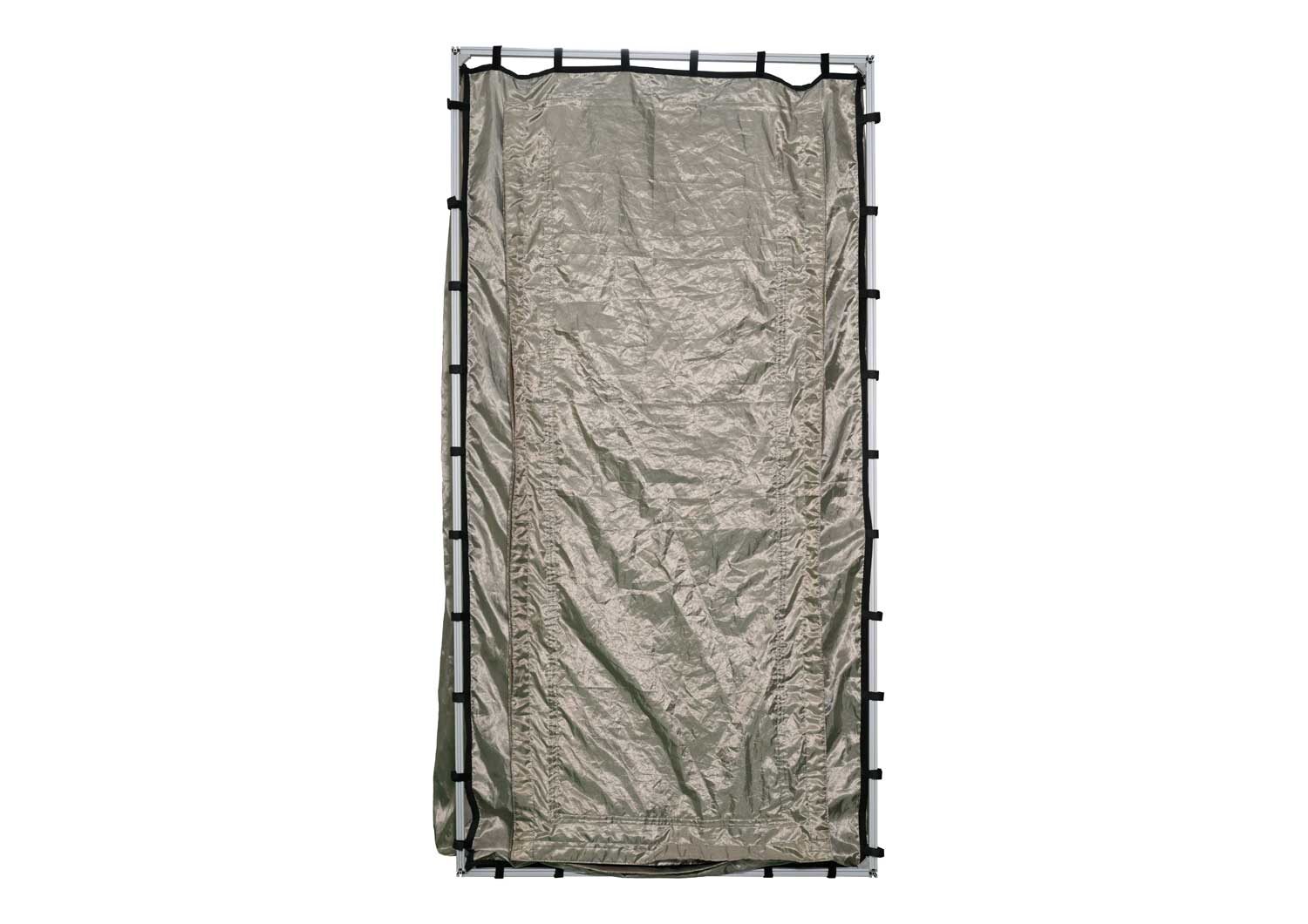

TekBox TBST-100/100/200 EMI Shielded Tent

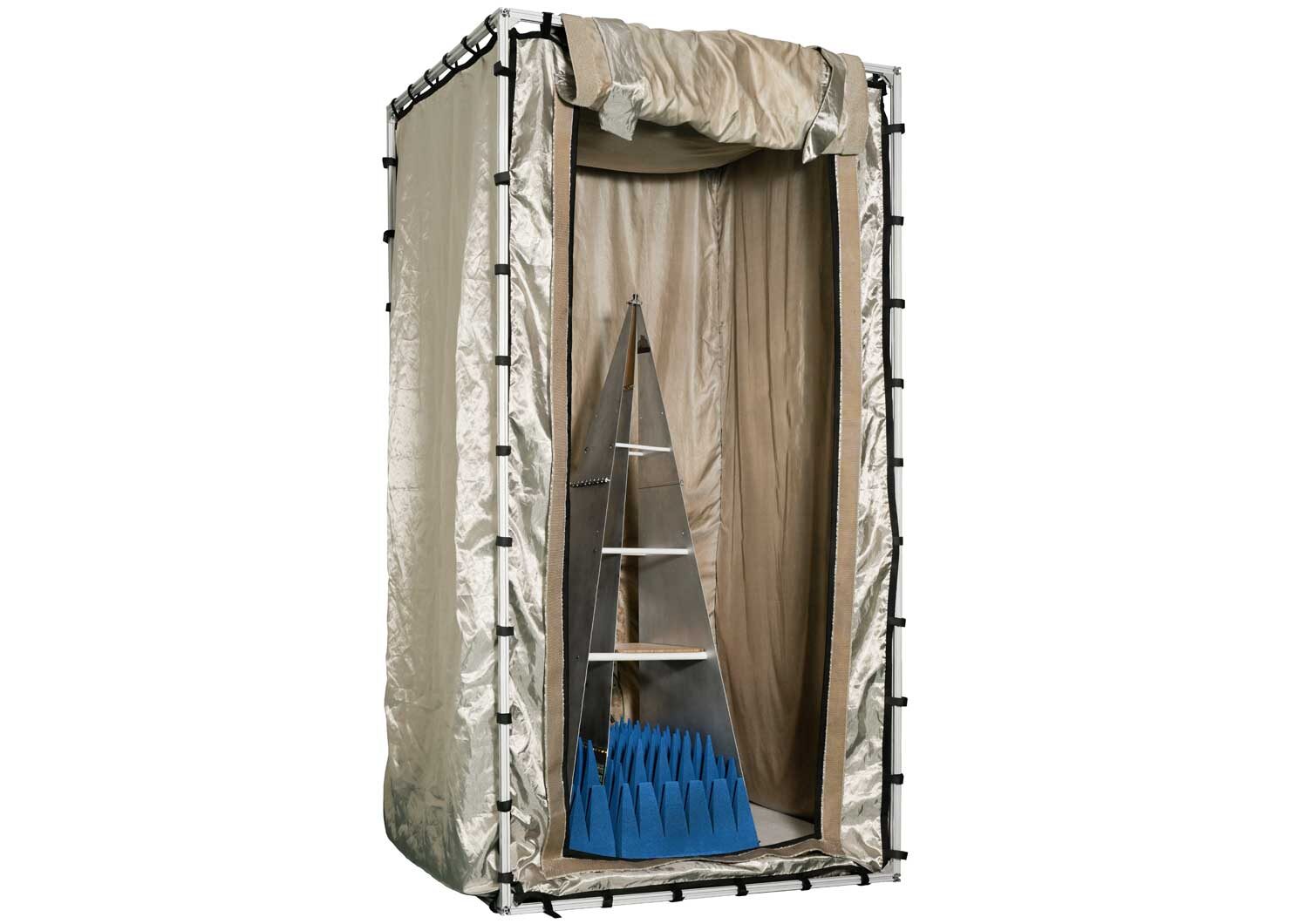

The TBST line of shielded tents is designed to suppress interference from ambient noise when carrying out EMC pre-compliance measurements with sizes of 200 cm x 100 cm x 100 cm, 124 cm x 64 cm x 60 cm or 86 cm x 48 cm x 48 cm. The 200 cm and 124 cm tent can accommodate any Tekbox pre-compliance test equipment such as LISNs or TEM-cells. The 86 cm tent will fit the TBTC0/1/2 and all our LISN.
The shielded tents are composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles. The filter panel at the side provides a 240V/10A mains AC filter (optional for the smaller tent), two general purpose 240V/10A AC/DC filters and four coaxial feed through adapters with screw caps. The access opening is sealed with conductive Velcro tape.
