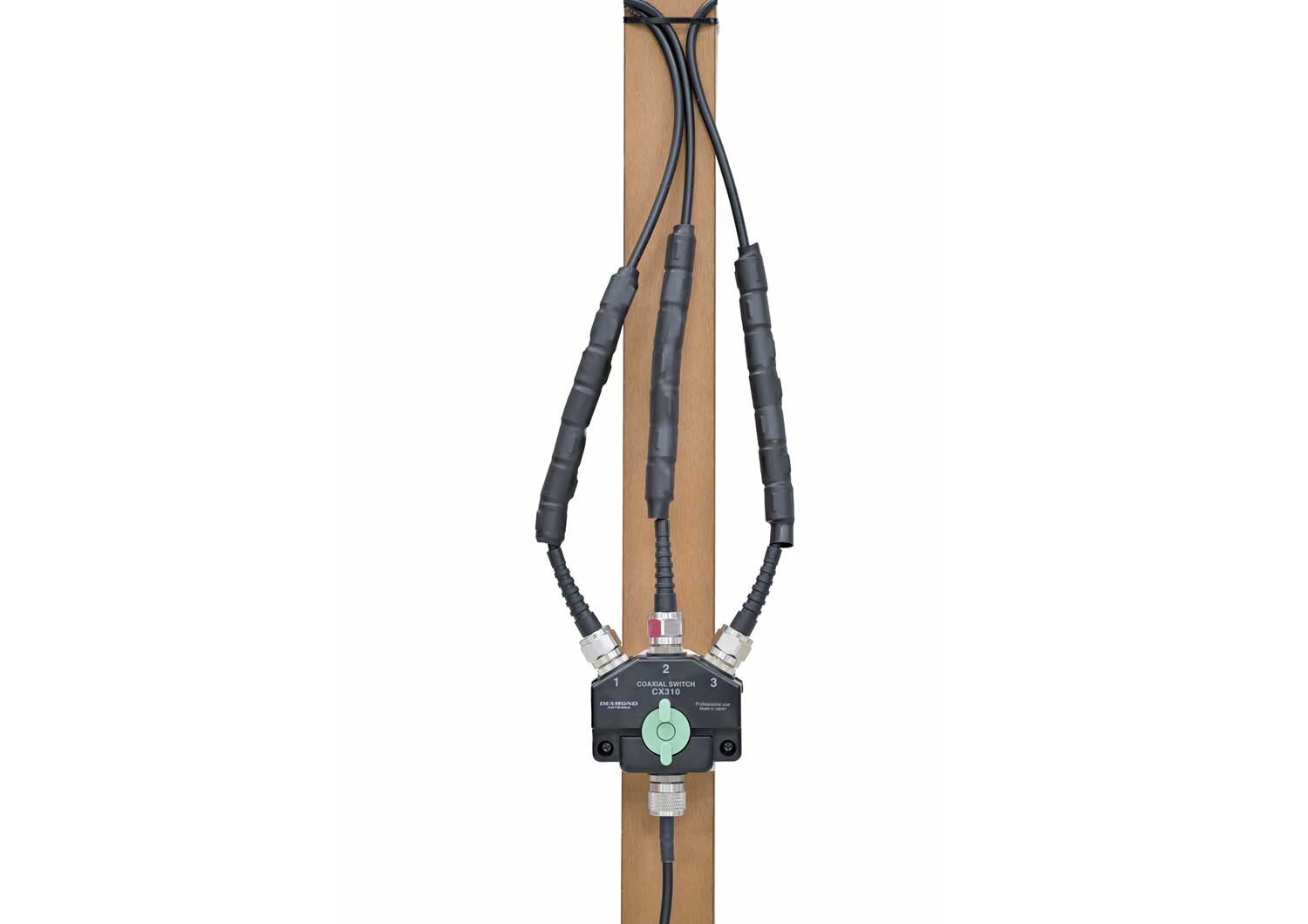

Image of Tekbox tblla 2m coaxial switch telonic uk

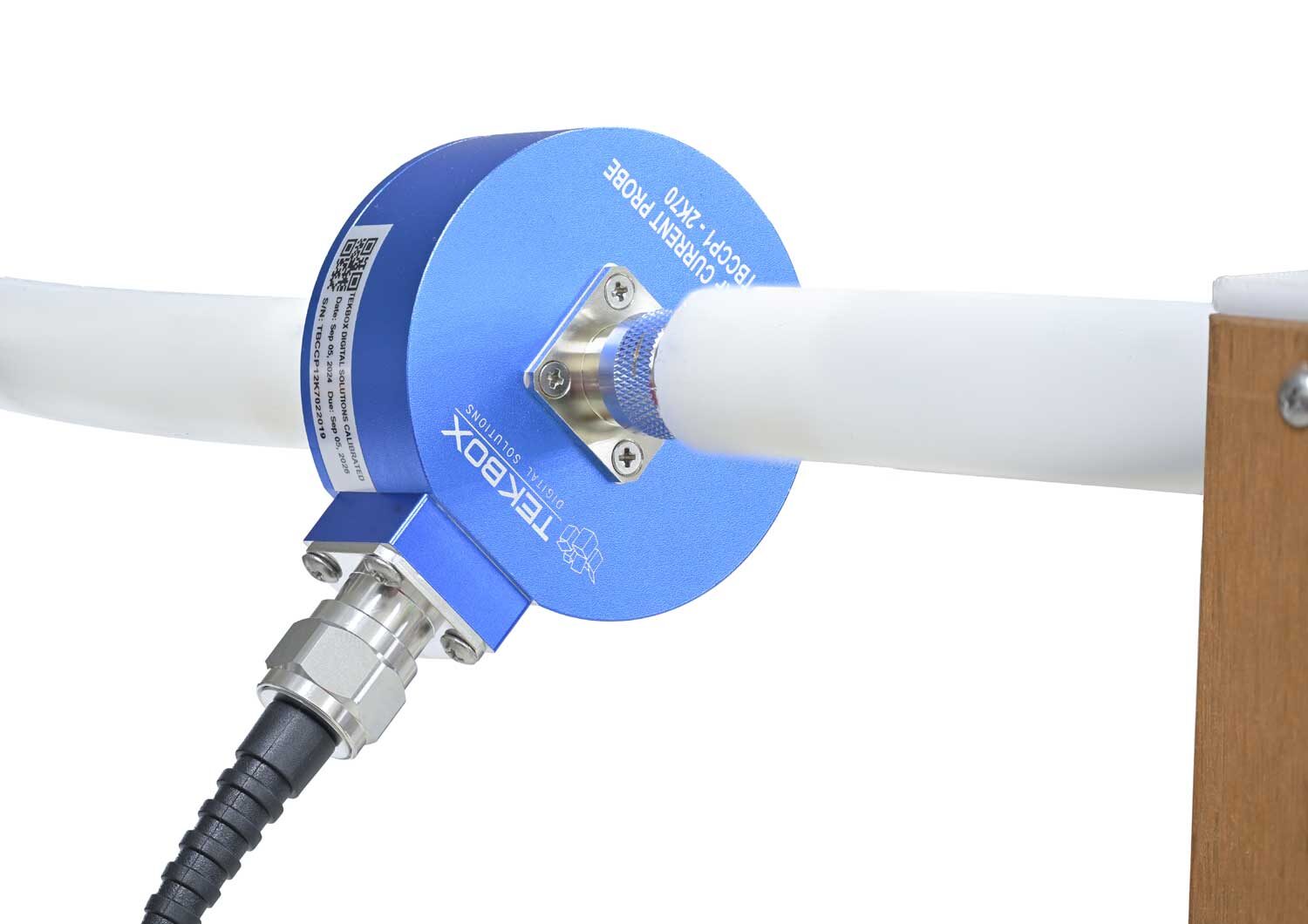

Image of Tekbox tblla 2m current probe telonic uk

Tekbox TBLLA-2M 9 KHz – 30 MHz Large Loop Antenna

£4370.00 (£5244.00 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBLLA-2M Categories: , , Brand:

Description


Tekbox TBLLA-2M 9 KHz – 30 MHz Large Loop Antenna

TBLLA-2M Large Loop Antenna – CISPR-Compliant Solution for Magnetic Field Testing

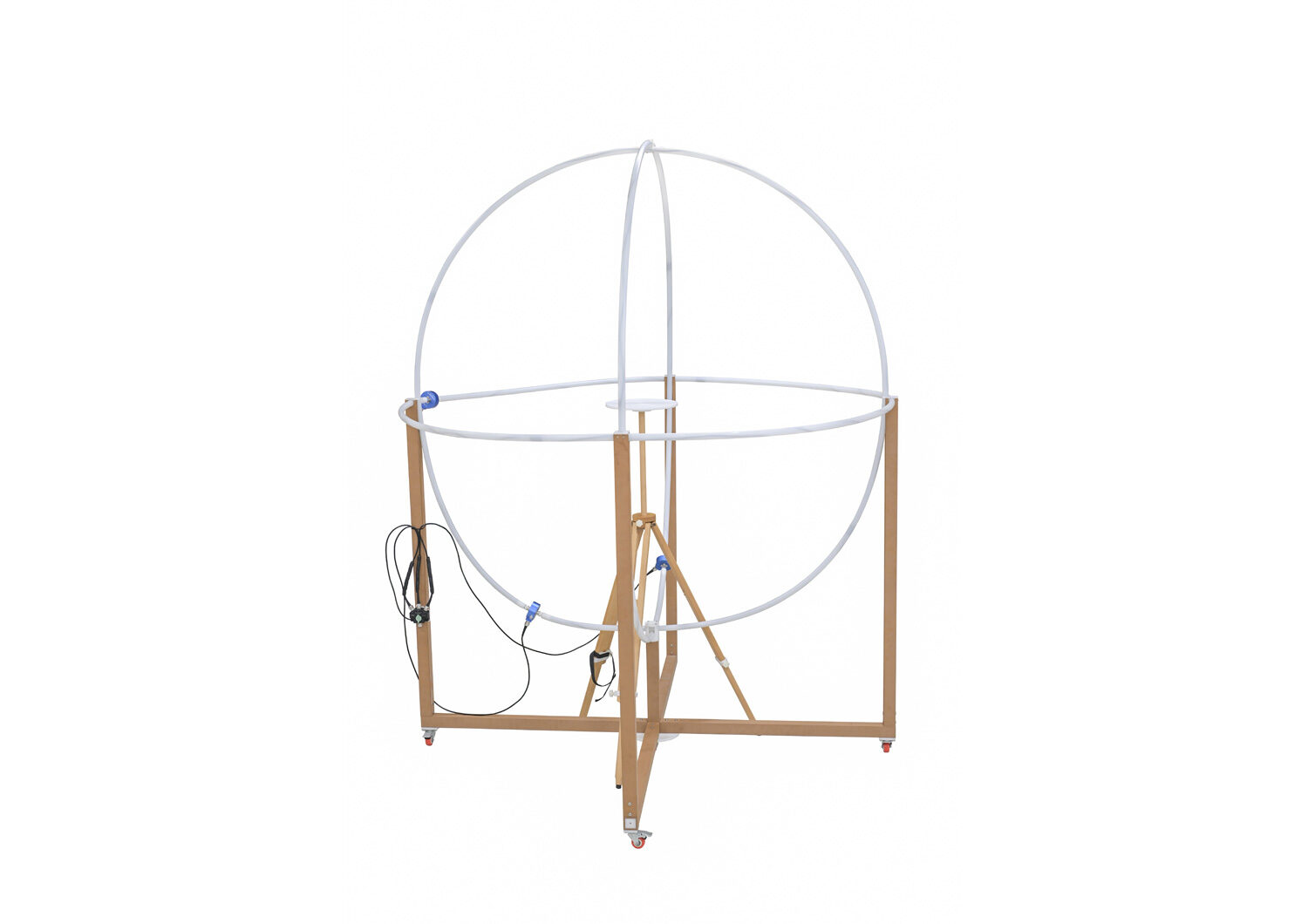

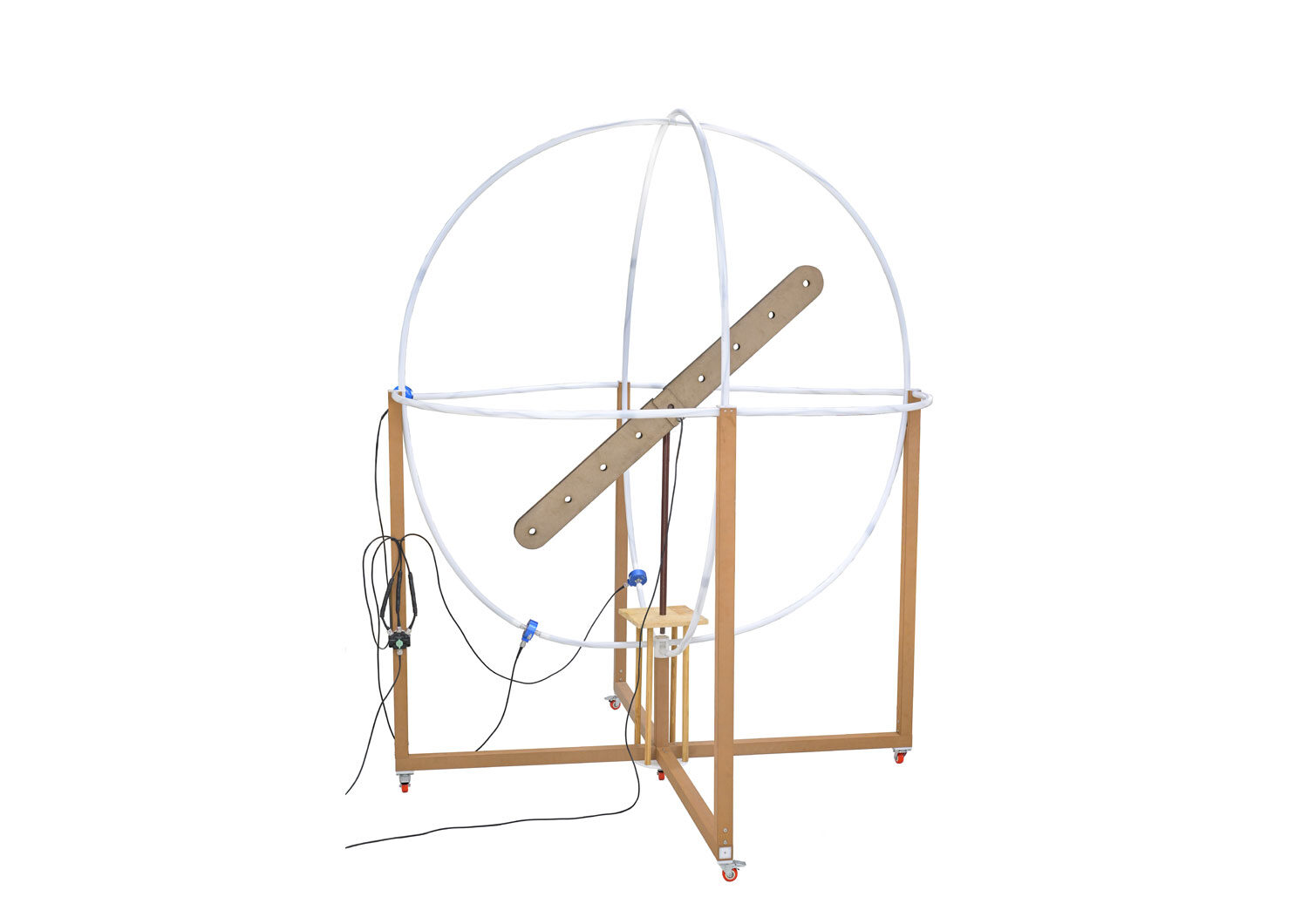

The TBLLA-2M is a precision-engineered large loop antenna (LLA) designed for compliance with CISPR 16-1-4 and CISPR 15 / EN 55015 standards. This advanced LLA features three orthogonal loops with a diameter of 2 meters, making it the ideal choice for measuring magnetic field emissions from luminaries and other electronic devices.

Applications:

The TBLLA-2M Large Loop Antenna
Enhance your EMC testing capabilities with the TBLLA-2M – the perfect solution for accurate, reliable, and comprehensive magnetic field measurements.

Documentation

Documents: LNAs TBLNA-9K30 Manual Documents: Measurement Antennas TBLLA-2M Manual TBMA11 Manual TBMA12 Manual TBMA1B Manual TBMA1C Manual TBMA2 Manual TBMA3 Manual TBMA4 Manual TBMA5B Manual TBMA6 P Manual TBMA7 Manual TBMA8 Manual Documents: MIL-STD-461 Antennas TBMA9 Manual TBRE101 Manual TBRS101 Manual
Specification Type Large Loop Antenna (Triple Loop)
Frequency Range 9 kHz – 30 MHz
Standards CISPR 16-1-4, CISPR 15
Loops 3 perpendicular loops with 2m diameter
Loop Construction RG223U sections with over-molded slits inside PEX tube
RF Transducer Transfer Impedance Typical 0 dBΩ ; 1V/A @ 9kHz to 30 MHz
RF Transducer Output Connector N-female, 50 Ω
Antenna Validation Factor Within ±2 dB compared to the theoretical validation factor for 2m diameter LLA given in CISPR 16-1-4
Effective Antenna Correction Factor 0 dB
CM Resistance of the Ferrite Absorbers > 200 Ω @ 10 MHz
Mechanical Dimensions (L x W x H) 2062 mm x 2062 mm x 2547 mm (81.2” x 81.2” x 100”)
Weight 25 kg (55.12 lbs)
