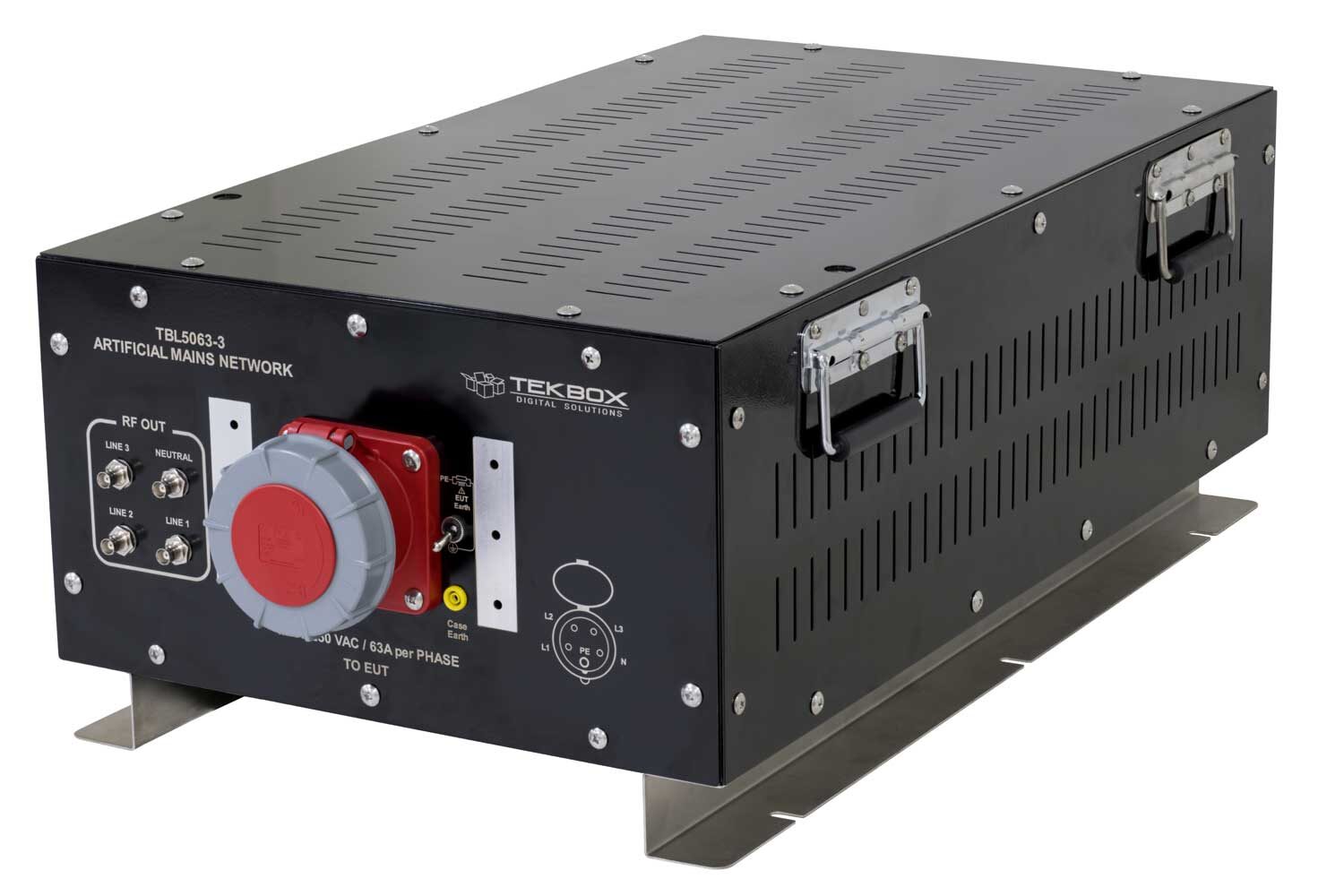

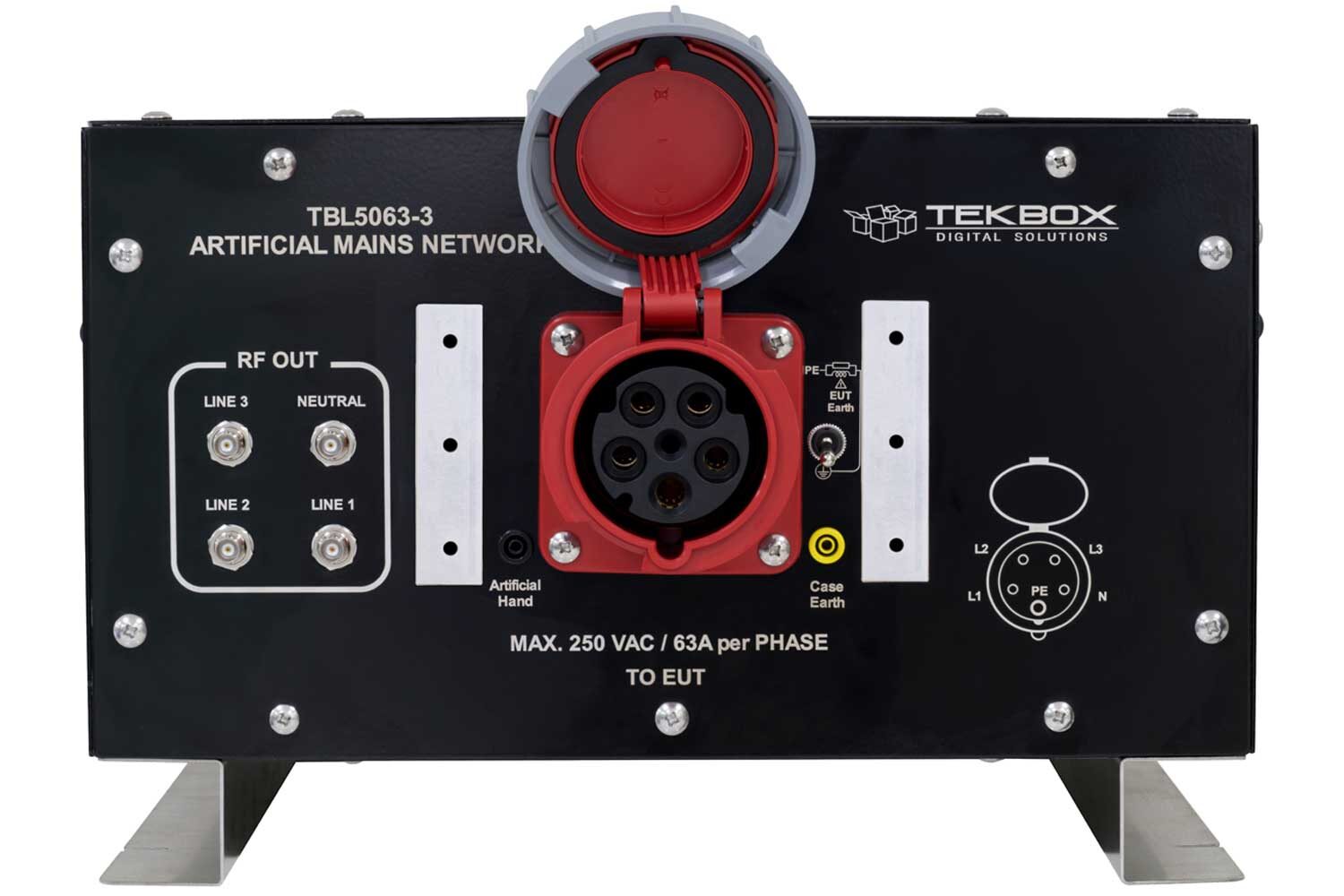

TEKBOX TBL5063-3 50uH Line Impedance Stabilisation Network LISN

£5256.00 (£6307.20 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBL5063-3 Categories: , , , Tags: , , Brand:

Description


TBL5063-3 50uH Line Impedance Stabilisation Network LISN

The TBL5063-3 is a Line Impedance Stabilisation Network for the measurement of conducted emissions within the range of 9 kHz to 30MHz, according to the CISPR 16-1-2 standard. The device is designed for testing 3-phase, AC-powered equipment with supply voltages up to a maximum 690V/400V and 63A. Conducted noise can be measured on each phase and on the neutral conductor. The TBL5063-3 has separate RF outputs for each phase and neutral and consequently can be coupled with the TBLM 2 LISN Mate to split the emissions into its common mode and differential mode components. The TBL5063-3 has no integrated high-pass filter at the RF outputs, but comes with an external 9 kHz coaxial high-pass instead. The LISN is equipped with 63A CEE sockets.

APPLICATION:

  • EMC conducted emission measurements

Product Videos

YouTube Video
YouTube Video

Documentation

LISN Basics And Overview TBISN-T4 Manual TBL0110 2 LISN Manual TBL0225 2 LISN Manual TBL0510-1, 5ΜH LISN, Conducted Emissions, EMC TBL05100-1C 5uH LISN TBL0550-1B 5ΜH LISN TBL5008 2B LISN Manual TBL5008 2C LISN Manual TBL50100-1B 50ΜH LISN TBL501000-1 50ΜH LISN TBL5016-2C Manual TBL5016-3 50ΜH LISN TBL5016 2B LISN Manual TBL5032-1 50ΜH LISN TBL5032-3 50ΜH LISN TBL5063-3 50ΜH LISN TBLDC32-2 150 Ohm DC LISN TBLM2 LISN MATE TBVHF B Balanced VHF LISN
Frequency range 9 kHz to 30 MHz
Impedance 50 Ω ║ (50 µH + 5 Ω)
Artificial hand 220 pF + 511 Ω
Switchable PE 50 Ω ║ 50 µH
Pre-filter 250µH pre-filter
RF outputs Separate RF outputs for each line and neutral
Inductors Air core inductors
Line voltage max 690V/400V / 50 – 60 Hz
Max. current per line and neutral 63A @ 23°C each
3-phase EUT socket CEE / IEC60309, 3L+N+PE, 63A, female
Power connector CEE / IEC60309, 3L+N+PE, 63A, male
Measurement connectors 50 Ω BNC
External 9 kHz high pass filter N-male / N-female
Operating Temperature Range +5 °C … + 40 °C; 5% to 80% RH
