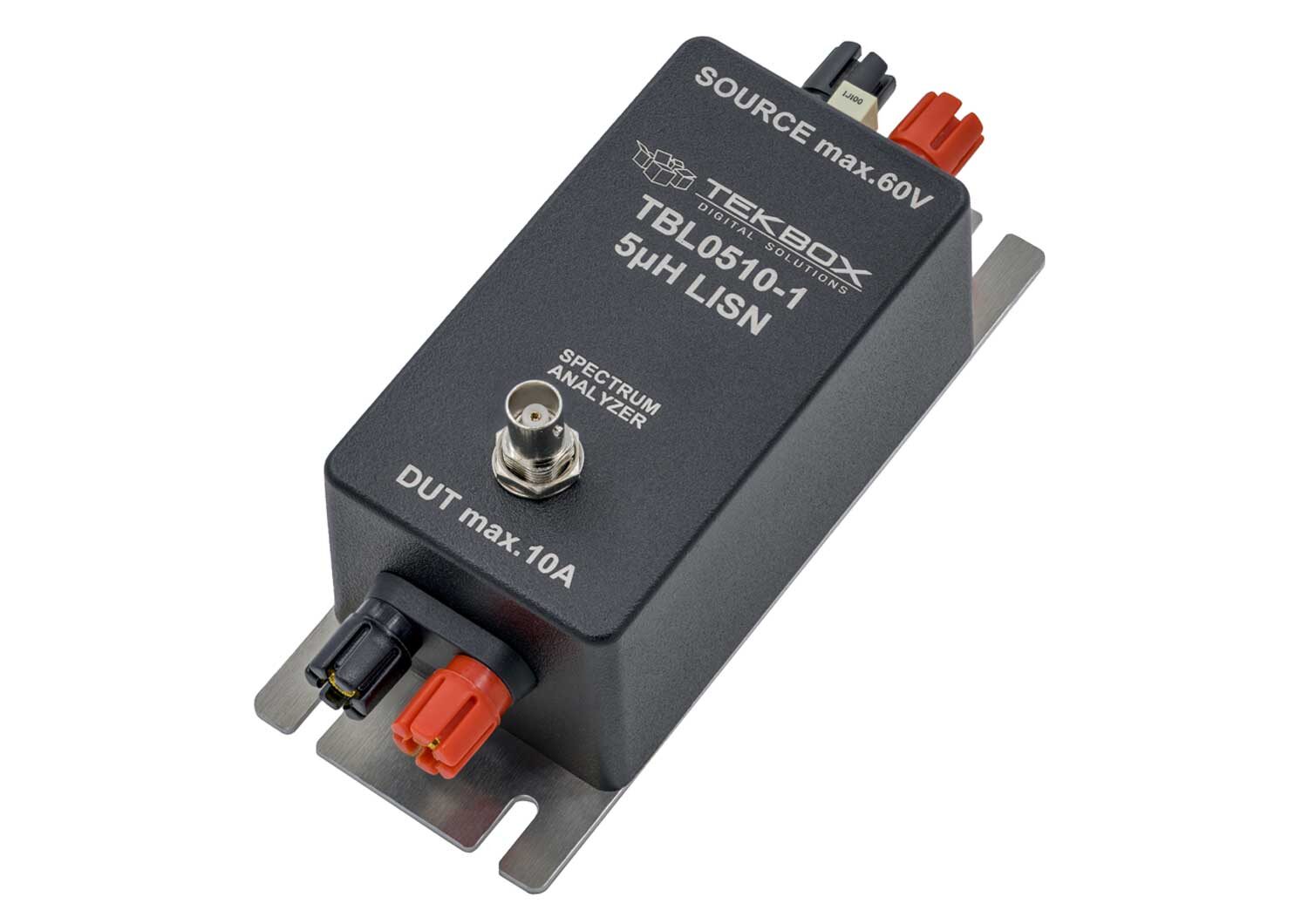

Image of Tbl0510 1 telonicuk

TEKBOX TBL0510-1 5uH Line Impedance Stabilisation Network LISN

£252.00 (£302.40 inc. VAT)

5 in stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBL0510-1 Categories: , , , , Tags: , , Brand:

Description


TBL0510-1 5uH Line Impedance Stabilisation Network LISN

The TBL0510-1 is an affordable 5µH LISN designed for conducted emission measurements in the frequency range of 100 kHz to 400 MHz. It complies with CISPR-25 (EN 55025), numerous automotive manufacturer standards, MIL-STD-461F, DO-160, AECTP-500 and ISO 7637-2.

LISNs are inserted into the supply lines of the EUT (Equipment Under Test). Conducted noise, which is present at the supply terminals of the DUT, can be measured at the BNC connectors using a spectrum analyser or a measurement receiver. The source (supply) terminal and the DUT terminal are decoupled by a 5µH inductor. Two TBL0510-1 in combination with the Tekbox LISN Mate enable the separate measurement of common mode and differential mode noise.

Product Videos

YouTube Video
YouTube Video

Documentation

LISN Basics And Overview TBISN-T4 Manual TBL0110 2 LISN Manual TBL0225 2 LISN Manual TBL0510-1, 5ΜH LISN, Conducted Emissions, EMC TBL05100-1C 5uH LISN TBL0550-1B 5ΜH LISN TBL5008 2B LISN Manual TBL5008 2C LISN Manual TBL50100-1B 50ΜH LISN TBL501000-1 50ΜH LISN TBL5016-2C Manual TBL5016-3 50ΜH LISN TBL5016 2B LISN Manual TBL5032-1 50ΜH LISN TBL5032-3 50ΜH LISN TBL5063-3 50ΜH LISN TBLDC32-2 150 Ohm DC LISN TBLM2 LISN MATE TBVHF B Balanced VHF LISN
Frequency range 10 kHz – 400 MHz; depending on standard and external capacitor
DC Resistance 40 mΩ
Continuous current 10A
Nominal operating voltage range 0 – 60V DC
Absolute maximum rating of internal components 200V DC; external 1µF capacitor: 100V
Surge protection Built-in surge protection
Source capacitor External 1µF source capacitor, for easy removal when using the LISN for 7637-2 tests
