Siglent V26-N35MN35F-25IN Cable

£943.00 (£1,131.60 inc. VAT)

Available on back-order

SKU: V26-N35MN35F-25IN Categories: , , Brand:

Description


Siglent V26-N35MN35F-25IN RF Cable, NMD 3.5 mm-Female, NMD 3.5 mm-Male 26.5 GHz

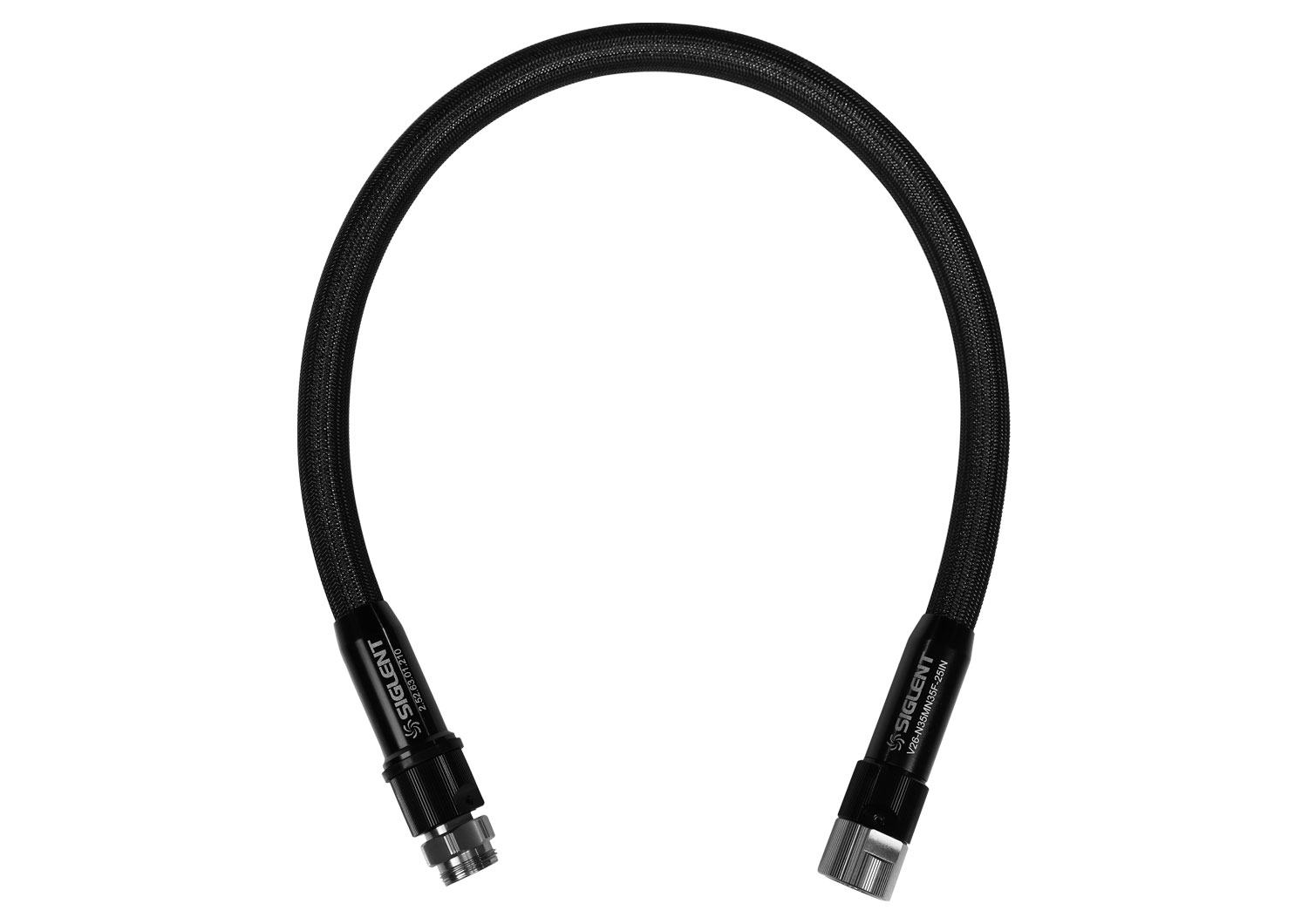

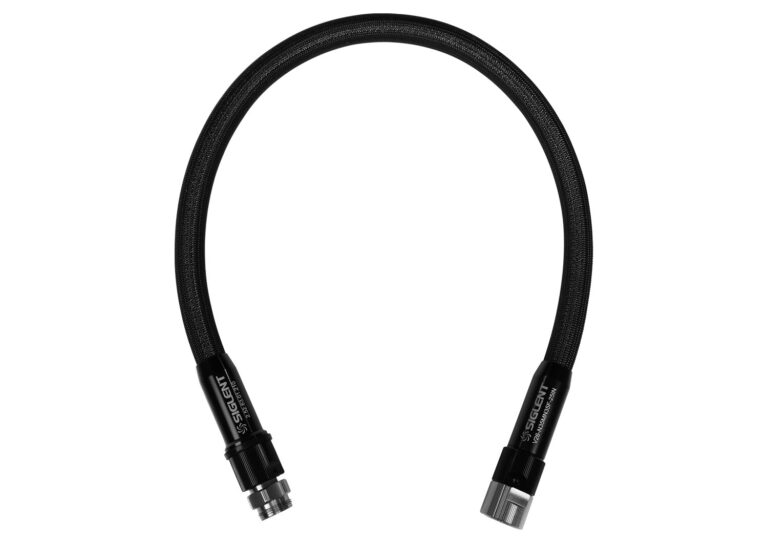

The Siglent V26-N35MN35F-25IN is a 63.5 cm, 50 Ω RF cable assembly connecting NMD 3.5 mm female to NMD 3.5 mm male. Supporting frequencies from DC to 26.5 GHz, it is suited to RF test and measurement connections in development, verification and manufacturing environments.

Key Features
  • NMD 3.5 mm female to NMD 3.5 mm male connections
  • 63.5 cm cable length
  • 50 Ω impedance
  • DC–26.5 GHz frequency range
  • Stainless-steel double-buckle black nylon armour
  • VSWR ≤1.25
  • Ins. loss ≤2.16 dB
Applications
  • RF test and measurement
  • Development and verification setups
  • Laboratory and manufacturing test connections
Brand Siglent
Model V26-N35MN35F-25IN
Connections NMD 3.5 mm female to NMD 3.5 mm male
Length 63.5 cm
Impedance 50 Ω
Frequency range DC–26.5 GHz
Cable / construction Stainless-steel double-buckle black nylon armour
VSWR ≤1.25
Insertion loss ≤2.16 dB
