Description

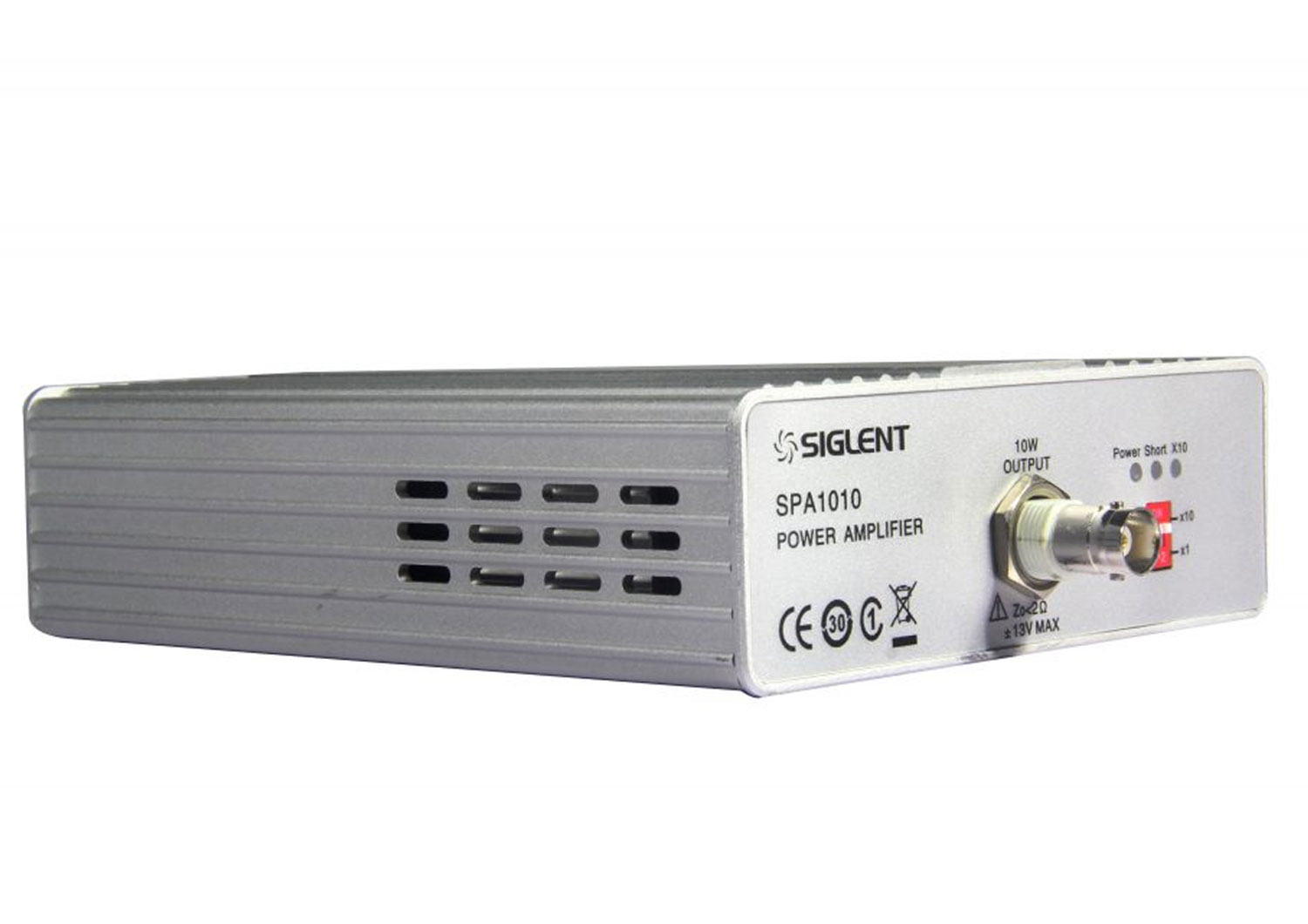

Siglent SPA1010 Power Amplifier
Increase the voltage and current output capabilities to generators like the SIGLENT SDG family.
Typical Input Impedance: 15kΩ
Input:
+/- 6.5V Vpp (Gain: X1)
+/- 1.3 V (Gain: X10)
Gain: Switched 10V/1V and 10V/10V
Output Voltage: 25.4 Vpp
Output Current: 1.12 A
Slew Rate: ≥ 90 V/μs
Overshoot: ≤ 4%.
Compatible with all SIGLENT SDG series generators.
