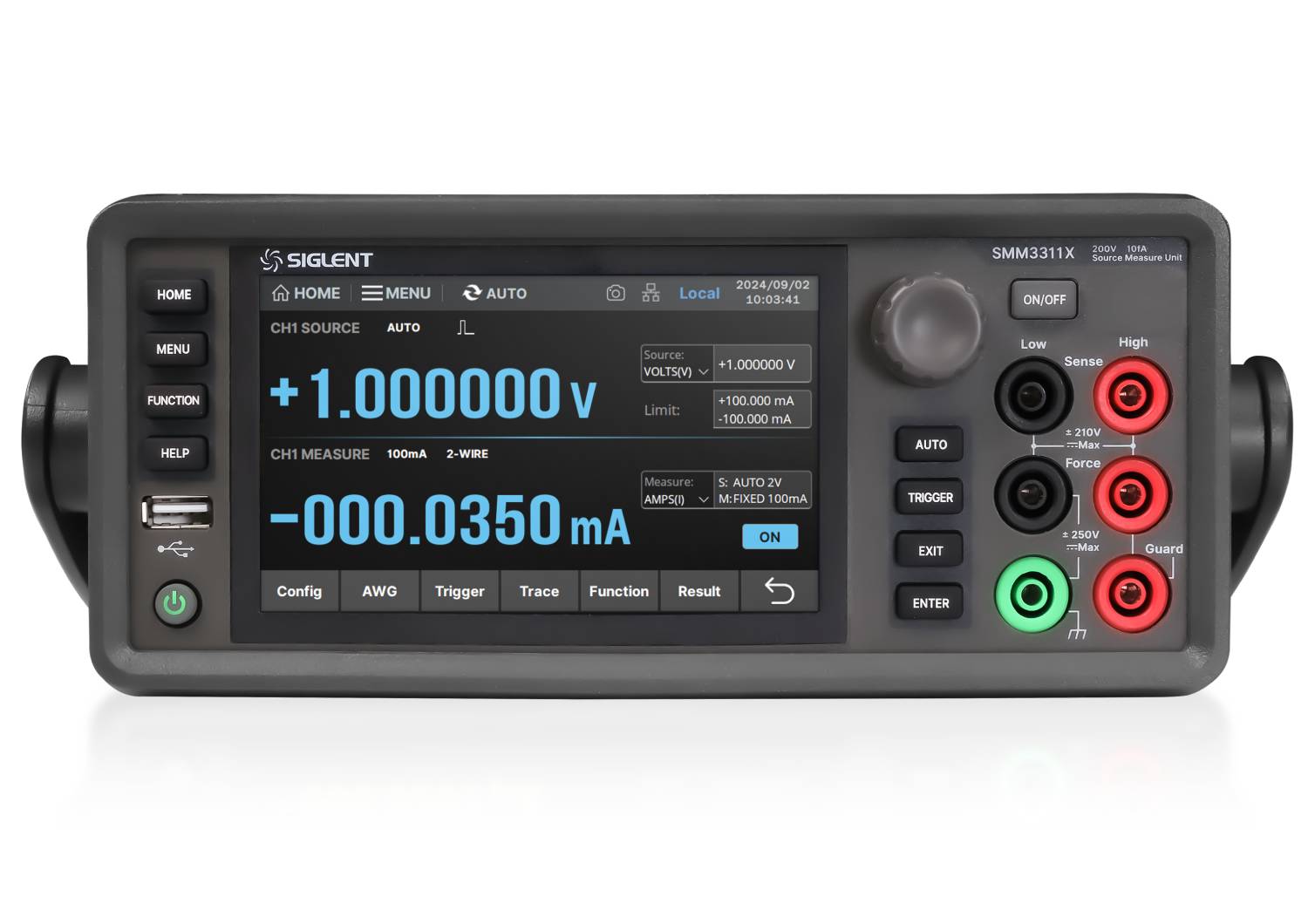

SMM3311X TelonicUK

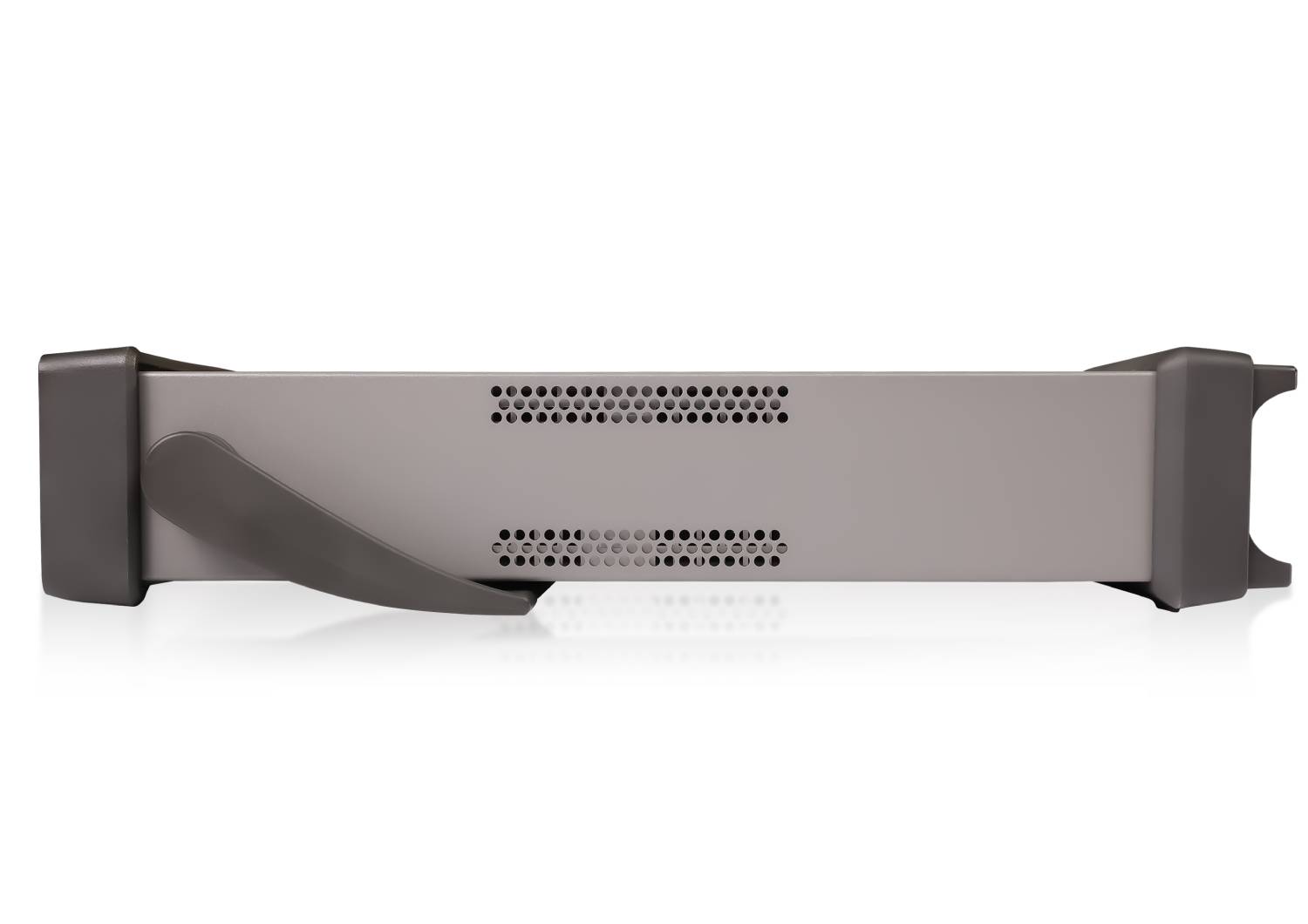

SMM3X Side TelonicUK

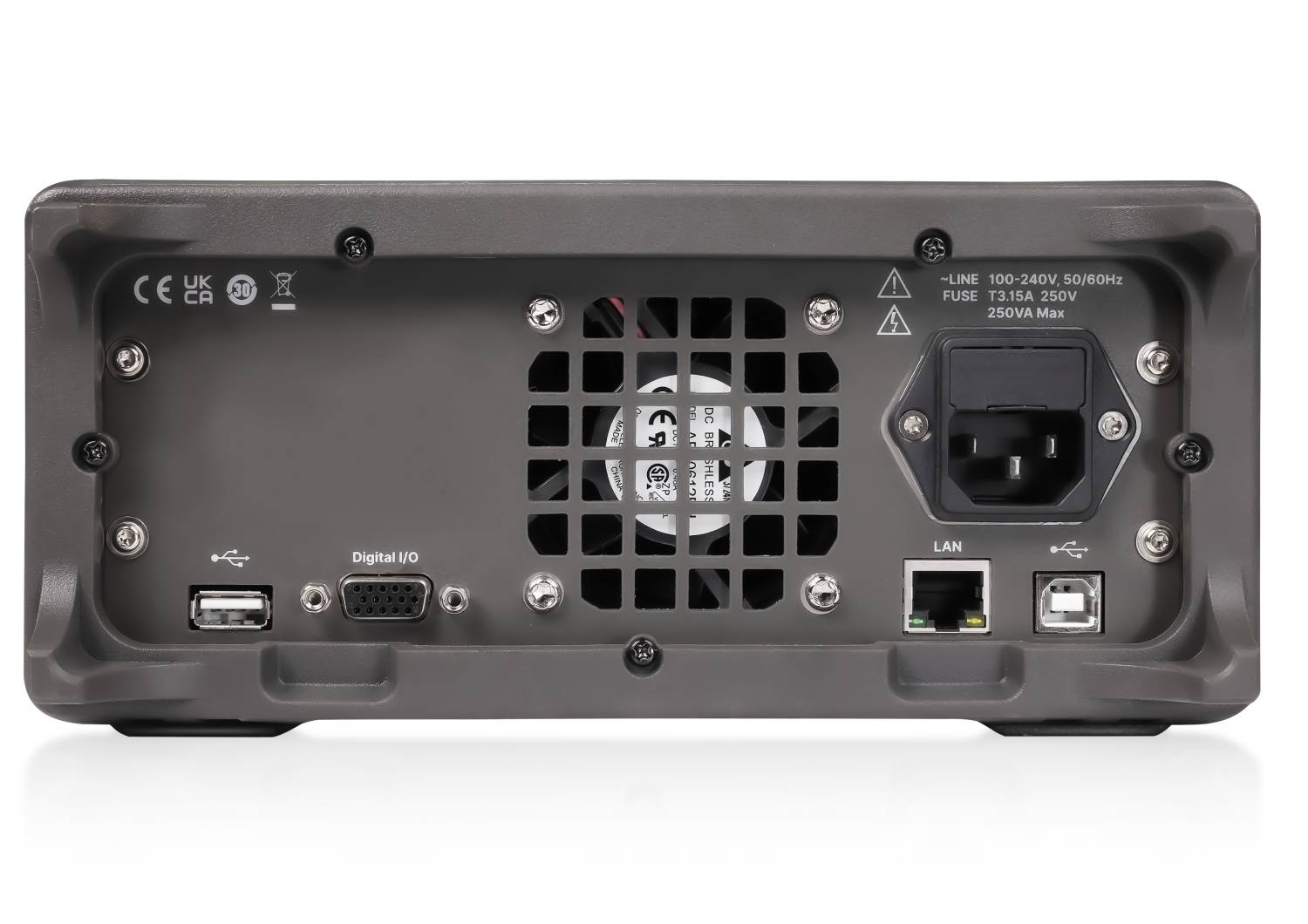

SMM3311X back panel TelonicUK

Siglent SMM3311X ±210V, ±3.03A, 10 fA Source Measure Unit

£4069.00 (£4882.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SMM3311X Categories: , Tag: Brand:

Description


Siglent SMM3311X Source Measure Unit, ±210V, ±3.03A, 10fA Resolution

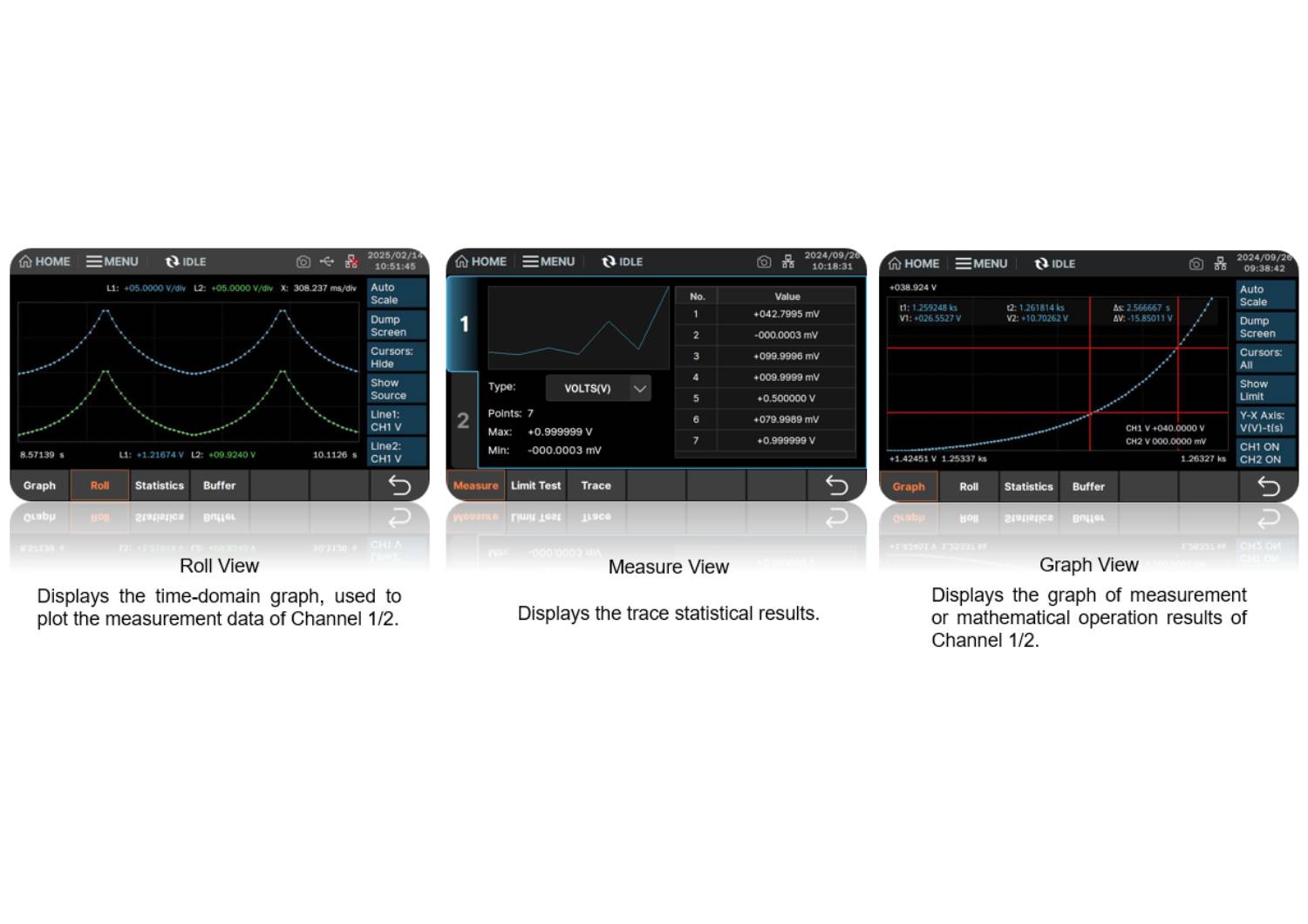

The Siglent SMM3311X, ±210V, ±3.03A (10A Pulsed), 10fA, 100nV Resolution Source Measure Unit, part of the SMM3000X series, is a precise Source/Measure Unit (SMU) instrument that can simultaneously output and measure voltage and current. It integrates the functions of a current source, a voltage source, a voltmeter, and an ammeter within the instrument, allowing easy switching between these functions. The graphical user interface (GUI) it employs, along with advanced capacitive touchscreen technology, allows for intuitive operation.

The SMM3000X is the SMU for everyone: a versatile instrument, particularly well-suited for characterising modern scaled semiconductors, nano-scale devices and materials, organic semiconductors, printed electronics, and other small-geometry and low-power devices. It is widely used in fields such as research and educational applications, industrial development, testing, and manufacturing.



Product Images

Product Videos

YouTube Video

Documentation

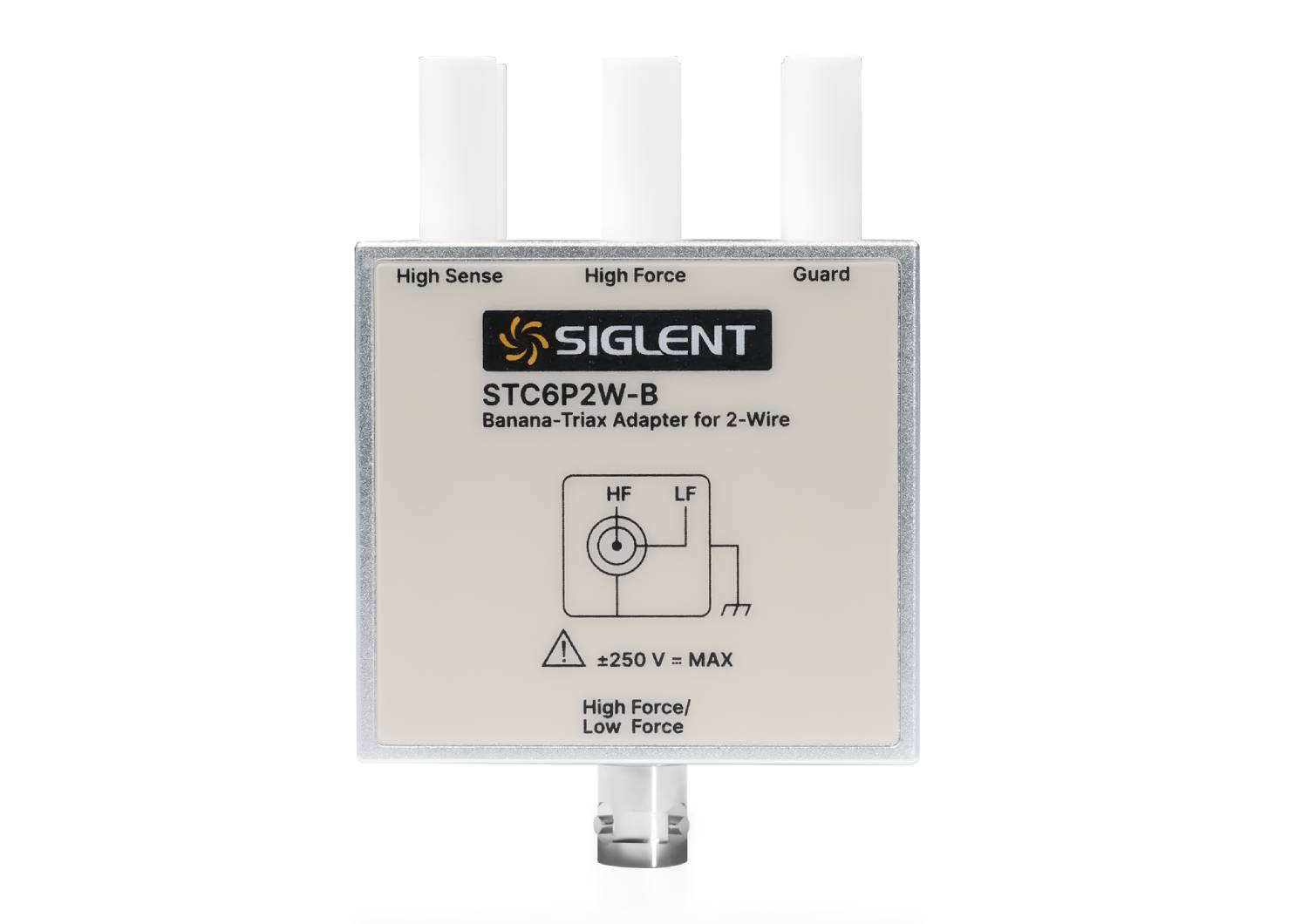

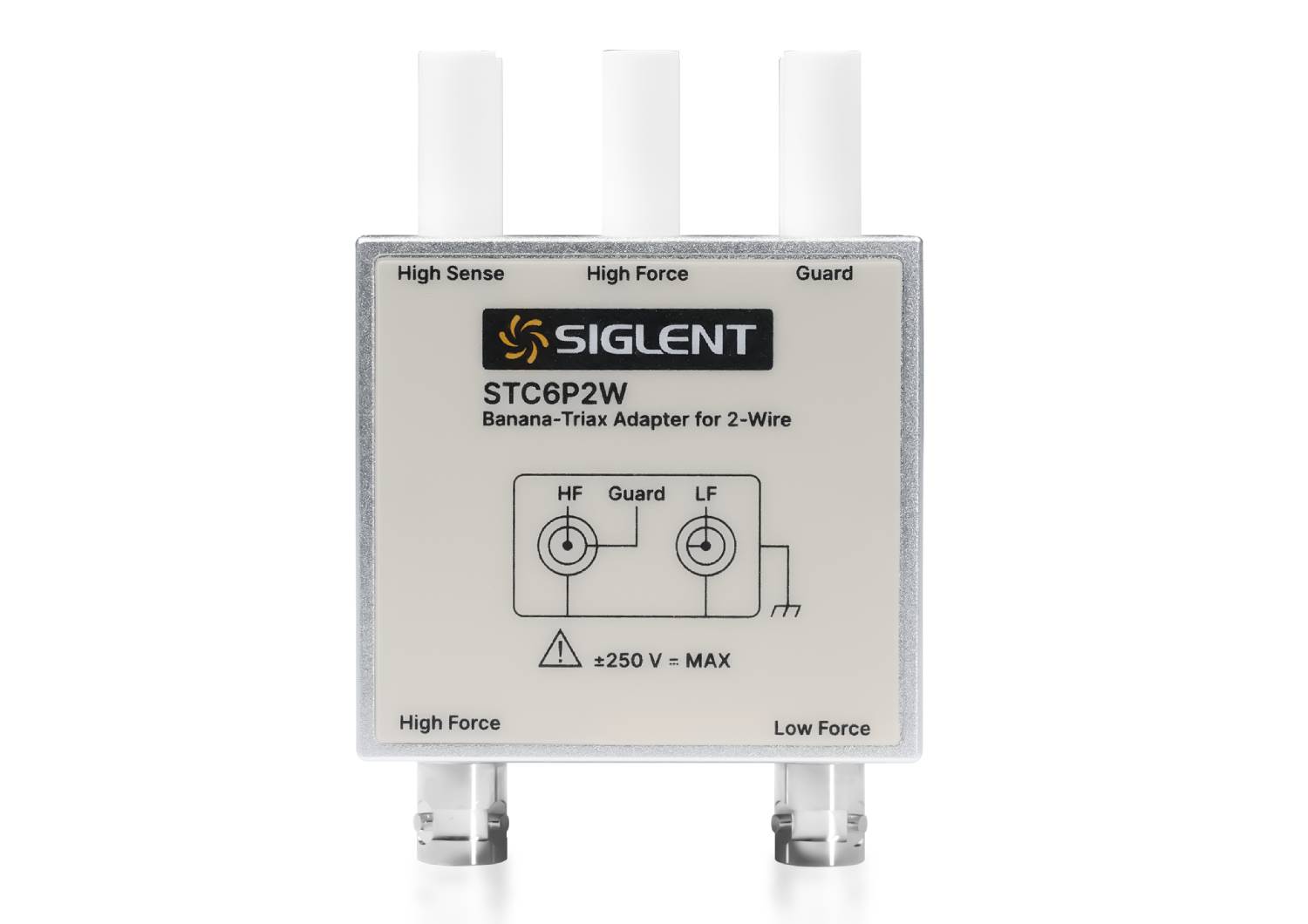

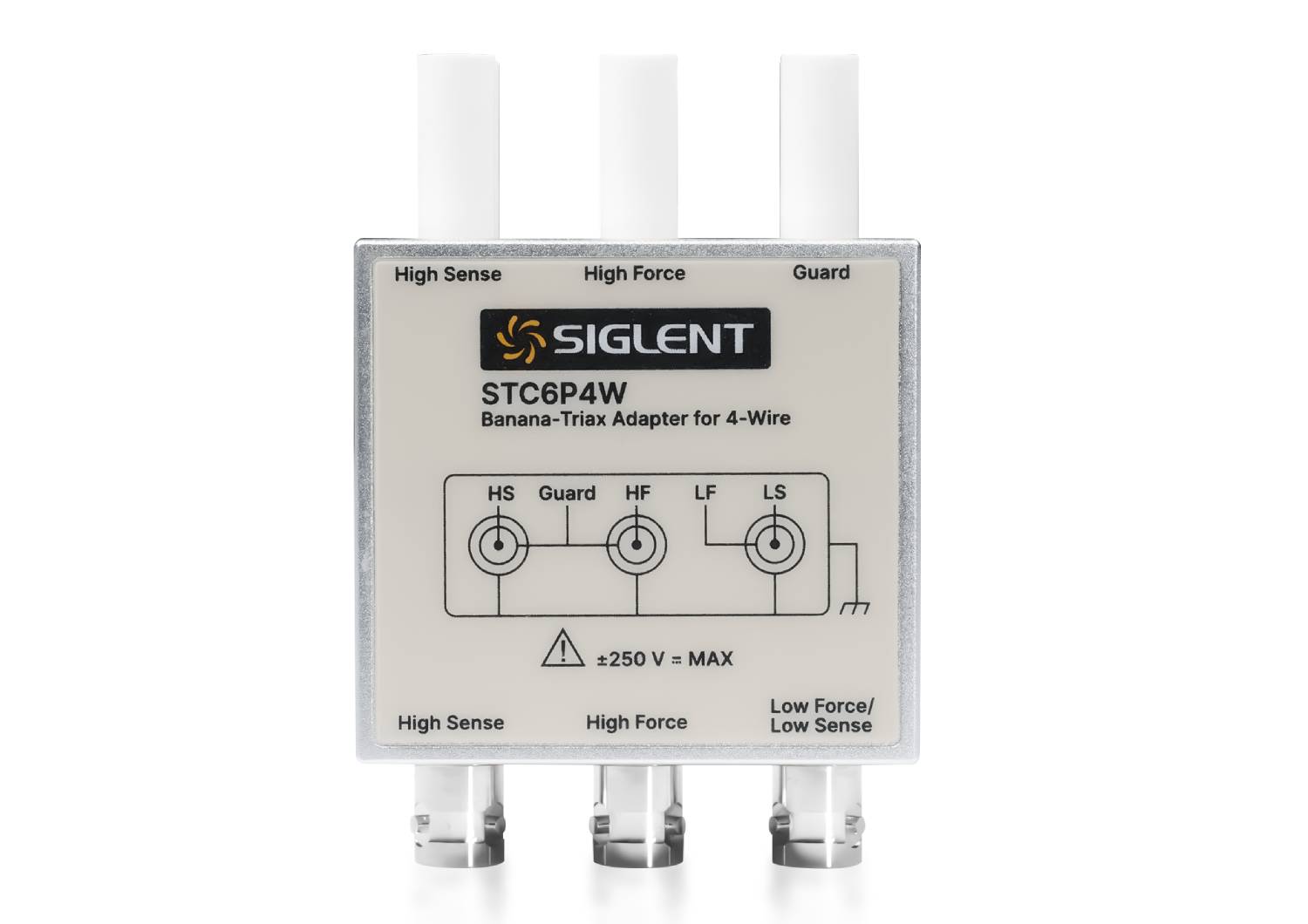

SMM3X Quick Guide SMM3X User Manual SMM3X Datasheet STC6P Datasheet
Siglent SMM3311X SMM3312X
Specification conditions
Temperature 23 °C ±5 °C
Humidity 30% to 80% RH
Calibration period 1 year
Measurement speed 1 PLC (power line cycle)
After 60 minutes of warm-up Ambient temperature change is less than ±3 °C after self-calibration execution
Outputs
Quadrants 4
Max. acquisition rate 100,000 points/s
Number of output channels 1 2
Max. output/sink power 31.8 W
DC or pulsed ±210 V ≤0.105 A
±21 V ≤1.515 A
±6 V ≤3.03 A
Pulsed only ±200 V ≤1.515 A
±6 V ≤10.5 A
Maximum current limitation
Max current limitation: For 21 V/1.515 A and 6 V/3.03 A ranges, the total max current is limited by the table below for using 2 channels. Max current is not limited to using only 1 channel.
I1: CH1 current
I2: CH2 current		 I1(CH1:±6V) + I2(CH2:±6V) ≤4A
I1(CH1:±6V) + I2(CH2:±6-21V)X1.6 ≤4A
I1(CH1:±6-21V) + I2(CH2:±6V)X0.625 ≤2.5A
I1(CH1:±6-21V) + I2(CH2:±6-21V) ≤2.5A
