Description

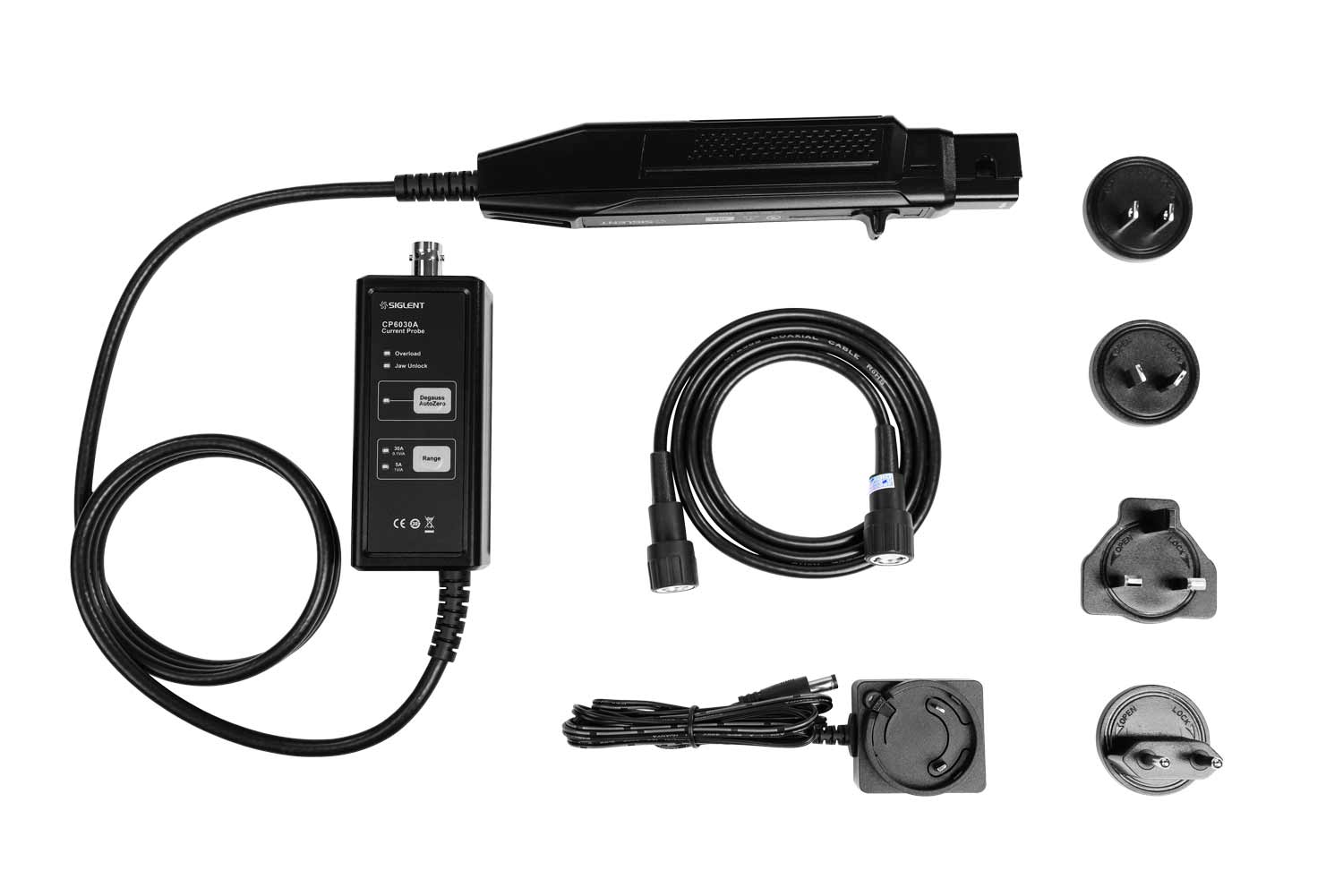

The CP6030A is a Current Probe that can be used with Siglent Oscilloscopes.
Specifications
| Parameter | Value |
|---|---|
| Bandwidth | DC-100MHz |
| Maximum Continuous Current | 30Arms |
| Peak Current | 50A |
| Switching Ratio | 5A(1V/A); 30A(0.1V/A) |
| Accuracy | 5A(±1%±1mA); 30A(±1%±10mA) |
| Max. rated Voltage to earth | 300V CAT I |
| Conductor Diameter Max | 5mm |
| Cable Length | 1m |
Product Images
Amp Frequency Curve
Continuous Maximum Input Measurement
Input Impedance vs Frequency
×
![]()
