TEKBOX TBST120/60/60/2 (With EMC Filter) Shielded Tent

£2138.00 (£2565.60 inc VAT)

SKU: TBST120-60-60-2 Category:

Description

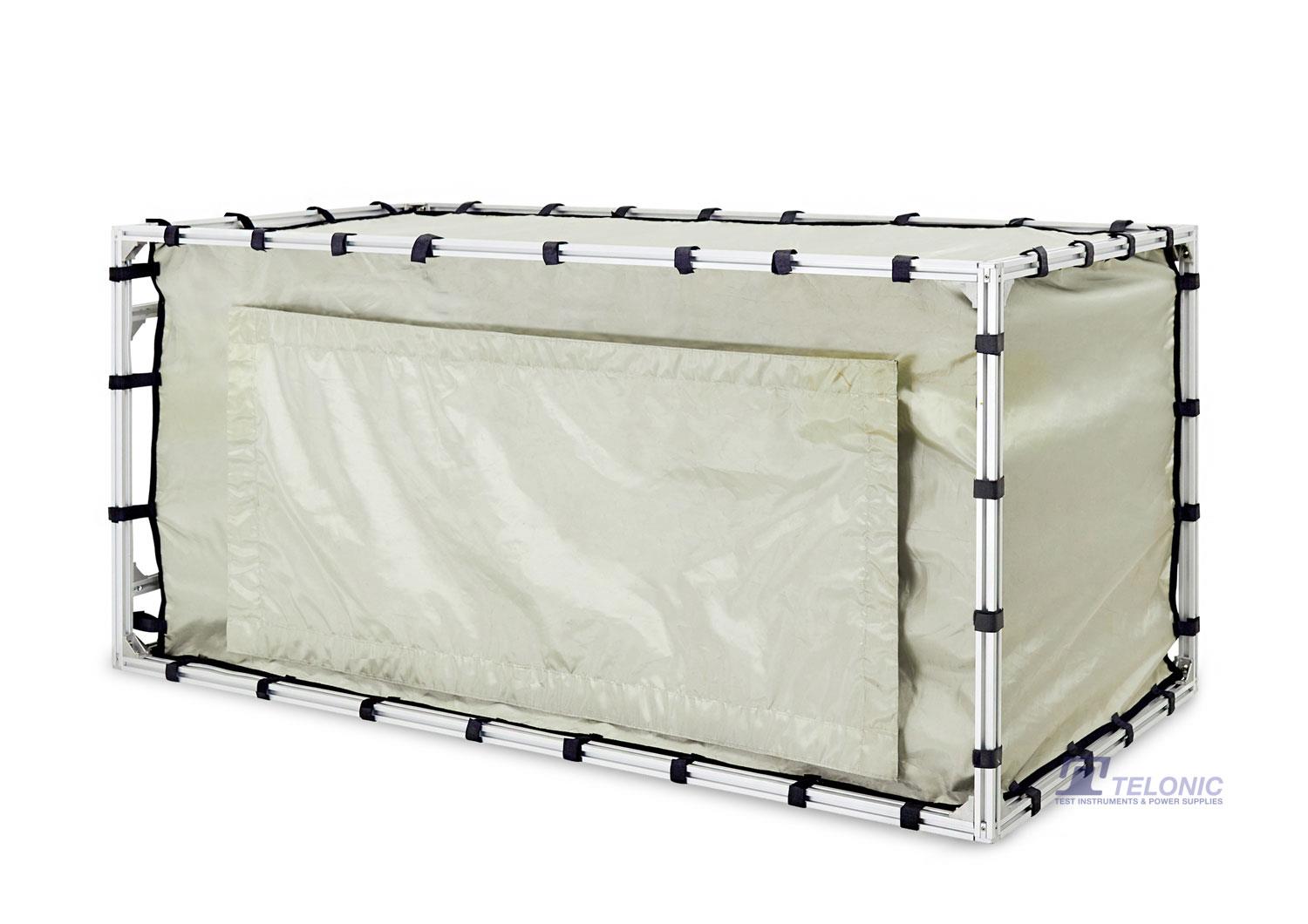

The TBST120/60/60/2 is a shielded tent, designed to suppress interference from ambient noise during EMC pre-compliance measurements. With a size of 120 cm x 60 cm x 60 cm, it can accommodate any Tekbox pre-compliance test equipment such as LISNs or TEM-cells.

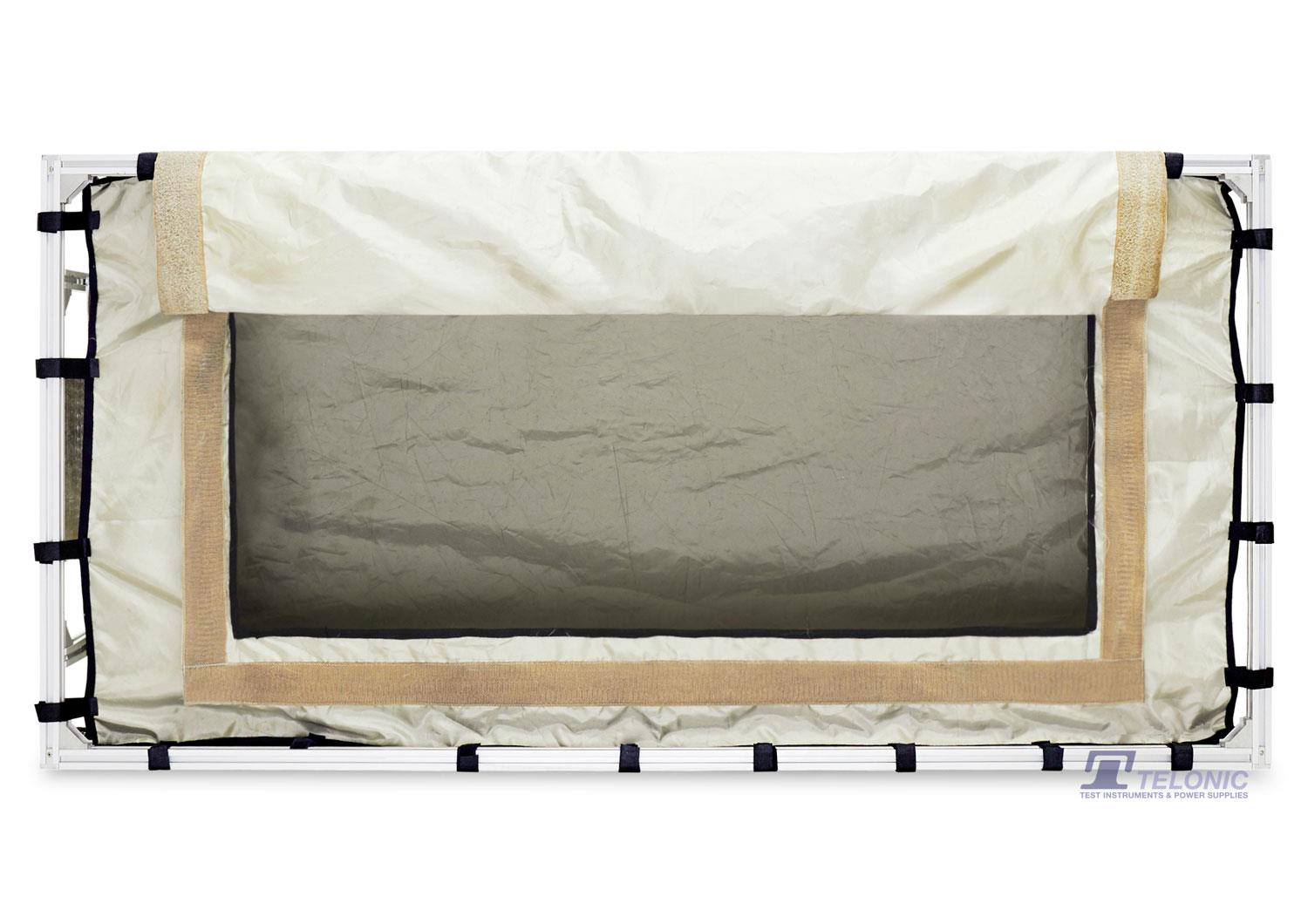

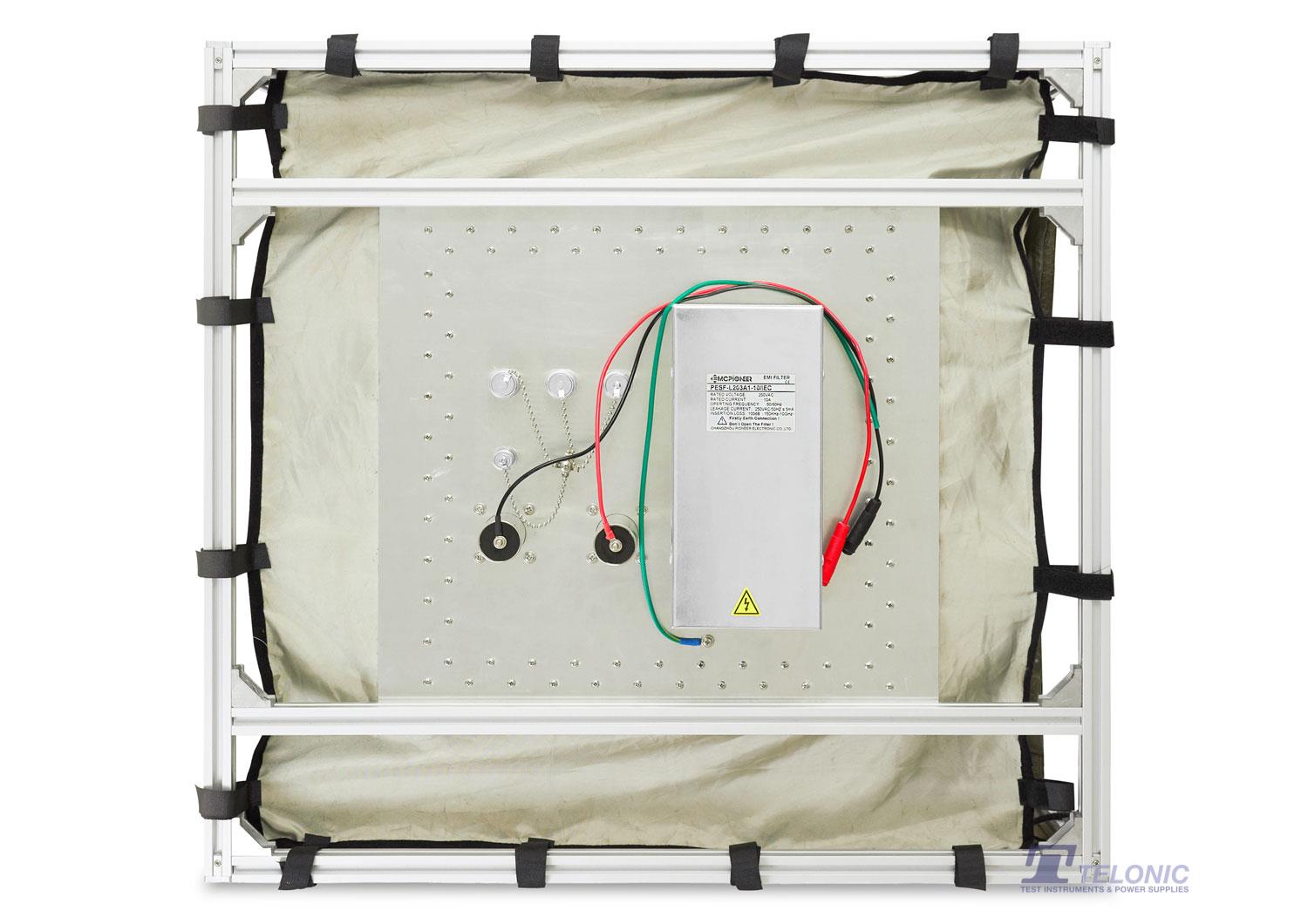

The shielded tent is composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles. The filter panel at the side provides a 240V/10A AC filter, two 240V/10A DC filters and four coaxial feed through adapters with screw caps. The access opening is sealed with conductive Velcro tape.

Please note…

The TEKBOX TBST120/60/60/2 shielded tent is delivered as a kit that has to be self-assembled.

Documentation

Specifications
Outer dimensions120 cm x 60 cm x 60 cm
Opening dimensions85 cm x 35 cm (40 cm x 22 cm)
Frame20 mm x 20mm extruded aluminium profiles
Shielding2 layers of conductive fabrics
Sealconductive Velcro tape
SuspensionVelcro stripes
Filter panel1 x 240V/10A AC filter; IEC socket (optional for the smaller
tent)
2 x 240V/10A AC/DC filter; cables with female Banana
couplers
3 x N- female feed through connector with screw caps
1 x BNC-female feed through connector with screw caps
Internal AC socketpigtail cable with detachable female Schuko
Attenuation50 …70 dB in the range DC to 6 GHz, see chapter 3
Weight10.8 kg (6.7 kg / 8.7 kg)
