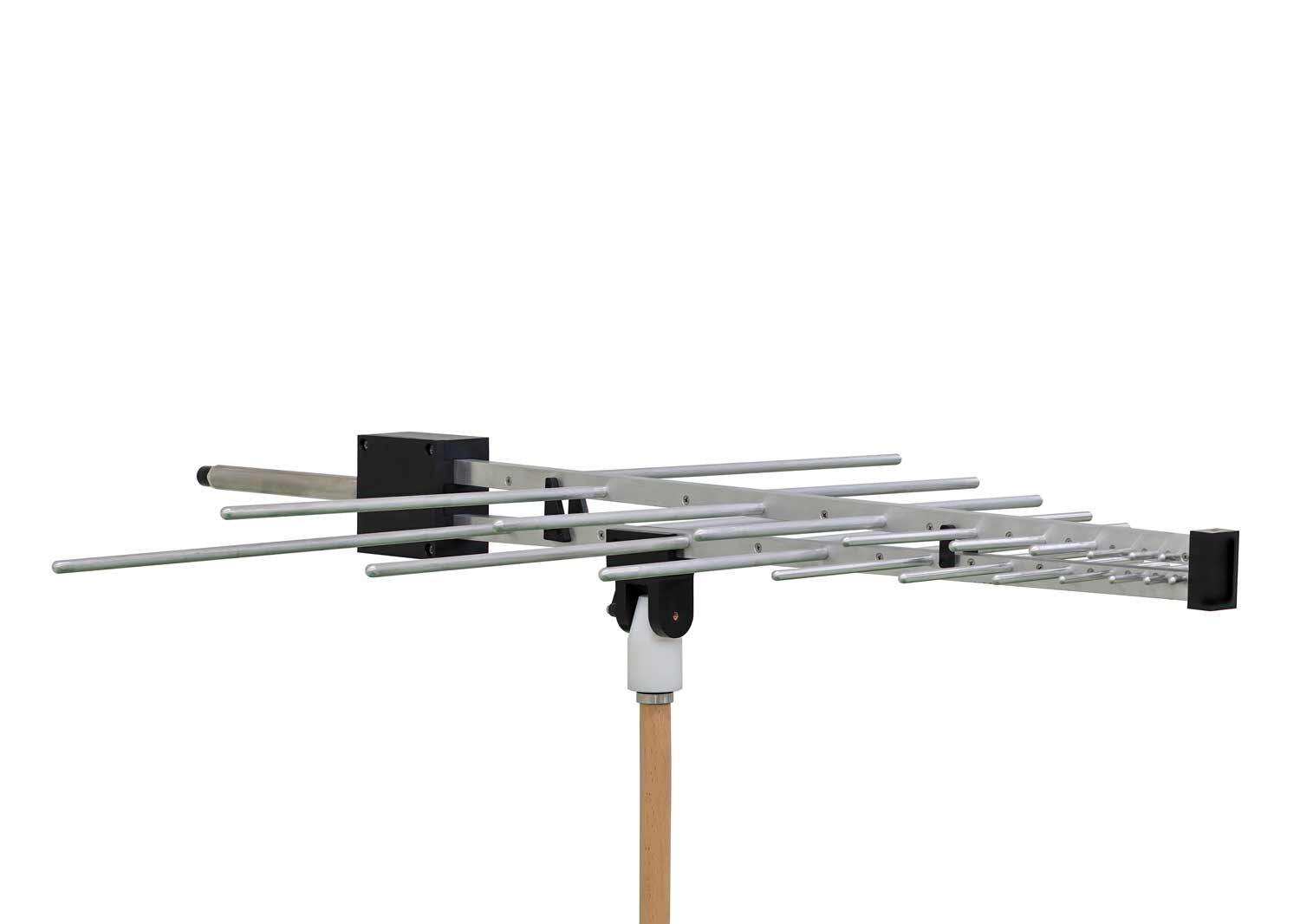

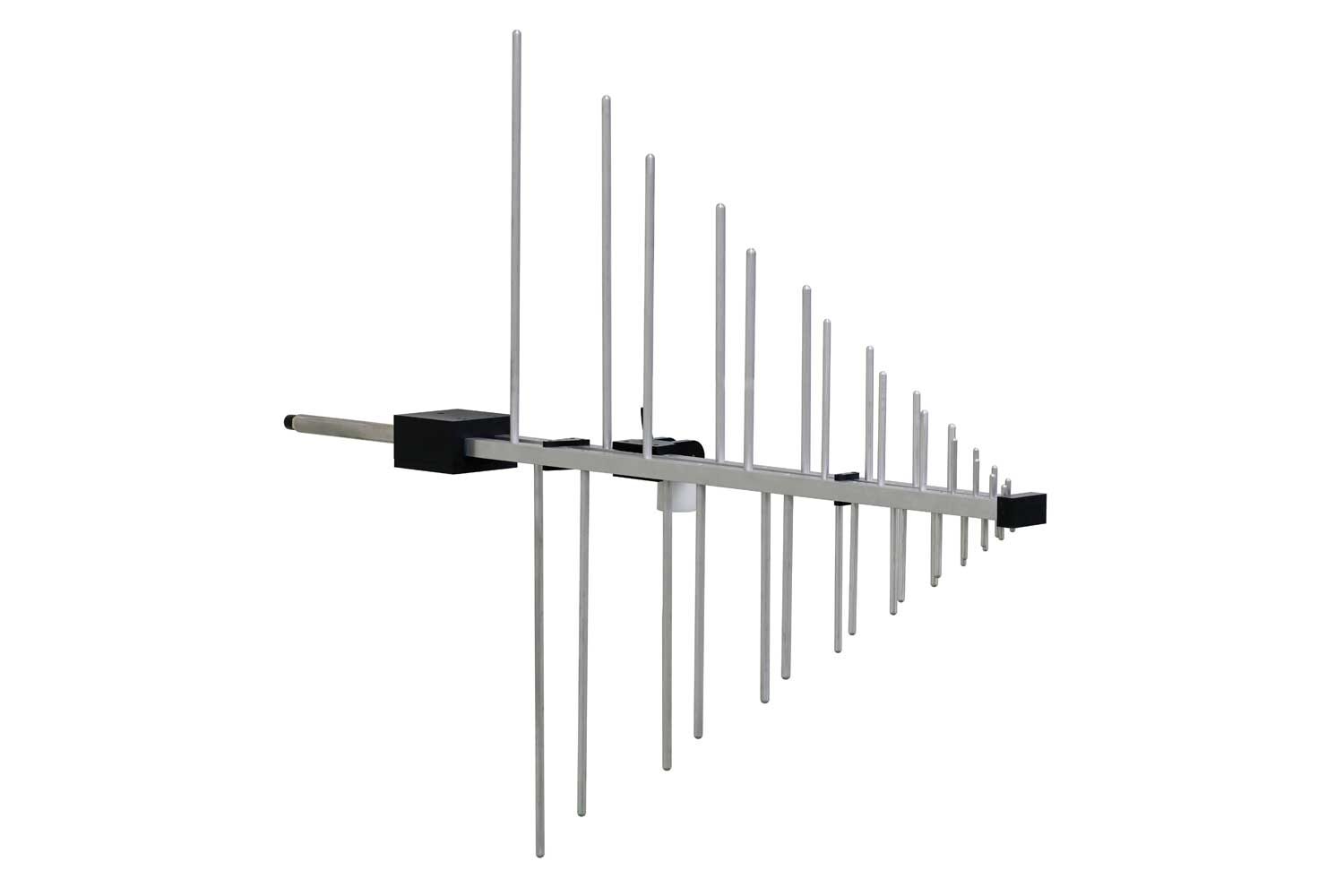

Tekbox TBMA7 150 MHz – 3000 MHz Log Periodic Measurement Antenna

£1193.00 (£1431.60 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBMA7 Categories: , , , , Brand:

Description


TBMA7 150 MHz – 3000 MHz Log Periodic Measurement Antenna

The TBMA7 is an affordable logarithmic-periodic measurement antenna, targeting radiated noise EMC precompliance testing.

The TBMA7 is characterized from 150 MHz to 3000 MHz and has VSWR and antenna factor values typical for logarithmic-periodic measurement antennas.

The TBMA7 is an average sized logarithmic-periodic antenna, with its radiating elements and supporting booms made from aluminum alloy. It is equipped with a standard female N-connector and comes together with an antenna bracket and a mounting adapter. A standard ¼” thread on the bottom of the mounting adapter makes it easy to connect it to most standard tripods.

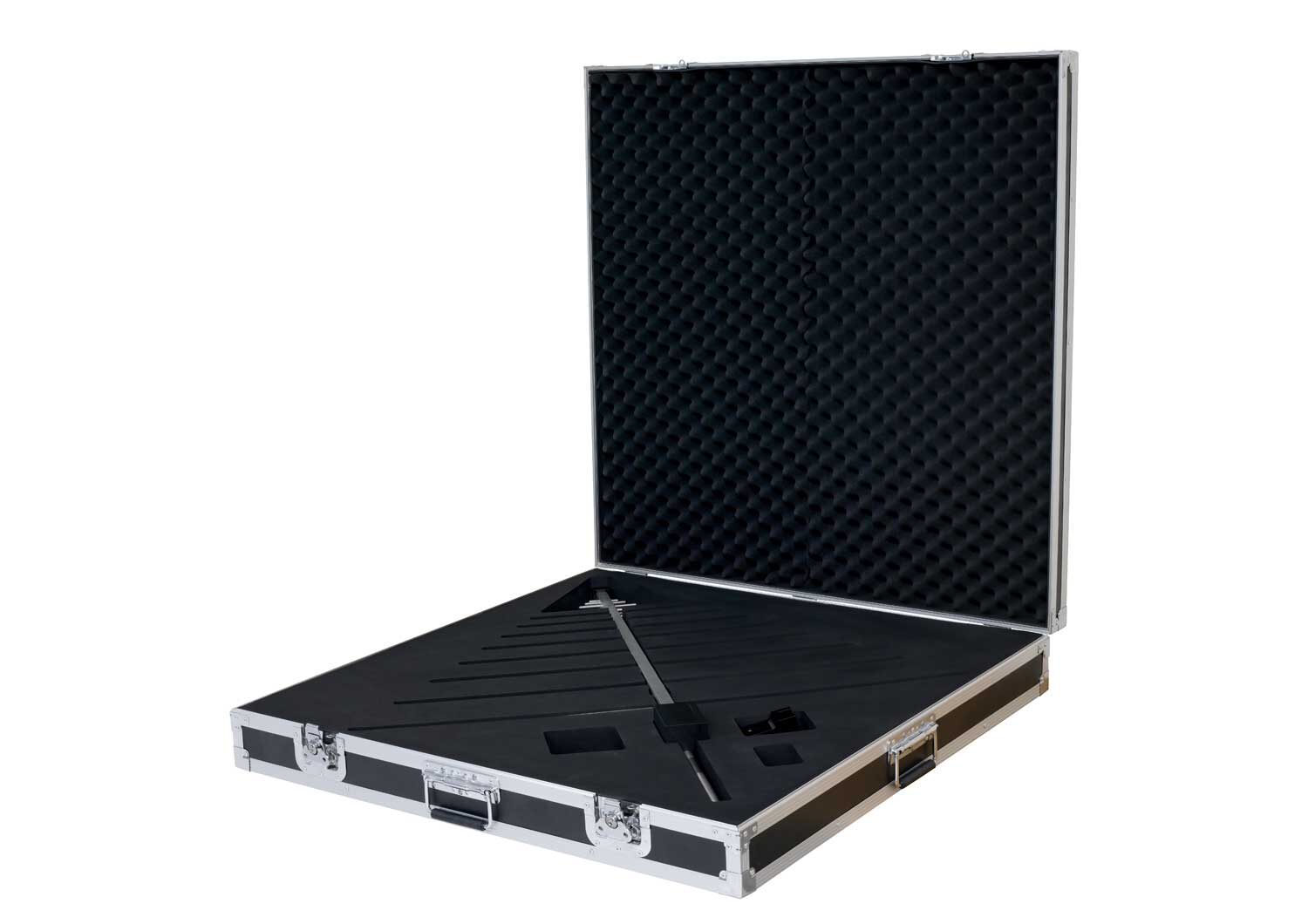

The TBMA7 is shipped in a robust carrying case, as pictured above.

Documentation

Documents: LNAs TBLNA-9K30 Manual Documents: Measurement Antennas TBLLA-2M Manual TBMA11 Manual TBMA12 Manual TBMA1B Manual TBMA1C Manual TBMA2 Manual TBMA3 Manual TBMA4 Manual TBMA5B Manual TBMA6 P Manual TBMA7 Manual TBMA8 Manual Documents: MIL-STD-461 Antennas TBMA9 Manual TBRE101 Manual TBRS101 Manual
Specification Type Logarithmic Periodic Antenna
Frequency Range 150 MHz – 3000 MHz
VSWR < 2.1:1 over the entire frequency range; 1.3:1 average
Isotropic Gain at 3m Spacing 1.5 – 8 dBi
Antenna Factor at 3m Spacing 10 – 34 dB/m
Maximum Continuous Input RF Power 130 W
Nominal Impedance 50 Ω
RF Connector N type female
Mounting Tiltable adapter at center of gravity with ¼” tripod thread; 22 mm diameter mounting shaft (tube)
Mechanical Dimensions (L x W x H) 1133 mm x 940 mm x 100 mm (44.6” x 37” x 3.94”)
Weight 2.9 kg (6.39 lbs)
